  Description

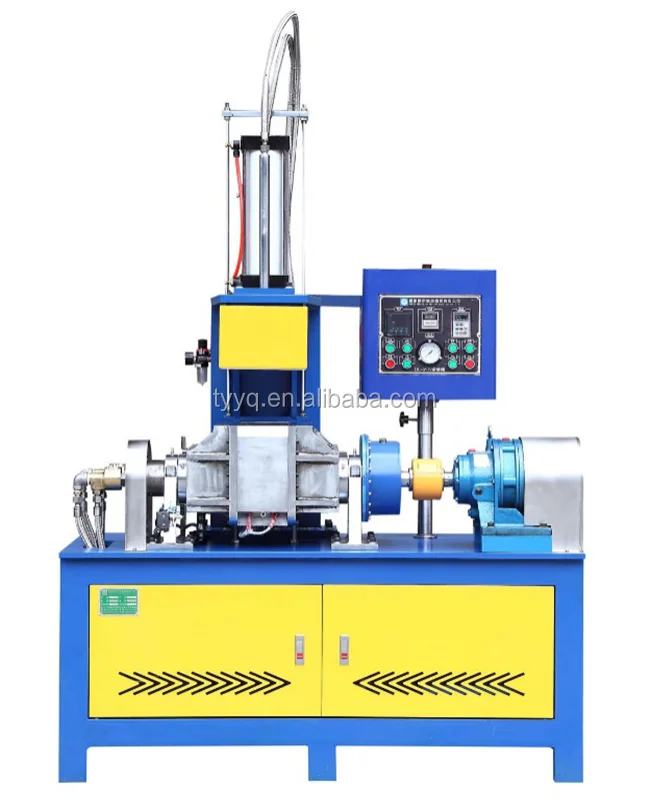

  This machine is mainly used for mixing rubber, plastic and chemical raw materials, also suitable for mixing all kinds of high and low viscosity materials.

The machine is equipped with PLC programmable liquid crystal display, man-machine interface operating system, curve display temperature, time, torque close relationship. The mixing process is completed automatically.

PLC touch screen with USB interface can be connected to the computer control and data extraction, simple operation, energy saving and efficient, suitable for manufacturers and laboratories and scientific research units of the raw material formula research and development and research determination.

Specification

Capacity

1L

Temperature Range

RT~300℃

Heating mode

electric heat pipe

Heating power

2.4KW

Control Device

PLC programmable color touch screen, man-machine interface, can set all process parameters

Discharging manner

Invert the motor and dump

Tilt Range

110°

Rotor speed ratio

1:1.27

Rotor speed

0-80rpm frequency converter speed regulating

Rotor material

SKD chromium-molybdenum alloy

Rotor hardness

HRC60 hard chrome surface

Mixing chamber

SKD chromium-molybdenum alloy material, inner surface hardness HRC60 mirror hard chromium

Top weight

full pressure pneumatic, air source pressure 0.5-0.8mpa (customer's self-provided air source interface)

Cooling mode

external 30L water tank

Main motor

3KW

Flip motor

0.75kw

Dimension

950X520X900mm

Power

3 ,AC380V, 22A, 3 phase 5 wiring(Customer prepare power connection)

Weight

620kg



Accessories:

1set of inner corner tools;

1pc of user manual and 1pc of quality card;
