The light steel villa keel/house framing machine can meet the manufacturing needs of all frame keels of low-rise single family or conjoined building frames (including walls, floor Beams and roof trusses) with one click.

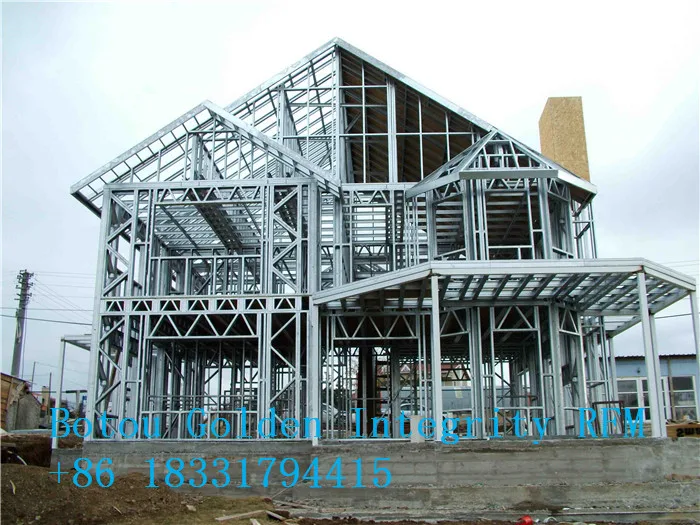

The frame keel system manufactured by it can be compatible with the existing brick-concrete structure, wood structure and heavy steel structure. Intelligent keel equipment cannot only be produced in the factory, but also can be placed in a container and transported to a remote construction site for onsite production. The cloud control intelligent system matched with this equipment is the intermediate link between design and production, the control center of the whole system, and the technical guarantee for realizing one-key full-digital production.
1. Components of Light Gauge Steel Framing House Making Machine with CAD Vertex BD
| NO. | Name | Quantity | ||
| 1 | Uncoil | 1 | ||
| 2 | Roll forming machine | 1 | ||
| 3 | Haydraulic puncher/cutter | 6 | ||
| 4 | Controlling system | 1 | ||
| 5 | Lable printer | 1 | ||
| 6 | Layout table | 1 | ||
| 7 | Hydraulic station | 1 | ||
| 8 | Design software | 1 | ||

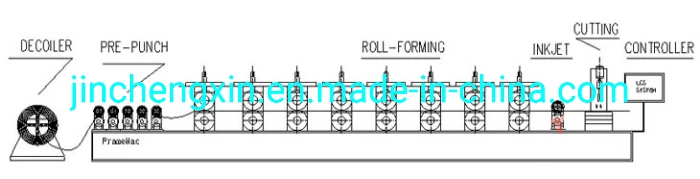

2. Working flow and layout of Light Gauge Steel Framing House Making Machine with CAD Vertex BD
Decoiling --- Levelling-----Punching ---- Roll Forming ----- Ink Code ----- Cutting ---- Profile

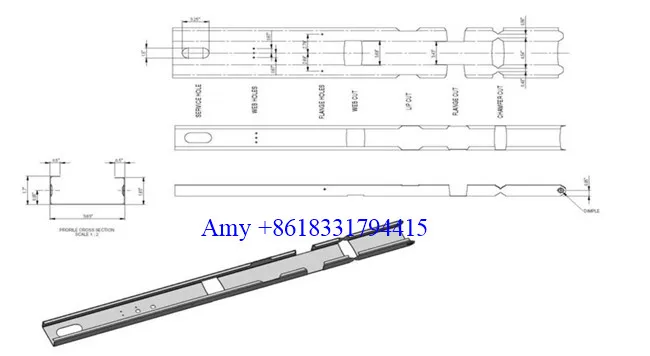

3. Profile Design:

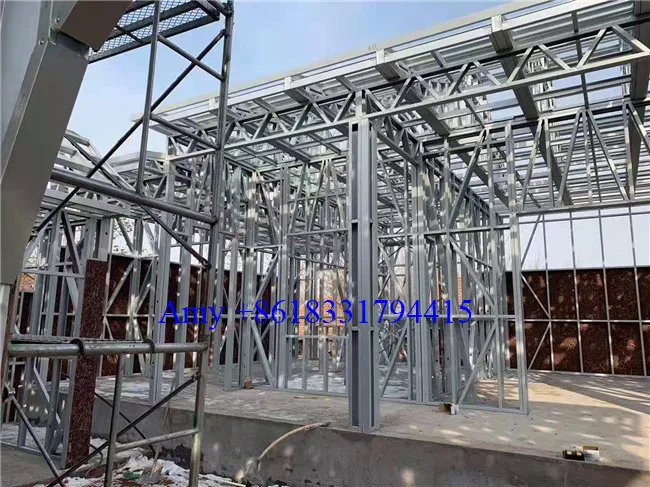

Application :
5.Machine Parameters of C89 LGS Light Gauge Steel Villa house structure Roll Forming Machine
| SPECIFICATIONS FOR F1-C89 LIGHT GAUGE STEEL FRAMING EQUIPTION | |
| Profile Size | 89 x 41 MM |
| Material Thickness | 0.75 - 1.2 MM ( G345 - G550 Zinc Plated, Aluminumzinc plated ) |
| Material Width | 182 MM |
| Design Software | Vertex BD |
| Profile Type | 1*C shape, 1*U Shape |
| Maximum Line Velocity | 2800 M / H |
| General Production Efficiency | 300 - 700 M /H |
| Decoiler | Auto with Servo Motor ; Power - 1.5 Kw ; Max load 2 Tons ; |
| Main Unit Power | 7.5 Kw |
| Hydraulic Power | 5.5 KW |
| Equipment Total Power | 14 Kw |
| Hydraulic Cylinder Volumn | 100 L |
| Adjustment of Oil Pressure | Computer setting |
| Main Unit Remote Control | Standard |
| Punching Dies | Dimple,Chamber cut,Web Notch,Lip Cut,Service Hole,Swage,Shear,Bolt hole |
| Product Accuracy | 0.5 MM |
| Inkjet Printer | dual print heads, waist height on both sides to print, inkjet content can be set |
| Machine Size | 4000 x 800 x 1200 MM |
| Machine Weight | 3000Kgs |
| Capacity Of Auto Decoiler | 3 T |
| Control system | Directly transfer the design parameters to the control computer through the USB interface or the network, import and automatically read the BOM documents by the NC control software installed in the computer, and then select the production batch after importing. |
| Origin of main parts PLC (Mitsubishi), relay (Schneider), length encoder (OMRON), servo motor (INVT) | |
3. Other details of C89 LGS Light Gauge Steel Villa house structure Roll Forming Machine:

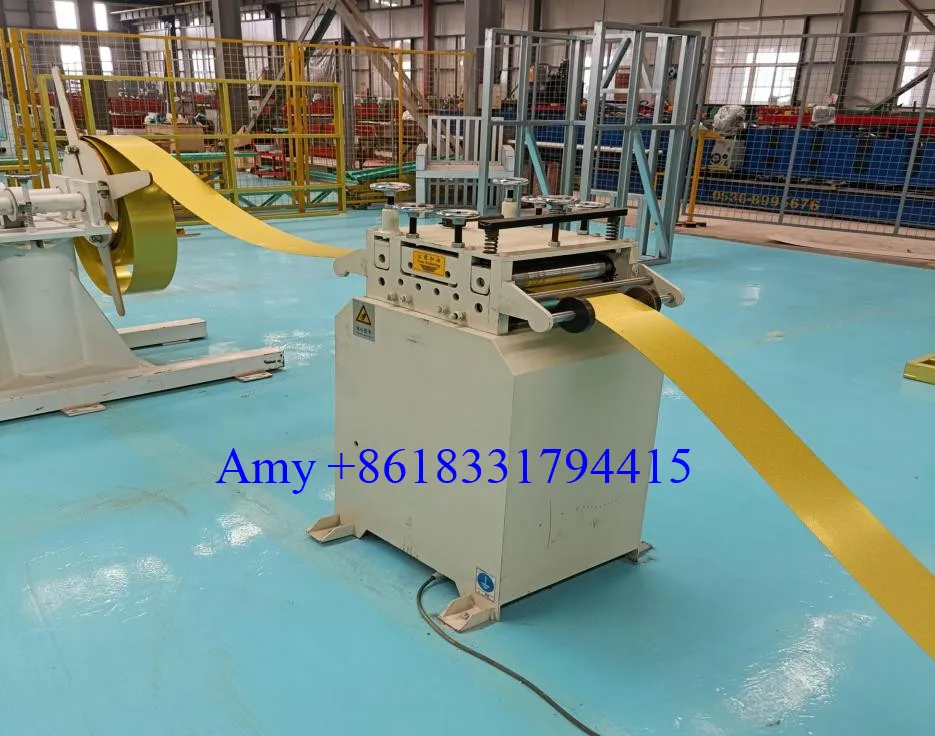

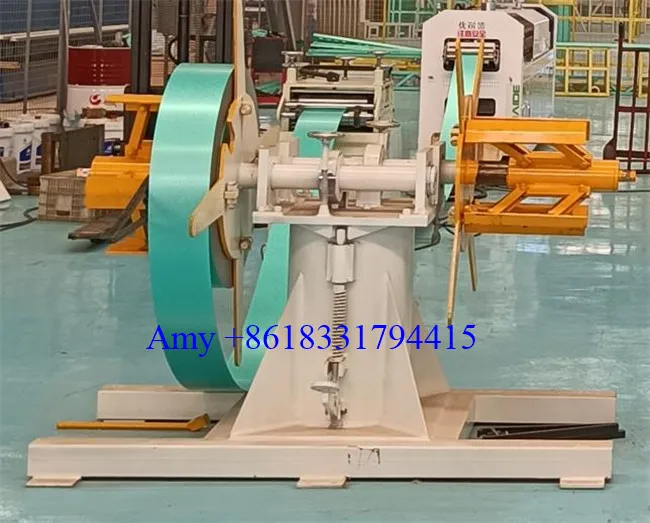

3.1 Decoiler vs leveller:

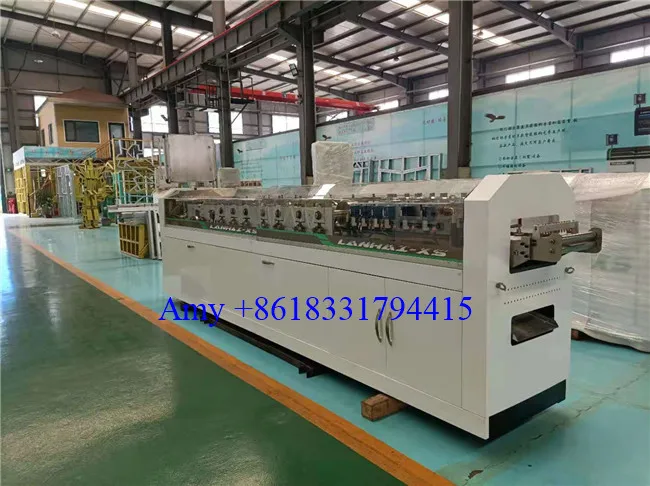

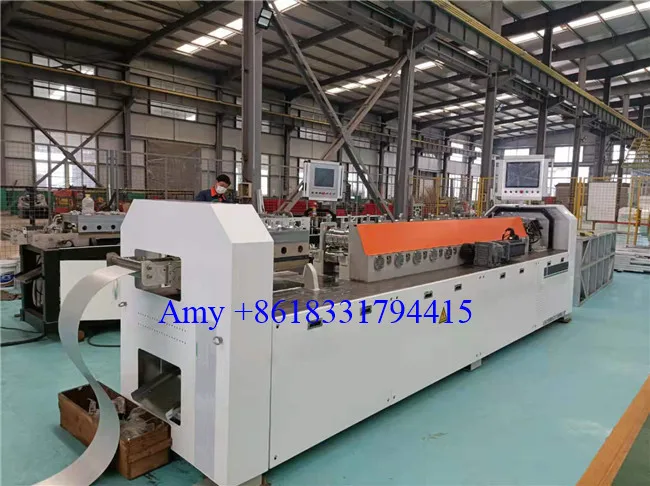

3.2 Picture of C89 LGS Light Gauge Steel Villa house structure Roll Forming Machine:

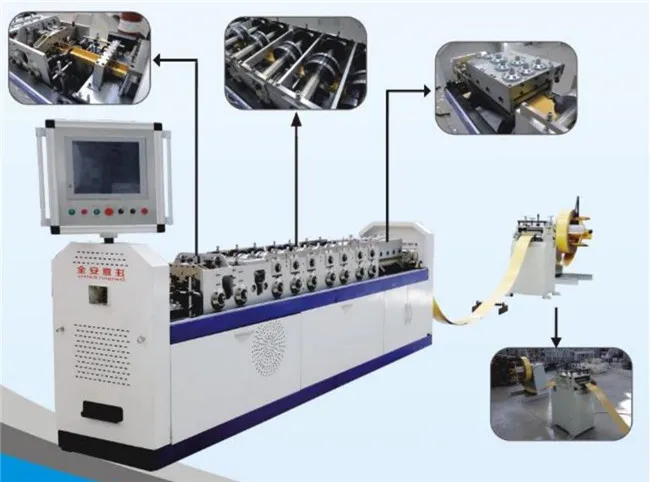

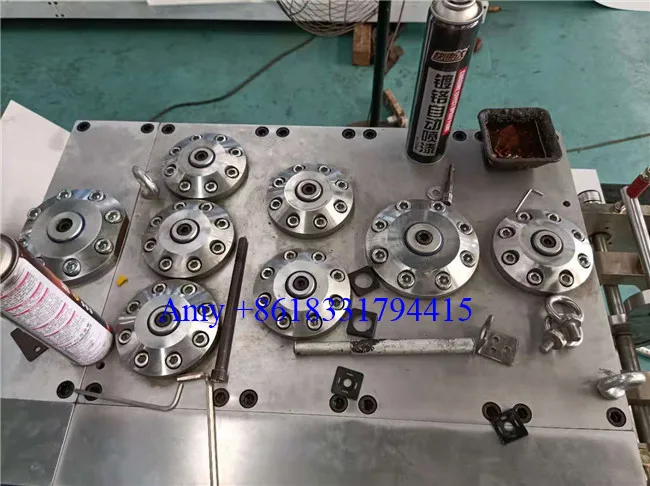

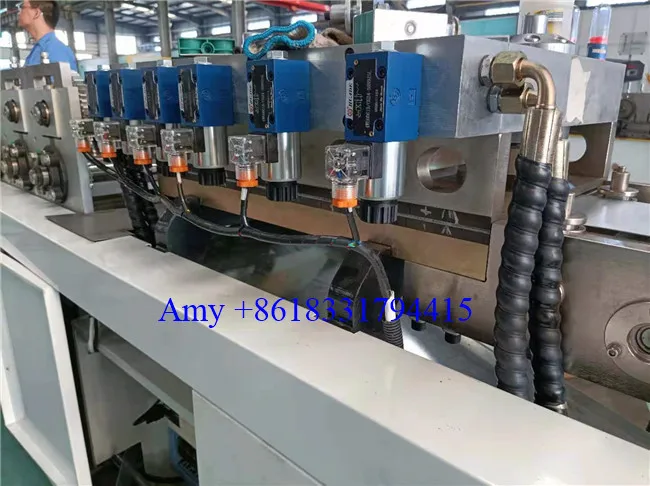

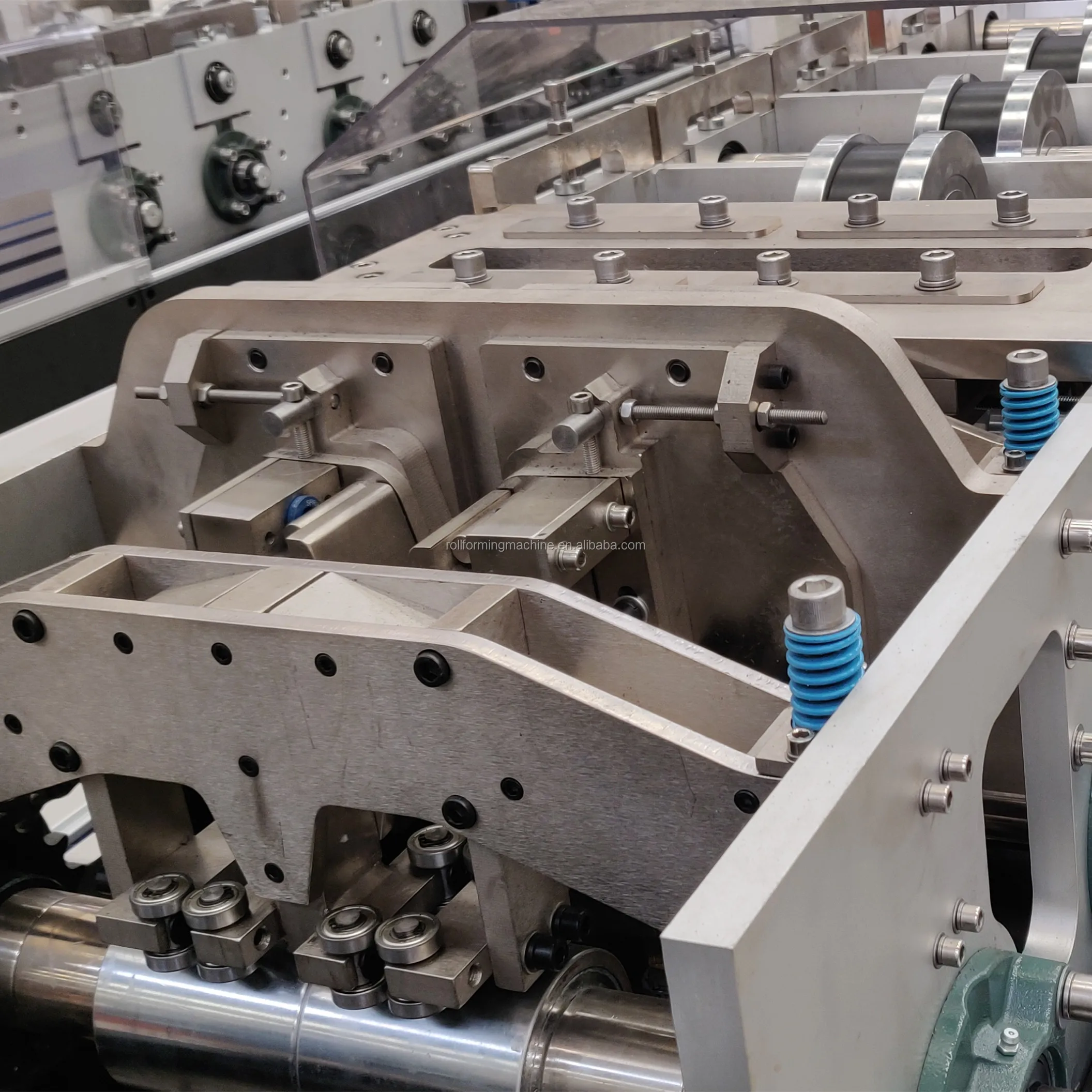

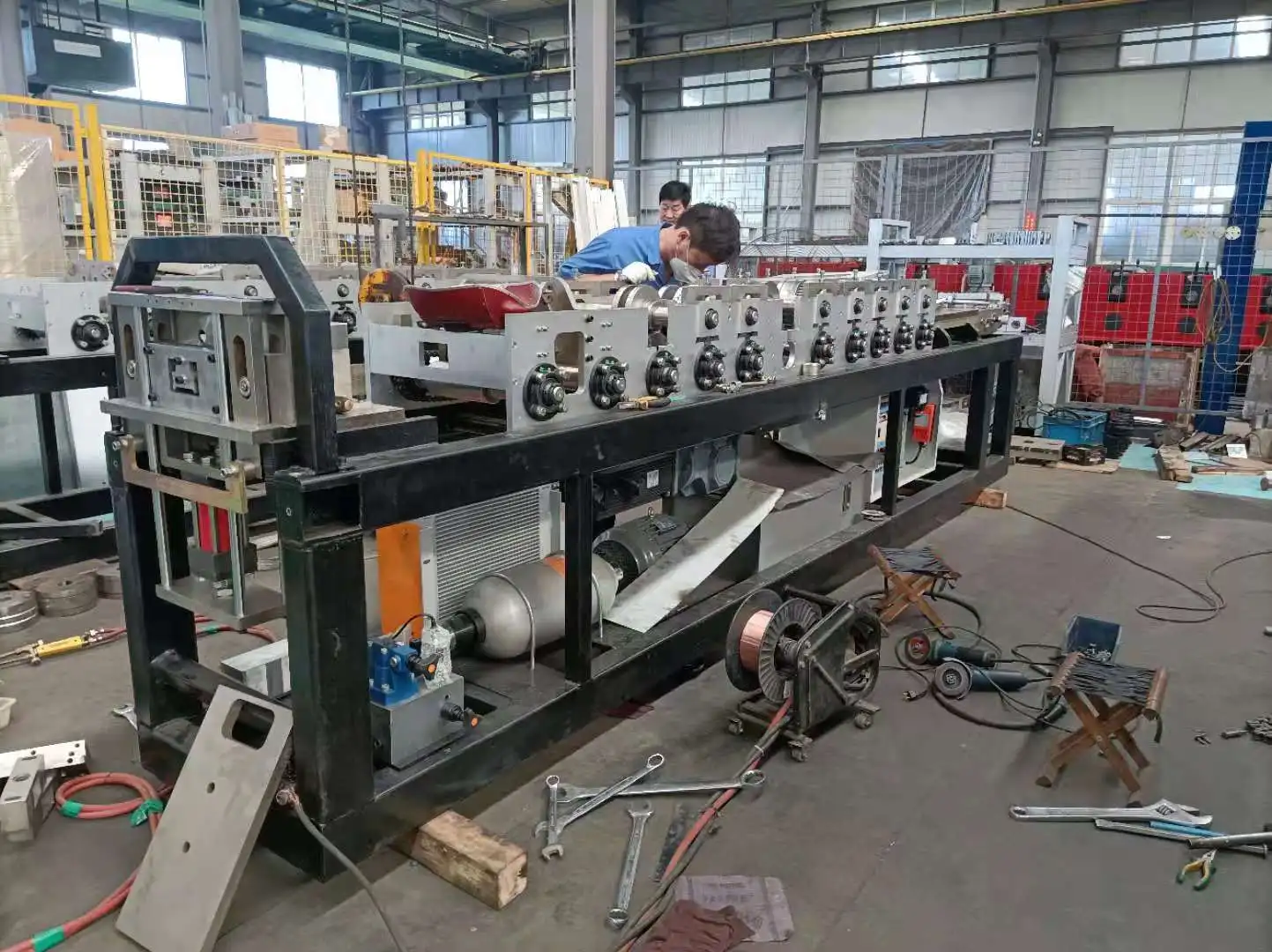

Machine Details of C89 LGS Light Gauge Steel Villa house structure Roll Forming Machine :
Company Information
Company Information
Contactor
Amy Zhao
Marketing Department
Add : Botou Golden Intergrity Roll Forming Machine Co., Ltd
Call : +86 18331794415 (whatsapp/Skype)
Email : sales1<@>zdywjx.com
