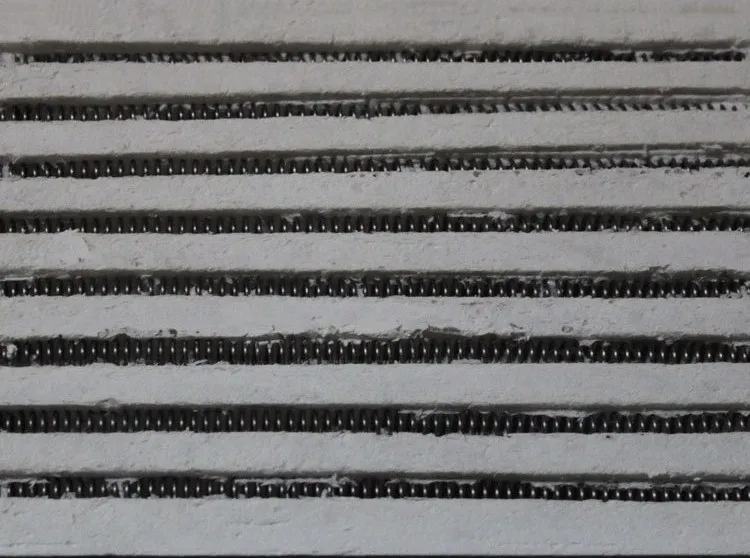

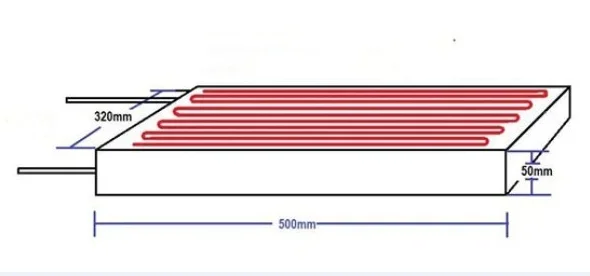

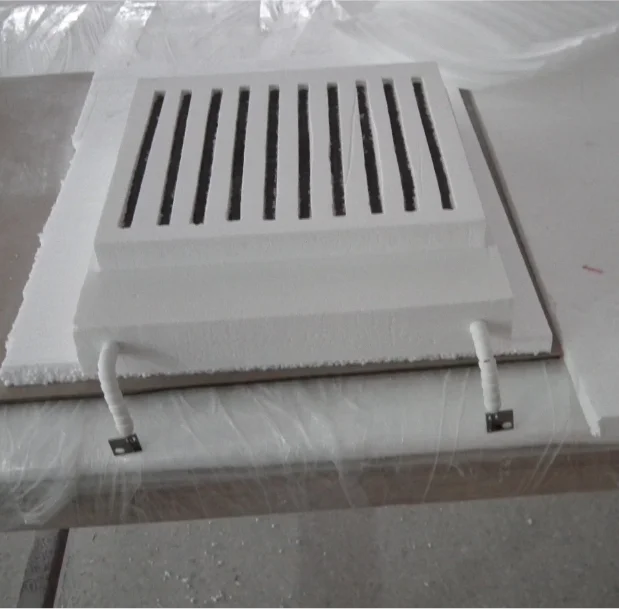

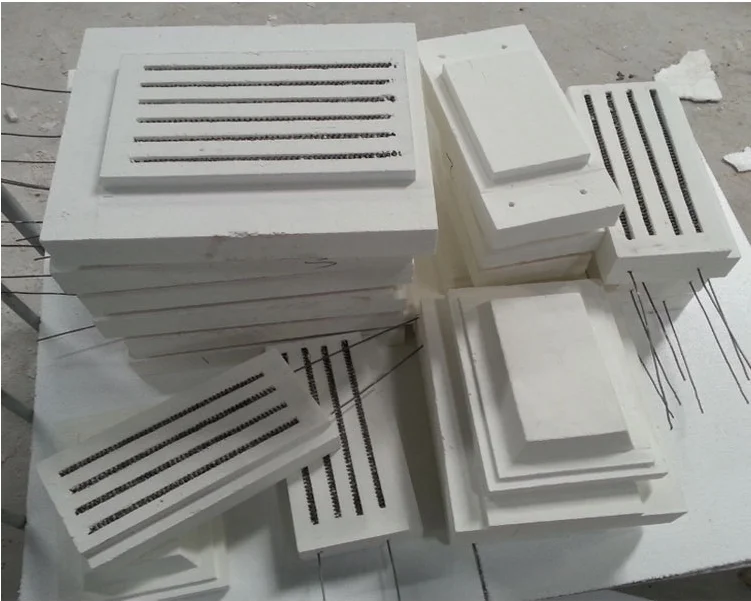

DuoPu индивидуальные 1050-1800C керамические волокна огнеупорная изоляционная доска с сопротивлением провода для стеклянной
- Категории: Ceramic Fiber Boards >>>
- Поставщик: Yancheng,DUOPU,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

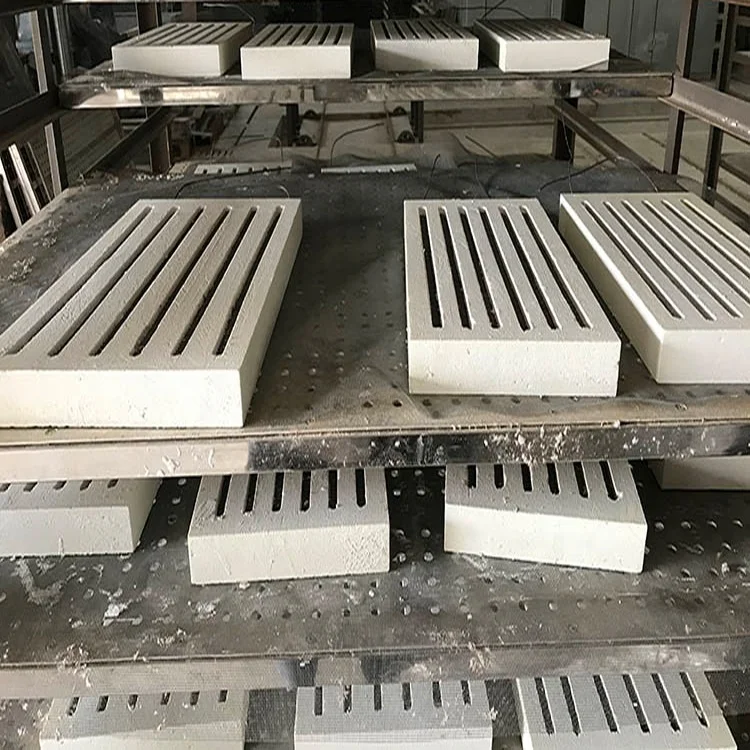

Ceramic Fiber Board
Ceramic Fiber Boards are high performance insulation products manufactured from ceramic fiber bulk and binders, with unique shot removing and vacuum forming process, they offer low thermal conductivity, high temperature stability, uniform density, and excellent resistance to thermal shock and chemical attack.
Product Feature
The ceramic fiber board is an aluminum silicate fiber board, a refractory material.
A fiber insulation product that is rigid and has support strength compared to fiber blankets and felts, even if ceramic fiber insulation board maintains good mechanical strength after heating.
Ceramic Fiber Board Features
> Excellent wind erosion resistance
> Non-brittle material, good toughness
> The size is accurate, the flatness is good
> Low heat capacity, low thermal conductivity
> High compressive strength and long service life
> Easy to cut and install, convenient construction
> Continuous production, uniform fiber distribution and stable performance
> Non-brittle material, good toughness
> The size is accurate, the flatness is good
> Low heat capacity, low thermal conductivity
> High compressive strength and long service life
> Easy to cut and install, convenient construction
> Continuous production, uniform fiber distribution and stable performance
> Contains no asbestos
> Very low heat storage
> Light weight. Replaces heavy back-up insulation, less steel required

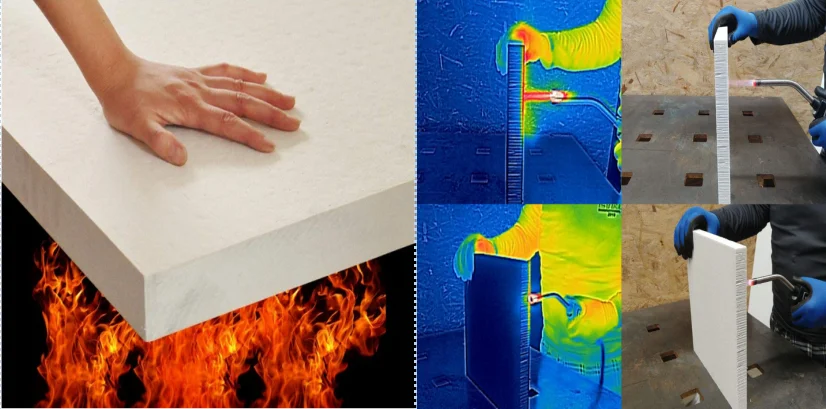

> Excellent thermal shock resistance
> Resistant to hot gas erosion
> Resists most chemical attacks
> Easy to cut, handle and install
> Low sound transmission
> Resists penetration by molten aluminium and other non-ferrous metals
> Light weight. Replaces heavy back-up insulation, less steel required
> Excellent thermal shock resistance
> Resistant to hot gas erosion
> Resists most chemical attacks
> Easy to cut, handle and install
> Low sound transmission
> Resists penetration by molten aluminium and other non-ferrous metals
Produktparameter
Ceramic Fiber Board Specification
Ceramic Fiber Board | RS1050 | RS1260ST | RS1260HP | RS1350HA | RS1430ZR | RS1600PMF | RS1700PMF | ||
Classification Temperature (℃) | 1050 | 1260 | 1260 | 1350 | 1430 | 1600 | 1700 | ||
Density Bulk (g/cm3) | 250-350 | 250-350 | 250-350 | 320-400 | 320-400 | 400-550 | 400-550 | ||
Liner Shrikage (24h) | ≤2.0(900 ℃) | ≤2.0(1000) ℃ | ≤2.0(1000 )℃ | ≤2.5(1100 )℃ | ≤3(1200 ℃) | ≤1.5(1400 ℃) | ≤1.5(1500℃) | ||
Flexrual Strength (Mpa) | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ≥0.5 | ||
Thermal Coductivity (W/M.K) | 400℃ | 0.08 | 0.084 | 0.084 | 0.084 | 0.084 | - | - | |
600℃ | 0.11 | 0.128 | 0.128 | 0.125 | 0.125 | 0.16 | 0.16 | ||
Ceramic Fiber Board Standard Sizes
Length(mm) | Width(mm) | Thickness(mm) | ||
1200 | 1000 | 6~100 | ||
1000 | 600 | 6~100 | ||
1100 | 700 | 6~100 | ||
900 | 600 | 6~100 | ||
1200 | 500 | 6~100 | ||
Other Specifications accroding to customer’s inquires | ||||
Product Application
> Aluminum slicate board used in non-ferrous metal industry backing insulation
> Aluminum slicate board used in the backing insulation of the heat treatment kiln
> Aluminum slicate board used in high temperature reaction, heating equipment backing insulation
> Aluminum slicate board used in backing insulation of kiln in cement and other building materials industries
> Aluminum slicate board used in furnace backing insulation in petrochemical, metallurgy, ceramics and glass industries
> Aluminum slicate board used in the backing insulation of the heat treatment kiln
> Aluminum slicate board used in high temperature reaction, heating equipment backing insulation
> Aluminum slicate board used in backing insulation of kiln in cement and other building materials industries
> Aluminum slicate board used in furnace backing insulation in petrochemical, metallurgy, ceramics and glass industries
> Refractory lining for industrial furnaces in walls , roofs, doors, stacks etc
> Combustion chamber liners, boilers and heaters
Back-up insulation for brick and monolithic refractories
> Transfer of molten aluminium and other non-ferrous metals
> Expansion board joints
> Barrier against flame or heat
> Hot face layer for high velocity or abrasive furnace atmosphere
> Combustion chamber liners, boilers and heaters
Back-up insulation for brick and monolithic refractories
> Transfer of molten aluminium and other non-ferrous metals
> Expansion board joints
> Barrier against flame or heat
> Hot face layer for high velocity or abrasive furnace atmosphere
Our Company

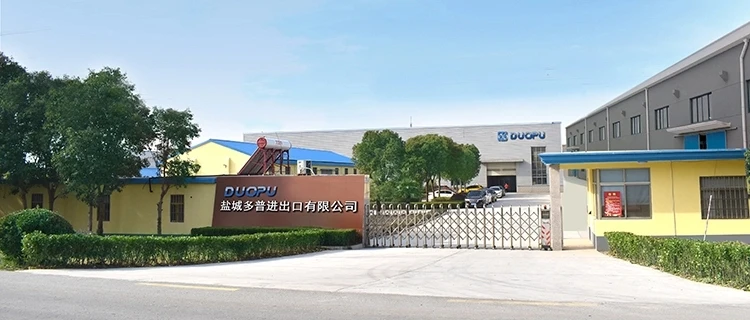

DuoPu Heater
Yancheng duopu import and export co., LTD is an international group company specializing in industrial heaters and electric heating components business for more than 20 years.The main products are: silicone rubber heater, ceramic heater, electric furnace heater, belt heater, casting heater, heating pipe, coil heater, infrared heater, bobbin heater, pizza oven.
About Certification
Our company is in strict accordance with the requirements of the quality management system and strictly controls and monitors each link and process of the production.Our products have achieved environmental certification ROHS and EU CE certification .
