Product Description
TPU Reinforced Tubing Red polyurethane Reinforcement Weather Resistant Fluid Transmission PU Braided hose | ||||

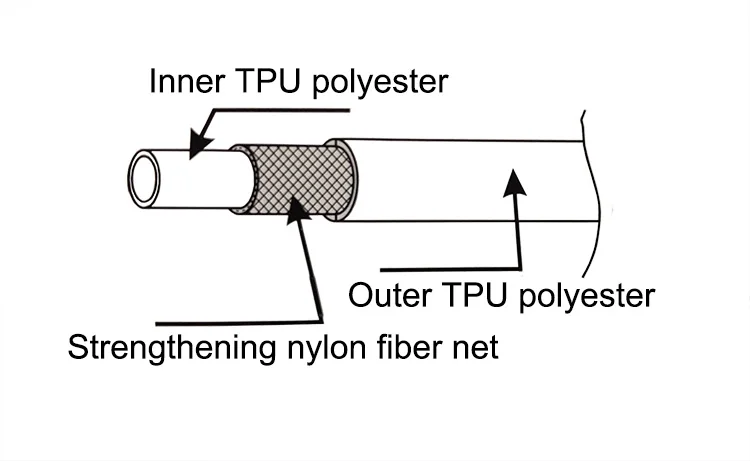

Material | PU Braided Hose is made of PU and polyester yam reinforced. It has the excellent pliability and the chemical properties, good anti-knocking property. | |||
Fluid | air, water or other liquid | |||
Burst Pressure | 60 bar | |||
Operation pressure | 15 bar | |||
Operating Temp | -20°C - +80°C | |||
Certificate | ISO, RoHs certificate | |||
Color | Standard color is Red, Blue, Black, Transparent, Yellow, and Orange etc. And other color available upon request. | |||
Performance | Working pressure is the single-layer PU hose 's 1.8 times. Non-toxic, tasteless, the service life is double the twice of simple PU hose. | |||
Feature
1. Excellent abrasion resistance, anti-knock.
2. Degree of hardness is stable, good antiknock characteristic.
3. Conform to ROHS environmental protection recognition.
4. Excellent chemical property, small pressure loss.
5. Degree of hardness is stable.
6. Excellent flexibility, the bevelling radius is small.
7. Degree of hardness is stable, good antiknock characteristic.
8. Tube surface is very soft and easy to wrist fatigue.
9. Tube is straight, not easy to tilt.
10. Due to enhanced line network, has good pressure, work efficiency.
2. Degree of hardness is stable, good antiknock characteristic.
3. Conform to ROHS environmental protection recognition.
4. Excellent chemical property, small pressure loss.
5. Degree of hardness is stable.
6. Excellent flexibility, the bevelling radius is small.
7. Degree of hardness is stable, good antiknock characteristic.
8. Tube surface is very soft and easy to wrist fatigue.
9. Tube is straight, not easy to tilt.
10. Due to enhanced line network, has good pressure, work efficiency.
Item No. | Size | Working Pressure | Disruptive Pressure | Bevelling Radius | Weight | ||||
I.D. | O.D. | Length | |||||||
mm | mm | M/Roll | Kgf/cm2 | Kgf/cm2 | mm | Kg/Roll | |||
Y-BPU0850 | 5 | 8 | 100 | 20 | 60 | 20 | 4.22 | ||
Y-BPU 1065 | 6.5 | 10 | 100 | 15 | 60 | 25 | 6.05 | ||
Y-BPU 1280 | 8 | 12 | 100 | 15 | 60 | 35 | 8.22 | ||
Y-BPU1410 | 10 | 16 | 100 | 15 | 60 | 45 | 10.2 | ||
Y-BPU 1612 | 12 | 16 | 100 | 15 | 60 | 60 | 11.5 | ||
Product use
1. Transport water or other liquid.
2. Industry robot, pneumatic tool.
3. Vehicles service and house painting.
4. Metal and electronic products protection coat.
5. Gardening automation and car brake hose, the gardening and the agricultural irrigation and so on.
2. Industry robot, pneumatic tool.
3. Vehicles service and house painting.
4. Metal and electronic products protection coat.
5. Gardening automation and car brake hose, the gardening and the agricultural irrigation and so on.
Company Profile
Dongguan YAYO Electronic Material CO., Limited
Dongguan YAYO Electronic Material CO., Limited is an innovative enterprise, which is specialized in design & developing, producing and marketing various plastic products.
We mainly produce all kinds of plastic hose, such as, Pneumatic hose, Cable Marker Tube, Corrugated Tube, Fire-resisting Sleeving Tube, Heat Shrink Tube. At present，our products are widely used in automation, mechanical equipment, automobiles and motorcycles, home appliance, electric heating equipment, lighting, electronic wiring harness, communication equipment, and petrochemical, steel, metallurgy, coal, power system and aerospace and other area etc.
Over the years, we have been adhering to the business philosophy of “integrity, innovation and excellence”, providing first-class products, high-quality services and efficient solutions for the majority of users. We also enjoys a good reputation in the industry, and have won support and trust from many internationally well-known enterprises at home and abroad.
“Excellent quality + competitive price + fast delivery + enthusiastic service + perfect management + customer satisfaction" is the eternal goal of all staff of our company. We welcome you to contact us for immediate inquiry anytime and look forward to working with you to achieve a better future!
We mainly produce all kinds of plastic hose, such as, Pneumatic hose, Cable Marker Tube, Corrugated Tube, Fire-resisting Sleeving Tube, Heat Shrink Tube. At present，our products are widely used in automation, mechanical equipment, automobiles and motorcycles, home appliance, electric heating equipment, lighting, electronic wiring harness, communication equipment, and petrochemical, steel, metallurgy, coal, power system and aerospace and other area etc.
Over the years, we have been adhering to the business philosophy of “integrity, innovation and excellence”, providing first-class products, high-quality services and efficient solutions for the majority of users. We also enjoys a good reputation in the industry, and have won support and trust from many internationally well-known enterprises at home and abroad.
“Excellent quality + competitive price + fast delivery + enthusiastic service + perfect management + customer satisfaction" is the eternal goal of all staff of our company. We welcome you to contact us for immediate inquiry anytime and look forward to working with you to achieve a better future!
Production workshop
Our Advantages
1.Selected superior materials
All tubes are produced consistently with 100% high purity raw materials, without any other materials, which have constant pressure and long service life.
2.Introduce advanced production technology and strict quality control system
Advanced equipment, produce by high-quality raw materials, and get rid of inferior tubes produced by recycled materials, in line with national regulations and industry standards. Comply with ROHS standard, ISO-9001 quality system certification.
3.Fast dispatch
Most of the products are in stock. Small order can be delivered within 15 days.
4.Small order accepted
Low MOQ accepted. 2 pcs are available freely.
5.Attentive pre-sales and after-sales service
My company has a strong technical team, all-weather provide convenient fast pre-sale and after-sale service and detailed engineering technical solutions.
All tubes are produced consistently with 100% high purity raw materials, without any other materials, which have constant pressure and long service life.
2.Introduce advanced production technology and strict quality control system
Advanced equipment, produce by high-quality raw materials, and get rid of inferior tubes produced by recycled materials, in line with national regulations and industry standards. Comply with ROHS standard, ISO-9001 quality system certification.
3.Fast dispatch
Most of the products are in stock. Small order can be delivered within 15 days.
4.Small order accepted
Low MOQ accepted. 2 pcs are available freely.
5.Attentive pre-sales and after-sales service
My company has a strong technical team, all-weather provide convenient fast pre-sale and after-sale service and detailed engineering technical solutions.
FAQ
Q1: Do you have your own factory ?
A1: Yes, we have, and have more than 10 years manufacture and sales experience.
Q2:Can you send us a sample to test quality before ordering?
A2:Yes,we can provide free sample but the freight and other charges is paid by customers.
Q3:What are your terms of payment
A3:T/T, Western Union, PayPal are applicable for us.
Q4 : Can you make customized products and customized packing?
A4: Yes. We made a lot of customized products for our customer before. And we made many moulds for our customers already. About customized packing, we can put your Logo or other info on the packing. There is no problem. Just have to point out that ,it will cause some additional cost.
Q5 : What about your delivery time?
A5: We have a lot of products in stock. We can send the stock products within 3 work days.If without stock, or stock is not enough, we will check the delivery time with you. But specific time should be based on the order quantity.
Q6:How does your factory do the quality control?
A6:It's important for us to control quality from material selection to package, we will check the quality before shipping by our QC.
Any requirements or question, welcome to "Send"us an e-mail Now!!!
It's our great honor to do services for you! You also can get the FREE SAMPLES soon.
A1: Yes, we have, and have more than 10 years manufacture and sales experience.
Q2:Can you send us a sample to test quality before ordering?
A2:Yes,we can provide free sample but the freight and other charges is paid by customers.
Q3:What are your terms of payment
A3:T/T, Western Union, PayPal are applicable for us.
Q4 : Can you make customized products and customized packing?
A4: Yes. We made a lot of customized products for our customer before. And we made many moulds for our customers already. About customized packing, we can put your Logo or other info on the packing. There is no problem. Just have to point out that ,it will cause some additional cost.
Q5 : What about your delivery time?
A5: We have a lot of products in stock. We can send the stock products within 3 work days.If without stock, or stock is not enough, we will check the delivery time with you. But specific time should be based on the order quantity.
Q6:How does your factory do the quality control?
A6:It's important for us to control quality from material selection to package, we will check the quality before shipping by our QC.
Any requirements or question, welcome to "Send"us an e-mail Now!!!
It's our great honor to do services for you! You also can get the FREE SAMPLES soon.
Packaging & Delivery
Packaging Detail: standard export packing or do as you need
Delivery Detail: 7-15 days according to your exact order quantity
Delivery Detail: 7-15 days according to your exact order quantity
