Product Description
15m long range ultrasonic fuel level gauge milk level sensor
The ultrasonic level meter owning the advantage of perfect level monitoring, data transmission, and man-machine communication. The CPU applies industrial monolithic integrated circuit, digital temperature compensation, etc ASICs. You can select analog, switch output, RS485 series signal output. It’s applicable for various fields concerning level measuring and monitoring, and no need to contact the measured liquids.
Technical Parameters
Model | HDL700-B1 | HDL700-C1 | HDL700-D1 | HDL700-B2/C2/D2 | |||
Type | Integrated type | Split type | |||||
Measuring range (meter) | 1m, 2m Small blind area | 5m, 8m, 10m, 15m Standard Type | 20m, 25m, 30m, 40m Max | 0.06-40m (Optional) | |||
Blind area | <0.06-0.15m (Different for ranges) | ≤0.25～2m (Different for ranges) | ≤0.25～2m (Different for ranges) | 0.3-2m（Different for ranges） | |||
Angle beam | <6° | <10° | <10° | <12° | |||
Accuracy | ±0.3%F.S | ±0.3%F.S | ±0.3%F.S | ±0.3%F.S | |||
Display | 1)No display 2)Display : LCD, LED, OLED(Optional) | LCD , TFT (Optional) | |||||
Power supply | DC12—28V,AC220V(Optional) | ||||||
Electric connection | PG7 | M20*1.5 | M20*1.5 | PG7,M20*1.5 (Optional) | |||
Process connection | G 1 1/2 (1m,2m ) M60*2 (5m-15m ) DN 80 flange connection (20m-40m) (Optional) | ||||||
Output signal | Analog output:0-20mA; 4-20mA; 0-5V; 0-10V Digital output:RS485 (Mod_bus) Switch output : PNP/Relay output | ||||||
Housing material | ABS,nylon,Cast aluminum, SS304 (Optional) | ||||||
Protection grade | IP65(Customized for IP67, IP68) | IP66(Customized for IP67,IP68) | |||||
Explosion-proof | N/A, Explosion-proof (Optional) | ||||||
Corrosion-proof | N/A, Explosion-proof (Optional) | ||||||

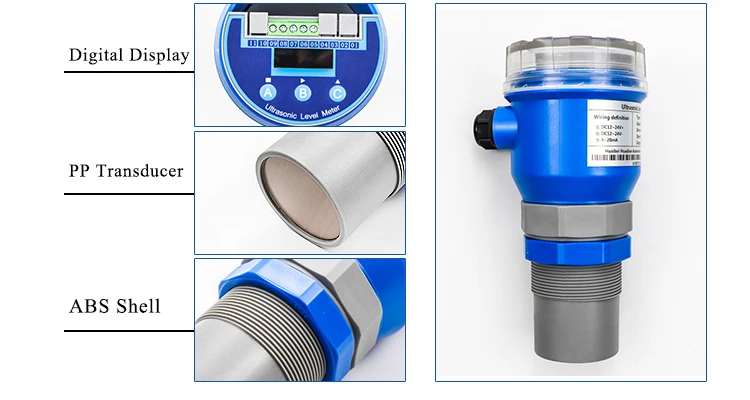

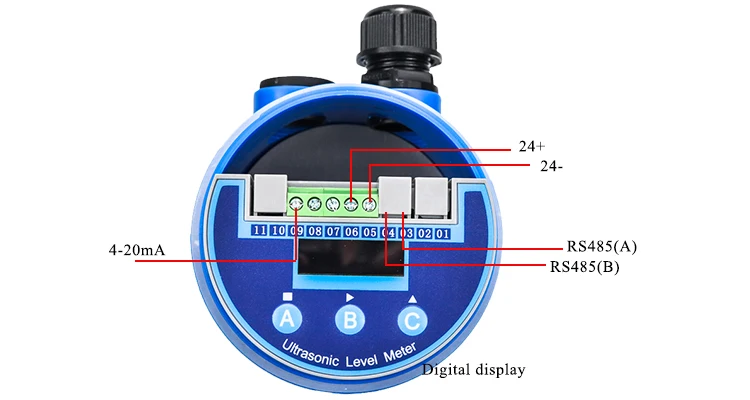

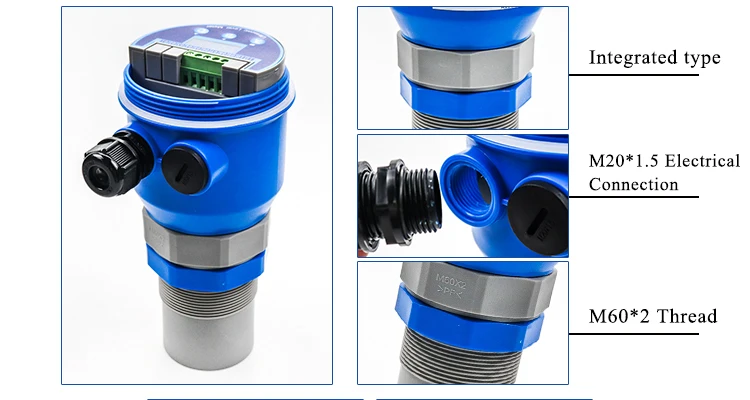

Detailed Images

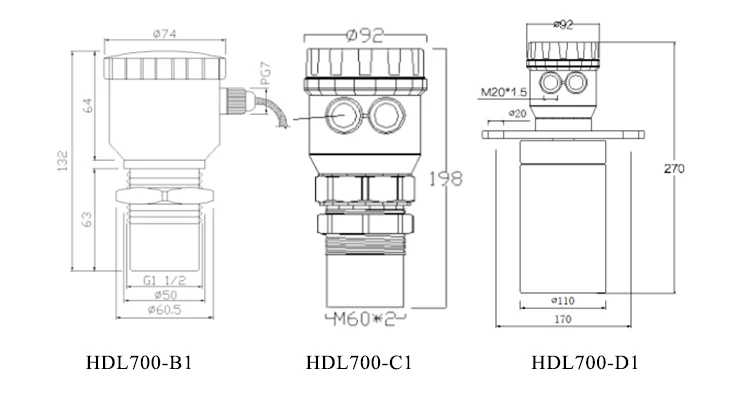

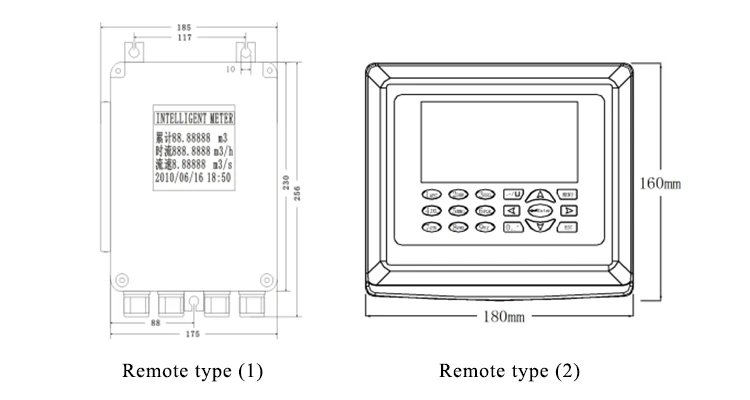

Size Information

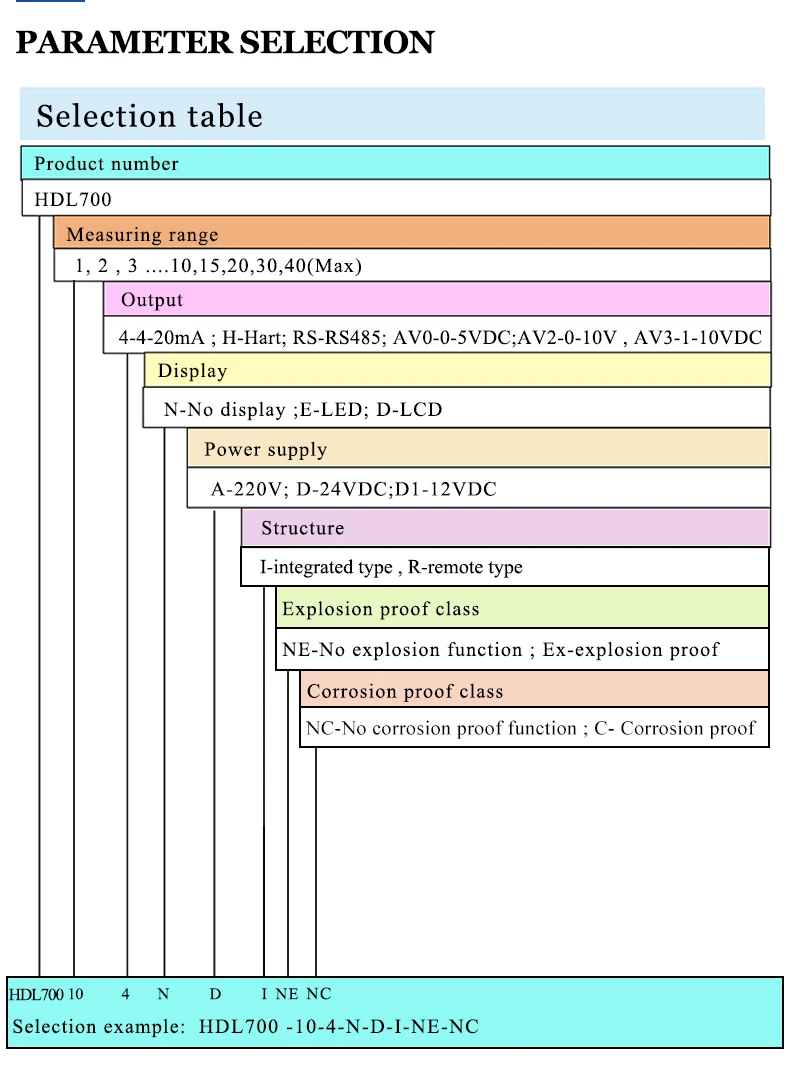

Selection Table
Company Introduction
Packing&Shipping

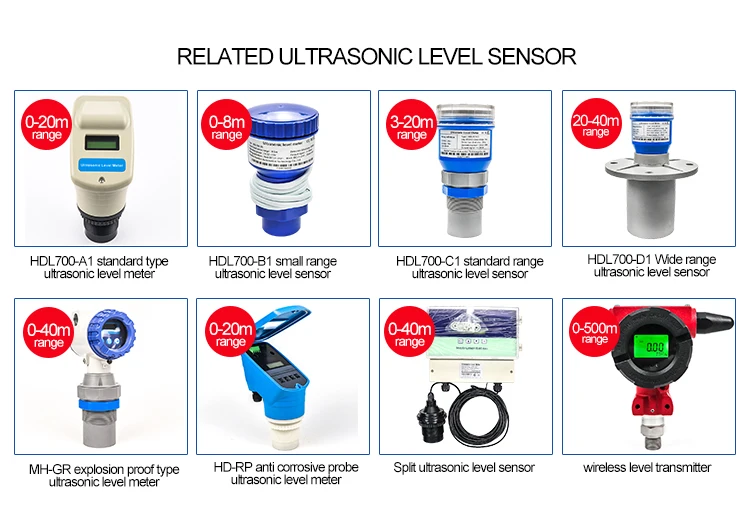

Related Products
