Низкопрофильный гидравлический динамометрический ключ для цементного
- Категории: Другие гидравлические инструменты >>>
- Поставщик: Jiangsu,JOBA,Mechanical,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

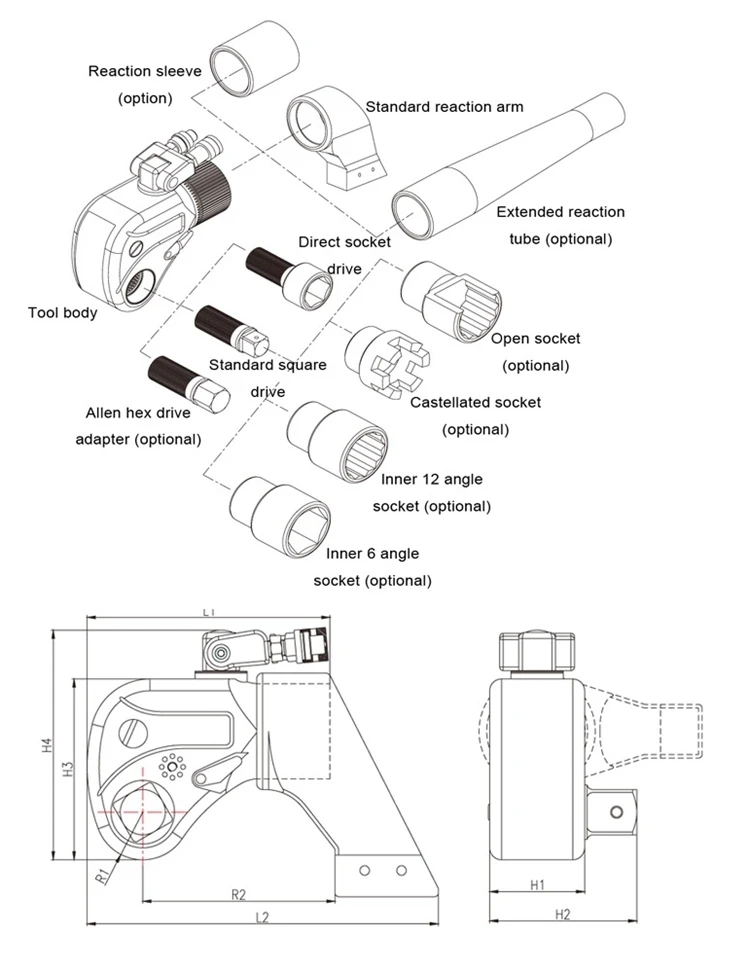

Type | 1MXTD | 3MXTD | 5MXTD | 8MXTD | 10MXTD | 15MXTD | 20MXTD | 25MXTD |
Torque range (Nm) | 185 1852 | 436 4364 | 779 7789 | 1072 10715 | 1553 15528 | 2050 20501 | 2617 26171 | 3493 34928 |
Weight (Kg) | 2.7 | 4.8 | 8.8 | 12 | 14.5 | 19 | 25 | 37.5 |
L1(mm) | 138 | 168 | 207 | 226 | 250 | 281 | 304 | 331 |
L2(mm) | 194 | 244 | 296 | 326 | 366 | 402 | 442 | 483 |
H1(mm) | 50 | 70 | 80 | 90 | 100 | 112 | 120 | 138 |
H2(mm) | 73 | 90 | 124 | 133 | 143 | 165 | 183 | 202 |
H3(mm) | 96 | 125 | 152 | 170 | 186 | 208 | 226 | 250 |
H4(mm) | 140 | 165 | 193 | 211 | 227 | 249 | 267 | 291 |
R1(mm) | 26 | 34 | 40 | 46 | 50 | 56 | 60 | 66 |
R2(mm) | 107 | 132 | 162 | 178 | 199 | 218 | 240 | 260 |
Square drive | 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2" | 2-1/2" | 2-1/2" |
Product Details

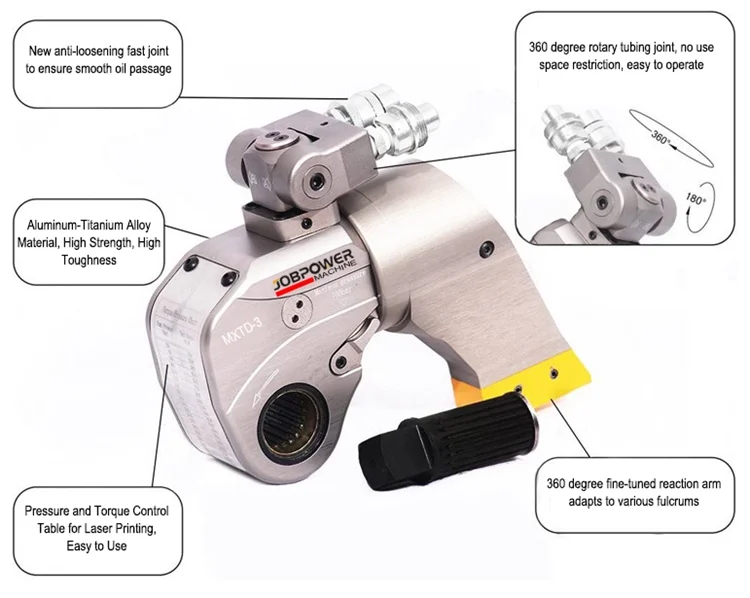

Characters
1.High strengthen aluminium-titanium alloy body.
2.700 bar maximum working pressure,Repeat accuracy ±3%.
3.360° multi-positional swivel quick release couplings.
4.Working with the high resistance sockets, suitable for more size of screws.
5.360°Adjustable reaction arm with safety lock feature, can be used without reaction arm.
1.High strengthen aluminium-titanium alloy body.
2.700 bar maximum working pressure,Repeat accuracy ±3%.
3.360° multi-positional swivel quick release couplings.
4.Working with the high resistance sockets, suitable for more size of screws.
5.360°Adjustable reaction arm with safety lock feature, can be used without reaction arm.
How to Choose Hydraulic Wrench
1.Drive type hydraulic wrench is usually selected
2.Limited use of space, the choice of hollow hydraulic wrench
3.Trial space is particularly limited, the choice of ultra-thin hydraulic wrench
4.If the bolt is too long, choose bolt stretcher
1.Drive type hydraulic wrench is usually selected
2.Limited use of space, the choice of hollow hydraulic wrench
3.Trial space is particularly limited, the choice of ultra-thin hydraulic wrench
4.If the bolt is too long, choose bolt stretcher
