Products Description

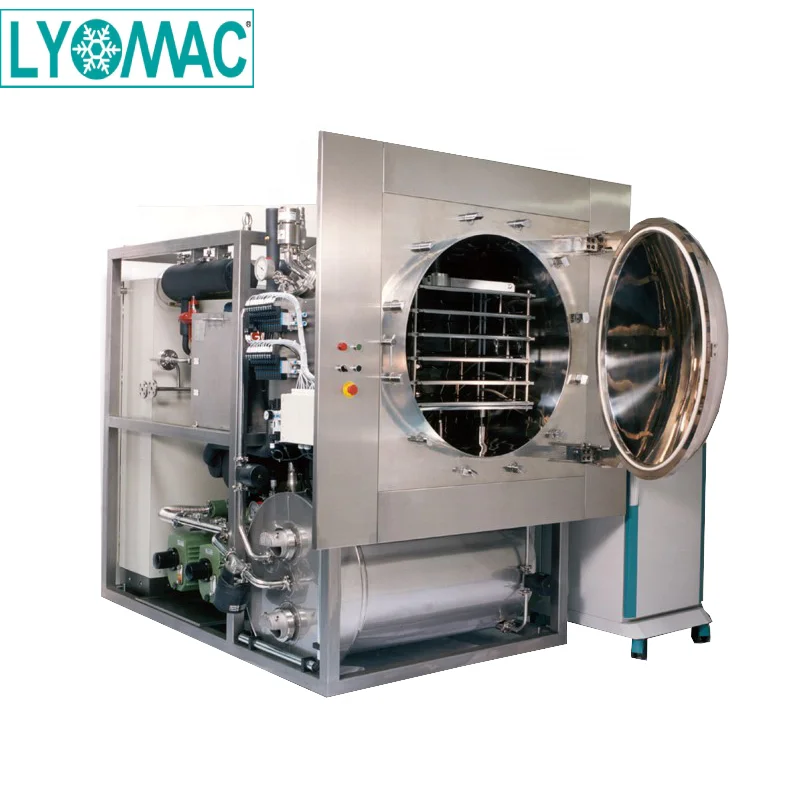

Pilot freeze dryer
The Pilot model freeze dryer with drying capacity up to 150L liters,Cover most demand for vial or other material commercial production,comliance with latest regulation. More optional systems available,Main feature are:
◆Intergrated design,compact and easy install
◆Automatic shelf stoppering under vacuum
◆Automatic control for freeze drying,SIP and CIP
◆Intergrated design,compact and easy install
◆Automatic shelf stoppering under vacuum
◆Automatic control for freeze drying,SIP and CIP
◆Scada control system comliance with GAMP regulation and save up to thousand recipes
◆Shelf flatness less than1.0mm,temperature uniformity less than 1C.
◆Environment friendly refrigerant
◆Flexible arrangement design,suit user's plant layout,thus space saved
◆Shelf flatness less than1.0mm,temperature uniformity less than 1C.
◆Environment friendly refrigerant
◆Flexible arrangement design,suit user's plant layout,thus space saved
Application
lyophilized injections
Vaccine,hormone,etc
Biological products.
diagnosis,blood plasma,cosmetics.etc
Freeze Dried Nutrition,Food,Fruits.etc.
Protein,Probiotics,fruits, Food suppyments .etc
Specification List
Model | LYOPRO-1.0 | LYOPRO-2.0 | LYOPRO-3.0 | LYOPRO-5.0 | LYOPRO-7.5 |
DRYING CAPACITY | 20 | 40 | 60 | 100 | 150 |
SHELF AREA | 1.08 | 2.16 | 3.24 | 5.40 | 7.56 |
SHELF QUANTITY | 4 | 4 | 6 | 5 | 7 |
Vial Loading Quantity(φ16/22) | 4400/2200 | 9000/4500 | 14000/7500 | 20000/10000 | 32000/16000 |
Shelf Ultimate cooling temperature(C) | -55 | -55 | -55 | -55 | -55 |
Condenser Ultimate cooling temperature(C) | -75 | -75 | -75 | -75 | -75 |
Ultimate Vacuum | ≤1PA | ≤1PA | ≤1PA | ≤1PA | ≤1PA |
Installation Diemension(mm) | 3000*1400*2200 | 3200*1500*2200 | 4000*1500*2200 | 4500*1750*2200 | 5000*1750*2400 |
Weight(Kg) | 2000 | 3500 | 4500 | 7500 | 8500 |
Power(KW) | 18 | 22 | 28 | 40 | 52 |
* Sub door: Build on front of chamber.Operated automatically.
* CIP (cleaning in place) and SIP (Sterilization in place) system.
* Computer based SCADA system, all data can be recorded by table or curve type, easily print out for preservation.
* Adjustable shelf space mechanism.
* Vial stoppering system.
* CIP (cleaning in place) and SIP (Sterilization in place) system.
* Computer based SCADA system, all data can be recorded by table or curve type, easily print out for preservation.
* Adjustable shelf space mechanism.
* Vial stoppering system.
Our Advantages
Advanced technology on Freeze dryer.
>>>Energy saving function(motor switch over, Inverter control)
>>>Auto alarm and mail to user
>>>Eutectic online determine function
>>>Precaution for maintenance
>>>Critical system backed up, auto change..(compressor, vacuum pump, circulation pump etc.)
More customer satisfied service
>>>Preventive maintenance service on warranty period
>>>AMC service of all machine life
>>>Understand all brand freeze dryer service
>>>Retrofit service and spare parts
More understanding of regulation in fabricating
>>>Separate ss with carbon steel stock
>>>Separate tool for ss and carbon steel
>>>No scratch on ss board.
>>>No residual water on clean pipeline
>>>Energy saving function(motor switch over, Inverter control)
>>>Auto alarm and mail to user
>>>Eutectic online determine function
>>>Precaution for maintenance
>>>Critical system backed up, auto change..(compressor, vacuum pump, circulation pump etc.)
More customer satisfied service
>>>Preventive maintenance service on warranty period
>>>AMC service of all machine life
>>>Understand all brand freeze dryer service
>>>Retrofit service and spare parts
More understanding of regulation in fabricating
>>>Separate ss with carbon steel stock
>>>Separate tool for ss and carbon steel
>>>No scratch on ss board.
>>>No residual water on clean pipeline
Company Profile
LYOMAC was founded in 2009, as a leading supplier to provide state of art, innovative and reliable freeze-drying solutions for biological, pharmaceutical and nutraceutical industry
During the past decade, Lyomac has built freeze drying system in more than 15 countries. Most of them compliance with local regulation
Lyomac has advanced, modern tools and facilities to fabric freeze dryer and automation systems. Which is a base to provide high reliable and precision products, we understand it increase safety for high tech material to be well processed for our users.
The most value for Lyomac is whole team, with commitment of ‘Best freeze drying solution for bio and pharma industry’. We are constantly develop innovative technology for customized demand.
During the past decade, Lyomac has built freeze drying system in more than 15 countries. Most of them compliance with local regulation
Lyomac has advanced, modern tools and facilities to fabric freeze dryer and automation systems. Which is a base to provide high reliable and precision products, we understand it increase safety for high tech material to be well processed for our users.
The most value for Lyomac is whole team, with commitment of ‘Best freeze drying solution for bio and pharma industry’. We are constantly develop innovative technology for customized demand.
Certifications
Exhibition
FAQ
Q: What is your MOQ?
A:1 set.
Q: How to choose suitable equipment ?
A: Tell us your URS ,then we will recommend you suitable equipment according to yourrequirements, application experience and
feedback from our clients.
Q: How long is your delivery time?
A:Standard delivery time in local market is 4 months
Electrical power with 60Hz, need extend 4 weeks more
Freeze dryer with sub door or Screw compressor need 4 weeks more
Project need document of IQ,OQ,PQ,DQ need 3 weeks more
Project with PED/ASME certification need 4 weeks more
Air shipping need ‘Safety transport certification 'need 2 weeks more
Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken,
we will send you a new free part if in the warranty period.
For more details about freeze dryer, please feel free to contact us
A:1 set.
Q: How to choose suitable equipment ?
A: Tell us your URS ,then we will recommend you suitable equipment according to yourrequirements, application experience and
feedback from our clients.
Q: How long is your delivery time?
A:Standard delivery time in local market is 4 months
Electrical power with 60Hz, need extend 4 weeks more
Freeze dryer with sub door or Screw compressor need 4 weeks more
Project need document of IQ,OQ,PQ,DQ need 3 weeks more
Project with PED/ASME certification need 4 weeks more
Air shipping need ‘Safety transport certification 'need 2 weeks more
Q: How to solve the equipment trouble during using ?
A: Please email us about problem with pictures or a small video will be better,we will find the problem and solve it. If broken,
we will send you a new free part if in the warranty period.
For more details about freeze dryer, please feel free to contact us
