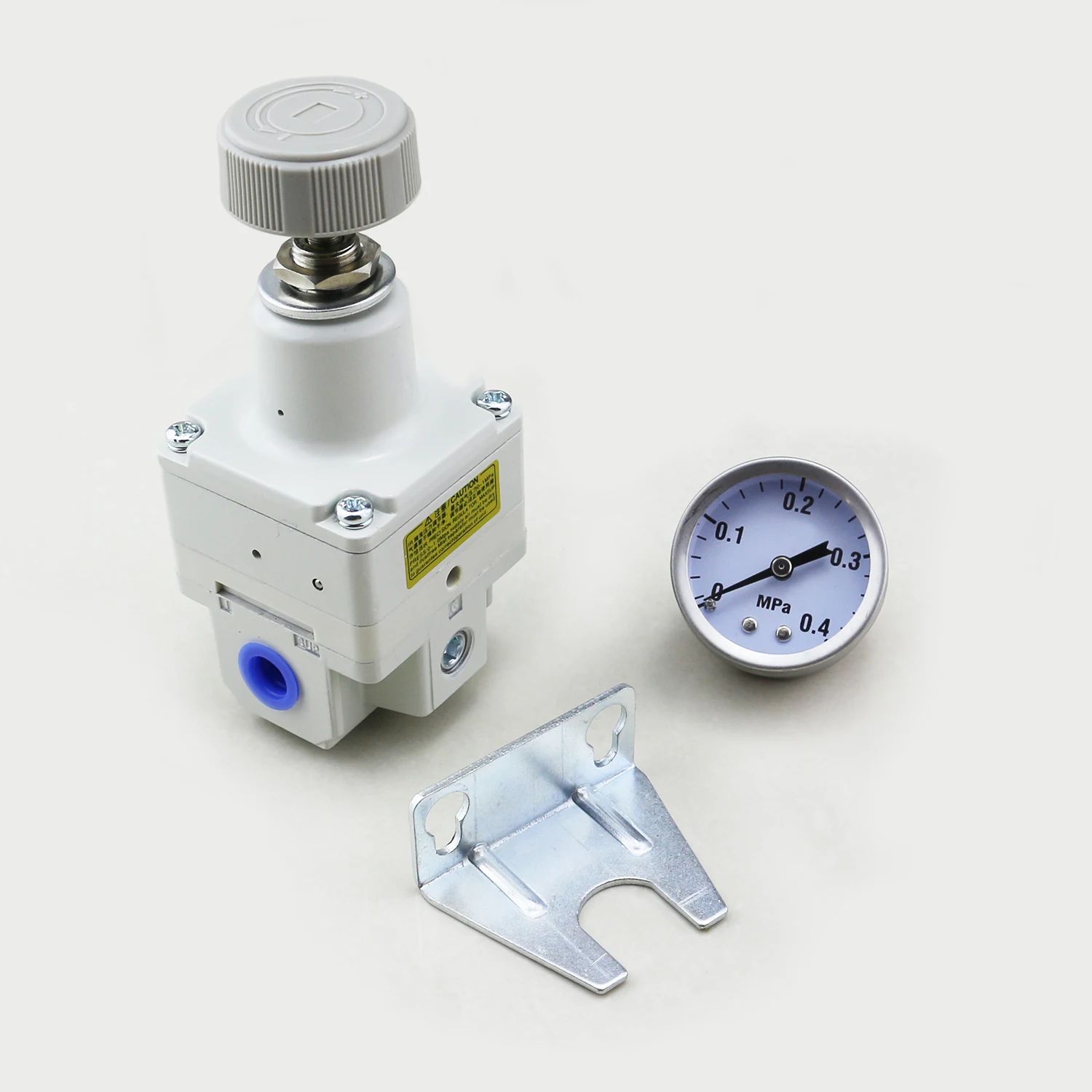

SMC Type Precise Reducing Valve Air Pressure Regulator Precision Regulator IR Japan Precision Air Tool Regulator IR2010-02
Product Description
Ordering Code

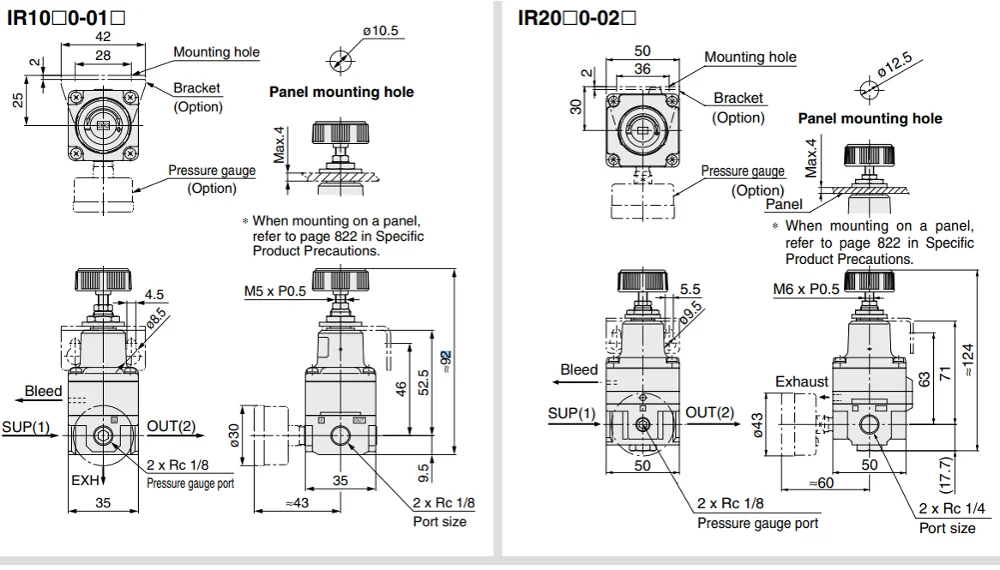

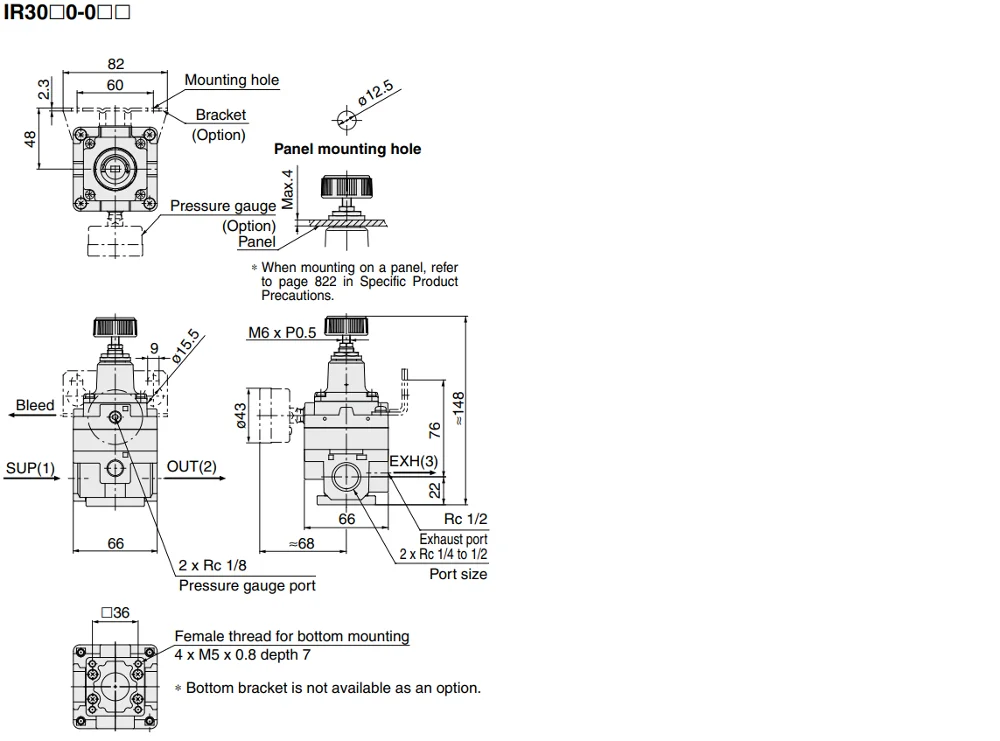

Dimension
Ordering Code
IR2000 - 02
Model Port size
IR1000 01:1/8''
IR1010 01:1/8''
IR1020 01:1/8''
IR2010 02:1/4''
IR2020 02:1/4''
IR3000 03:3/8''
IR3010 03:3/8''
IR3020 03:3/8''
Specification
| Model |
IR1000- 01 |
IR1010- 01 |
IR1020-01 | IR2000-02 | IR2010-02 | IR2020-02 |
IR3000- 03 |
IR3010-03 |
IR3020- 03 |
|
| Working Media | Compressed Air | |||||||||
| Min.Working Pressure | 0.05Mpa | |||||||||
| Pressure Range | 0.005-0.2Mpa | 0.01-0.4Mpa | 0.01-0.8Mpa | 0.005-0.2Mpa | 0.01-0.4Mpa | 0.01-0.8Mpa | 0.005-0.2Mpa | 0.01-0.4Mpa | 0.01-0.8Mpa | |
| Max.Working Pressure | 1.0Mpa | |||||||||
| Measurement Range | 0.25Mpa | 0.5Mpa | 1Mpa | 0.25Mpa | 0.5Mpa | 1Mpa | 0.25Mpa | 0.5Mpa | 1Mpa | |
| Sensitivity | Within0.2% of full scale | |||||||||
| Repeatability | Within±0.5% of full scale | |||||||||
Product Details
Main Product
Company Information
Our Series
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
FAQ
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each F.R.L by one box packing with protection.
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
