32 ton Overhead Crane Hoist Electric Lift Hoist
Product Description

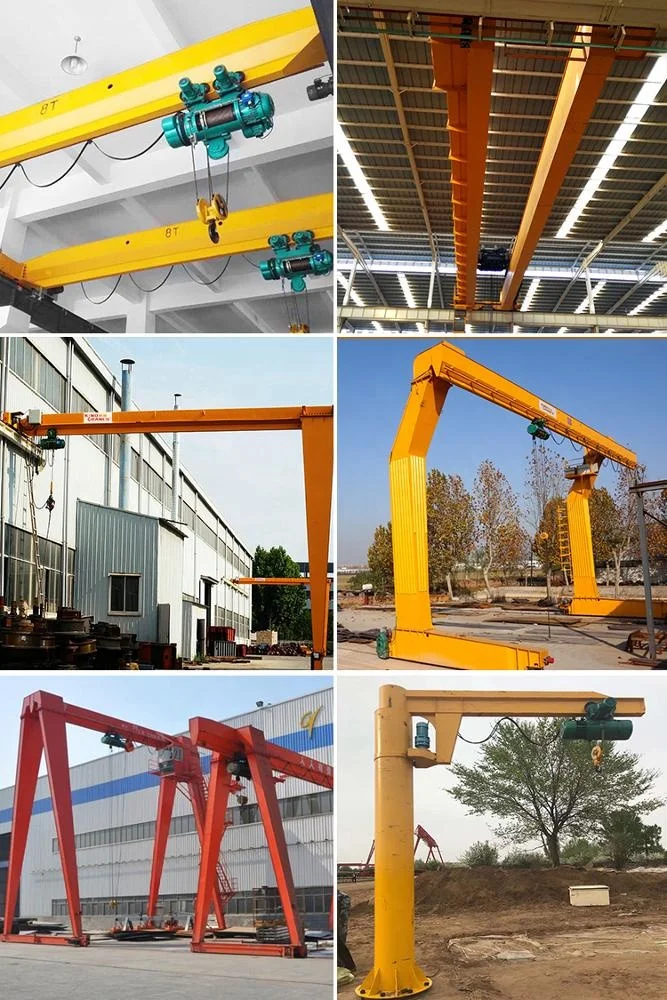

32 ton Overhead Crane Hoist Electric Lift Hoist can be widely used to hoist heavy objects, or installed on the straight or curve I-section steel beam of single beam cranes. They can also be used together with Electric Hoist Double beam gantry cranes and jib cranes. All the above has made the electric hoists common in industrial and ore enterprises, railway, wharf and warehouses.
32 ton Overhead Crane Hoist Electric Lift Hoist is a kind of light-duty lifting equipment with advantages of tight structure, light weight, small volume, wide common use and convenient operation etc. If reducers with hard gear surface are applied, it will have long life and high mechanical efficiency.
32 ton Overhead Crane Hoist Electric Lift Hoist has normal lifting speed and slow lifting speed which make it lift steadily and accurately.
Technical Data
Product | 32 ton Overhead Crane Hoist Electric Lift Hoist | ||||
Lifting weight(t) | 16 | 20 | 32 | ||
Lifting height(m) | 12/16/24/32/36/42/48 | 9/12/18/24 | 9/12/16/20/24 | ||
Hoisting speed(m/min) | 6(0.6/6) | 3.3(0.33/3.3) | 3(0.3/3) | ||
Running speed(m/min) | 18 | 14 | 16 | ||
Steel wire rope type | specification | 6×37+1 | |||
H beam orbit model | 50a-63c | 56a-63c | 63a | ||
Minimum curvature radius(m) | 3/3.5/4/5/6/7/8 | 3/4/5.5/7.6 | 3.5/4.5/5.8/7.2/8.7 | ||
Hoisting motor | Type | ZDX62-6(ZDS1) | ZDI52-6(ZDS1) | ZDX62-6(ZDS1) | |
Power(KW) | 18.5(2.2/18.5) | 18.5(2.2/18.5) | 18.5(2.2/18.5) | ||
Rotation speed(r/min) | 960 | 1400 | 960 | ||
Current(A) | 43 | 42 | 43 | ||
Running speed | Type | ZDY21-4 | ZDY(D1)22-4 | ZDY(D1)22-4 | |
Power(KW) | 0.8*2 | 1.5*2 | 1.5*2 | ||
Rotation speed(r/min) | 1380 | 1380 | 1380 | ||
Current(A) | 2.4 | 4.3 | 4.3 | ||
Power source | Three-phase, 380V, 50 HZ | ||||
Working system | Intermediate FC=25% | ||||
Aplication
32 ton Overhead Crane Hoist Electric Lift Hoist is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.

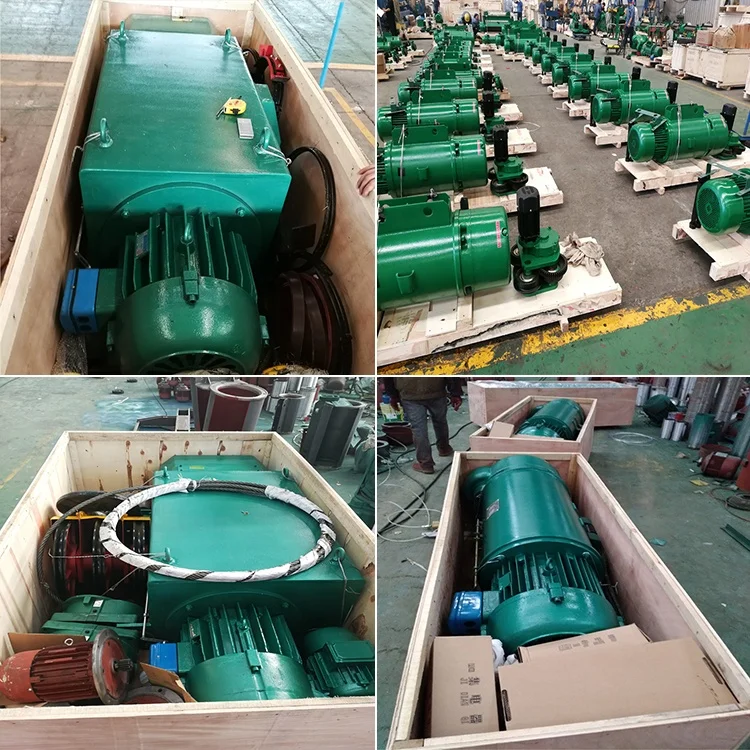

Packaging & Shipping
Company Information
More Product
FAQ
As this kind of chain hoist is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.
1. Lifting capacity.
2. Lifting height.(hook center to ground)
3. Power supply: _Voltage _Hertz _phase.
4. Working condition: which material to lift? temperature(for confirm the working duty)
