hydraulic mountain slope ramming  solar pile driver and drilling   MZ398Y

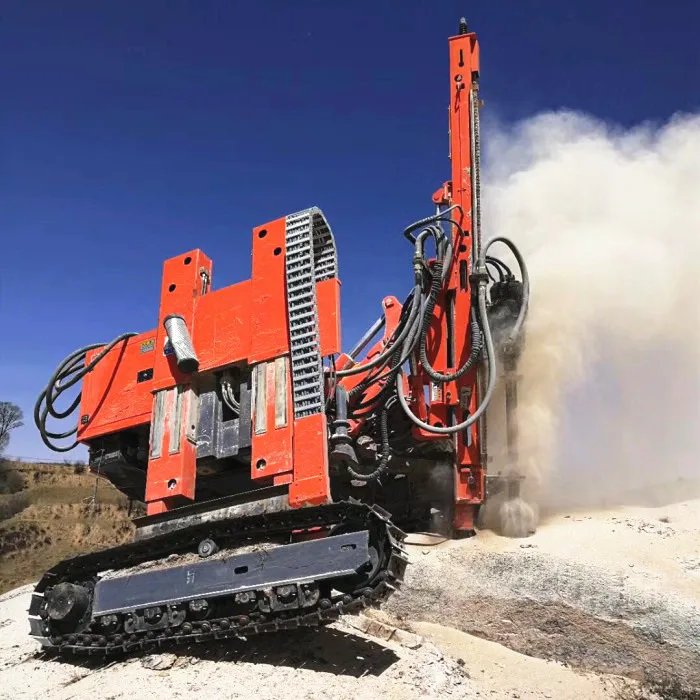

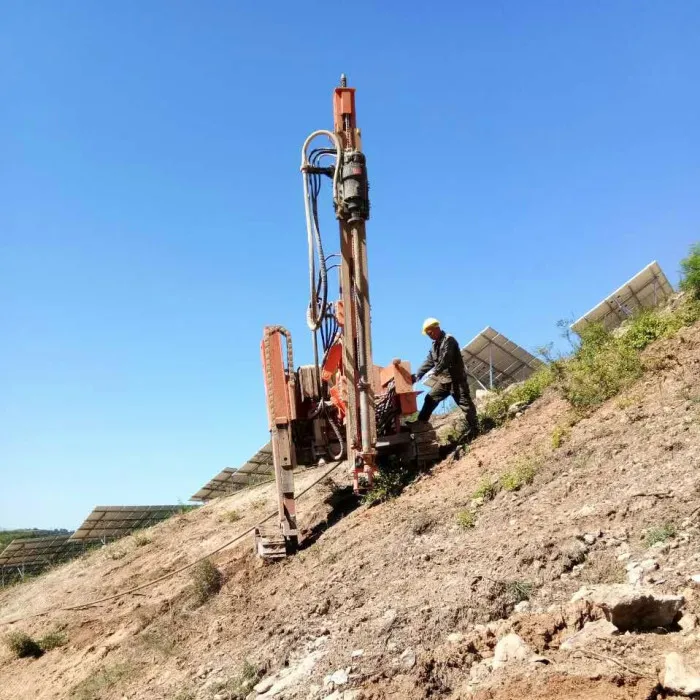

MZ398Y crawler hydraulic drilling rig, adopts unique construction technology and climbing mechanism design, which can be adjusted according to the slope height, suitable for maximum 45 degrees slope solar engineering construction, this equipment is capable for all kinds of PV constructional technologies: screw pile drilling, spiral hole drilling, rock DTH hammer, ramming pile and so on, the machine hydraulic parts adopt imported original parts, greatly improving the performance and stability of the equipment;  machine has compact structure, and mast has telescopic compensation function, during working the mast are supported on the ground, it has high borehole stability . MZ398Y piling machine has reliable performance, high efficiency, multifunctional applications. This MZ398Y solar piling machine is currently the strongest mountainous solar drilling rig in China !

The MZ398Y drilling rig can also be used for anchoring, water wells, water conservancy, power plant, open mining, road building and other blasting hole constructions .





Technical parameters

Bore diameter(mm)	90-400
Bore depth(m)	0-100
Air consumption(m³/min)	10-26
Air pressure(Mpa)	0.7-1.6(medium pressure)
	1.6-2.46(high pressure)
Pipe diameter(mm)	76/89/102
For rock(F)	6-20
Bore diameter(screw)(mm)	maximum 400
Bore depth(m)	0-30
Screw pipe diameter(mm)	130-400
Once promotion(mm)	3200
Skid pitch(°)	120
Swinging angle of skid(°)	left and right total 40
Boom swing angle(°)	left and right total 45
Rotation Speed(r/min)	0-110
Climb ability(°)	45
Dimension(L*W*H)(mm)	4730*2110*2850
weight(Kg)	7300
Walk speed(km/h)	0-2.5











Dth mountain bore hole micropiles drilling rig equipment can be used for ramming piles in solar farm, also in ground screw drilling,anchoring, water wells, water conservancy, power plant, open mining, road building and other blasting hole constructions .
