SBH Model 3D Motion Mixer /Blender /Mixing Machine,SBH-200 powder mixer machine/Factory price Model SBH powder mixer supplier

Product Description

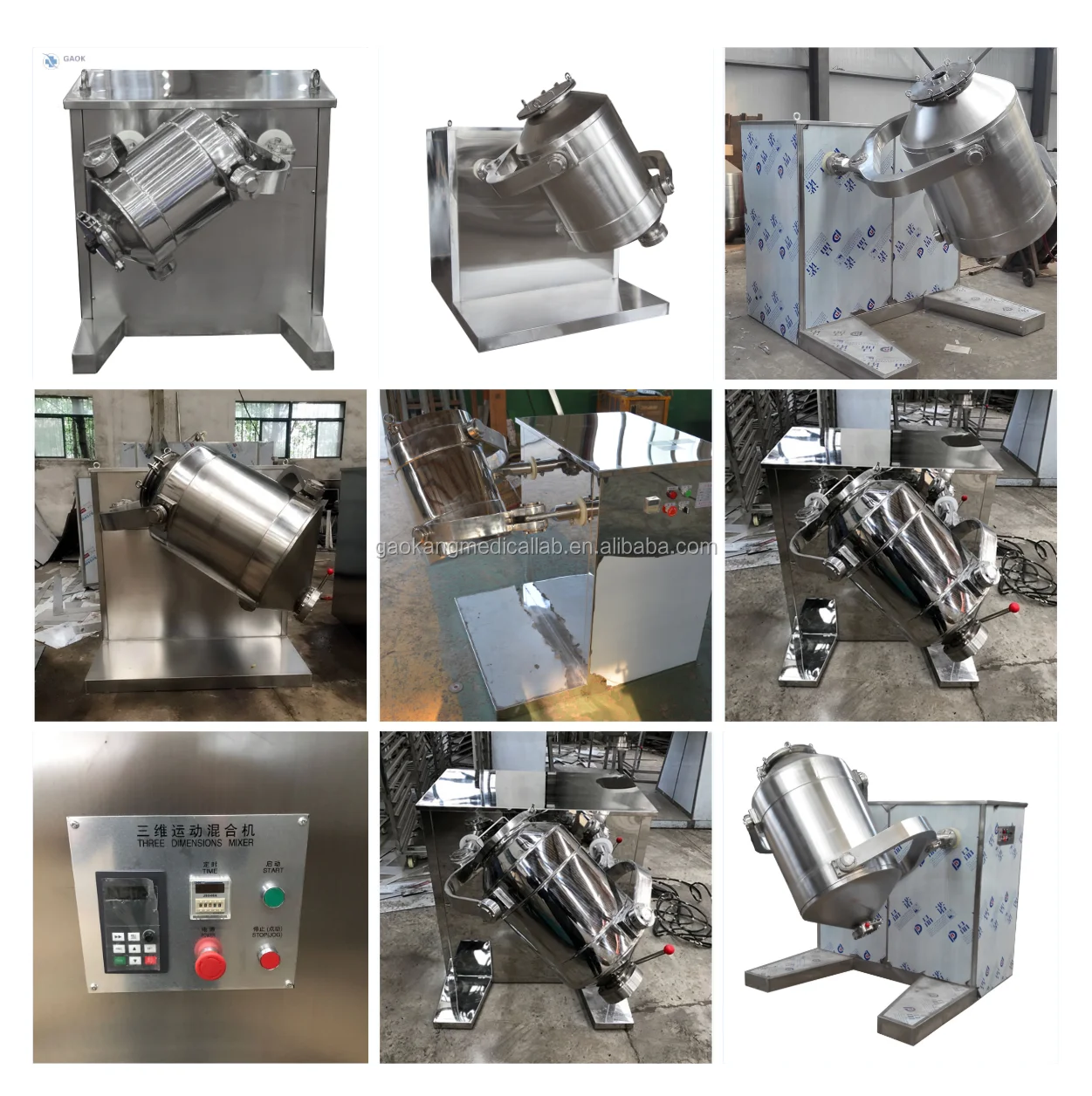

SBH series 3D three dimensional powder mixer for Medicine Processing

With its unique 3dimension swing,parallel moving, and rolling methods, this mixer can generate a strong pulse movement to push forward and to mix the target materials continuously. The excellent mixing effects are the result of its changeable vortex movement that possesses the energy grads inside. It also has the merits of smooth running, low noise, high loading quotiety and short mixing time.

Typical application:

The machine is suitable for high evenness mixing of materials in such industries as chemical industry, medicine, battery, metallurgy, food and scientific research units.

FINE CHEMICALS and PHARMACEUTICALS: Amino acids, Antibiotics, API’s, Aromas, Biotechnology, Caffeine, Colorants, Cosmetics, Crystals, Deontologicalresins, Diet food, Essences and flavors, Food additives, Pharmaceutical excipients, Pharmacy synthesis, Preservatives, Saccharine, Sweeteners, Veterinary, Vitamins.

CHEMICAL: Catalysts, Colorants, Pellets, Pigments, Plastics and pellets, Polymers, Resins, Stearates.

FOOD: Additives, Aromas and flavors, Colorants, Ferments, Food preparations, Lyophilized, Proteins, Ready mix, Vitamin complements.

Operational principle

When it works, the mixer is provided with three-dimensional movement, and carries out revolution and rotation. The mixer has powerful turbulent action to accelerate material flowing and dispersing and makes turning and translational movement to conquer the impact of centrifugal force, so that gravity segregation and agglomeration will not occur in the materials, there is no dead corner, and even mixing is ensured.

Model	Mixing Barrel Volume (L)	Maximum Loading Coefficient (%)	Maximum Material Load (kg)	Voltage (V.Hz)	Total Power (Kw)	Speed (rpm)	Weight (kg)
SYH-2	2	80	0.8	380/50	0.18	2-12	15
SYH-17	17	80	6.8	380/50	0.75	2-12	80
SBH-30	30	80	12	380/50	0.75	2-12	90
SBH-60	60	80	24	380/50	1.1	2-12	150
SBH-100	100	80	40	380/50	1.5	2-12	220
SBH-200	200	80	80	380/50	2.2	2-8	400
SBH-400	400	80	160	380/50	4	2-8	500
SBH-500	500	80	200	380/50	5.5	2-8	750
SBH-600	600	80	240	380/50	5.5	2-8	900
SBH-800	800	80	320	380/50	7.5	2-8	1100
SBH-1000	1000	80	400	380/50	7.5	2-8	1200
SBH-1500	1500	80	600	380/50	11	2-8	1500
SBH-2000	2000	80	800	380/50	15	2-8	1700

Main Features

1. The equipment needs no foundation, is easy to install and maintain, and has a long service life.
2. The mixing effect is good, the mixing time is short, and the mixing uniformity reaches 95%.
3. Loading coefficient up to 60%.
4. Low altitude, small turning space, building generally do not need jump.
5. Replaceable mixing barrel, easy to install, no dead angle, no residue, easy to clean, in line with GMP requirements.
