Product Description

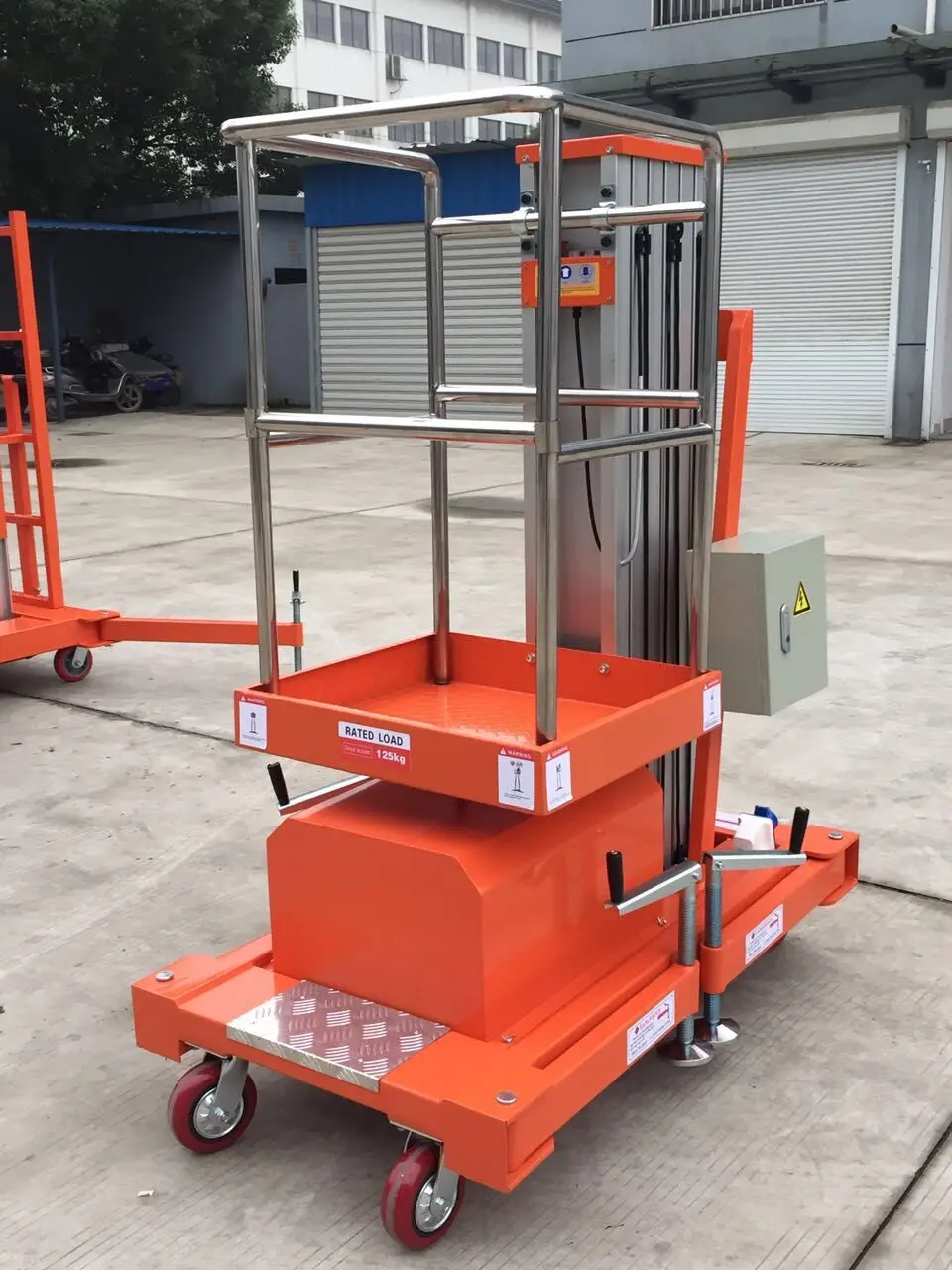

High Quality Single Mast Aluminium Alloy Lift Platform
Rated capacity | 125-150kg |
Platform size | 0.64*0.58 |
Voltage/Herz | AC220/50HZ |
Power | 0.75 |
Weight | 300KG |
8Size | 1.36*0.80*1.98 |
Hydraulic lift
1、Fence material: stainless steel guardrail (Shanghai Jiayi)
2、Chassis material: iron plate bending (Shanghai Jiayi)
3、Aluminum profile: high strength aluminum alloy grade 600-T5 (Tianjin Zhongsu Aluminum)
4、Hydraulic cylinder: diameter 50/40 (Wuxi)
5、Piston rod: diameter 32 chrome (Jiangyin)
6、High-pressure oil pipe: high-pressure double-layer steel mesh rubber pipe; pressure resistance 42Mpa Shaanxi Xianyang (international famous brand)
7、Hydraulic oil: anti-wear hydraulic oil
8、Tires: 4 anti-wear polyester wheels (Global casters)
9、Paint: automotive special paint (spray)
2、Chassis material: iron plate bending (Shanghai Jiayi)
3、Aluminum profile: high strength aluminum alloy grade 600-T5 (Tianjin Zhongsu Aluminum)
4、Hydraulic cylinder: diameter 50/40 (Wuxi)
5、Piston rod: diameter 32 chrome (Jiangyin)
6、High-pressure oil pipe: high-pressure double-layer steel mesh rubber pipe; pressure resistance 42Mpa Shaanxi Xianyang (international famous brand)
7、Hydraulic oil: anti-wear hydraulic oil
8、Tires: 4 anti-wear polyester wheels (Global casters)
9、Paint: automotive special paint (spray)
GTWY10-100 Technical requirements for mobile aluminum lifts
The product meets the requirements of the T/SJJXH01-2018 standard design drawings, to determine the process and processing production structure should be reasonable and simple, easy to operate, safe and reliable.

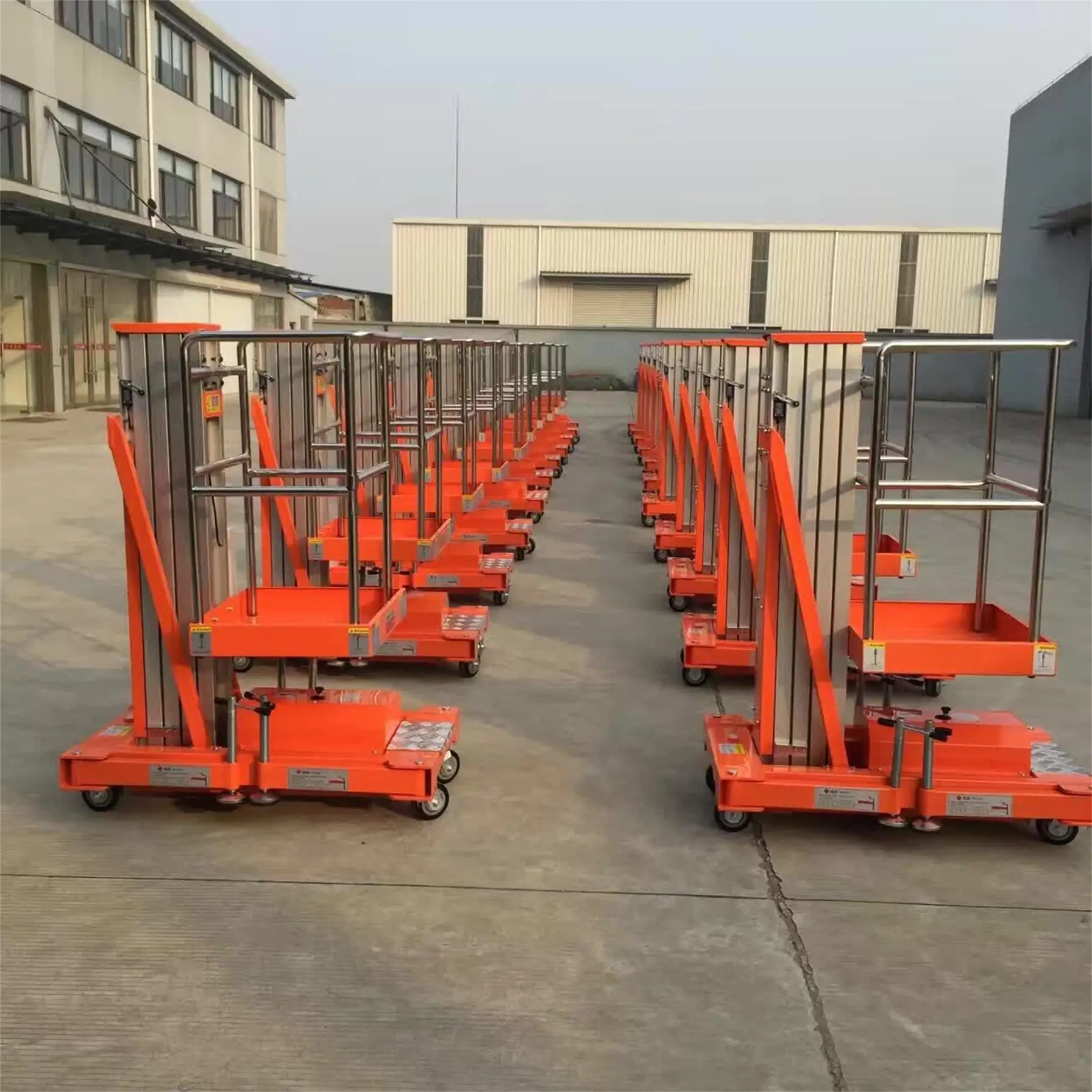

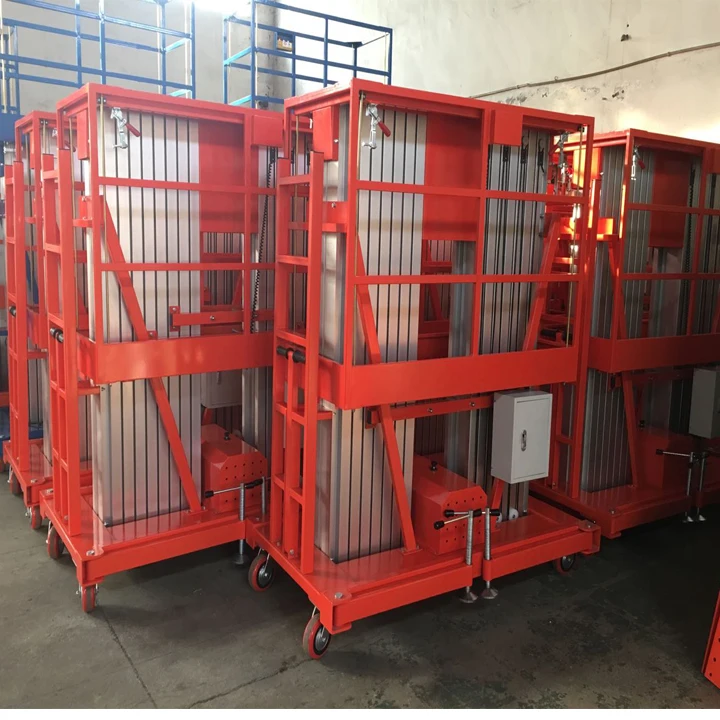

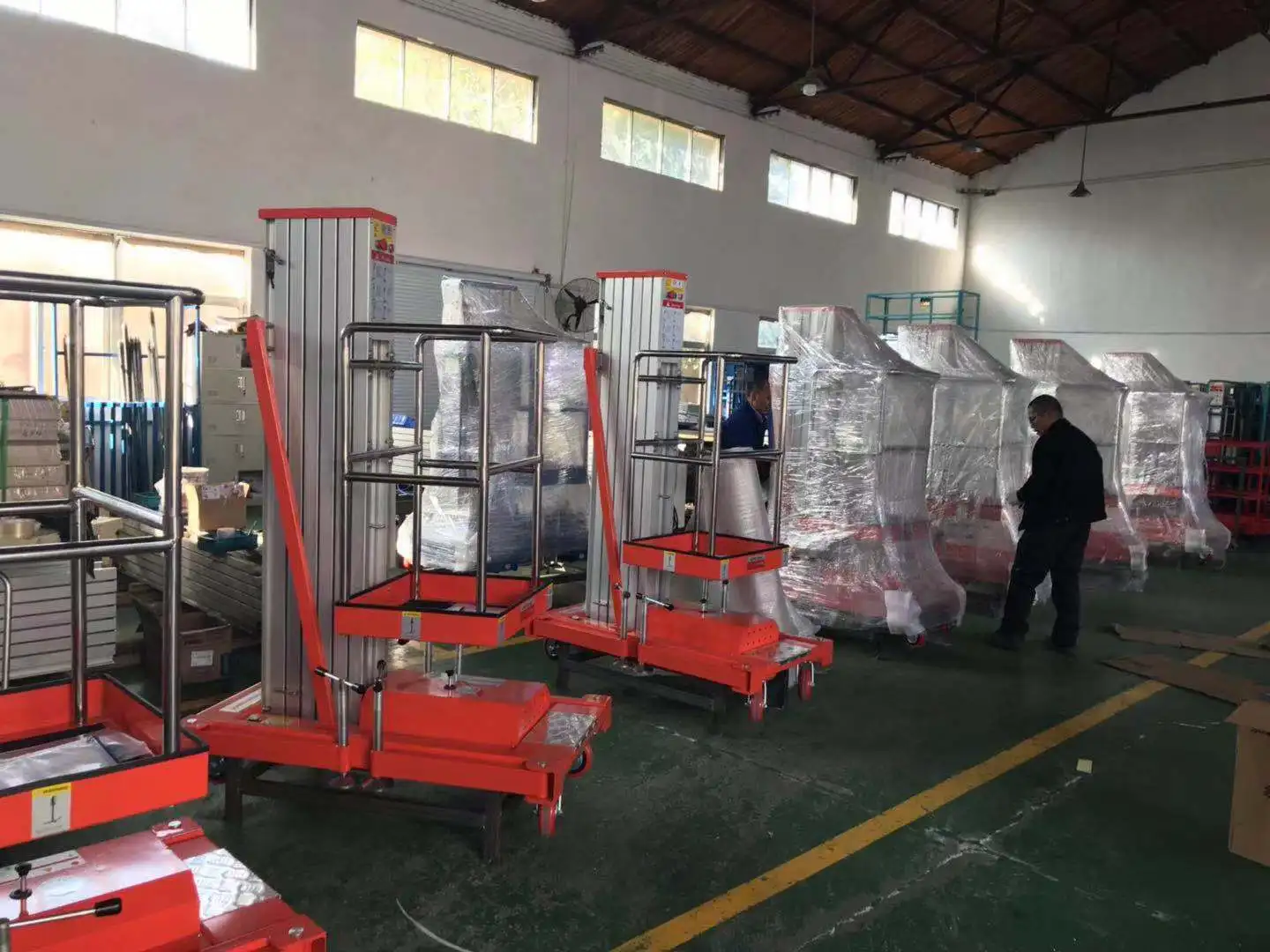

Detailed Images

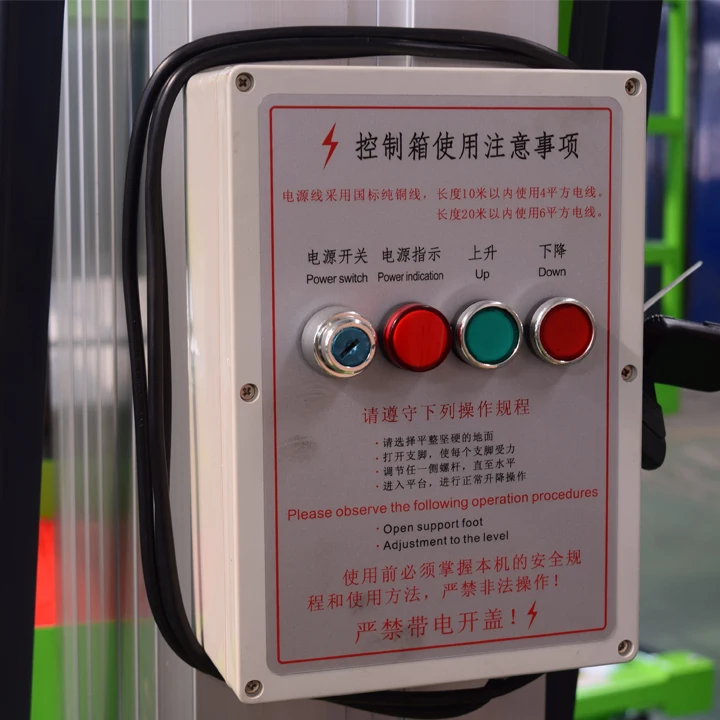

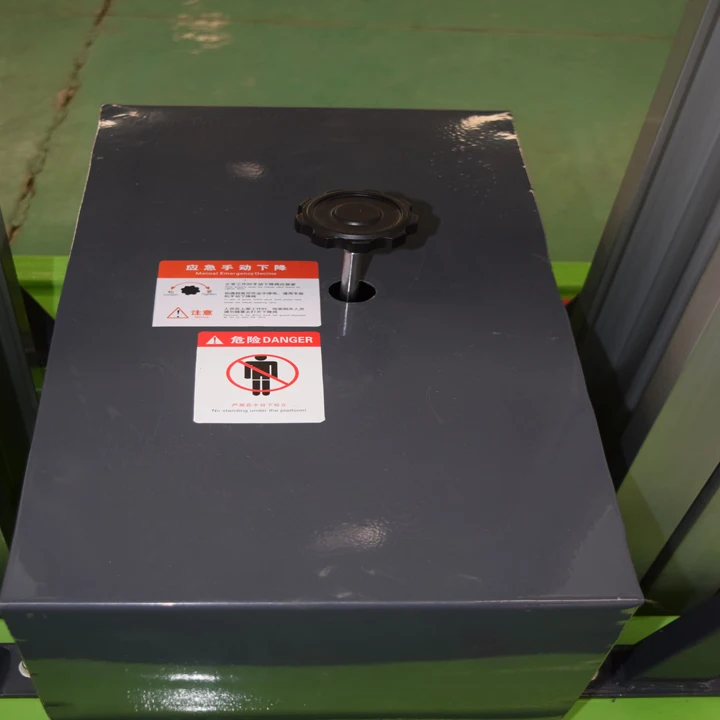

Control System
Size Information
Model | Max. platform height | Max. working height | Rated capacity | Voltage/Herz | Power | Weight | Size |
GTWY4-100 | 4.4m | 5.5m | 125-150kg | AC220/50HZ | 0.75 | 250kg | 1.18*0.80*1.65 |
GTWY6-100 | 6m | 7.7m | 125-150kg | AC220/50HZ | 0.75 | 280kg | 1.28*0.80*1.65 |
GTWY8-100 | 8m | 9.7m | 100-150kg | AC220/50HZ | 0.75 | 300 | 1.28*0.80*1.98 |
GTWY9-100 | 9m | 10.7m | 100-150kg | AC220/50HZ | 0.75 | 326 | 1.44*0.85*1.98 |
GTWY10-100 | 10m | 11.7m | 100-150kg | AC220/50HZ | 0.75 | 340 | 1.36*0.85*1.98 |
Related Products

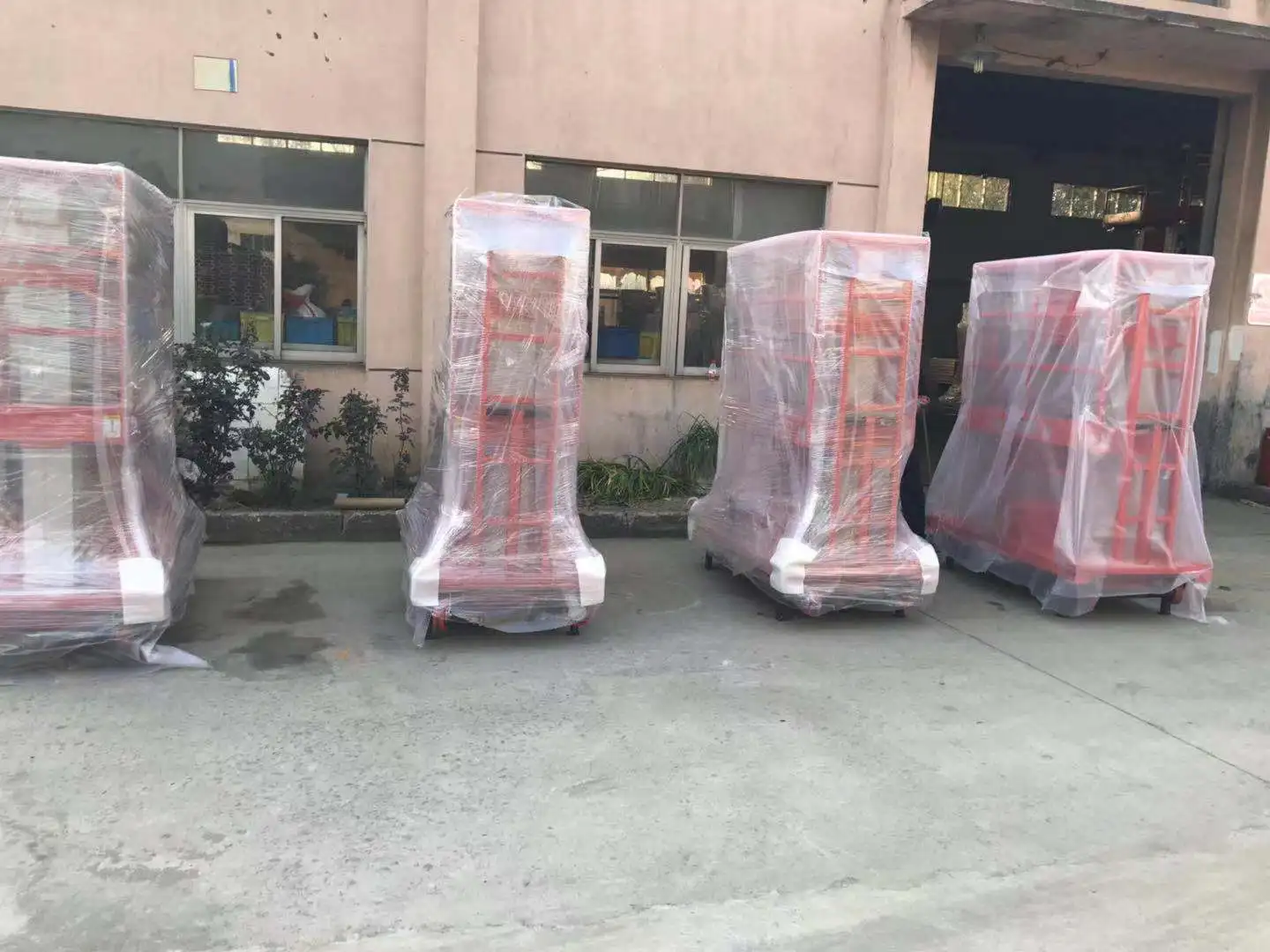

Packing&Shipping
standard packaging
Company Introduction
Ten years as a professional lifting platform, our products include hydraulic lifting platform, scissor lifting platform, self-propelled lifting platform
