600 ватт жидкость к жидкому типу термоэлектрический силовой генератор

Описание и отзывы

Характеристики

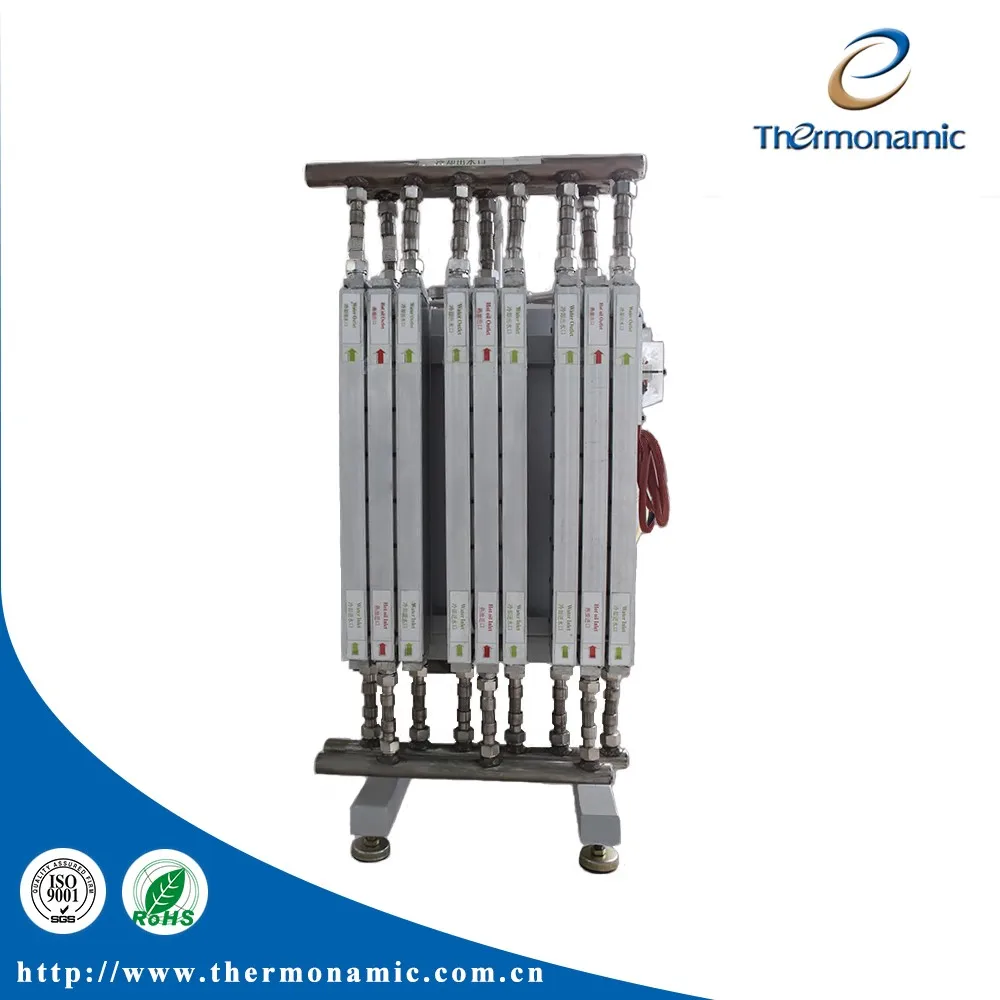

TEG 600W Thermoelectric Power Generator

TEG 600W Thermoelectric Power Generator

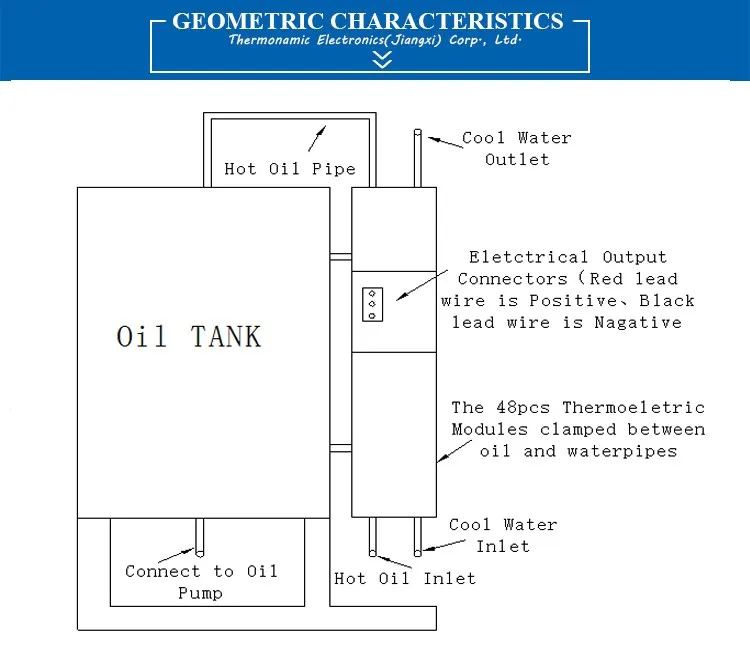

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>      The 600 watts thermoelectric generator run with circulated heat transfer oil which distributes the heat to each thermoelectric module (TEM) to generate electricity. The cooling of the generator is by using water, which bring out the heat that pass through the modules effectively.     The thermoelectric power generator consists of thermoelectric modules, hot oil pipe for hot oil circulating to bring the heat to each module, oil tank for oil storage, water pipe for water circulating to bring out the heat. The hot oil flows from bottom of the generator to bring the heat to all the hot sides of the modules, and drops into an oil tank. Then oil is pumped out from the tank to be circulated through the heat sources to be heated up, and back to the generator to bring the heat continuously for the generator Please refer to the diagram and photo below.     The water flows from the inlet in the bottom, pass the modules cold side to bring out the heat that flows through the modules, and then out from the top outlet. Please drip the water when you do not use to keep dry.     The generator can provide 96V open circuit and 48V matched load output. It can generate over 600 watts if the heat source is over 300 ºC. The positive and negative DC output is from the red and black color wire.

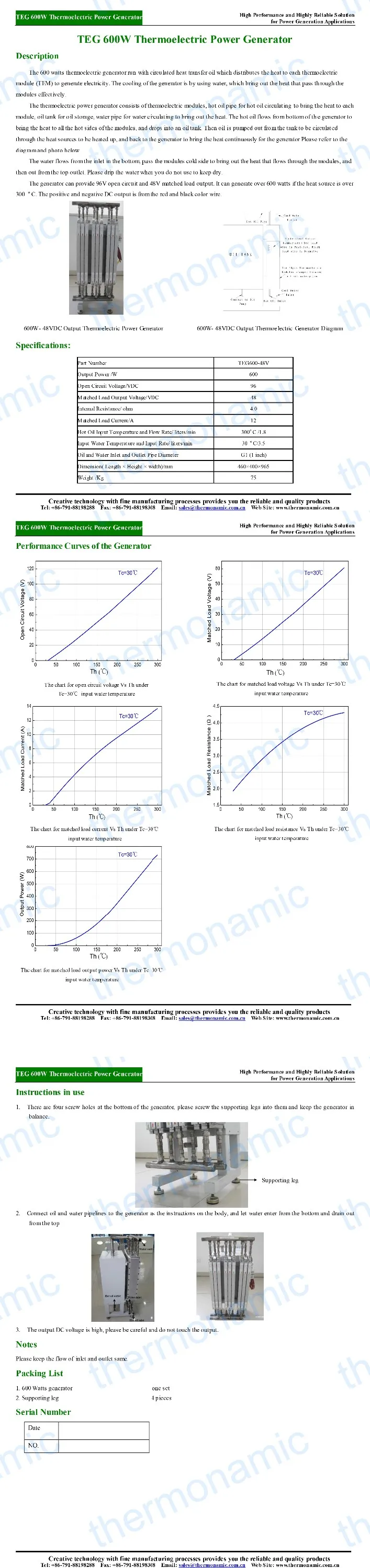

Performance Specification Sheet

Application

1.Living waste heat

2.Industrial waste heat

3.Aerospace industry

4.Exhaust gas of vehicles
