Горизонтальный обрабатывающий центр серии MDH

Цена:*

Стоимость в USD (на сегодня):Узнать

Количество:

MDH series cnc horizontal machining center

Machine Featurers:

MDH Series is the ideal machining center for producing box-type and irregular work pieces for automobile, shipbuilding, engine and general manufacturing industries.

The machine is a high-performance, high-reliability and high-precision product characterized by compact configuration and rapid response rates.

The spindle design makes it particularly suitable for heavy power cutting while the excellent ball screw and spindle cooling system provide superb capability for flexible manufacturing.

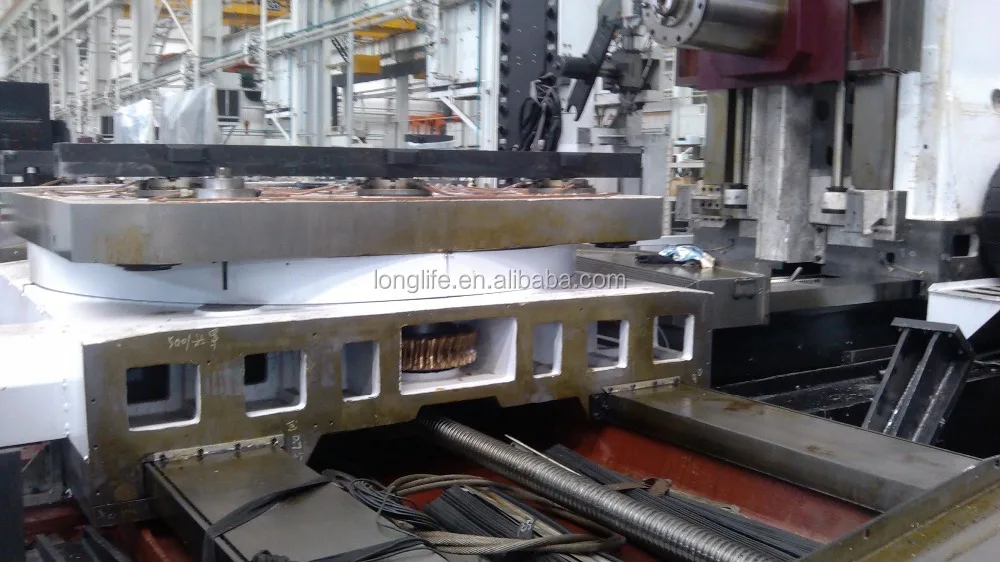

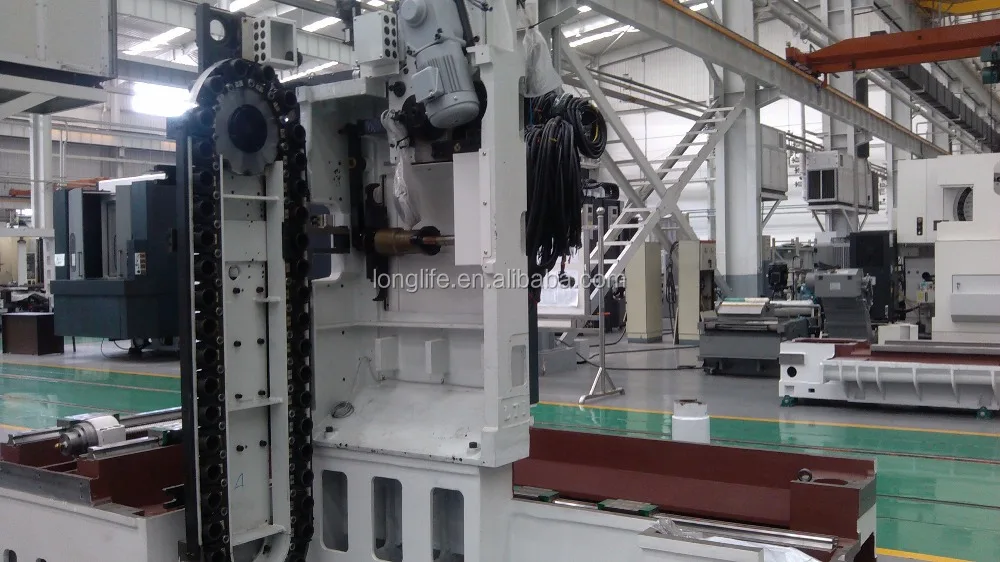

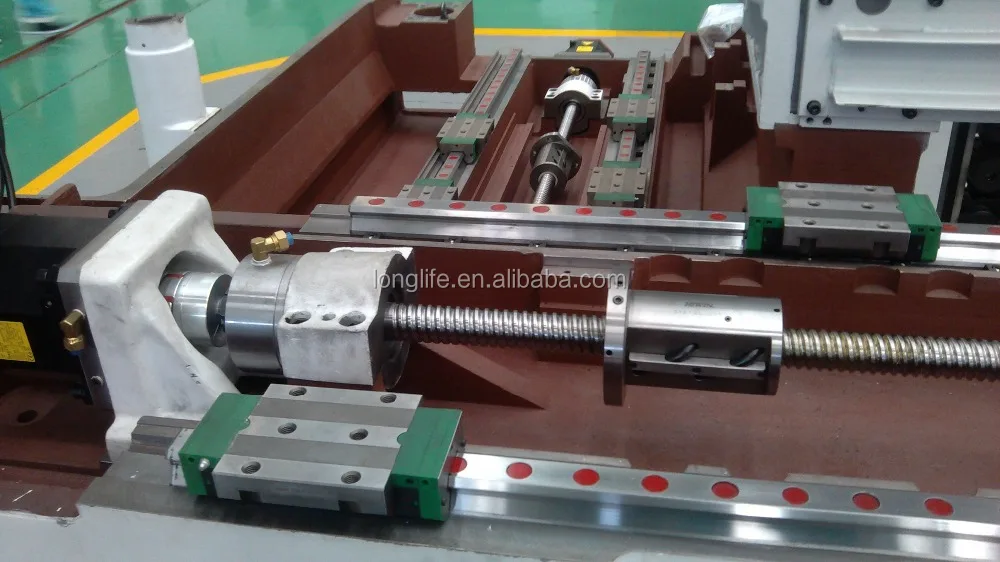

Detailed Photos

Main Technical Data

Specifications	Unit	Parameter
Table size	mm	1000x000
Max. table load	kg	2000
Workpiece range (diameter x height)	mm	Dia. 1300x1320
X/Y/Z axis coordinate travel	mm	1400/1100/1000
Table top to spindle center distance	mm	80~1180
Table center to spindle front-end distance	mm	200~1250
Spindle speed	rpm	8000(Opt.12000)
Spindle internal taper		No.50 (7:24)
Spindle drive type		Electric spindle (Opt.gear spindle)
Spindle maximum output torque	Nm	238(Continuous)/350(10min)/ 420(25%)
Tool storage capacity		40 Chain tool changer (Opt.60,80,120 Chain tool changer)
knife handle form		BT50-45°
Max. tool weight	kg	25
Max. tool diameter	mm	Dia.115(w/o adjacent tools: dia.270)
Max. tool length	mm	500
Time of tool change	s	2.5(T-T)
Max. X/Y/Z axis cutting speed	m/min	20
X/Y/Z axis fast feed speed	m/min	45
Positioning accuracy	mm	0.010(Full trip)
Repeat positioning accuracy	mm	0.006(Full trip)
Spindle power	kW	25(continuous) /30(30 min)
X/Y/Z axis motor power	kW	1.6
Machine dimensions(L x W x H)	mm	6153x3717x3827
Machine weight	kg	24500

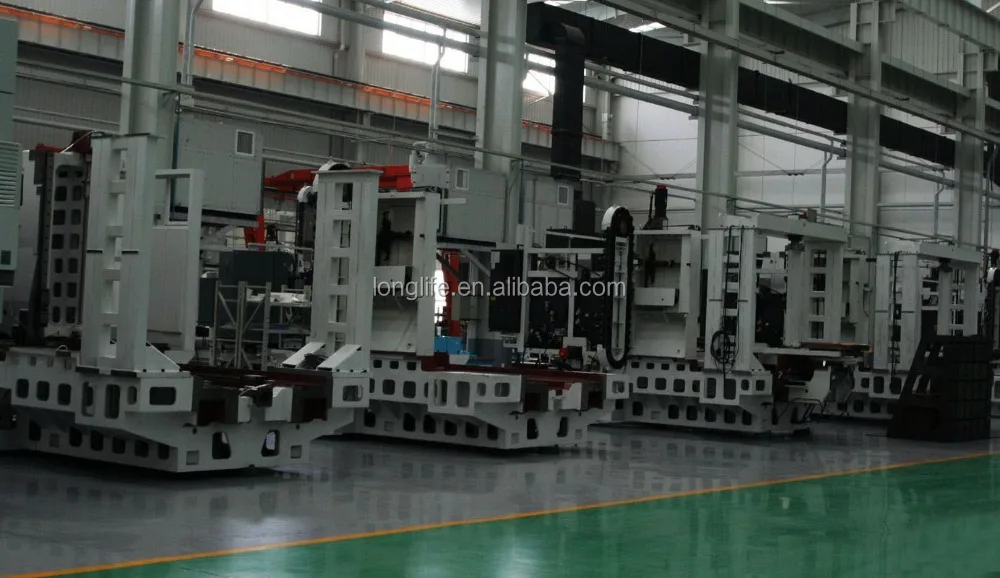

Factory Overview
