ПНД ПВД ПП ПЭ один этап водяного охлаждения полиэтиленовые пакеты для гранулирования
- Категории: Recycle Washing Line >>>
- Поставщик: Wenzhou,Ruihong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Specification | ||
Model | RP-B120N | |
Suitable material | HDPE,LDPE, PP | |
Extrusion Output | 150kg | |
Machine of weight | 4000kg | |
Overall Dimension（L×W×H） | 10000×1600×1800mm | |
Extruder | ||
Screw diameter(mm) | Φ120 | |
Barrel outer diameter(mm) | Φ160 | |
The depth of screw | 0.6-0.7mm | |
Hardness | 800-900hv | |
Screw L/D Ratio | L/D22:1 | |
Screw rotation | 10-100r/min | |
Power of main motor | 37kw | |
Screw and barrel material | 38CRMOALA | |
Heating type | By electrical | |
Heating ring material | Ceramic | |
Ceramic heating zone | 4 zones | |
Stainless heating zone | 1 zone | |
Die head heating zone | 1 zone | |
Exhaust device | 1 | |
Gearbox | 225high strength hard tooth , with oil pump, water cooling | |

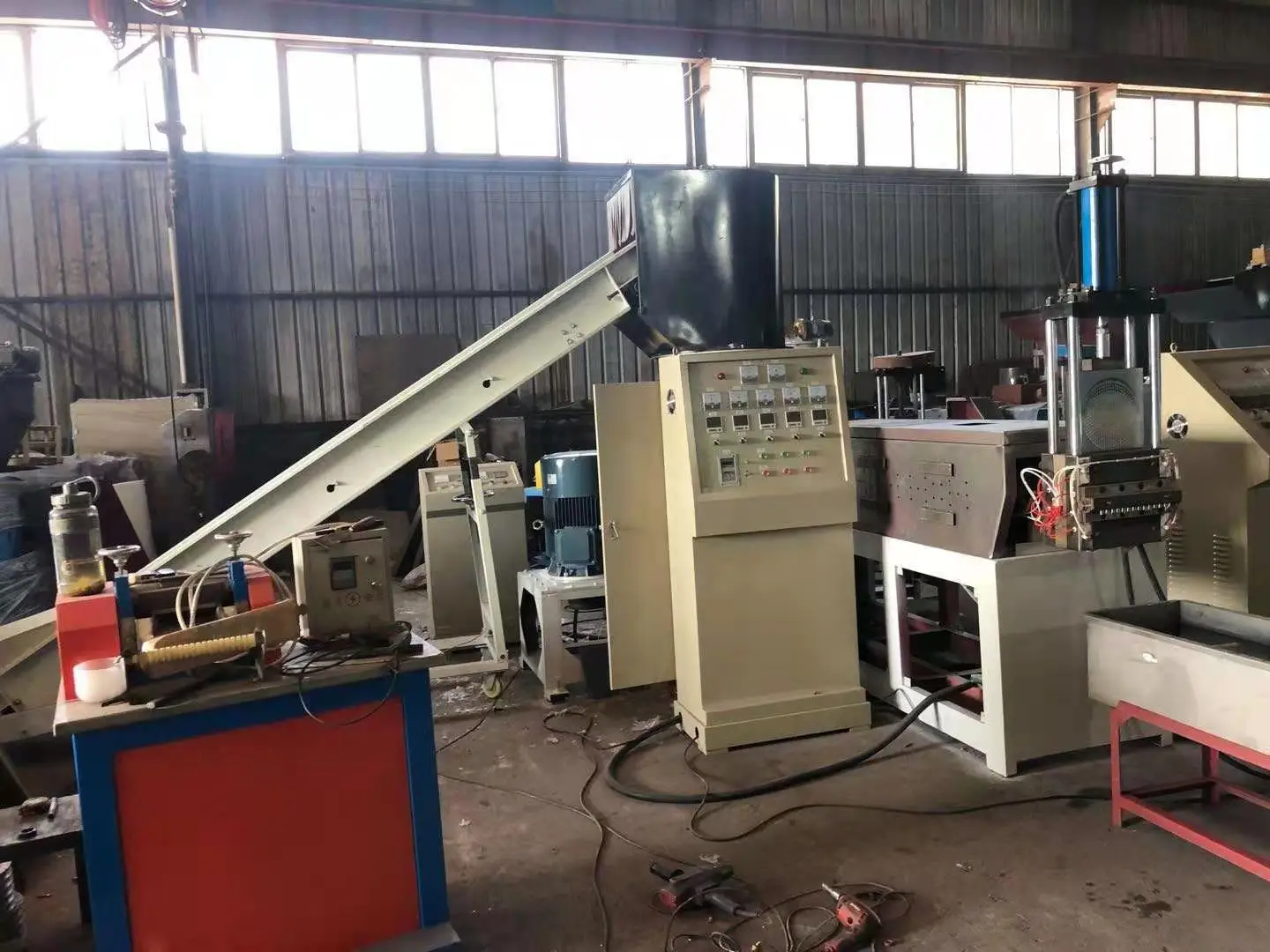

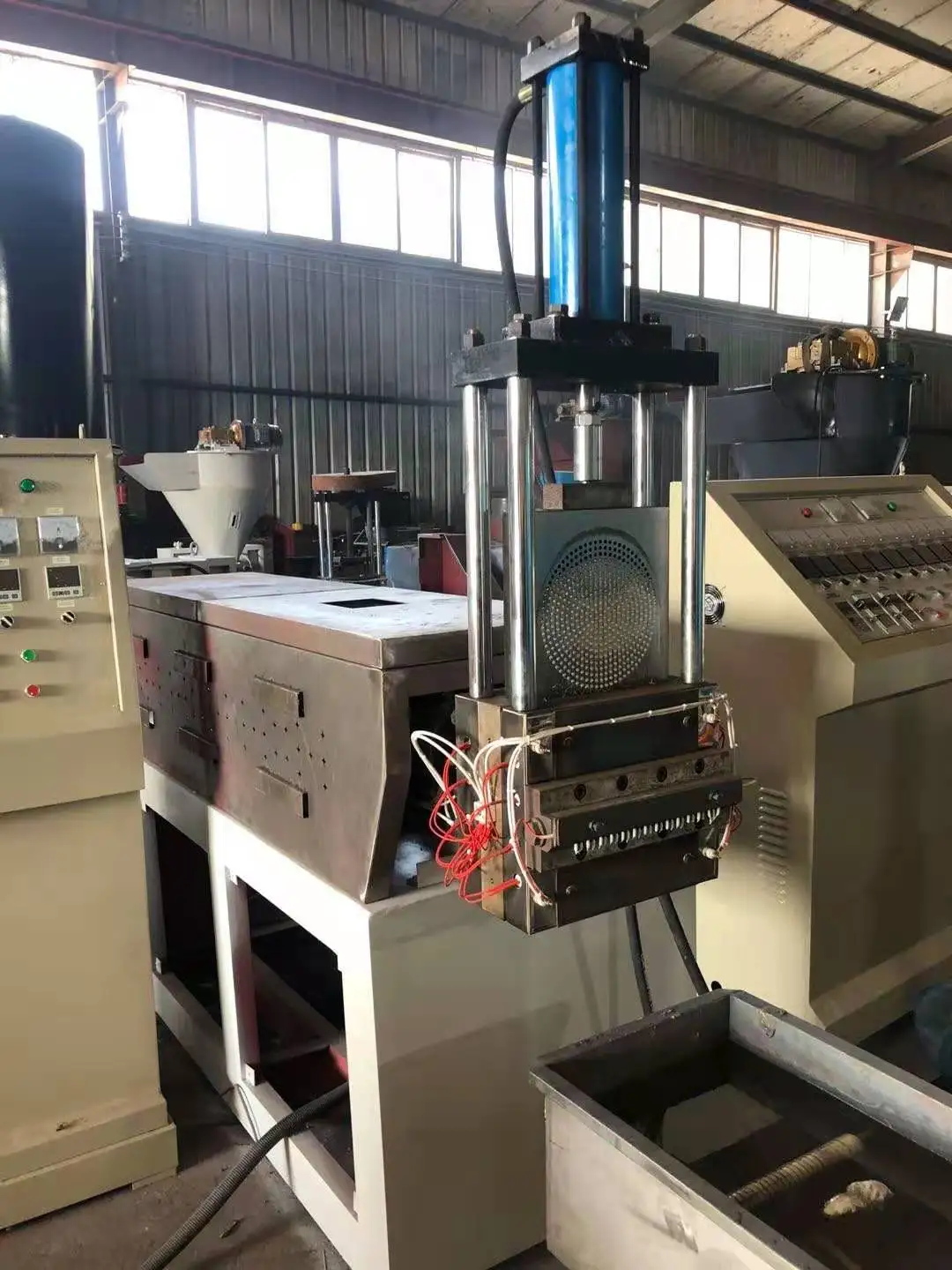

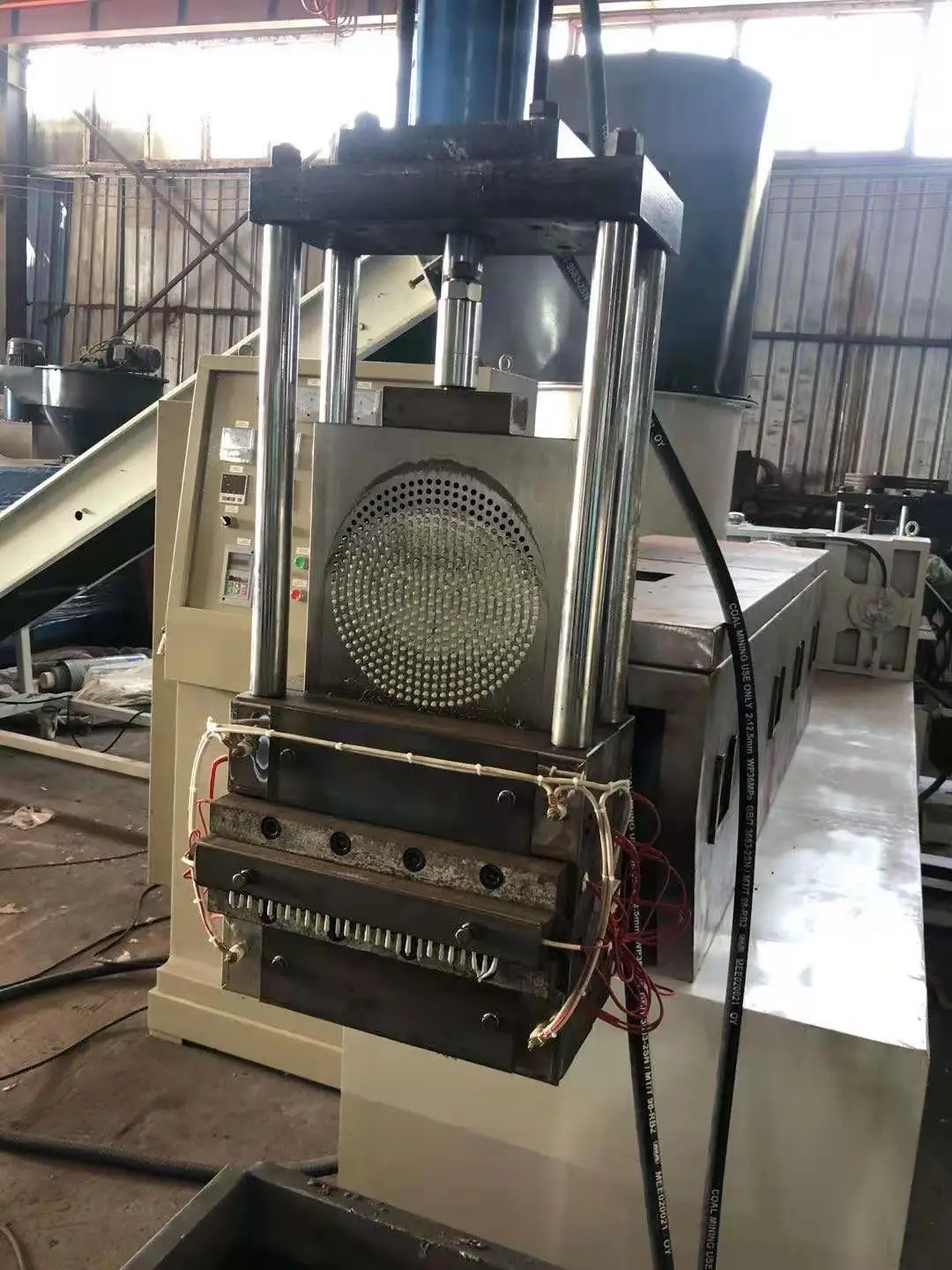

Details Images
Company Profile
Film extruding workshop
Plastic recycling workshop
Stretch film workshop
Bubble film extruder machine
Why Choose Us
Exhibition
