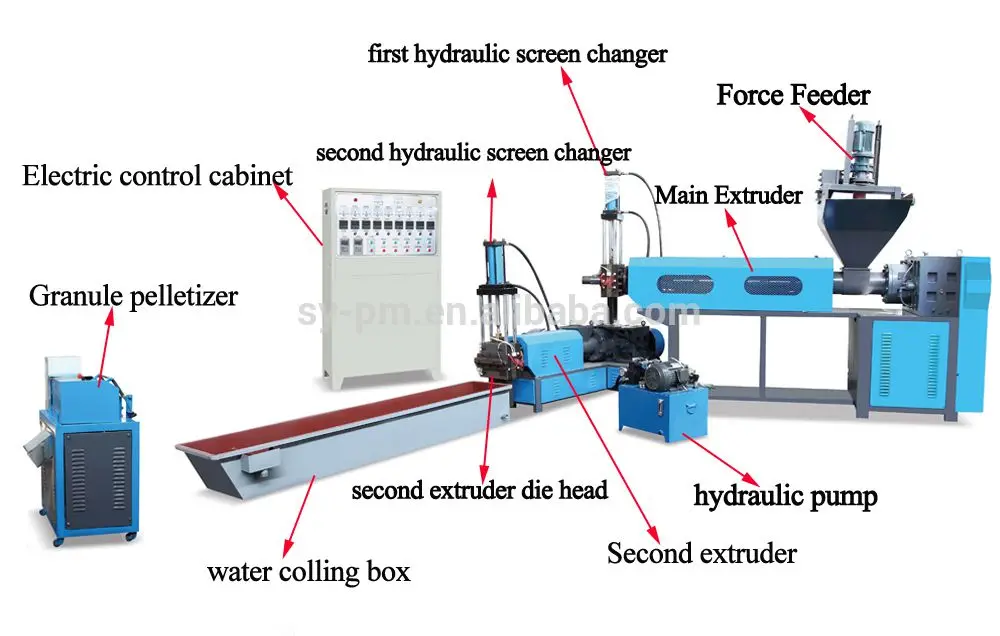

SJY-110 Sanyuan Brand double stage waste plastic recycling tunisia



Product Description









1. It equipped with automatic constant temperature controlling device.


2. The cutting machine adopts speed regulating motor, which can cut the material according to the feeding speed of the extruder.


3. With such features, with such as high output low noise, stable performance and easy operation, it is a more ideal waste plastic material regenerative pelletizer.


4. Applicable raw material: HDPE/LDPE, PP materials


5. Power supply: 380v, 50Hz 3 Phase


6. Material of screw and barrel: Alloyed high-quality steel 38CrMoAlA with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment


7. Gear box: Hard Surface Gear


8. Automatic temperature controlling system


9. Including water-cooling device made of stainless steel


10. Including granule cutter


11. Force Feeding Unit is optional











































































































ModelSJY-100SJY-110SJY-120SJY-130SJY-140SJY-160
Production

70-90kg/h



90-120kg/h



100-130kg/h



130-180kg/h



150-200kg/h



200-250kg/h



Main Extruder Screw Size



97mm



107mm



117mm



127mm



137mm



157mm



Second Extruder Screw Size



95mm



97mm



105mm



115mm



115mm



135mm



Hydraulic Screen Changer



Yes



Yes



Yes



Yes



Yes



Yes



Force Feeder



Yes



Yes



Yes



Yes



Yes



Yes



Main Motor Size



22kw



30kw



37kw



45kw



55kw



75kw



Second Motor Size



11kw



11kw



15kw



15kw



18.5kw



30kw



Main Extruder LD



20:1



20:1



20:1



20:1



20:1



20:1



Second Extruder LD



11:1



11:1



11:1



11:1



11:1



11:1



Main Motor Inverter



22kw



30kw



37kw



45kw



55kw



75kw








































No.



Spare parts name



Quantity



1



Temperature meter



1set



2



Electric Sensor



2 pc



3



Heating ring



3 pc



4



Tool box



1set



5



English manual



1pc



 6.jpg21.jpgg41_02



Company Information


18





Packaging & Shipping


 Packaging & Shipping.jpg





FAQ


 Q1: Are you a factory or trading company
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.



Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.



Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.



Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.



Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies.
