Product Description

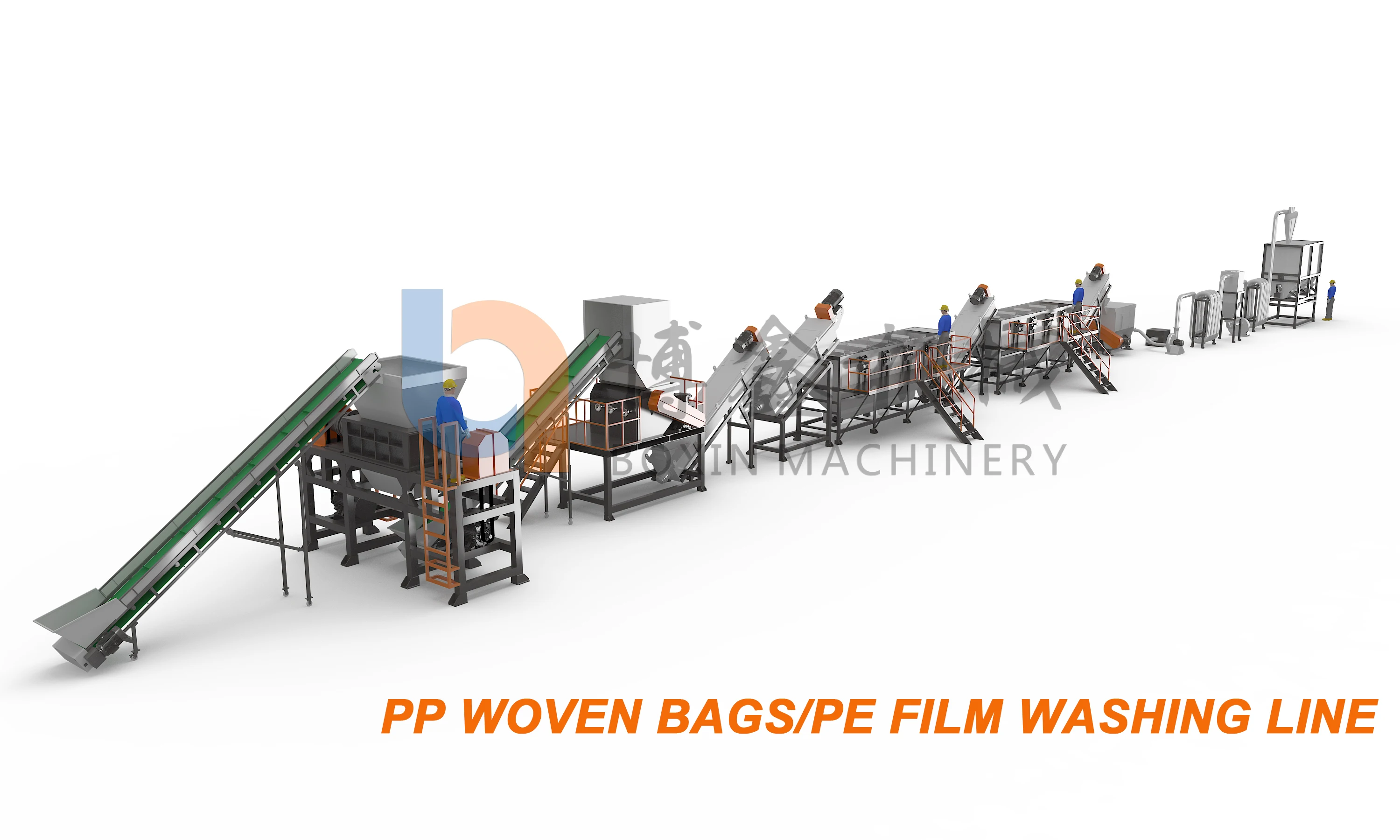

This WASTE PLASTIC PE PP FILM/BAGS RECYCLING MACHINE is designed and manufactured by BOXIN MACHINERY, which is widely used for waste plastic PE/LDPE/LLDPE film, PP woven bag, PP Jumbo bag, Agricultural films, etc.
The waste dirty material go through crushing, friction washing, washing, dewatering, hot air drying process will turn to be clean flakes for pelletizing. PE PP plastic films/bags recycling machine is designed and manufactured by BOXIN MACHINERY. The waste dirty material go through crushing, washing, drying, and collecting process will turn to be clean flakes for pelletizing. We also supply plastic pelletizing line (plastic granulator) to make the clean flakes into pellets (granules). The renewable pellets (granules) can be made into plastic barrel, plastic pipe, plastic frame, farm implement, machine components, and so on through extruding forming machine. They are widely used in agriculture, construction, industry and our daily life. In this way, we achieve the reuse of waste plastic recycling and the purpose of protecting our environment..
The line can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line components according to client's material and product requirement. All your requirements of PE PP plastic films/bags recycling machine can be customized.
Technical Parameter
Machine List | ||||||
1.0 | Belt conveyor | 6.0 | Low speed Friction Washer | |||
2.0 | Crusher | 7.0 | Floating washer | |||
3.0 | Low Speed Friction Washer | 8.0 | Low speed Friction Washer | |||
4.0 | High Speed Friction Washer | 9.0 | De-watering Machine | |||
5.0 | Floating washer | 10.0 | Silo | |||
Technical Parameter | ||||||||
Capacity (kg/h) | Total Power (kw) | Area Required (㎡） | Labour Required | Water Consumption (m³/h) | ||||
300 | 210 | 240 | 3-4 | 1.5 | ||||
500 | 340 | 360 | 4-5 | 3 | ||||
1000 | 550 | 450 | 5-6 | 4.5 | ||||
1500 | 800 | 520 | 5-6 | 6 | ||||
Product Paramenters

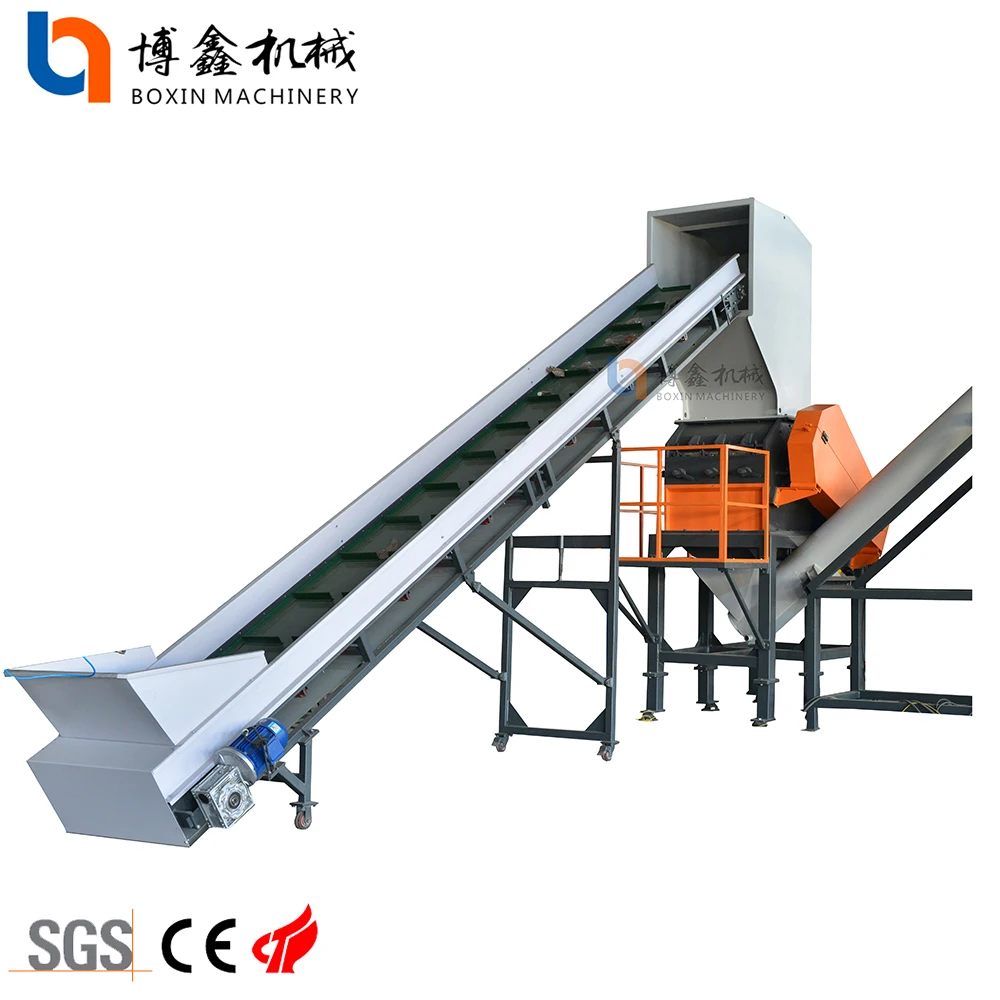

Crusher
Blades/Knives Material: Use durable high-quality D2 blades SK-11 blades. Have a long life.
Opening switch:Hydraulic switch. Can be easily open at any time.
Blades structure:For different materials, we have carried out 16 years of research and testing to provide the most suitable blade structure and shape for each material to achieve the best crushing effect.

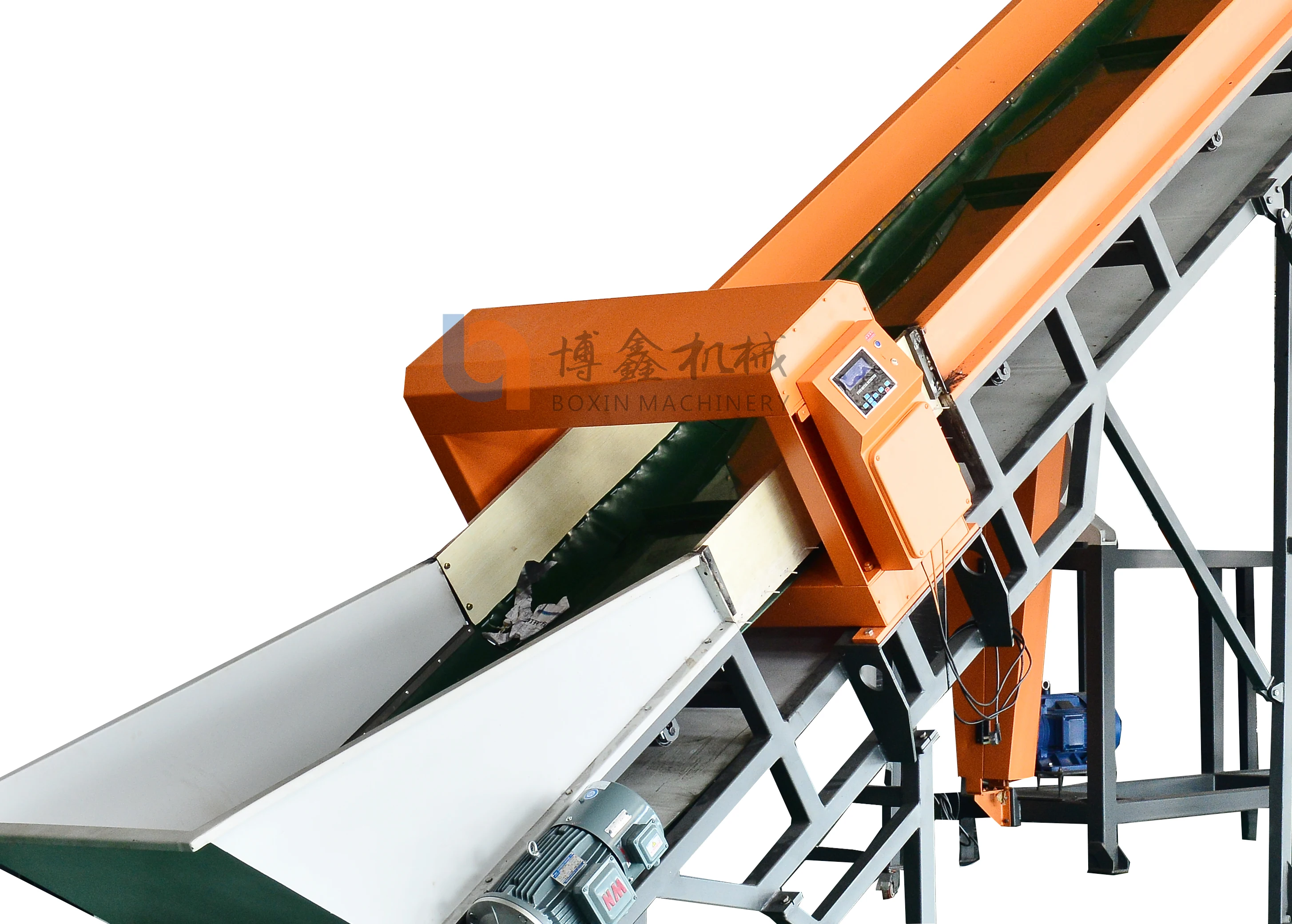

Metal Detector
Check the metal before material into crusher machine,
protect the crusher machine blade and screen.

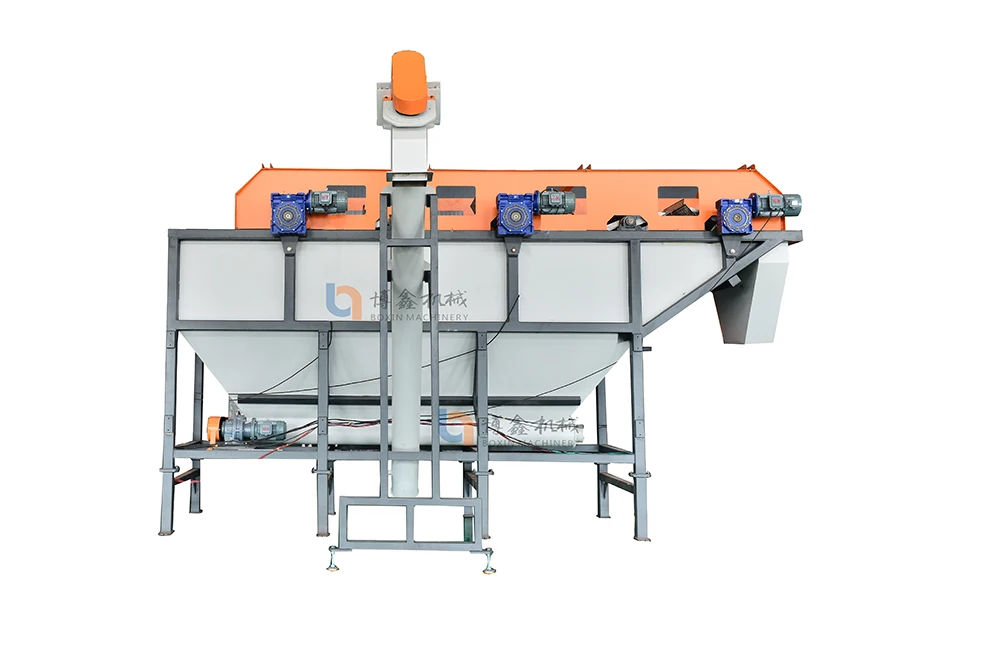

Floating washer/Sedimentation tank
The blades are driven by the rotating main shaft to clean the stains on the film woven bags.
Tjhe materials which contact with water is made of SUS304.
With lifting rotation. The impurities sinking at the bottom of the floating washer/sedimentation tank can be easily discharged.

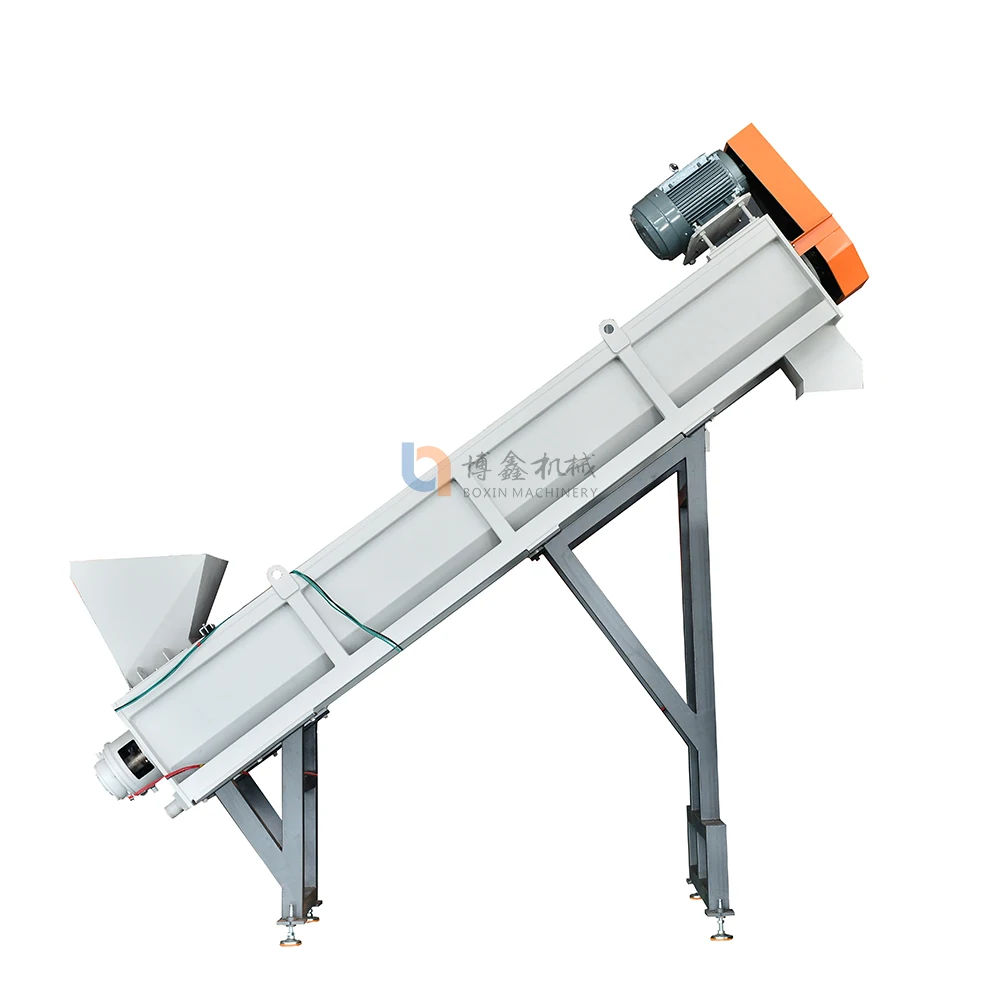

Friction washer
2 types: Low-speed friction washer & High-speed friction washer.
High-speed friction washer: By injecting high pressure water and fast screw rotation to remove dirties and oil from fims/woven bags.
Low-speed friction washer: By low speed rotation by screw.Play the role of cleaning multiple sides and conveying.

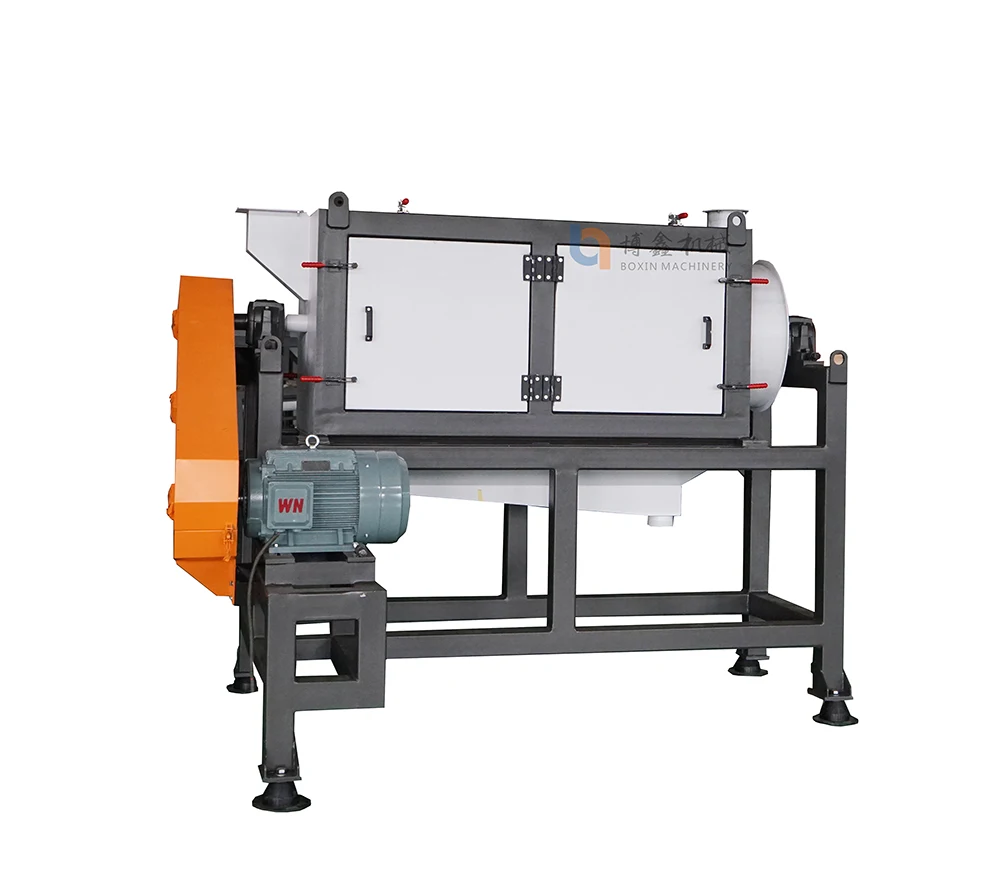

De-watering machine/Centrifugal dehydrator
Super high speed.
The dehydration rate can reach 99%
The materials which contact with water are made of SUS304.

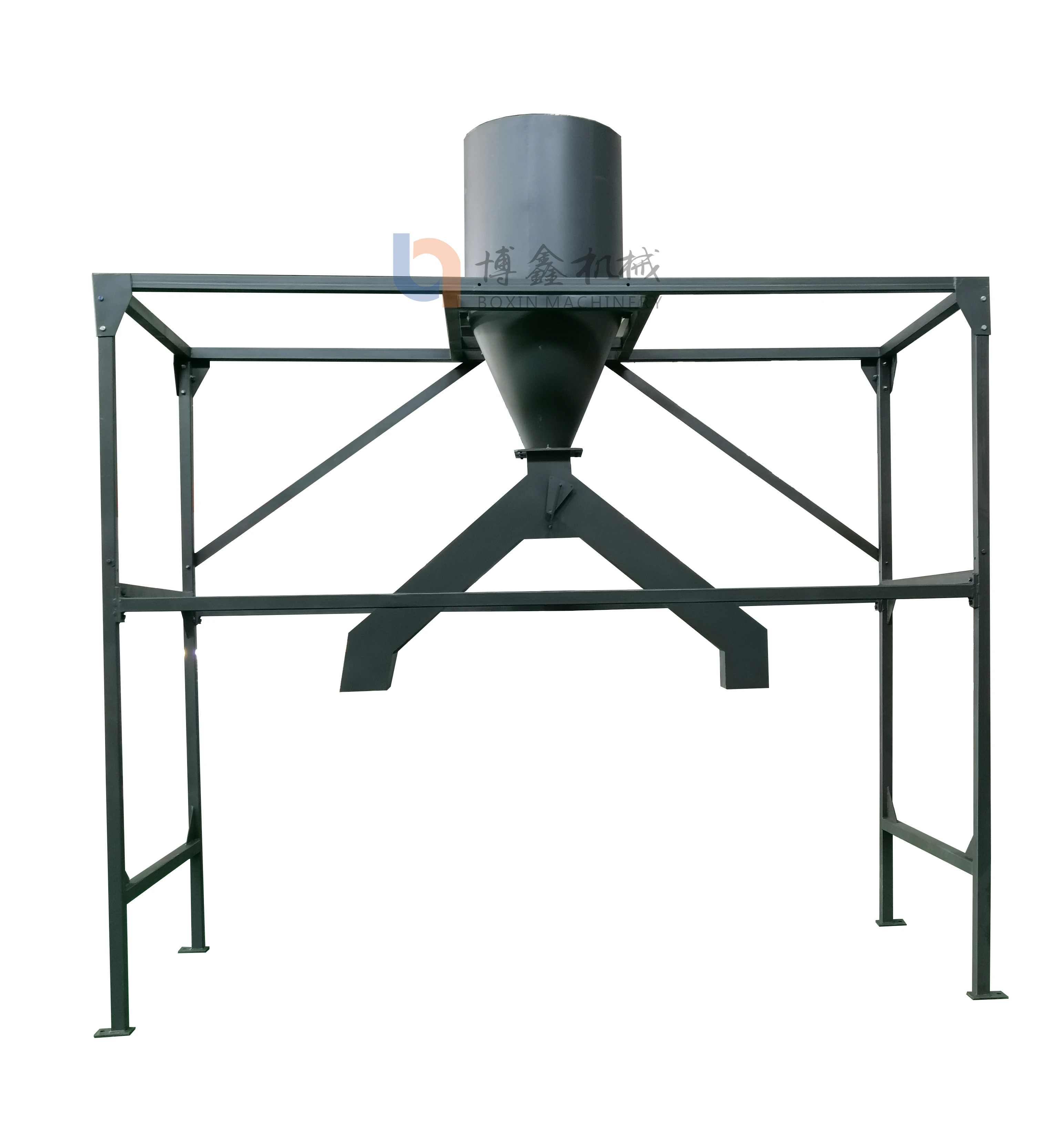

Silo
Temporary storage of materials
Volume 1m³
Made of SUS304
Our Company
Packaging&Delivery
Packing | ||
Size | Accrding to the product | |
Weight | Accrding to the product | |
Packaging Details | The normal package is wooden box(Size: L*W*H).If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Customer&Service
Project in Ecuador
Project in Pakistan
Project in Nigeria
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you by
any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager ) 2. Professionally and patiently introduction, details pictures and working video to show machine
any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager ) 2. Professionally and patiently introduction, details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. Free insurance for goods.
2. 24 hours online to solve any problem. Supply you English manual book and technical support,
maintain and install video to help you solve the problem, or dispatch worker to your factory.
maintain and install video to help you solve the problem, or dispatch worker to your factory.
1. We will provide testing if the customer comes to visit factory to see the machine.
2. We will provide detail machine technical specification ,electric diagram,installation,operation manual and all the documents
which customer needed for clearing customs and using the machine.
3. We will provide engineers for helping installation and training the workers at customer's site.
4.Spare parts are available when they are needed .Within warranty time,we we will provide spare parts free,and over warranty
time,we will provide spare parts with factory price.
5. We will provide technical support and repair service in the whole lifetime .
2. We will provide detail machine technical specification ,electric diagram,installation,operation manual and all the documents
which customer needed for clearing customs and using the machine.
3. We will provide engineers for helping installation and training the workers at customer's site.
4.Spare parts are available when they are needed .Within warranty time,we we will provide spare parts free,and over warranty
time,we will provide spare parts with factory price.
5. We will provide technical support and repair service in the whole lifetime .
Certifications
FAQ
1) Are we manufacture or trade company?
We are manufacture,have 15 years' experiences in this field.
2) What kind machines we produce?
Our factory produce plastic washing and recycling machines, plastic granulation machines.
3) What kind payment we accept?
Payment term like T/T, L/C.
4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.
5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.
6) How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test the each production step for the best machine.
7) How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.
8) How long is your machine’s guarantee time?
One year
9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
We are manufacture,have 15 years' experiences in this field.
2) What kind machines we produce?
Our factory produce plastic washing and recycling machines, plastic granulation machines.
3) What kind payment we accept?
Payment term like T/T, L/C.
4) How long we need to produce the machines?
According to different machine model and configuation, we need different time, like 40 days to 2 months.
5) Will the machine be delivered on time ?
Sure,we will deliver your machine up recieving the balance payment.
6) How about the machine quality?
Our machine quality is reliable.We select every parts on the machine strictly and production and installation is done by
professional workers.We test the each production step for the best machine.
7) How about the price?
You know ,the goods counts the the price.We select the best machine raw material such as siemens electrics,schneider and ABB etc.We will provide you the best machine with best price.
8) How long is your machine’s guarantee time?
One year
9) What can you provide for after sale service?
We can send engineers to your factory for installation and training.also 24 hours on-line service for you.
