Product Description

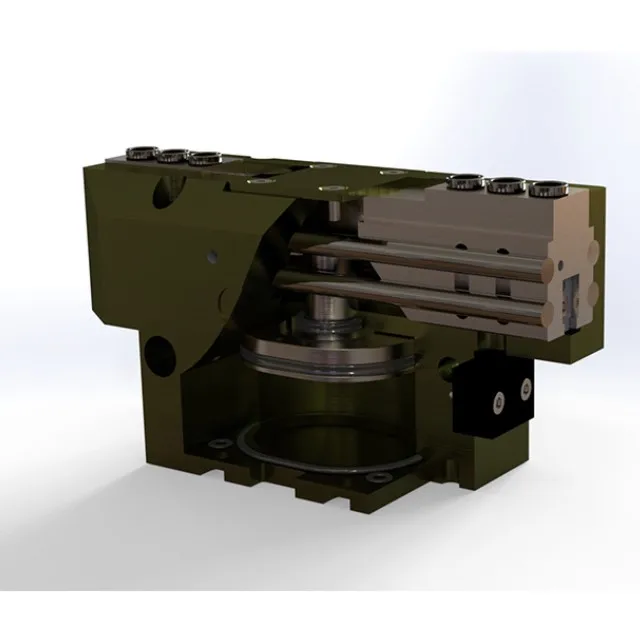

2 finger parallel air shaft gripper (Robot End effector)

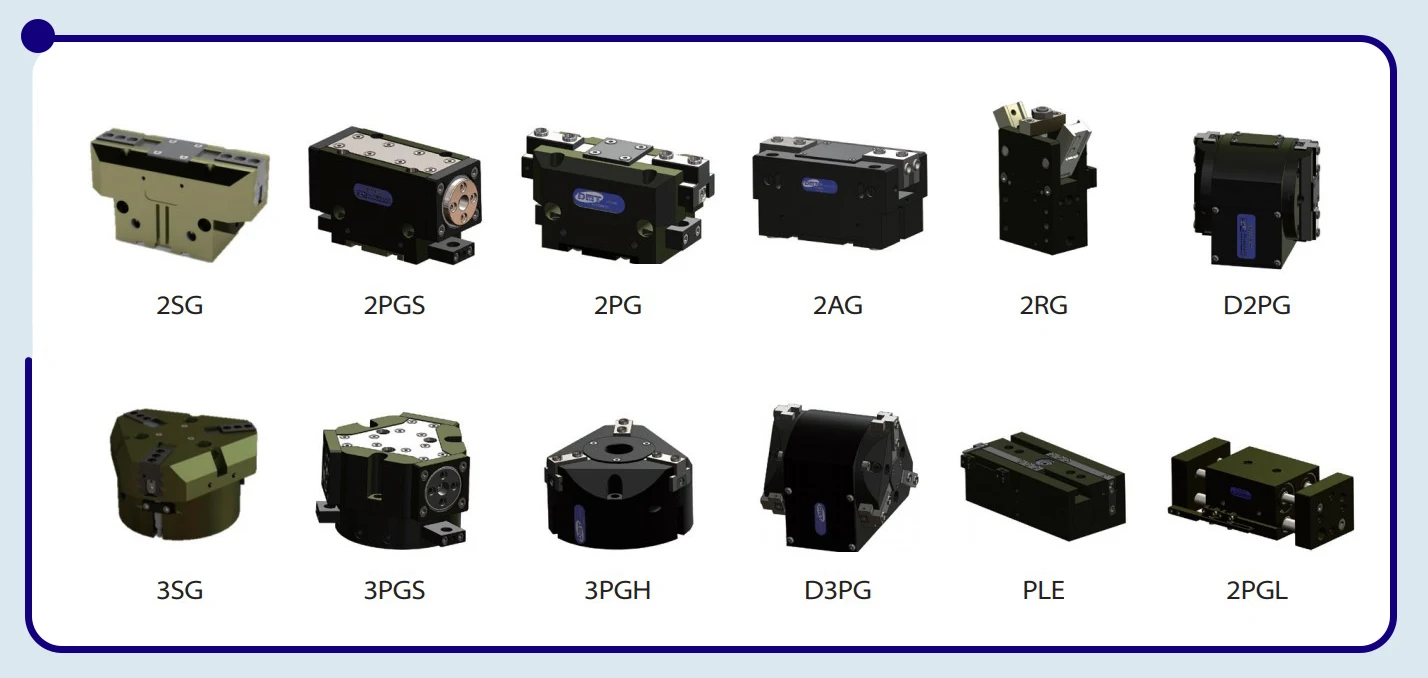

1. Multi product line
2. 2year warranty
3. in 24 hours response
4. Moment power up to 20%
5. Gripping force up to 30%

New Gripper model for your value. It has many advantages.

Applying high-intensity Steel, Applying elliptical pistons,
Durability improvenent, Applying Work check sensing,
Coping with the diversified Mixed mode,
3-stock pitch adjustable Based on the fixed pin.


Gripping systems

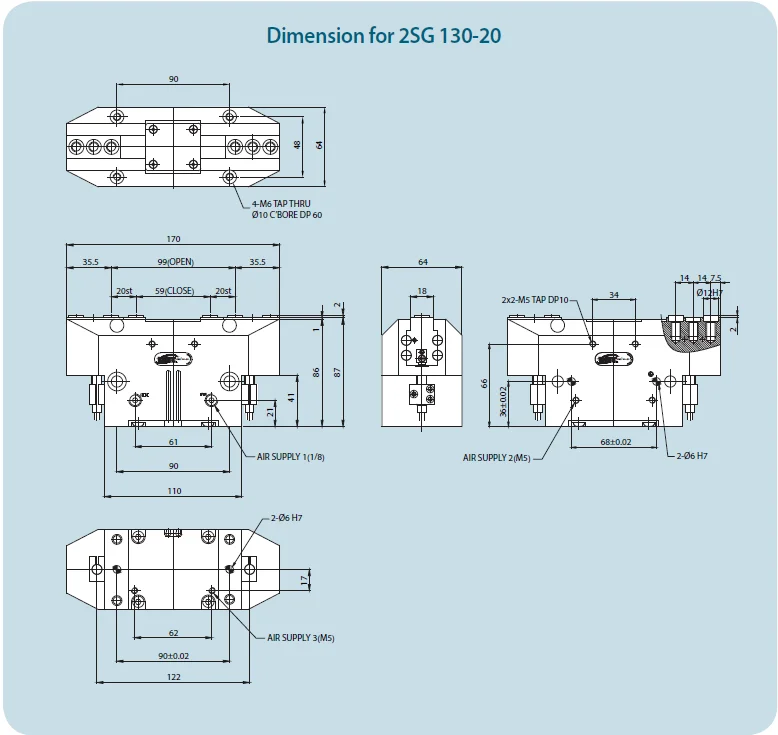

Details Images




Technical data
2SG
40-11
2SG
50-13
2SG
90-16
2SG
130-20
2SG
200-24
2SG
350-30
Stroke per finger
11mm
13mm
16mm
20mm
24mm
30mm

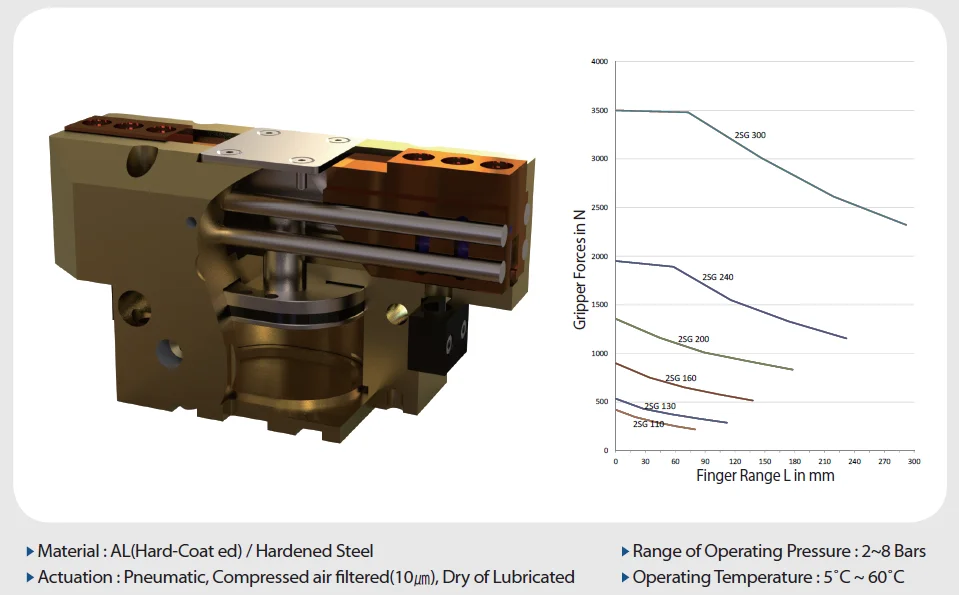

Gripping force
at 6bars
400N
500N
900N
1300N
2000N
3500N

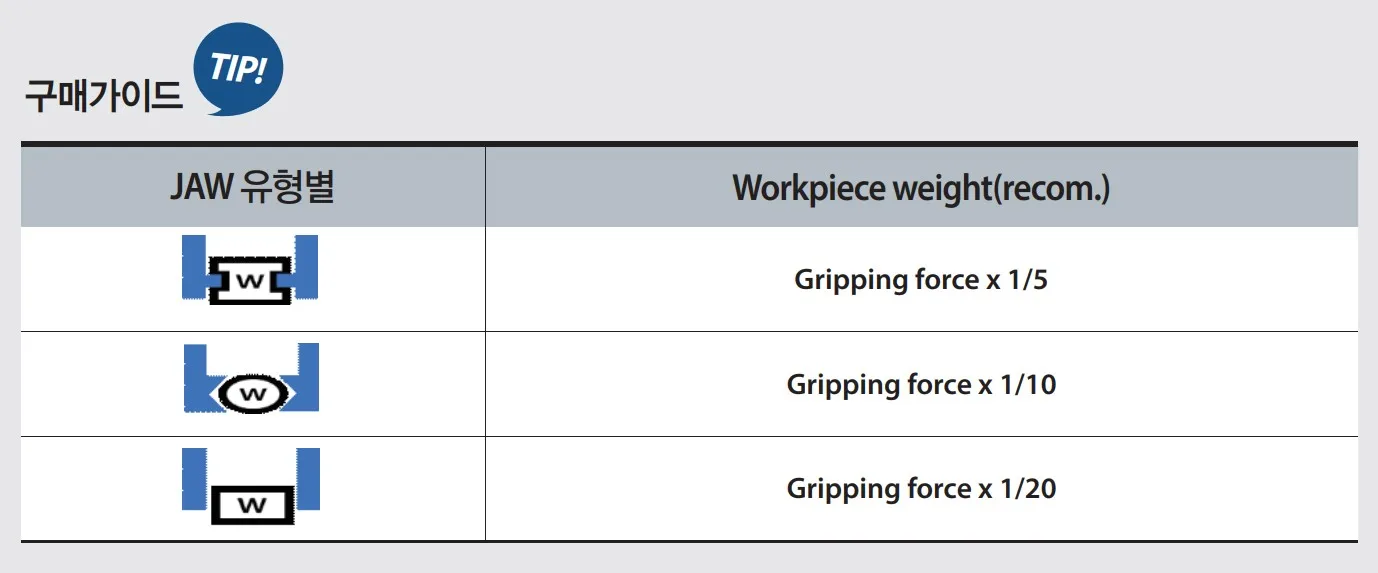

Workpiece weight
(recom.)
2.0kg
2.5kg
4.6kg
6.6kg
10.2kg
17.8kg
Air consump. Per
Double stroke
16m3
22cm3
44cm3
78cm3
154cm3
330cm3
Opening Time
0.03s
0.05s
0.08s
0.1s
0.3s
0.7s
Closing Time
0.03s
0.05s
0.08s
0.1s
0.3s
0.7s
Mass
0.72kg
0.75kg
1.3kg
2.2kg
3.75kg
7.2kg
Repeat Ability
0.01mm

0.02mm



Max.Finger length
110mm
130mm
160mm
200mm
240mm
300mm




Specification


Item
Value
Applicable Industries
Manufacturing Plant
Marketing Type
New Product
Condition
New
Place of Origin
South Korea
Brand Name
DMT
Weight
2.2kg
Power
Gripping force at 6 bars 1300N


Our Advantages




1) Patented skills & Over 20 years field know-how

2) Provide User Friendly robot system
: High accuracy, High speed, Long life time

3) 2 years warranty Quick responce within 24 hours


Company Profile




Contact Us


Address : 1, Yongjeong1-Gil, Cilwon-Eup, Haman-Gun, Kyoungnam, Korea
Website : Http://www.dmtec.net
Email : dmtech8@naver.com / dmtech7@hanmail.net
Tel : +82-55-586-1735
Fax : +82-55-587-9236
