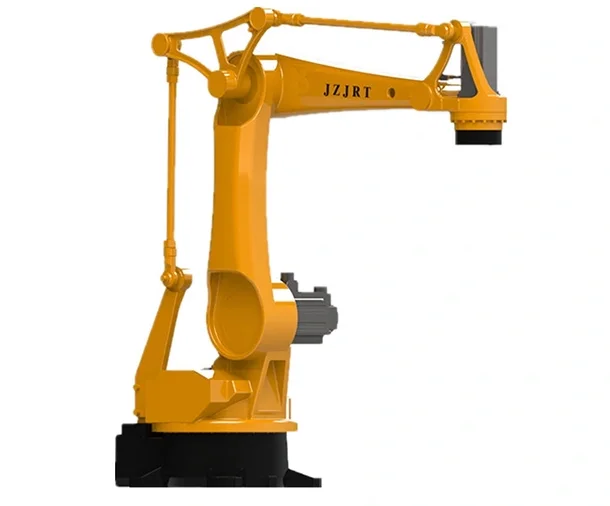

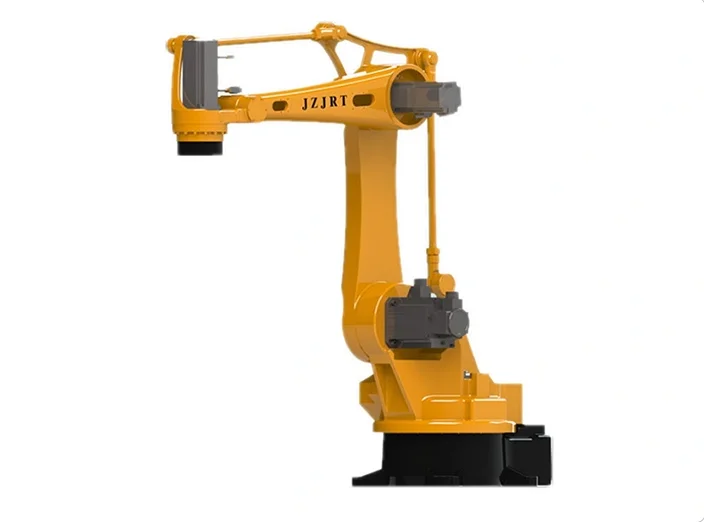

ROBOT ARM

Product Parameters:



Model	UW5404
Working radius	540mm
Number of axis	3 Axis/4 Axis
installation	Floor
N.W.	13kg
Position  repeatability	±0.05mm
Max playload	1kg
Power Consume	0.4KVA
Power supply	Input:Single phase 110V-240V  50Hz          Output:DC 24V(400W)
External communication	WIFI/Ethernet
Application	Picking, Loading, Casting, Polishing Etc
Safety standard	ISO 9001-2015
Control software	Hulkbot Studio
Drive System	Steper motor
Working condition	-10°C~60°C
I/O	Input 5/Output 5

Axis'Working Range:



Working envelope	J1	±160°
	J2	-42°~85°
	J3	-20°~100°
	J4	±165°
Max Speed	J1	360°/s
	J2	360°/s
	J3	360°/s
	J4	500°/s
