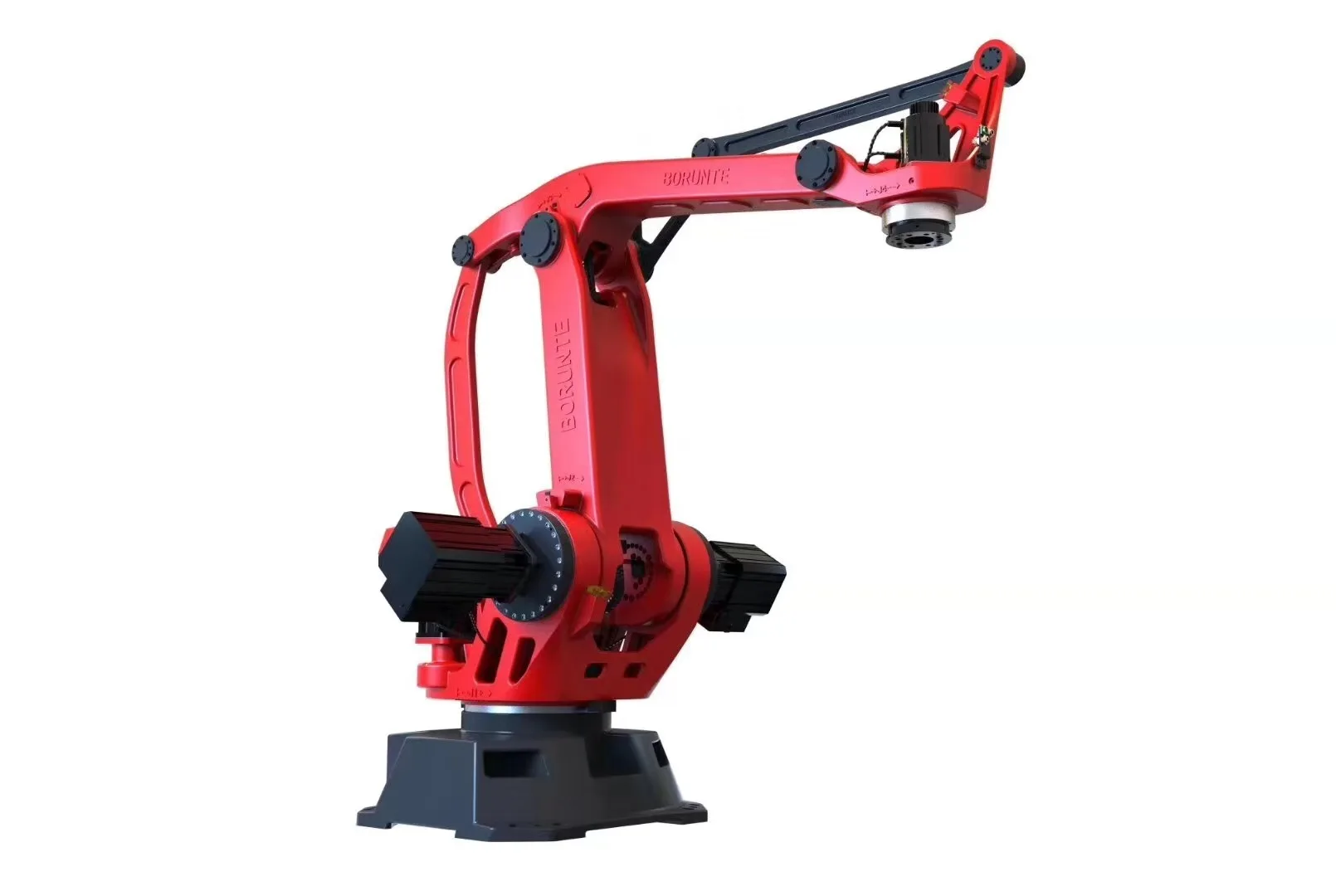

Конкурентоспособная Цена Робот оси промышленного робота 6 манипулятор Роботизированная рука от китайского

Описание и отзывы

Характеристики

1. Technical Details



Motion range:	R=1500mm	R=1500mm
Max Operation Area	J1	-170°~+170°
	J2	85°~+125°
	J3	85°~78°
	J4	-170°~+170°
	J5	-115°~+140°
	J6	-360°~+360°
Repeat ability:	±0.08mm
Maxinum speed:	J1	2.18rad/s(125°/s)
	J2	2.18rad/s(125°/s)
	J3	4.36rad/s(250°/s)
	J4	6.53rad/s(375°/s)
	J5	5.23rad/s(300°/s)
	J6	7.85rad/s(310°/s)
Weight		158 kg
Safety Regulations Arm		IP65
Safety Regulations Electric cabinet		IP43

2.Applications

1.Material handling and palletizing

2.Packaging and assembly

3.Polishing

4.Laser welding

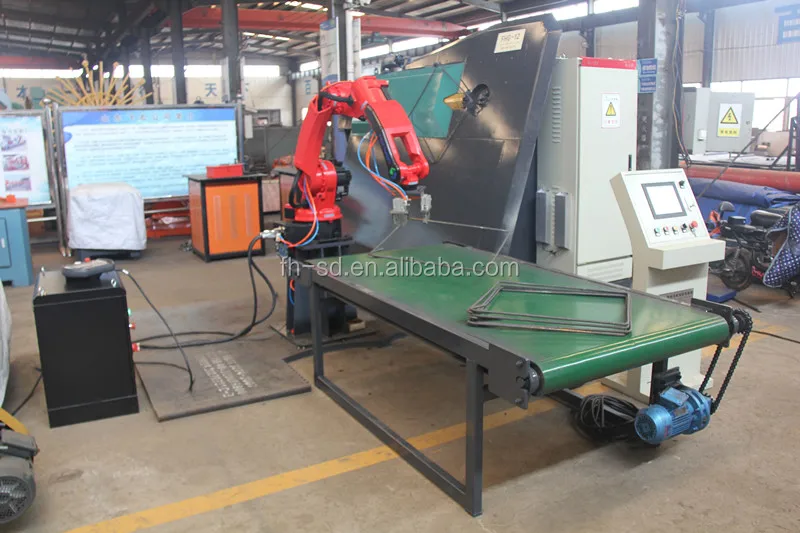

5.Spot welding

6.Bending Cutting / deburring







3. Working conditions

1. Power supply: 220V ± 10% 50HZ ± 1%

2. Operating temperature: 0 ℃ -40 ℃

3. Optimum ambient temperature: 15 ℃ -25 ℃

4. Relative humidity: 20-80% RH (no condensation)

5.Air source pressure: 0.5-0.7Mp



4. Features

1, take time shortened

2, the small model of control cabinet

3, small, portable teaching box

4, with high speed ,we use light material and small motors to enhance movement speed

5, with wide working range ,flexible arm is able to work in narrow space

6, with excellent environmental adaptability ,the double sealing structure and water-proof socket of each joint, protection level of wrist part is IP 67 ,basic axis IP65
