[DM technology] Extremely perfect Swivel and grip-per unit PSG
- Категории: Manipulator >>>
- Поставщик: DM,Technology,Co.,LTD.
Поделиться:
Описание и отзывы
Характеристики
Product Description

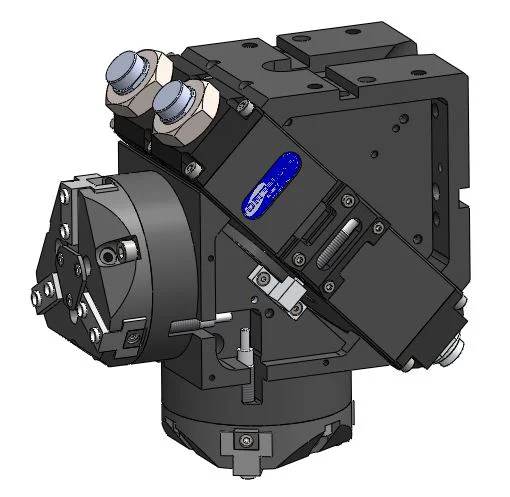

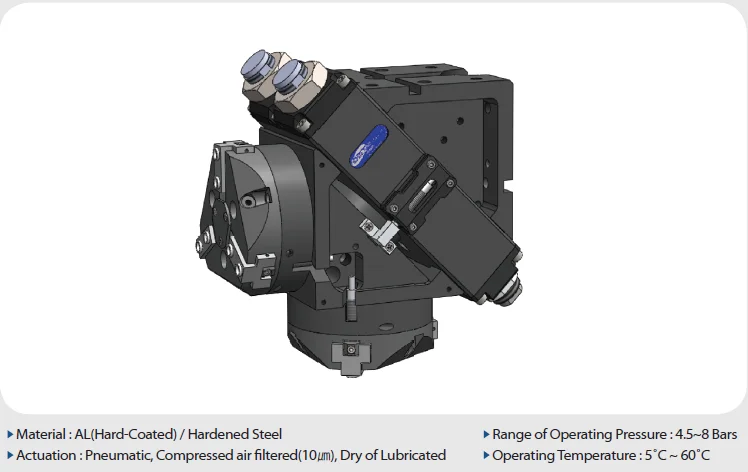

Swivel & Gripper air unit (Robot End effector)_PSG
2. 2year warranty
3. in 24 hours response
4. Moment power up to 20%
5. Gripping force up to 30%
New Gripper model for your value. It has many advantages.
Applying high-intensity Steel, Applying elliptical pistons,
Durability improvenent, Applying Work check sensing,
Coping with the diversified Mixed mode,
3-stock pitch adjustable Based on the fixed pin.
Applying high-intensity Steel, Applying elliptical pistons,
Durability improvenent, Applying Work check sensing,
Coping with the diversified Mixed mode,
3-stock pitch adjustable Based on the fixed pin.
Gripping systems

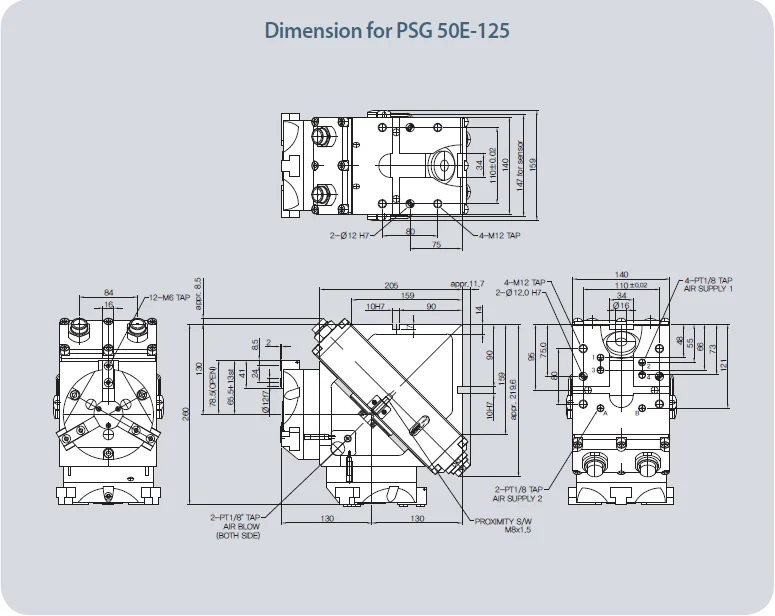

Details Images
Technical data | PFS 25E-64 | PFS 34E-80 | PFS 40E-100 | PFS 50E-125 | ||||||||||
**Torque | Stroke per Finger | 3Nm | 6mm | 12Nm | 8mm | 22Nm | 10mm | 45Nm | 13mm | |||||
No. of Air feed Ports | *Gripping force At 6 bars | 4 | 580N | 5 | 1000N | 4 | 1800N | 5 | 3100N | |||||
Axial bearing load | *Workpiece Weight (recom.) | 600N | 3kg | 750N | 5.3kg | 1300N | 10kg | 9000N | 15.5kg | |||||
Radial bearing load | Air consomp. Per double stroke | 10.4Nm | 25cm3 | 15.4Nm | 60cm3 | 63Nm | 120 cm3 | 340Nm | 230cm3 | |||||
Air consumption For 2X180º | Opening time | 22cm3 | 0.01s | 35cm3 | 0.05s | 252 cm3 | 0.07s | 768 cm3 | 0.17s | |||||
Cycle time ( 1X180º without load) | Closing time | 0.3s | 0.01s | 0.4s | 0.06s | 0.8s | 0.08s | 1.2s | 0.17s | |||||
Mass | - | 3.2kg | - | 5.2kg | - | 9kg | - | 19.4kg | - | |||||
Mass moment of inertia | Repeat ability | 90kg | 0.01mm | 155kg cm3 | 0.01 mm | 240kg cm3 | 0.01 mm | 1850kg cm3 | 0.05mm | |||||
*Repeat Ability | Max finger length | 0.1º | 64mm | 0.1º | 88mm | 0.1º | 100 mm | 0.1º | 125mm | |||||
Specification
Item | Value |
Applicable Industries | Manufacturing Plant |
Marketing Type | New Product |
Condition | New |
Place of Origin | South Korea |
Brand Name | DMT |
Weight | 19.4kg |
Power | Gripping force at 6 bars 3100N |
Our Advantages
1) Patented skills & Over 20 years field know-how
2) Provide User Friendly robot system
: High accuracy, High speed, Long life time
3) 2 years warranty Quick responce within 24 hours
3) 2 years warranty Quick responce within 24 hours
Company Profile
Contact Us
Address : 1, Yongjeong1-Gil, Cilwon-Eup, Haman-Gun, Kyoungnam, Korea
Website : Http://www.dmtec.net
Email : dmtech8@naver.com / dmtech7@hanmail.net
Tel : +82-55-586-1735
Fax : +82-55-587-9236
