Мелкомасштабный мини-блок цемента меля/завод меля/цементный завод делая машинное
- Категории: Cement Making Machinery >>>
- Поставщик: Henan,Turui,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

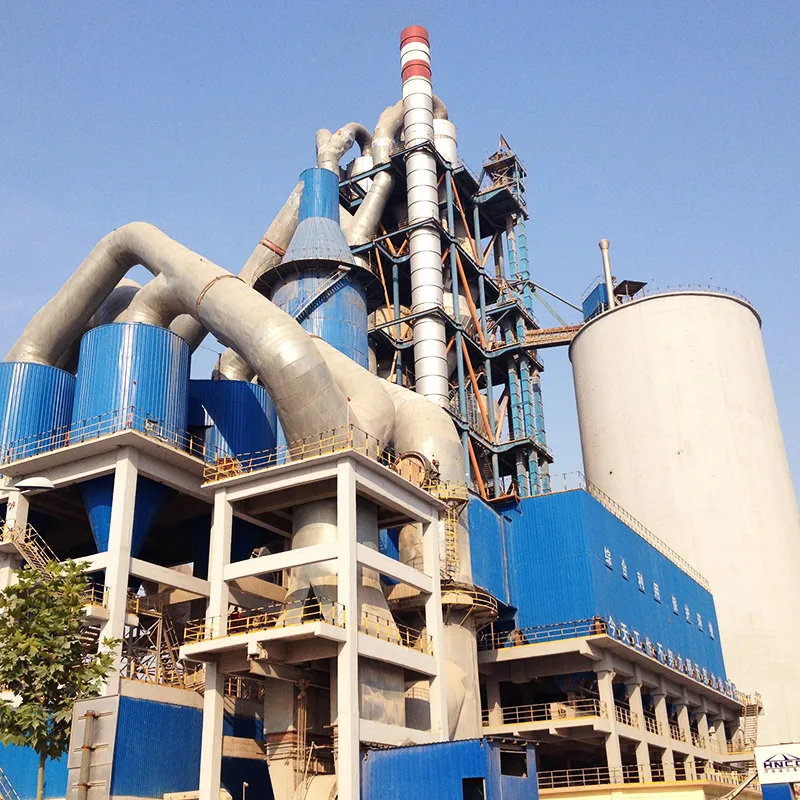

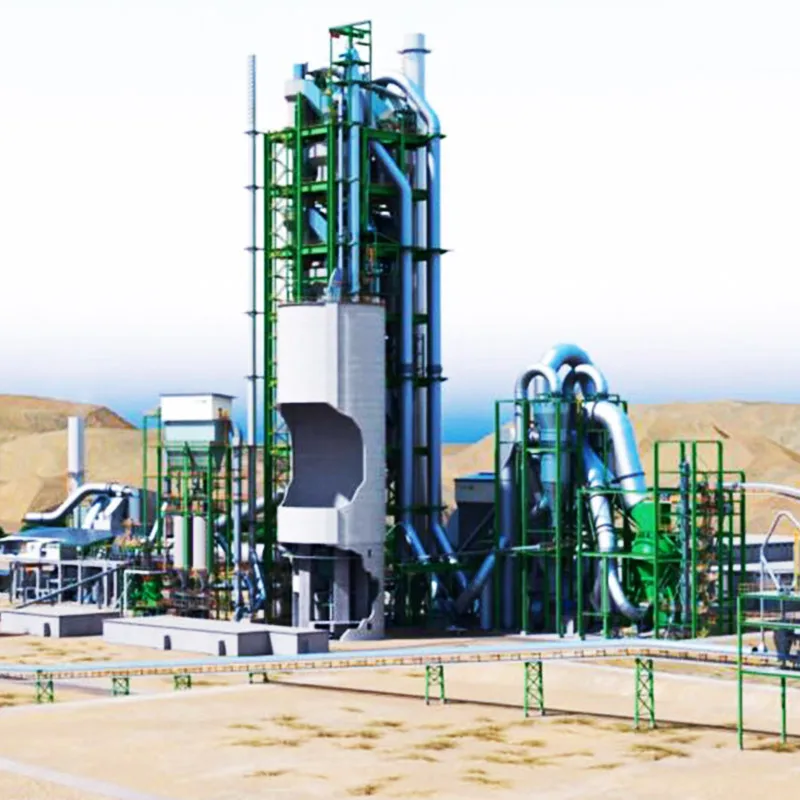

Cement Manufacturing Plants
The cement grinding unit manufactured by our company merges drying, grinding, powder classifying, dust collecting and cement packing into a single. It can not only grind cement clinker but also process cement admixture, such as gypsum, fly ash, furnace slag, coal gangue, etc., realizing a stable, high-quality and automated cement production. Unlike the cement production line, the cement grinding plant is usually established around the sales market, which saves a lot of transportation costs. At the same time, it absorbs industrial waste from the cities around because most of the mixed materials in the cement grinding are industrial wastes. It completely complies with the requirement of energy conservation and emissions reduction, meanwhile, brings you rich benefits. According to different requirements of cement production, Turui provides the cement grinding unit with different
capacity and equipped machines. Each customer can have their ideal cement grinding plant here.
capacity and equipped machines. Each customer can have their ideal cement grinding plant here.
Main Equipment

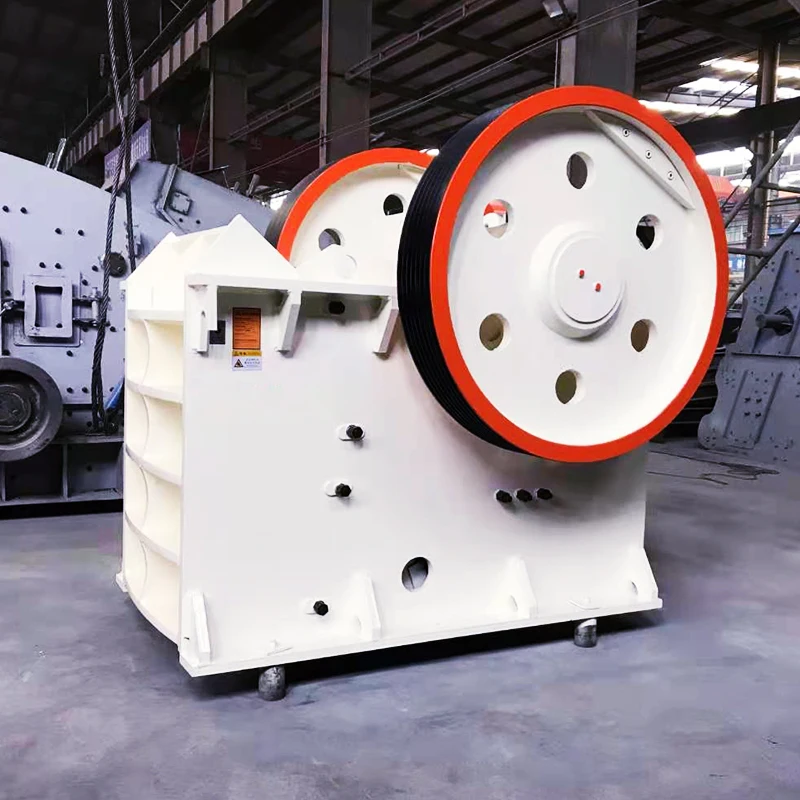

Jaw crusher
Cement mill
Rotary Kiln
Rotary Dryer

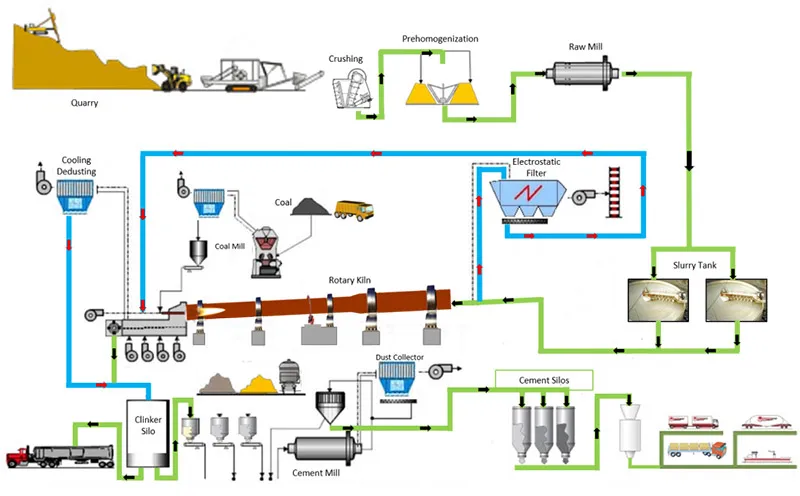

Working Flow
Cement Grinding Process
The cement grinding unit adopts the pre-grinding technology. On the one hand, it reduces the particle size of materials before the formal grinding, on the other hand, it causes the cracks and defects inside the particles to greatly improve the output and reduce the energy consumption of the cement grinding mill. Cement grinding process mainly includes the mixed materials crushing, material batching, pre-grinding, fine grinding, powder classification, dust collecting, automatic control, and other technologies, making cement production high yield and high quality, in line with the requirements of energy-saving and emission reduction.
After the clinker, limestone and gypsum are weighed and mixed in a certain proportion by the belt weigher, they will be sent into the pre-grinding system by the belt conveyor and elevator. Then the ground materials and the weighed fly ash will be further ground in the ball mill grinding system. The powder concentrator set behind the grinding system has an effect of returning the coarse powder that does not meet the specifications to the ball mill for regrinding. The fine powder will be sent to the finished product elevator through the conveying chute and finally enter the cement silo. During these processes, the gas discharged from the ball mill will be purified by the dust collector and discharged into the atmosphere by the air blower. The collected fine powder will be directly sent into the cement silo.
After the clinker, limestone and gypsum are weighed and mixed in a certain proportion by the belt weigher, they will be sent into the pre-grinding system by the belt conveyor and elevator. Then the ground materials and the weighed fly ash will be further ground in the ball mill grinding system. The powder concentrator set behind the grinding system has an effect of returning the coarse powder that does not meet the specifications to the ball mill for regrinding. The fine powder will be sent to the finished product elevator through the conveying chute and finally enter the cement silo. During these processes, the gas discharged from the ball mill will be purified by the dust collector and discharged into the atmosphere by the air blower. The collected fine powder will be directly sent into the cement silo.
No | Main equipment | Closed circuit production | ||||||||
15T/H | 25T/H | 35T/H | 50T/H | 70T/H | ||||||
1 | Cement Ball Mill | Φ2.2×6.5m Power: 380kw | Φ2.4×11m Power: 380kw | Φ3×11m Power: 380kw | Φ3.2×13m Power: 380kw | Φ3.5×13m Power: 380kw | ||||
2 | Belt conveyor | B500 | B650 | B650 | B800 | B1000 | ||||
3 | Elevator | TH315 | TH400 | NE100 | NE150 | NE200 | ||||
4 | Powder separator | Osepa N250 | Osepa N500 | Osepa N750 | Osepa N1000 | Osepa N2000 | ||||
5 | Dust collector 1 | PPC32-4 | PPC32-6 | PPC64-5 | PPC64-6 | PPC64-7 | ||||
Dust collector 2 | PPC64-6 | PPC96-7 | PPC96-2×5 | PPC96-2×6 | PPC96-2×10 | |||||
6 | Elevator to cement silo | TH250 | TH315 | NE50 | NE100 | NE100 | ||||
7 | Package machine | Three -nozzle | Four -nozzle | Rotary 6 -nozzle | Rotary 8 -nozzle | Rotary 8 -nozzle | ||||
Product Advanges
High Efficiency
High Quality & Output
All-around Service
Turui provides EPC turnkey projects. It not only includes the manufacture of various specialized equipment in the cement grinding unit but also includes the grinding unit design, onsite installation, real-time commissioning, equipment operation training and usual spare parts service.
Timely Delivery
Turui Cement has large manufacture workshops and professional processing equipment to ensure the fast and high-quality production of related equipment in this cement grinding unit. Besides, we have more than 20 years of production and sales experience, the products are exported to all over the world, therefore, we can ensure the timely and safe delivery, reducing the time cost of customers.
Customization Service
Customization is the most basic service our company provides for each customer. We will design the cement grinding plant according to customers’ specific needs, such as capacity, cement standard, construction environment, etc. Every customer will get their satisfied plant here.
Eco-friendly
This cement grinding plant is equipped with advanced dust collector to strictly control dust emission and noise pollution, realizing the reuse of resources, so you don’t need to worry about the environmental issue.
We add the activation device in the fine grinding chamber, and a special grate plate at the end of the grinding mill. Besides, wereduce the size of the grinding medium, which greatly improves the grinding efficiency, realizing high output and low energy consumption.
High Quality & Output
This grinding plant overcomes the shortcomings that equipment temperature is not easy to control, the product quality is not stable, the energy consumption is large, and the thermal efficiency is low. With the same granularity of finished products, the output is increased by 30% compared with other processes, and the energy consumption in production is reduced by about 15%.
All-around Service
Turui provides EPC turnkey projects. It not only includes the manufacture of various specialized equipment in the cement grinding unit but also includes the grinding unit design, onsite installation, real-time commissioning, equipment operation training and usual spare parts service.
Timely Delivery
Turui Cement has large manufacture workshops and professional processing equipment to ensure the fast and high-quality production of related equipment in this cement grinding unit. Besides, we have more than 20 years of production and sales experience, the products are exported to all over the world, therefore, we can ensure the timely and safe delivery, reducing the time cost of customers.
Customization Service
Customization is the most basic service our company provides for each customer. We will design the cement grinding plant according to customers’ specific needs, such as capacity, cement standard, construction environment, etc. Every customer will get their satisfied plant here.
Eco-friendly
This cement grinding plant is equipped with advanced dust collector to strictly control dust emission and noise pollution, realizing the reuse of resources, so you don’t need to worry about the environmental issue.

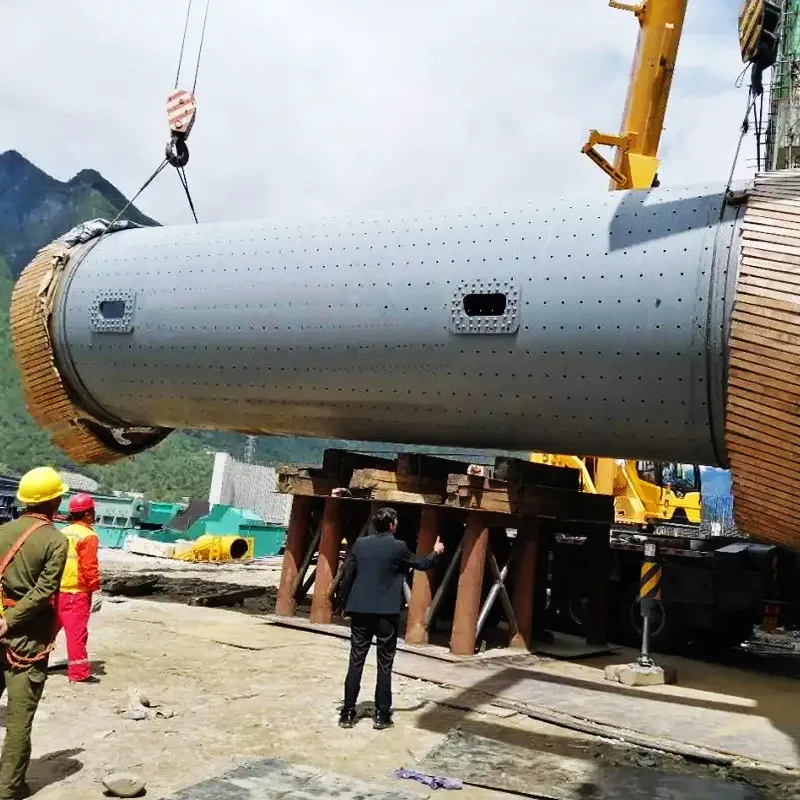

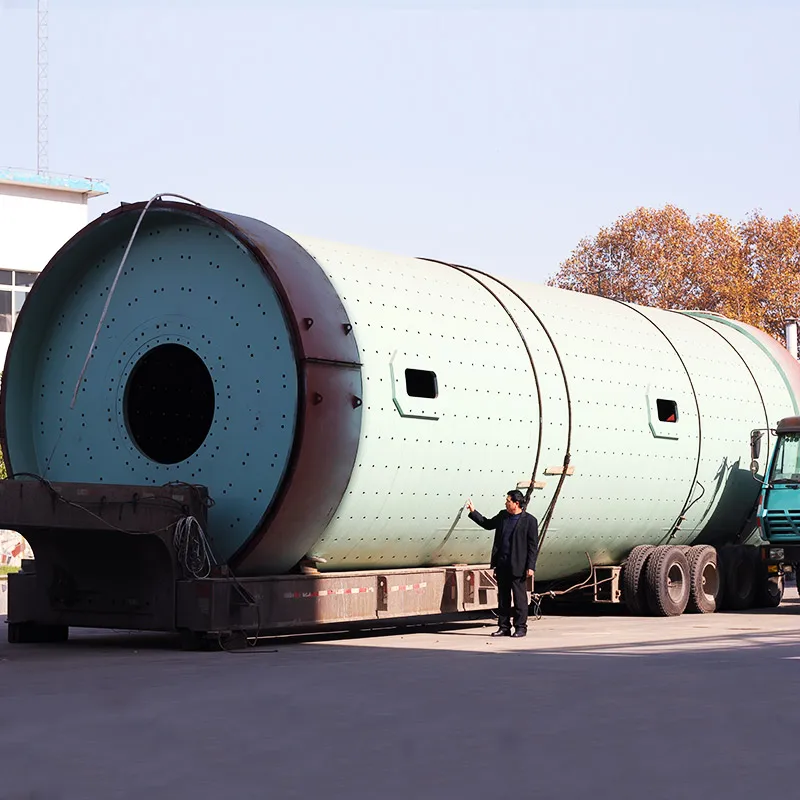

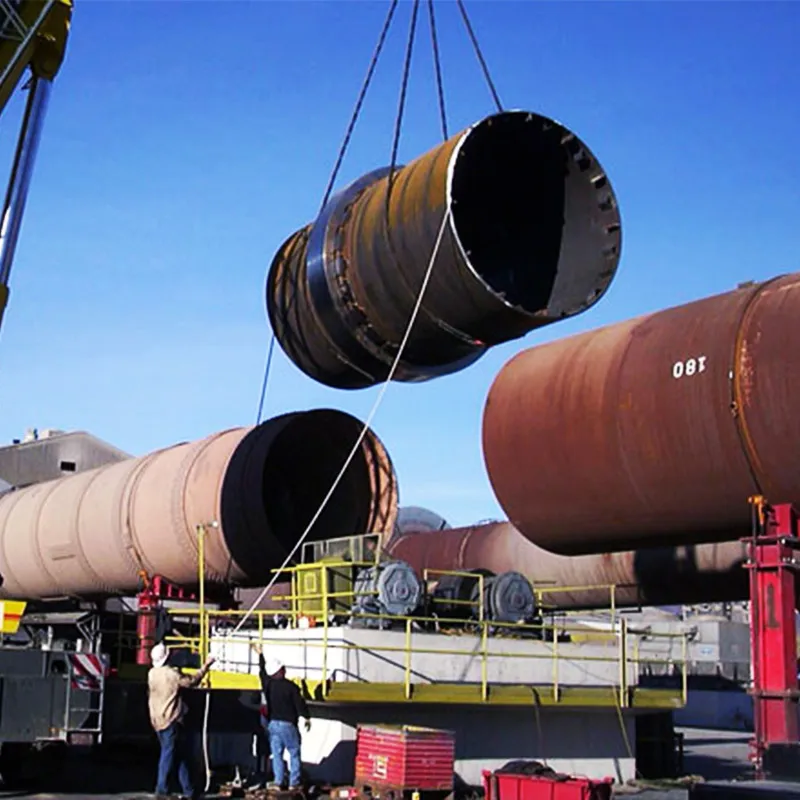

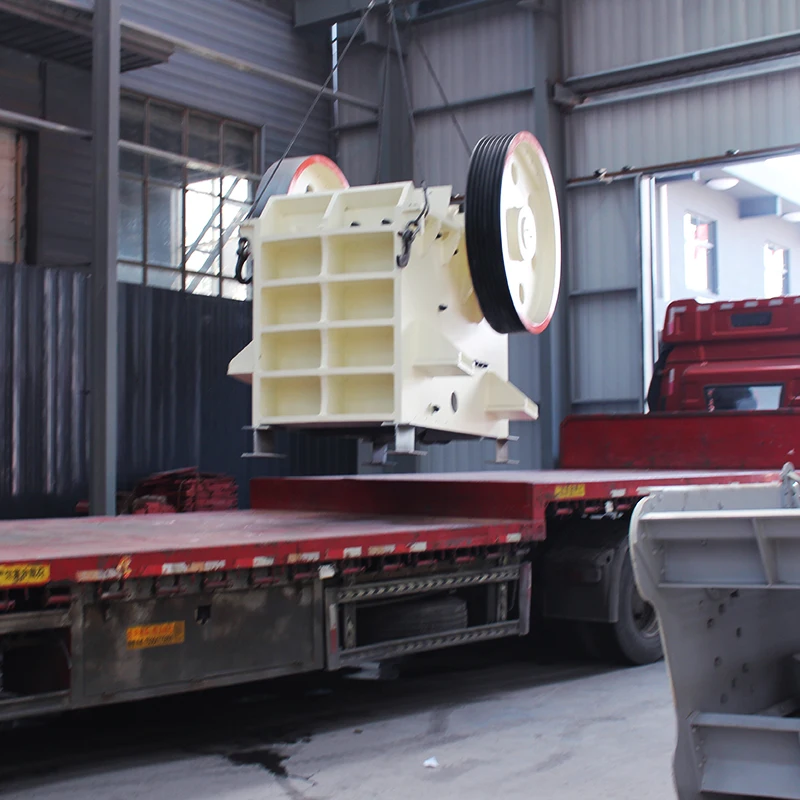

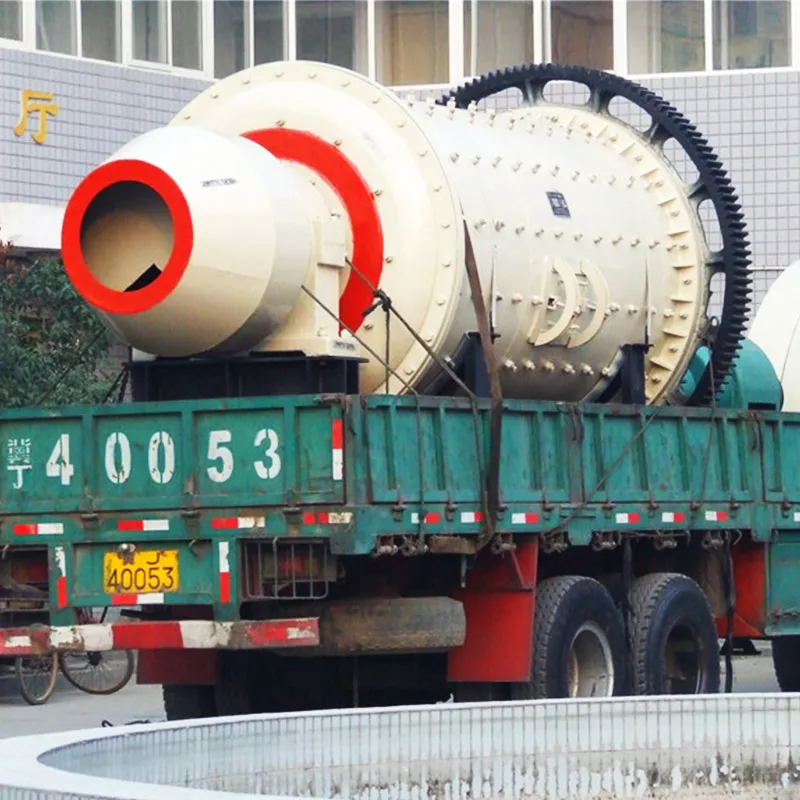

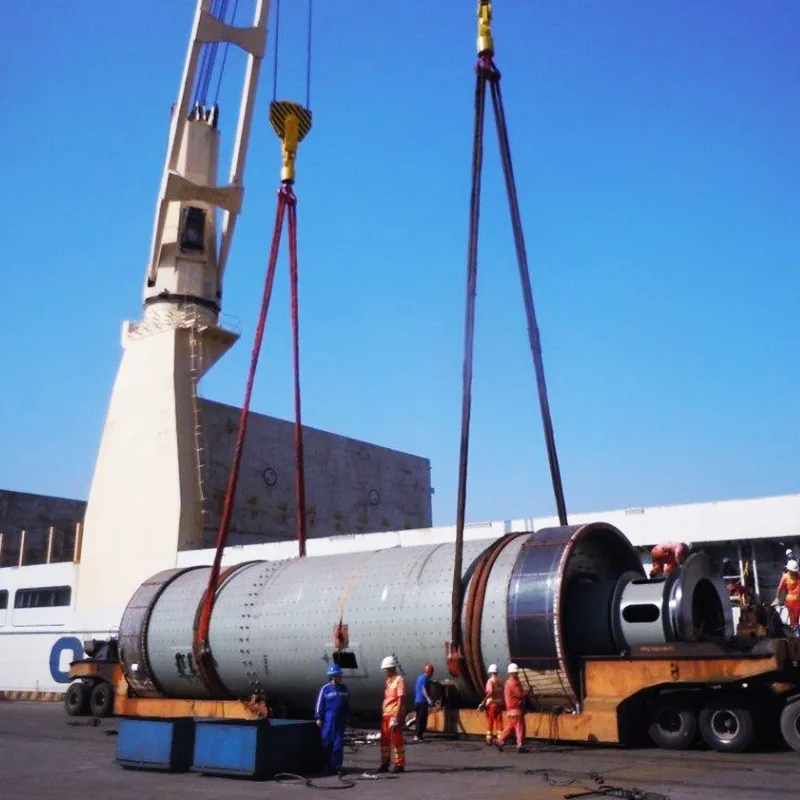

Product delivery

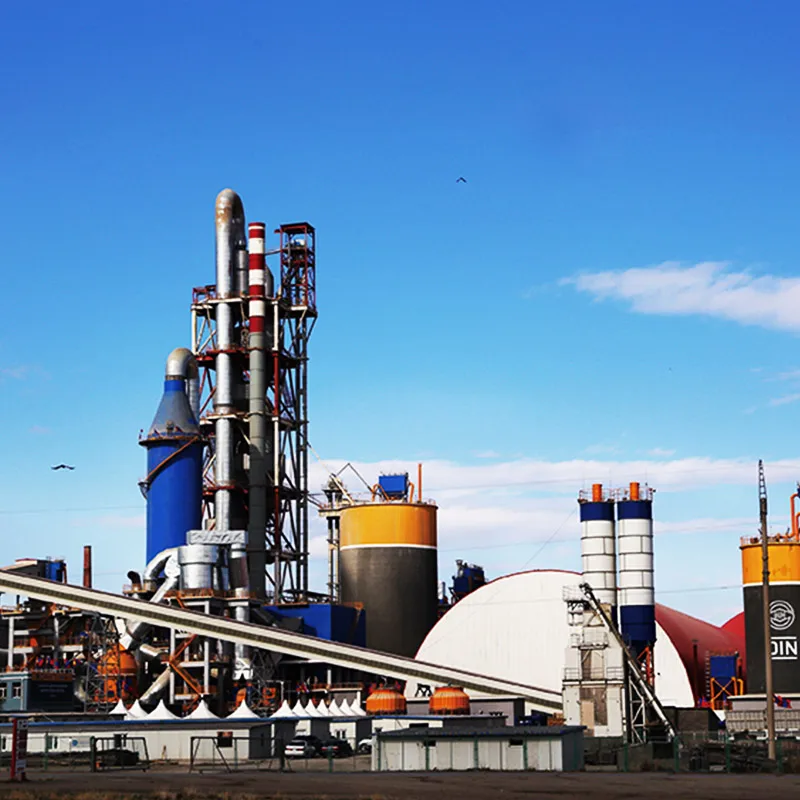

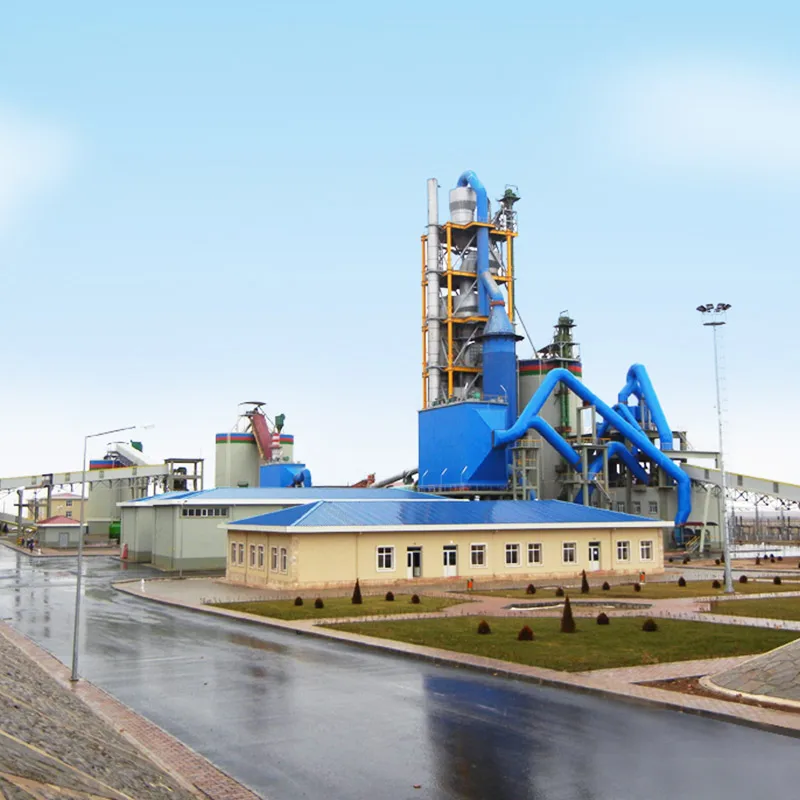

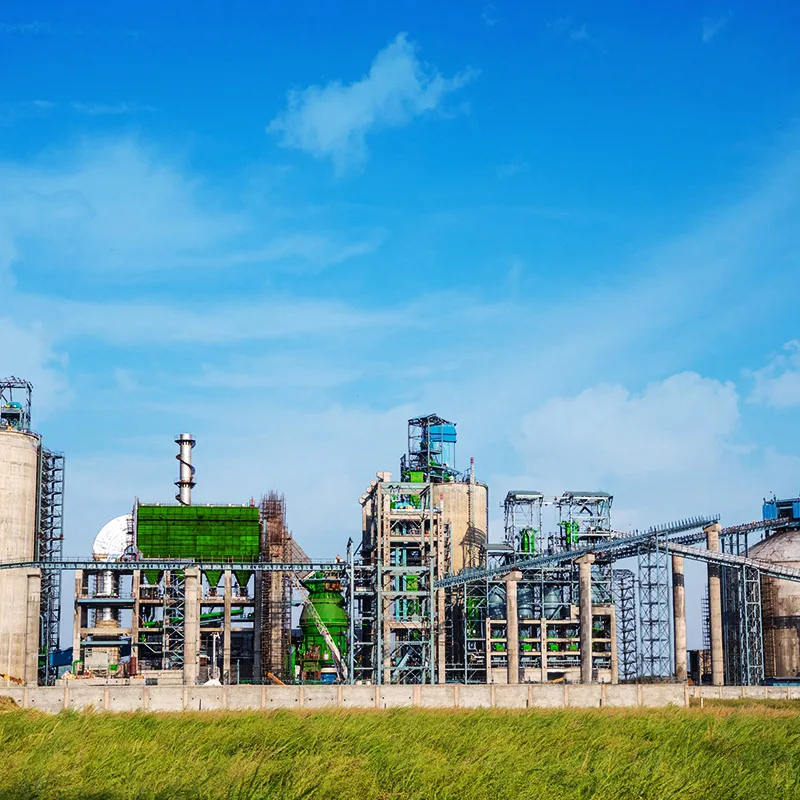

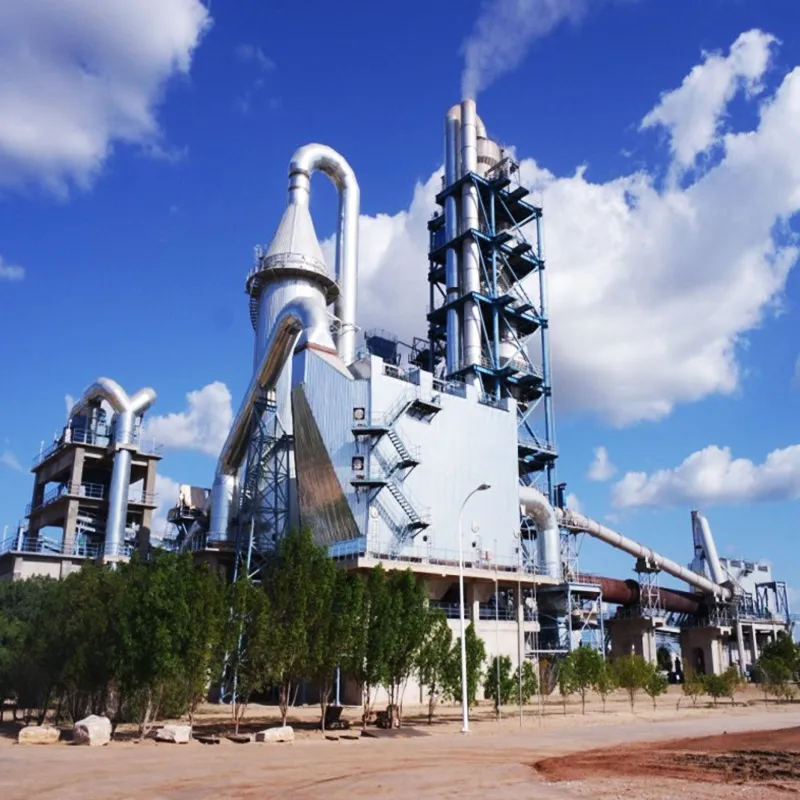

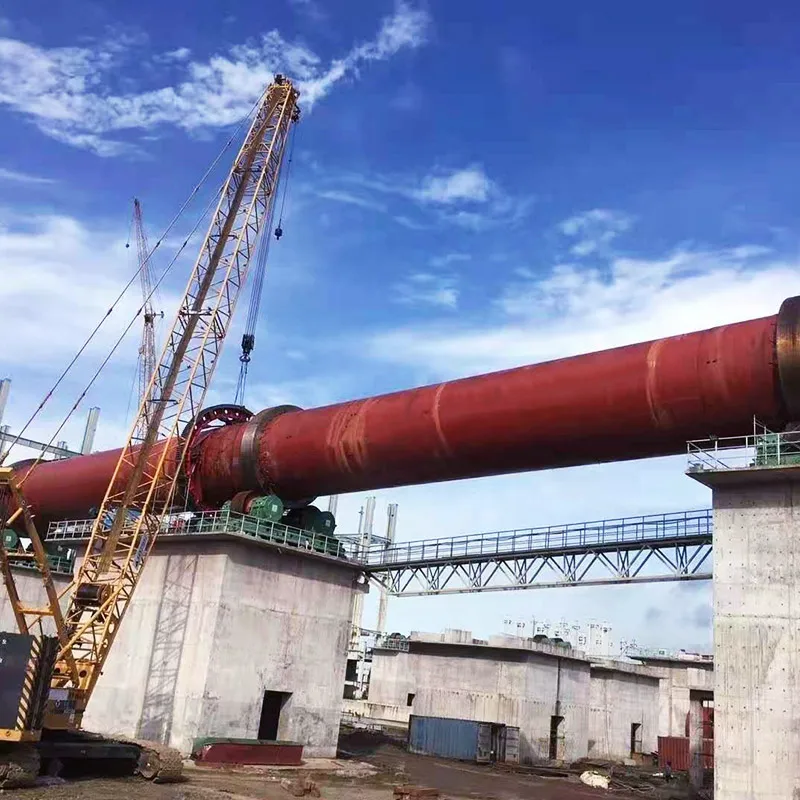

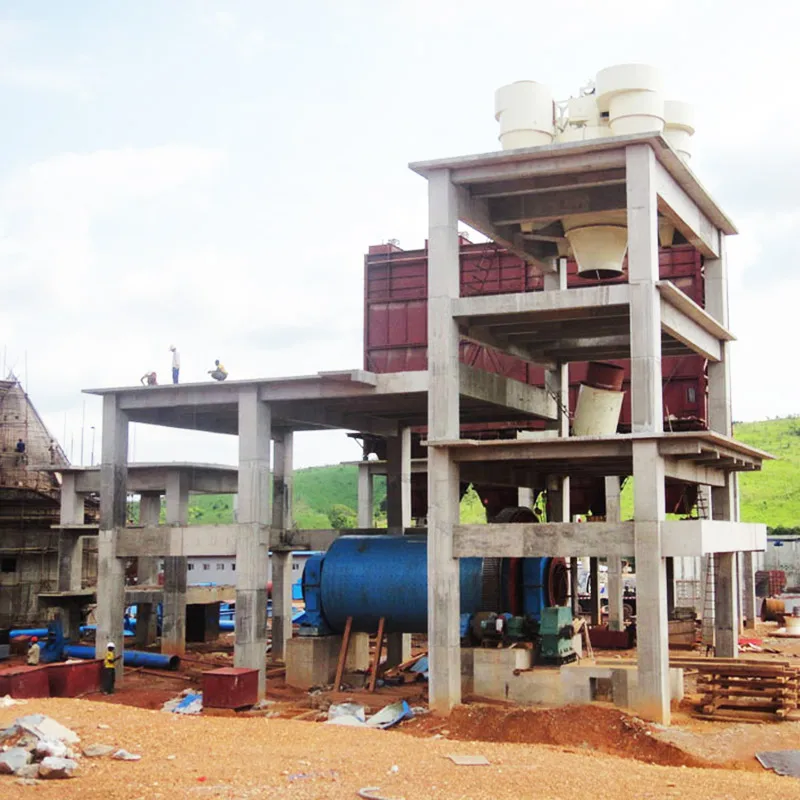

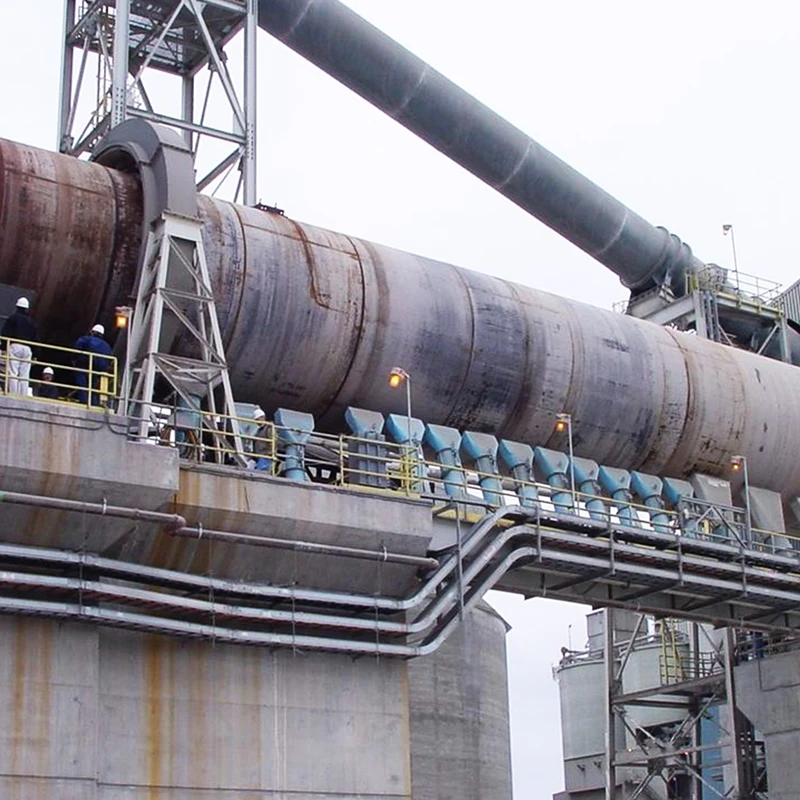

Project Cases

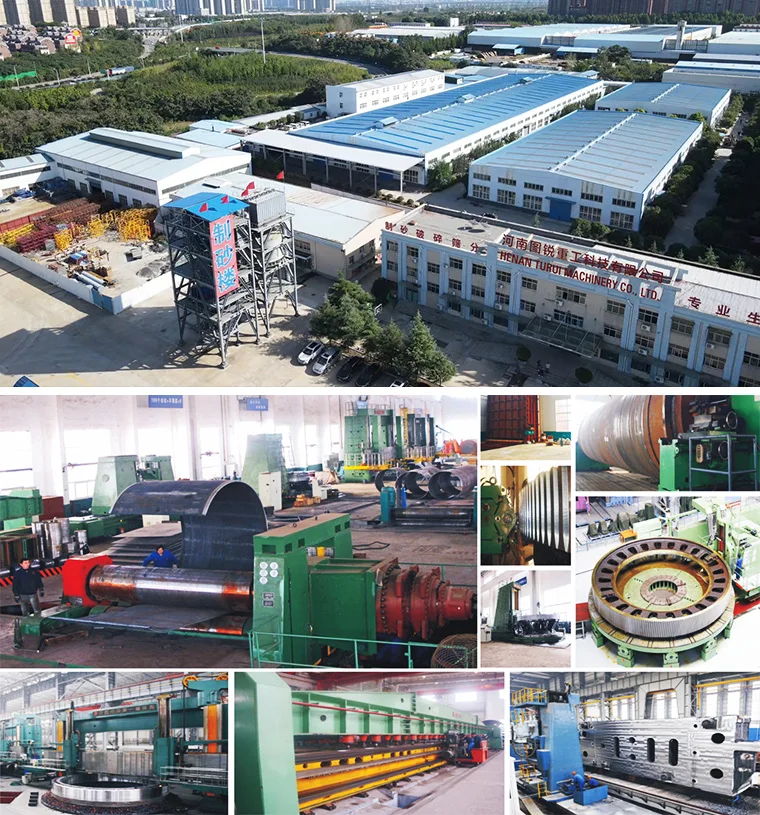

Company Profile
Henan Turui Machinery Co., Ltd is a professional manufacturer of different mining machinery. It integrates the design, research,production, sales and installation together, guaranteeing the reliable and stable quality.
Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as in south-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000 square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling machine, vertical lathe, and travelling crane at the workshop.
Now the company has more than one hundred employees, including 8 professional engineers. Seventy-five percent of the employees have participated the professional technical training, which makes sure high-efficient pre-sales and after-sale service.
Its main products includes calcining equipment, ore dressing equipment, crushing and screening equipment, drying and cooling equipment, and grinding equipment. There are more than hundred of customers using our products all over the world, such as in south-east Asia, south-Asia, middle Asia, middle-east area, Africa, Australia, South America. The company covers an area of 40,000 square meters, building area of 10,000 spare meters. There are more than forty sets of boring-milling machine, gear hobbling machine, vertical lathe, and travelling crane at the workshop.
Now the company has more than one hundred employees, including 8 professional engineers. Seventy-five percent of the employees have participated the professional technical training, which makes sure high-efficient pre-sales and after-sale service.
Why Choose Us
1.Timely And Fast Delivery
Turui Machinery is equipped with large steel foundry and machining workshop, which ensure the fast and high-quality production of the related equipment of cement production line. Besides, the goods are delivered in time, reducing time costs of customers.
2. Excellent Service
The company provides all-round service to customers, including project design, operation training, roller surfacing, millstone maintenance, technical support and so on, making customers use our products safely and produce efficiently.
3. Mature General Contracting Project
The company has a domestic first-rate technical team, and cooperates with domestic chief vertical roller mill experts. The company can design detailed general contracting project according to the actual situation of customers, and provide one-stop turnke service from building projects to production and operation.
4. Advanced Dry Process Cement Production Technology
The cement production line launched by the company adopts the well-received new dry process cement preparation technology, which reduces heat consumption effectively, reducing production costs and improving the benefit.
Turui Machinery is equipped with large steel foundry and machining workshop, which ensure the fast and high-quality production of the related equipment of cement production line. Besides, the goods are delivered in time, reducing time costs of customers.
2. Excellent Service
The company provides all-round service to customers, including project design, operation training, roller surfacing, millstone maintenance, technical support and so on, making customers use our products safely and produce efficiently.
3. Mature General Contracting Project
The company has a domestic first-rate technical team, and cooperates with domestic chief vertical roller mill experts. The company can design detailed general contracting project according to the actual situation of customers, and provide one-stop turnke service from building projects to production and operation.
4. Advanced Dry Process Cement Production Technology
The cement production line launched by the company adopts the well-received new dry process cement preparation technology, which reduces heat consumption effectively, reducing production costs and improving the benefit.
