Гидравлический резиновый резак с одним

Описание и отзывы

Характеристики

Main Uses:

This rubber cutting machine/cutter/bale splitter is mainly used to cut the natural rubber, synthetic rubber, and other plastic materials into gommures / pieces, which is convenient to mix; especially it is suitable to be installed near the rubber mixer to cut small piece of rubber.

Structure:

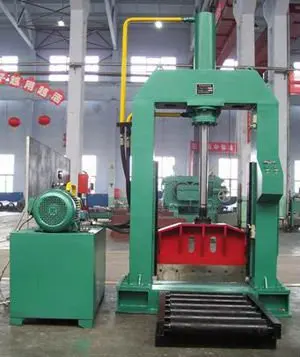

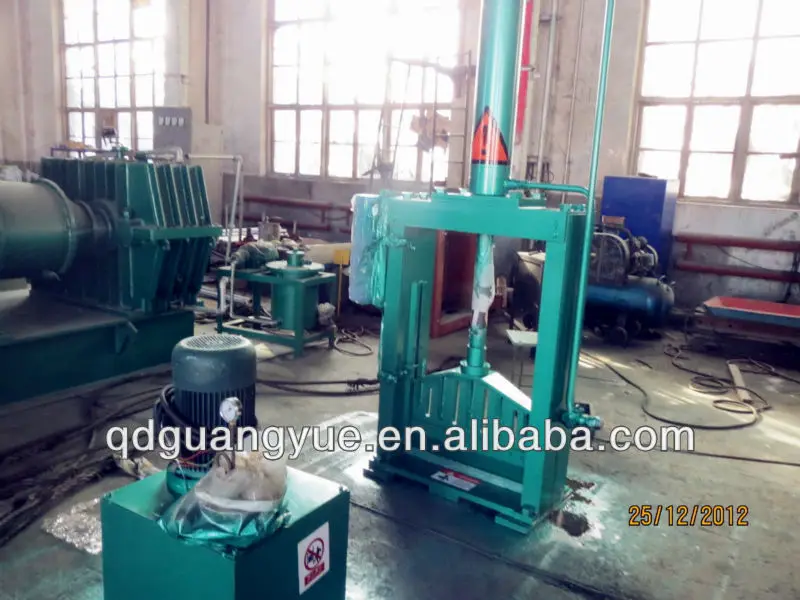

This Rubber Cutting Machine mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system and etc. Simple structure, convenient to operate.

Features:

1' The lead is casted on the base right under the rubber knife for protecting the edge of the rubber knife.

2' Two limit switches are installed on the frame to control the reversal valve to control the movement direction of the rubber knife, at the same time it protects the cover of the cylinder.

Simple structure, convenient to operate, high production efficiency, reduce labor intensity.



Width(mm)	660
Stroke(mm)	680
Total pressure of oil cylinder (KN)	About 80
Time taken by the stroke (s)	14-16
Motor power (KW)	5.5
Overall dimension: Length×Width×Height	2000×1300×2500
