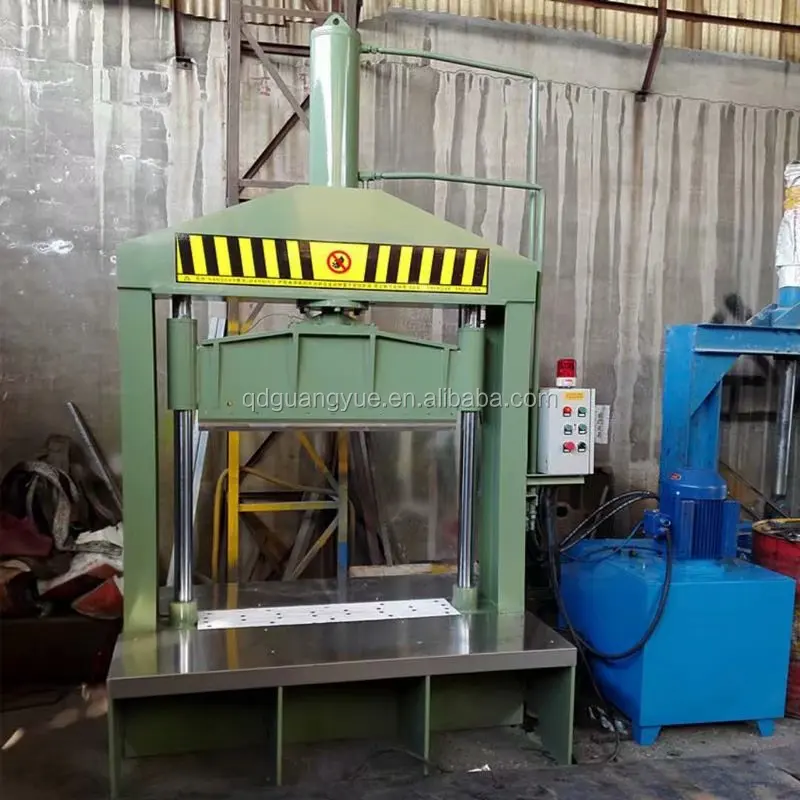

 80T hydraulic natural rubber sheet cutting machine / natural rubber block cutting machine

1.Mainly uses

The bale cutter is mainly used to cut natural rubber, synthetic rubber, and other plastics materials, especially it is suitable to be installed near the rubber mixer to cut small pieces of rubber.
The cutter is matched with working track, which makes rubber feeding much more convenient.



2.structure

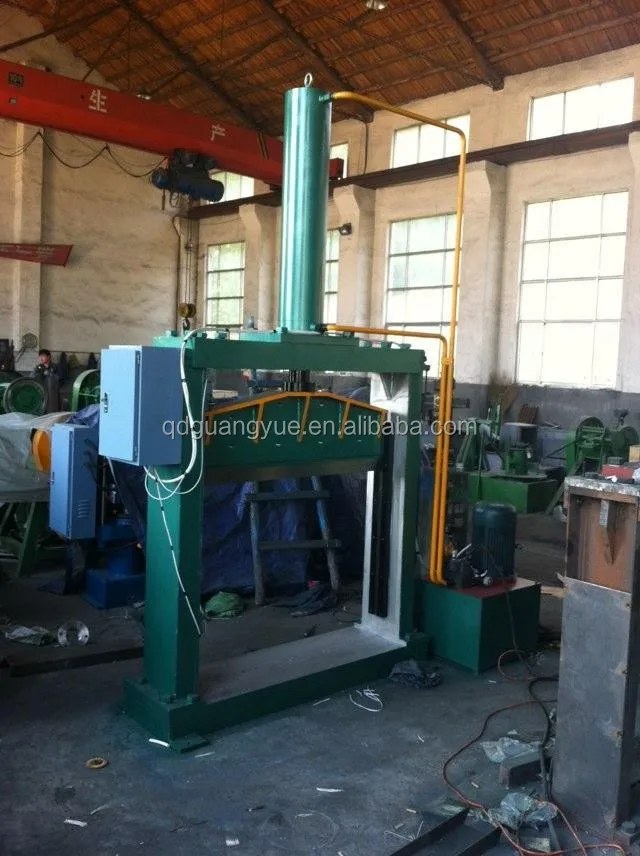

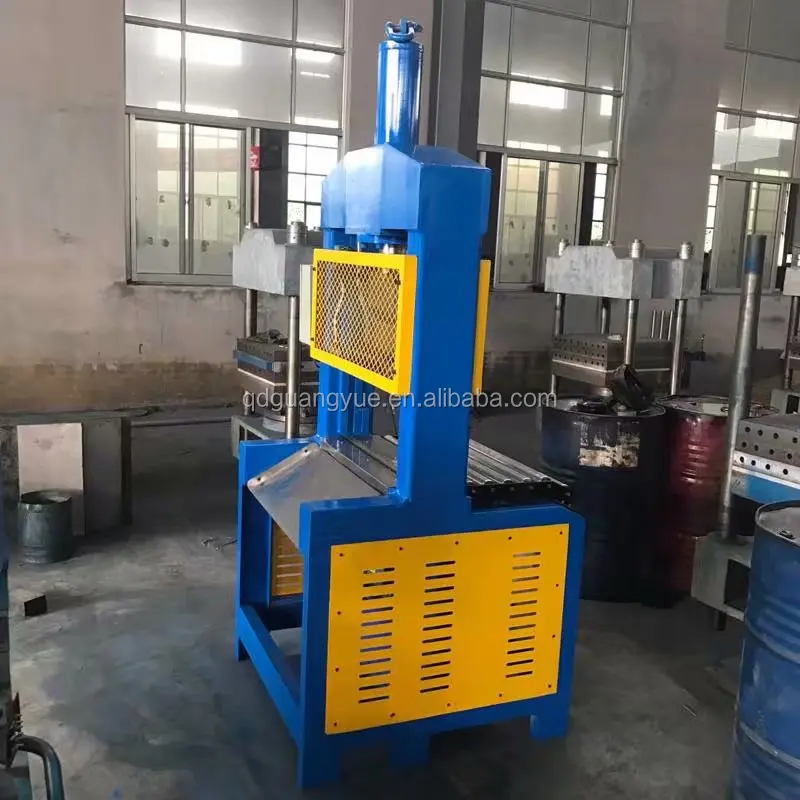

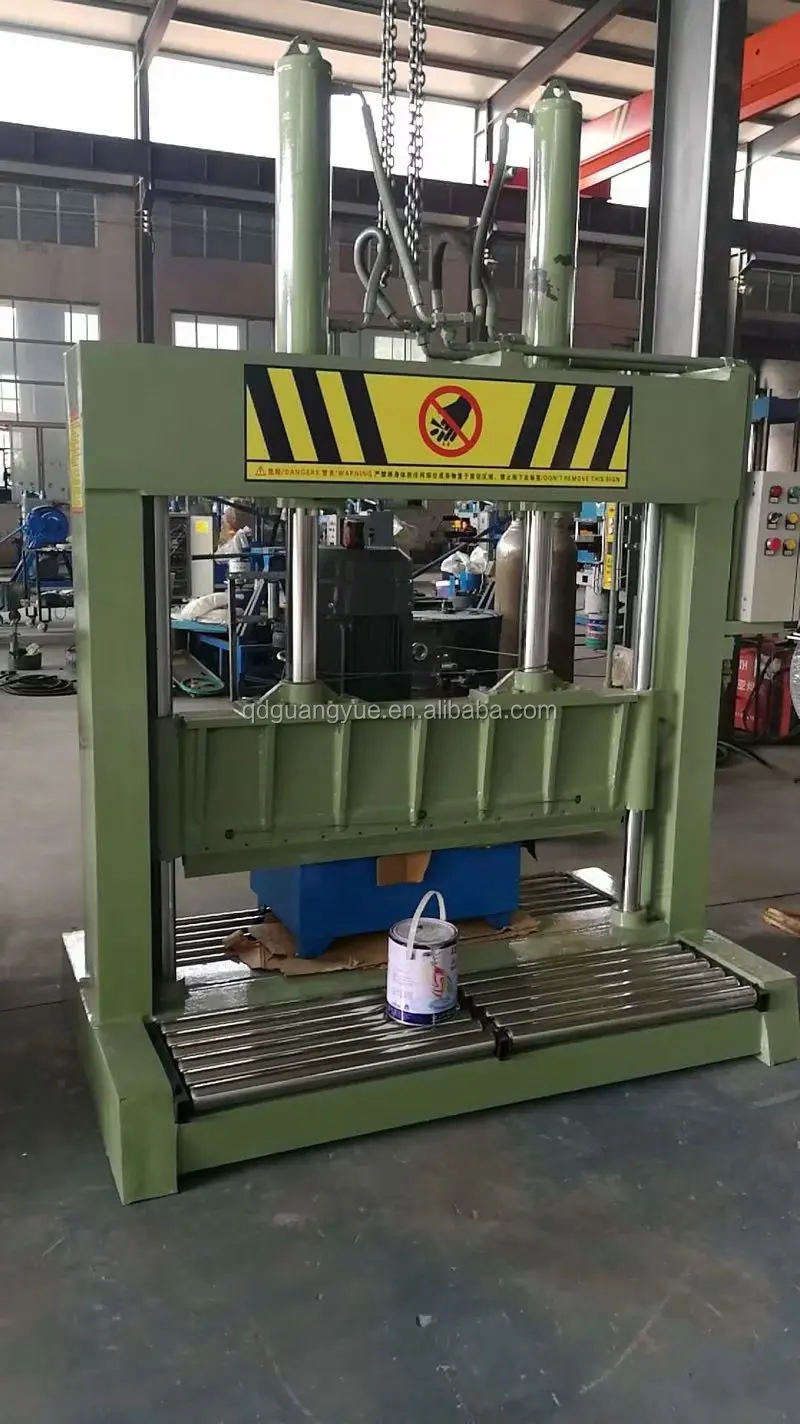

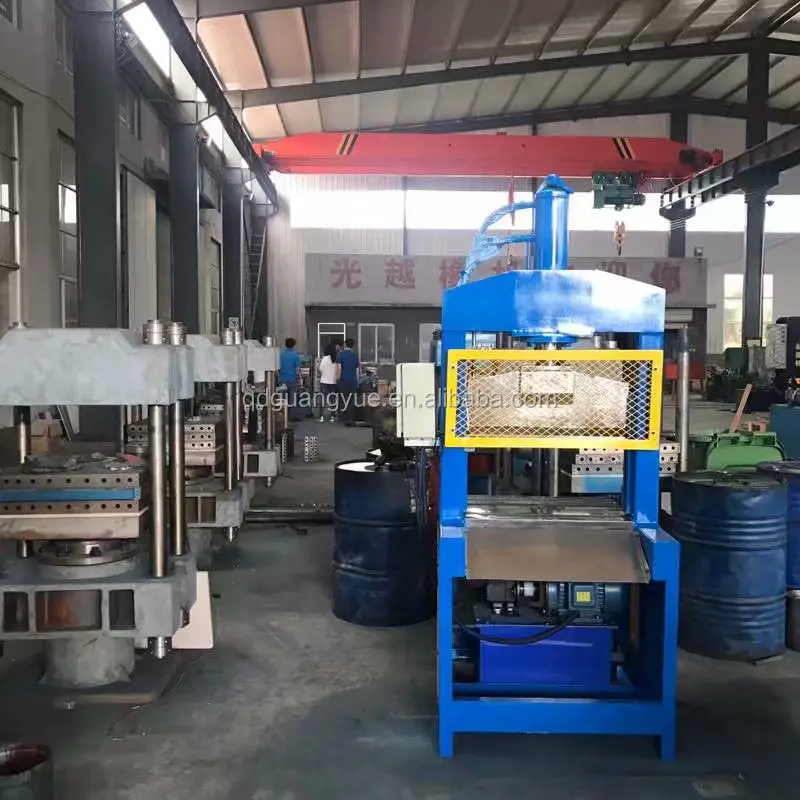

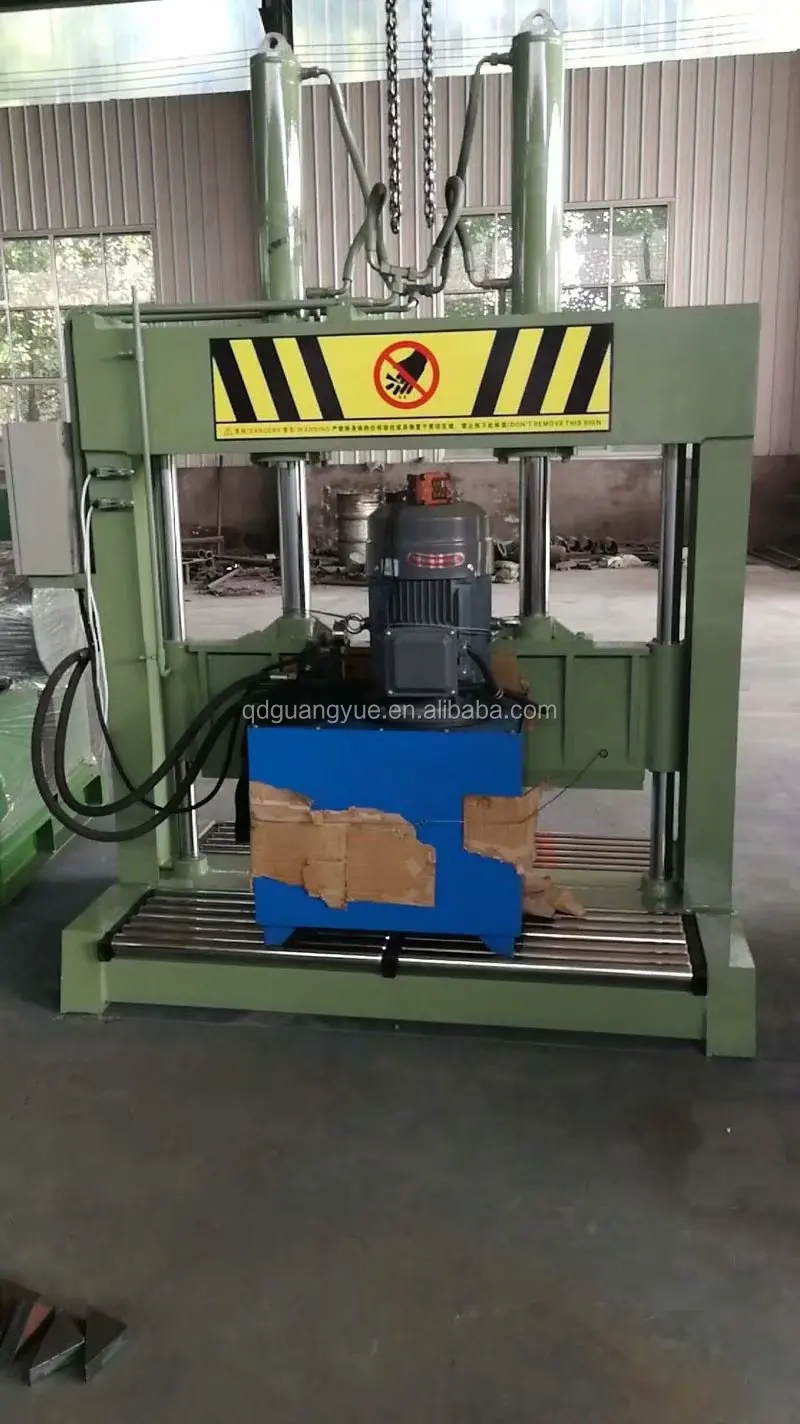

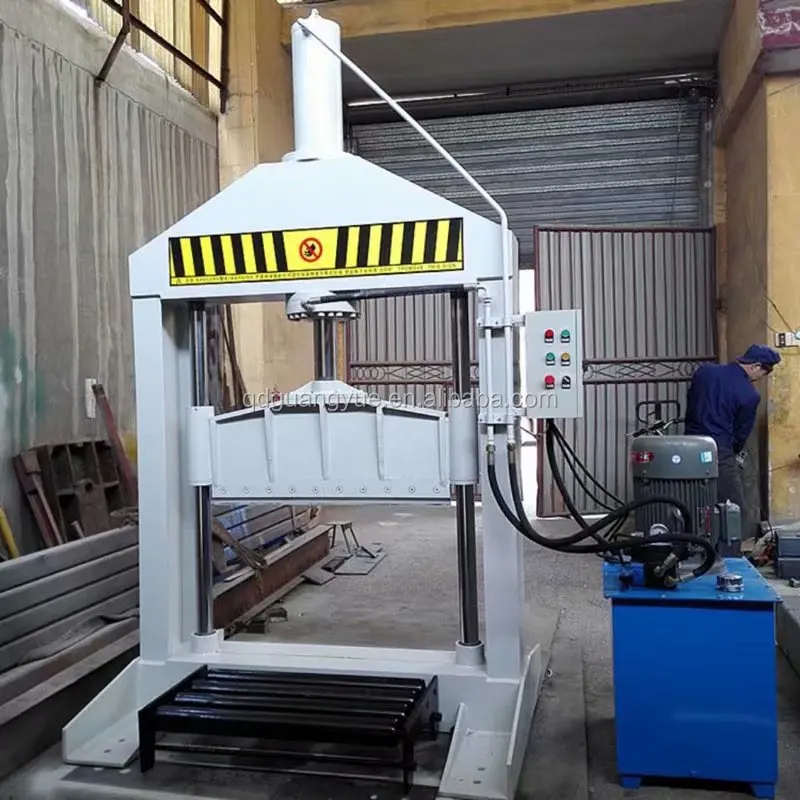

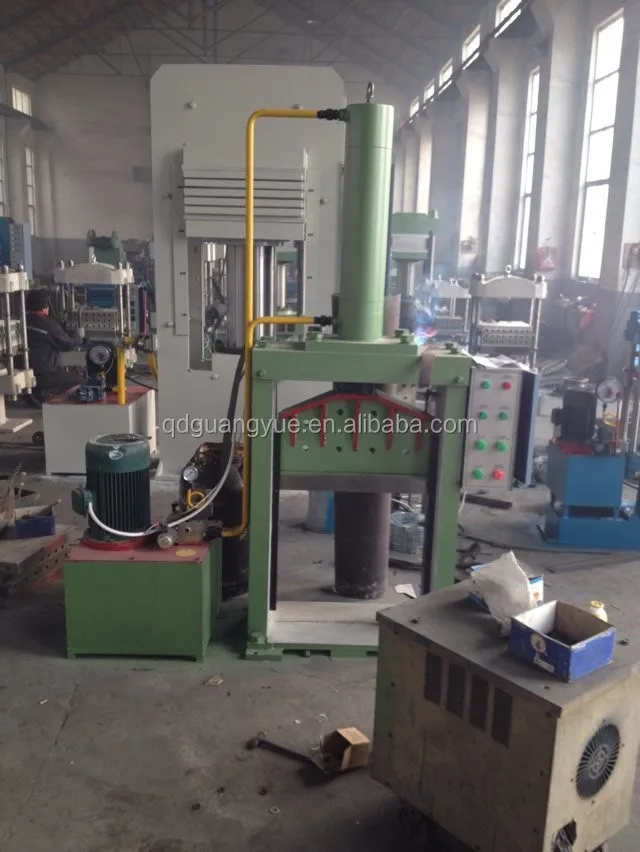

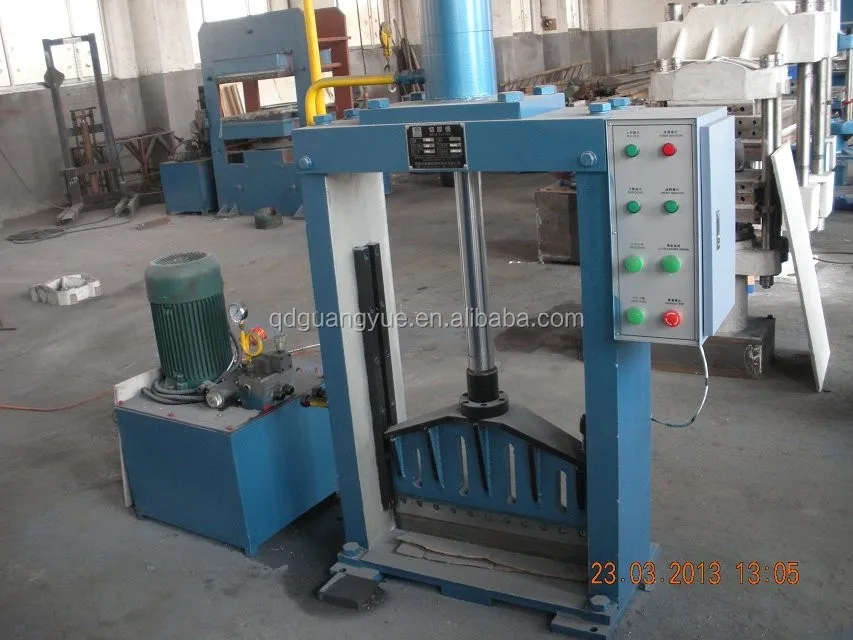

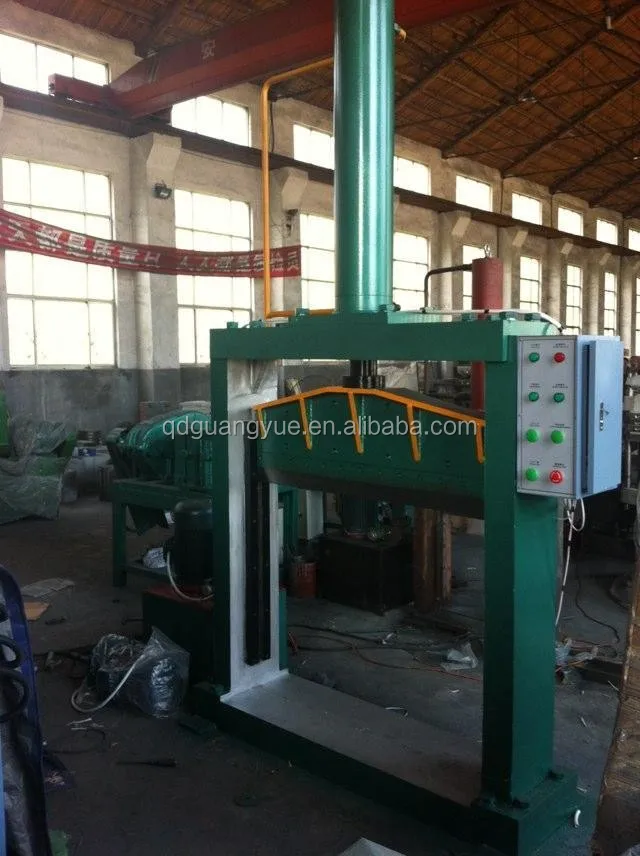

This bale cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The lead is casted on the base under the rubber knife for protecting the edge of the rubber knife.
When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber.
Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder



3.Characteristics:
 1. low noise

 2. constant temperature
 3. automatic pressure mataining and pressure supplement

 4.It has solid construction, reasonable design, high production efficiency, easy operation.

 5. Cutting knife is controlled by hydraulic system, and reciprocating motion.

 6.CE standard ISO9001 certified



4.Parameters of the Hydrulic Rubber bale cutter

type	XQL-8	XQL-16
Width	660	1000
Stroke	680	680
Diameter of the piston	150	200
Time Taken by the Stroke	16 -- 25	10 -- 16
Power	5.5	5.5
Weight	1500	2000





This machine is designed for cutting belts of natural rubber and other plastic materials.



Structure characteristics:

1. Rigid constrution, reasonable design, high efficiency and easy operation.

2. Cutter's up-and-down reciprocating motion controlled by hydraulic sytem.



Type	XQ-800	XQ-600
Cutter width	780 mm	580 mm
Cutter stroke	700 mm	700 mm
Flow	80L per min	80L per min
Pressure	61.8 MPa (63kg/cm²)	61.8 MPa (63kg/cm²)
Motor	5.5 kw	2.2 kw



 If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to our factory to visit and inspect.

Type	XQL-80	XQL-120	XQL-125
cutter  width  (mm)	660	760	760
cutter  Stroke  (mm)	680	680	680
Total Pressure of cylinder(KN)	80	120	125
Time taken by of stroke  (S)	14-16	13-16	13-16
Motor Power(kw)	5.5	11	14
Overall Size (LxWxH)  mm	2122x1440x2509	1950x1400x2338	2300x1500x2530
Weight      (kg)	1600	2000	2600







5.Genernal introduction of our conpany

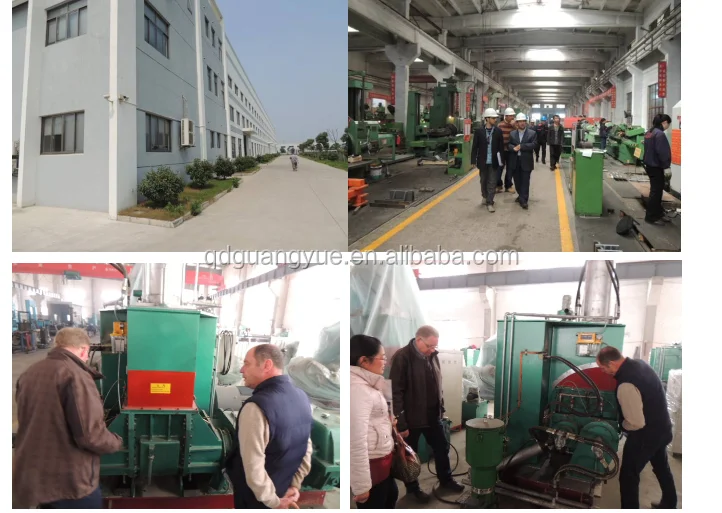

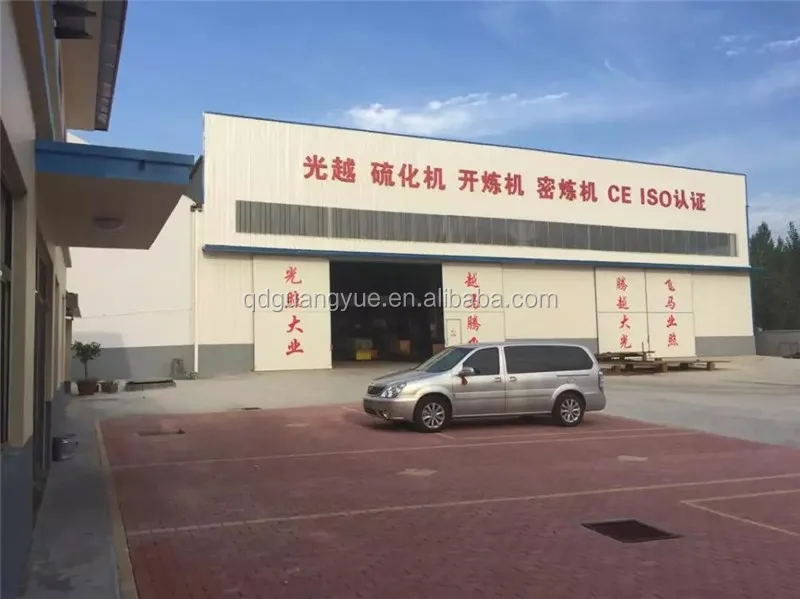

Qingdao guangyue rubber machine manufacturing Co.,ltd is one of the important backbone of enterprises in rubber machinery industry in China. It is one member of Shandong Machinery Union Company. The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high reputation in China rubber machine industry.
