Drum Scrubber for Mining (RXT1030)



Application of Drum Scrubber



RXT Drum Scrubber is the most advanced ore washing equipment at present in China. It is able to de-slime of the sand and stone, the drum inside is equipped with single or doublelayer round screen can get 2 to 3 different size of sand stone products, it is widely used to the washing of manganese, iron, limestone, tungstenore, silica and so on.

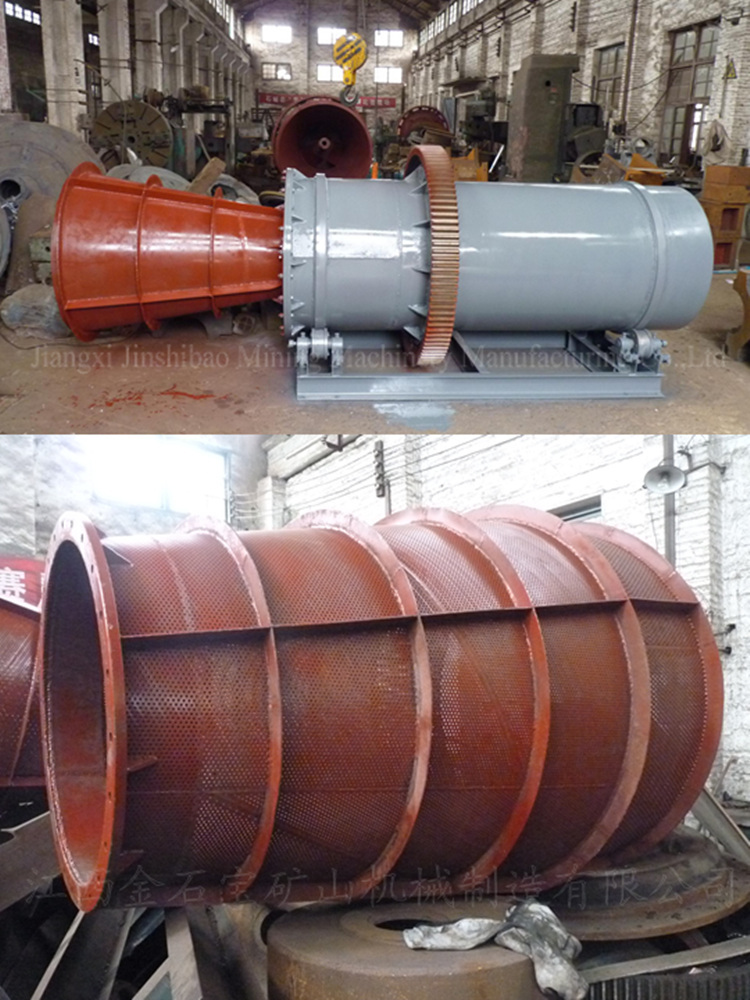

(This RXT1545 Drum Scrubber is customized by our customer from Indonisia. Usually the screen we equip to our customer is like this one below)





Features OF Drum Scrubber

• Designed to break up alluvial gravels, clays and sand
• High capacity and high power scrubbing
• The long drum of the scrubber retains material for longer, more vigorous washing for complete separation
• One high output electrical motor driving a gear system providing efficient torque
• Adjustable rotary speed
• The water with high pressure flushed the inwall of drum
• Can accept material up to 230mm
• Mechanical sealing of inlet chute – minimal spillage when over feeding
• Drive loads absorbed within the drive frame and pivoting drive frame design. Foundations only have to support vertical load and are not critical for alignment ie minimal cost
• Shell design less mass than conventional roller supported units–installation craneage requirement reduced



Technical Specificationsof Drum Scrubber



Model	Drum Size (mm)		Screen size  (mm)	Feeding size         (mm)	Capacity    (T/h)	Power  (Kw)	Weight     (T)
RXT1030	Φ1000×3000		≤20	≤80	40	15	3.8
RXT1136	Φ1100×3600		≤25	≤80	65	15	4.6
RXT1230	Φ1200×3000		≤25	≤100	70	22	4.7
RXT1430	Φ1400×3000		≤25	≤100	80	22	4.9
RXT1545	Φ1500×4500		≤25	≤160	120	30	6.9
RXT1860	Φ1800×6000		≤25	≤210	150	37	8.5
RXT2265	Φ2200×6500	≤50		≤230	180	37	15.9

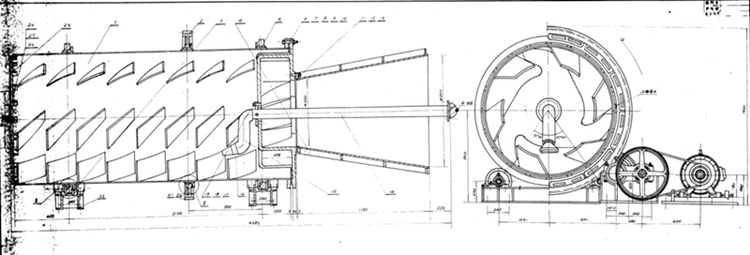

Structure of Drum Scrubber

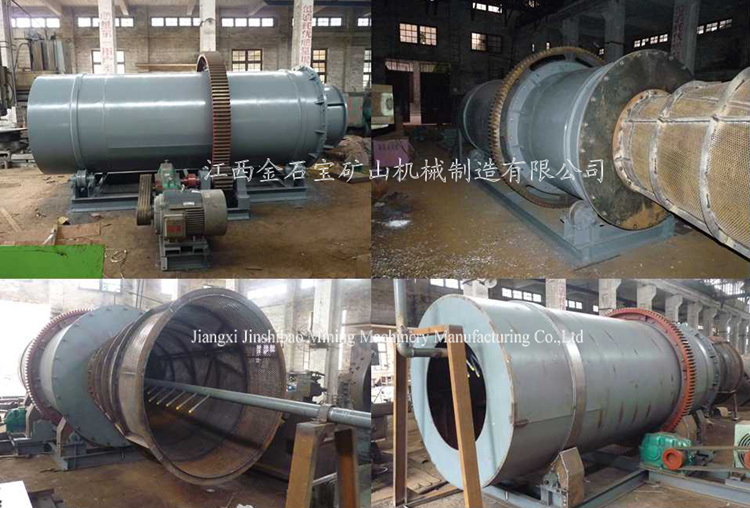

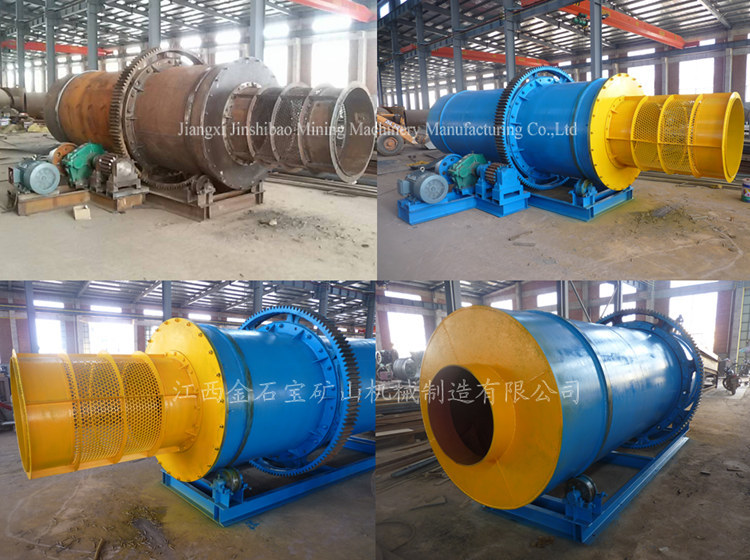

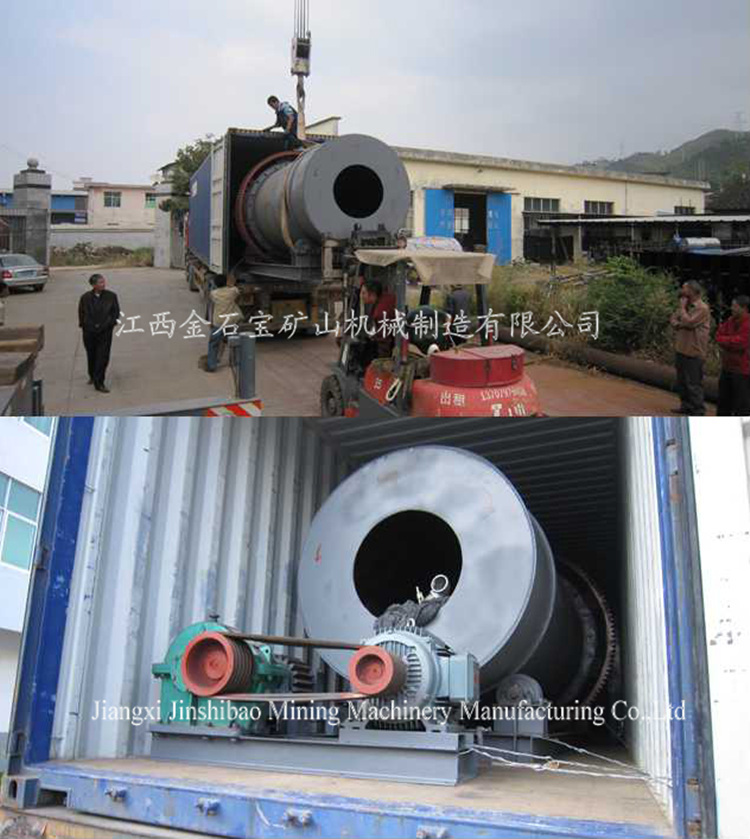

Drum Scrubber in the factory





Details and parts of Drum Scrubber

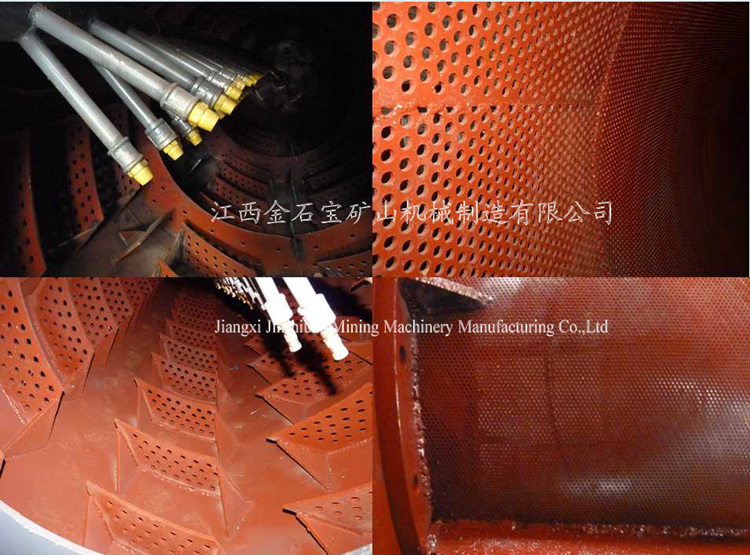

With so many blades inside the Drum Scrubber, clay could be cleaned up generally.

There is no lining. And it could be customized as your request of the lining. PU is a suitable material for it.

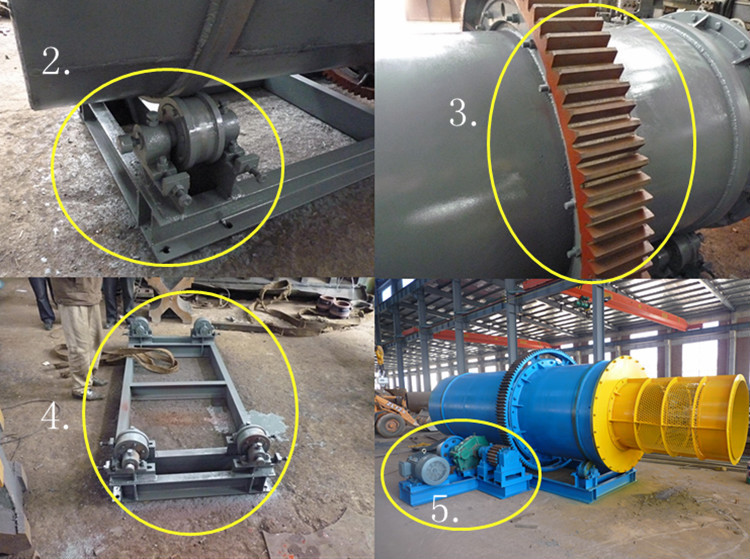

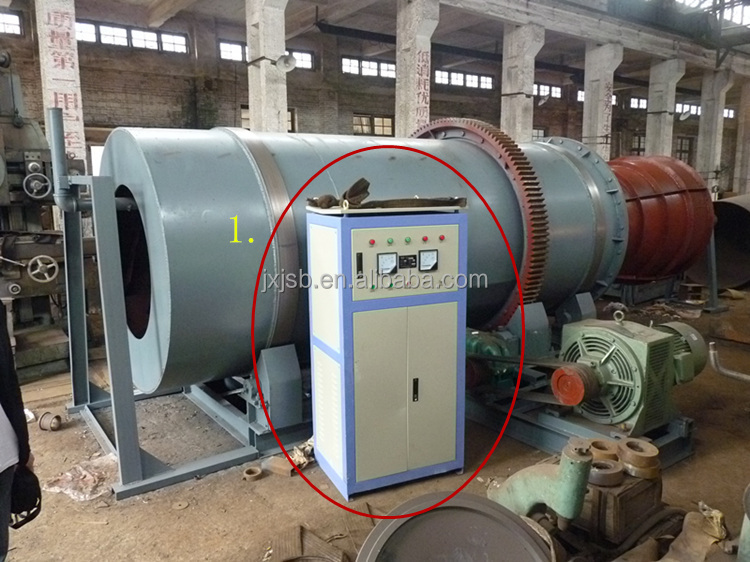

1. There would always be one control panel to get command of this equipment.





2. Pulley to drive the equipment.

3. Big gear to connect the small gear in pic 5.

4. Base support

5. Engine and small gear.

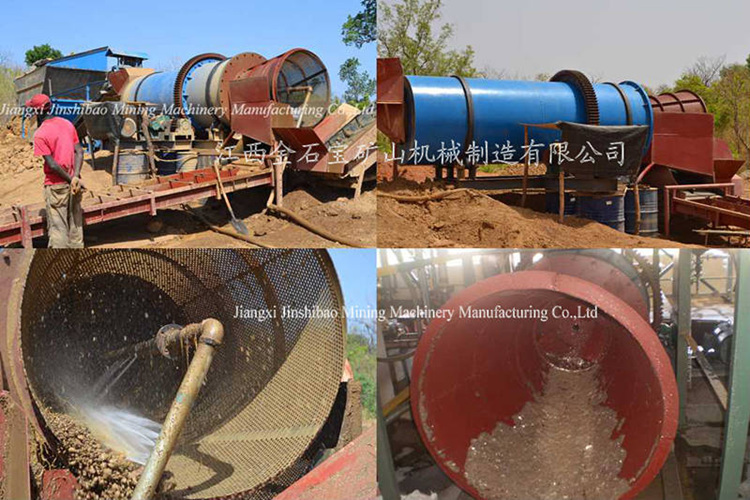

Mining site  of Drum Scrubber





This case is taken in Africa for iron ore.
