Машина для извлечения Аллювиального золота разной емкости

Option one

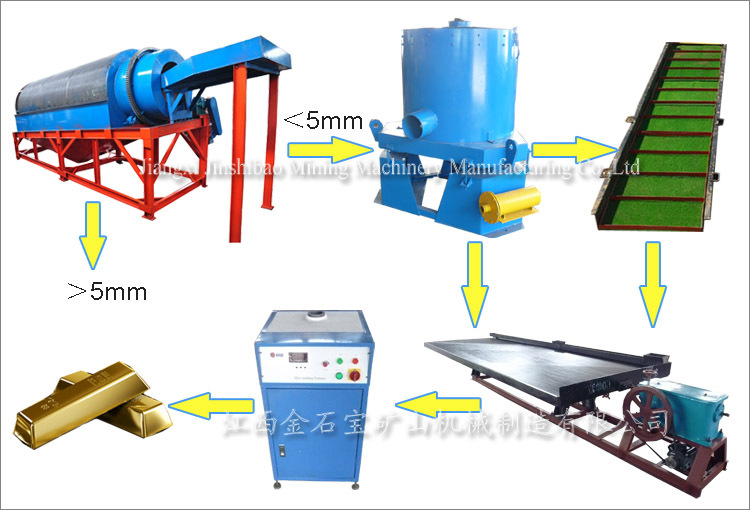

Option 1: Gold trommel ---- Gold concentrator ---- Gold sluice box ---- Shaking table --- Gold melting furnace

Step 1. The raw ore is fed onto the gold trommel by excavator or loader;

Step 2. The gold trommel washes and classifies the raw ore. The upper sizes without gold are discharged as tailings, while the bottom sizes together with the clays go onto the gold concentrator.

Step 3. The gold concentrator enriches the heavy minerals including the gold.

Step 4. The tailing of  gold concentrator go through the gold sluice box so as to recover the gold particles which is possiblely lost from the tailings.

Step 5. The concentrates of the gold concentrator as well as the concentrates of the sluice box go to the shaking table for further separation.

Step 6. The gold concentrates of the shaking table could be processed by amalgamator to recover the gold sands, and then be smelted by the gold smelting furnace.

• Applies to small-and-medium-sized as well as large-sized processing line.
• Applies to sandy and low clay alluvial gold ore.
• Excavator or loader feeding direct.
• Easy installation, easy operation, easy maintenance, no pollution.
• Little investment but quick result.
• Higher gold recovery rate

 Option two

Option 2: Gold trommel ---- Gold sluice box ---- (Gold concentrator) ---- Shaking table --- Gold melting furnace

Step 1. The raw ore is fed onto the gold trommel by excavator or loader;

Step 2. The gold trommel washes and classifies the raw ore. The upper sizes without gold are discharged as tailings, while the bottom sizes together with the clays go through the gold sluice box.

Step 3. The concentrates of sluice box go onto the gold concentrator for enrichment and then go the shaking table if the capacity is large. For smaller capacity, the sluice box concentrates go to the shaking table directly for separation.

Step 4.  The gold concentrates of the shaking table could be processed by amalgamator to recover the gold sands, and then be smelted by the gold smelting furnace.

• Applies to small-and-medium-sized processing line.
• Applies to sandy and low clay alluvial gold ore.
• Excavator or loader feeding direct.
• Easy installation, easy operation, easy maintenance, no pollution.
• Little investment but quick result.
• Lower gold recovery rate (compared with option 1)

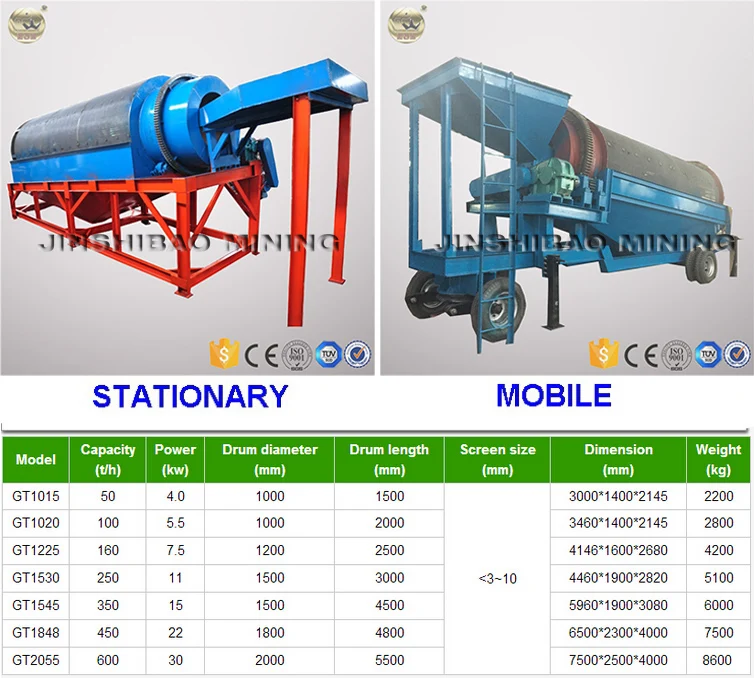

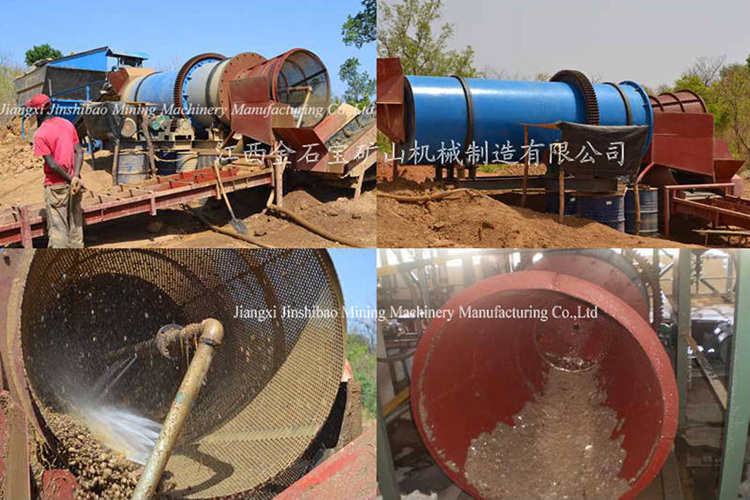

Stationary & Mobile type gold trommel:

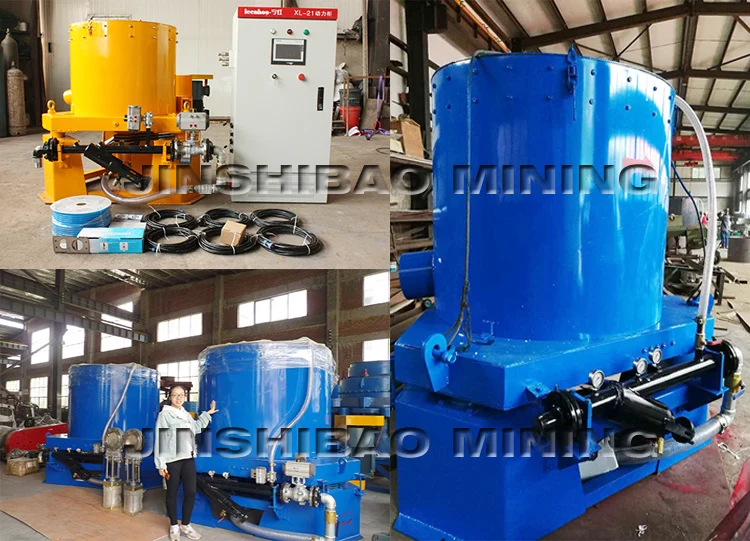

Centrifugal gold concentrator:

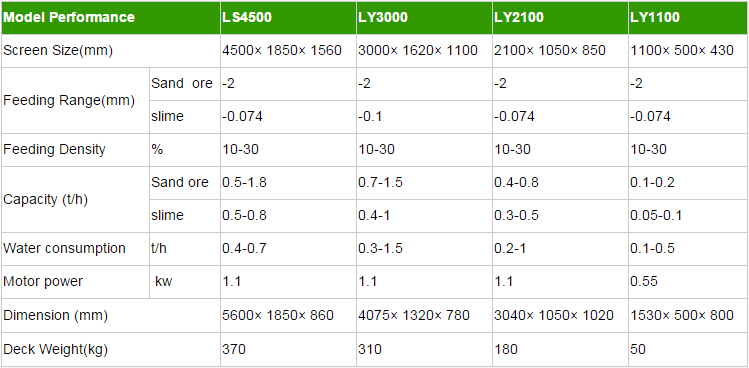

6-S Shaking table:

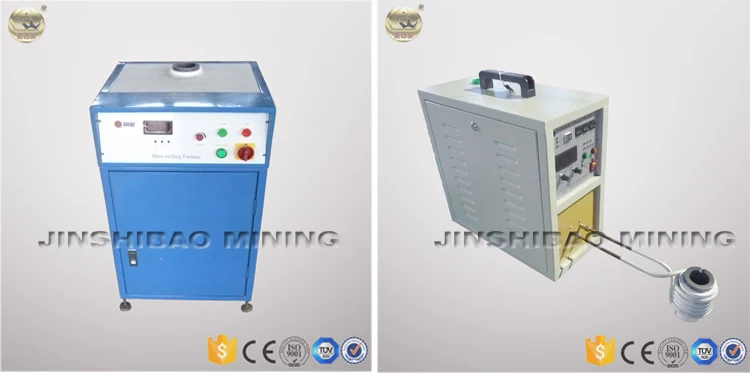

Gold melting furnace:

Our other equipment for alluvial gold ore

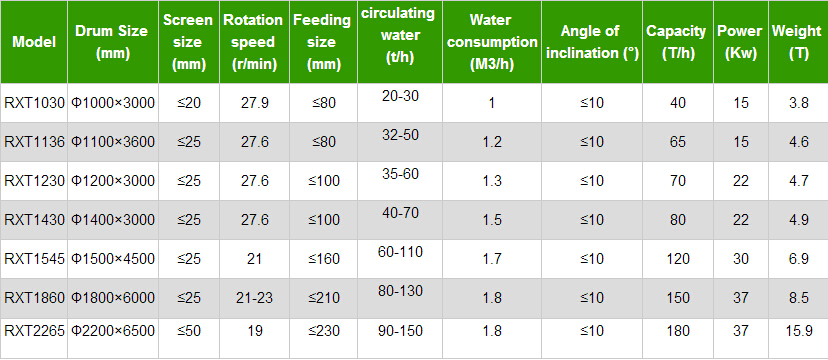

Rotary scrubber

(to replace the gold trommel screen when processing high clay content ore)

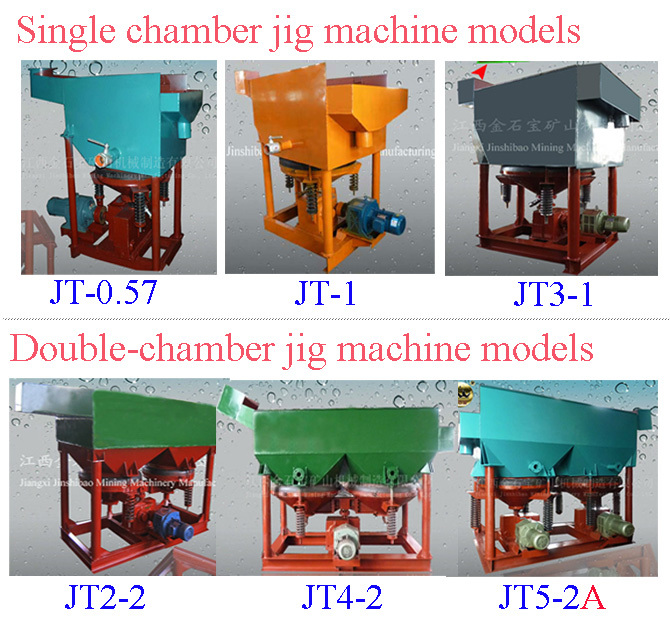

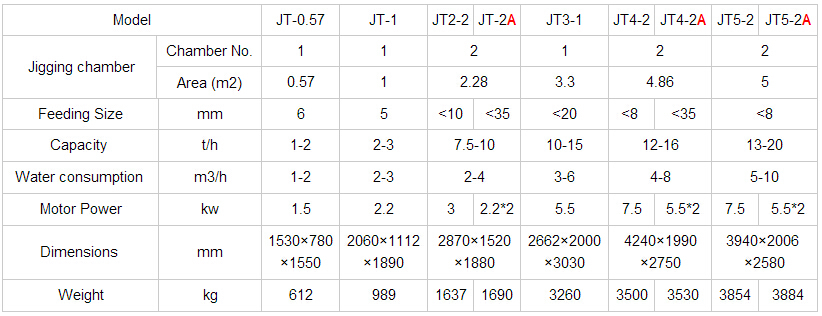

Jigging machine

(could replace the centrifugal gold concentrator)
