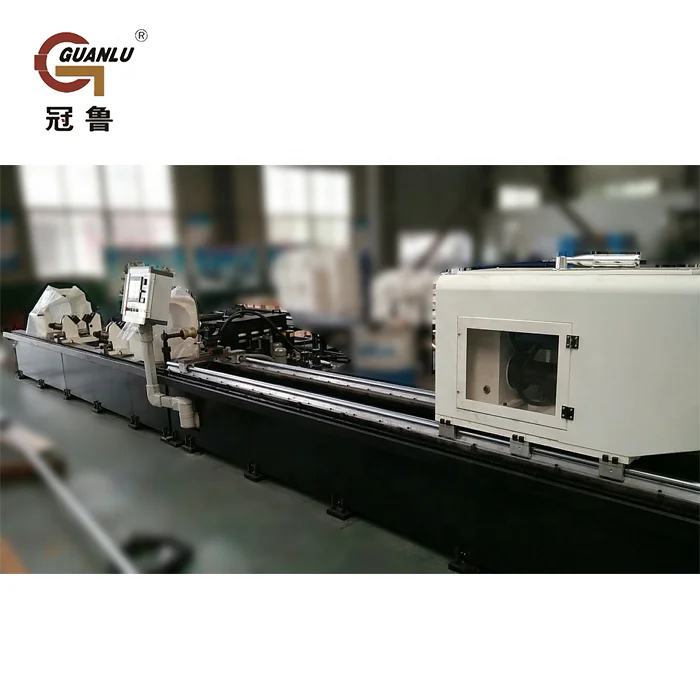

Высокоэффективный хонинговальный станок 2m2120x3m CNC для ремонта

It is used for fine machining cylindrical deep hole parts such as hydraulic cylinders and gas cylinders.

It can be honed either as a whole or as a part. When honing locally, the errors of taper, ellipse and local aperture can be corrected.

The expansion and tightening of honing head is controlled by servo motor, which can not only realize constant pressure feed of honing head, but also realize constant volume infeed of honing head.

Machine mainly features

The honing head expansion and tightening is under the servo control,which constant pressure expanding and tightening can be realized.

1, Honing head tightening/expanding pressure is stable. Servo motor set the tightening/expanding pressure by torque,the pressure is constantly.

2, It can inspect the workpiece inner hole automatically,which can realize partial honing,enhance the working efficiency. In the constant pressure mode, the honing head digitally displays the torque of each point in the workpiece during the honing process through the torque display table,  so that we can judge the workpiece inner hole condition. The operator can first partial honing parts of the workpiece with small hole size according to the actual situation, and then througly honing when the aperture is uniform.In this way, Not only the work efficiency can be improved, but also  the cylindricity and straightness of the workpiece can be guaranteed.

3, Servo control can be controlled through PLC control system panel,digital read,adjustment accuracy.

Cooling method:External and internal oil feeding combined mode

1, Honing oil go inside through honing bar,which can make the coolant oil form into higher pressure,which will have big force to wash the honing dirties.

2, Internal honing oil feeding can make up the long workpiece honing defect. When honing long workpiece(more than 1.5m),only use external honing oil feeding,which could not cool and wash the honing head,but by internal oil feeding ,which can cool and wash the honing head in time. The threshing of strong honing stone can make the honing stone keep sharp and greatly improve the honing efficiency and processing quality.

3, You can choose external oil feeding method when you processing short workpiece.

Machine mainly parameters :

1. Before shipment, every part of machine will be painted with a layer of anti-rust and water-proof oil to prevent possible erosion during transportation.
2. A plastic cover to wrap around machine parts to enhance corrosion prevention.
3. Export standard fumigated wood cases are measured and specially made for packing.
4. Steel wire will be used to tighten and strengthen the packages inside container.

Dezhou Guanlu Precision Machinery Co., Ltd. located in Dezhou, Shandong, is a professional manufacturer of deep hole drilling machine (gun drilling machine), deep hole boring machine, deep hole drilling and boring machine, deep hole honing machine, deep hole skiving roller and burnishing machine as well as their relative accessories, such as gun driller sharpen device, BTA deep hole indexable drill head, deep hole boring head, deep hole pressing head and so on. Our company can also offer the customized deep hole machine solutions according to the customers' requirement.


Welcome to visit our factory. And thanks for choosing our deep hole machinery

Any question about deep hole driilling machine, feel free to ask me!
