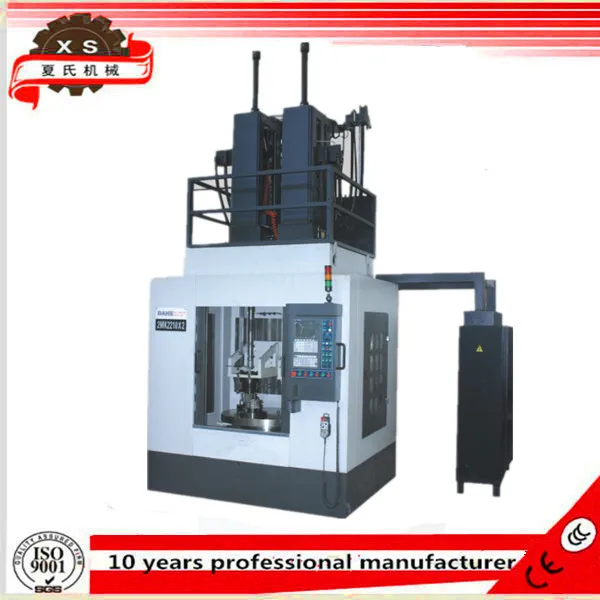

vertical CNC brake hub honing machine with large scale deep hole drawing

Specifications

This machine is suitable for processing a variety of engine cylinder hole, cylinder liner hole, hydraulic valve bore, piston ring hole and other precision through-hole and blind hole.





Features

1, With automatic on-line measurement functions.

2, With dual feed, platform textured honing or workpiece rough honing and fine honing can achieved in one honing head, improved honing efficiency.

3, Secondary filtering of the constant temperature cooling magnetism roller paper tape, ensure the honing quality. And the cutting heat can be timely cooled, improved honing precision of the workpiece.

4, Independent electrical control cabinet cooler (air conditioning), greatly improve the stability and reliability of the electricity, to adapt a long time running.







Specification:



Honing diameter range: 30-100mm



Max. spindle travel: 500mm



Max. Honing depth: 200mm



Distance from spindle to table: 1700mm



Distance from spindle center to column: 800mm



Feeding speed range: 3-25m/min



Spindle speed range:   10-600 r/min



Main motor power: 7.5kw



Hydraulic motor power: 7.5kw



Table travel range: 800mm



Table size:  φ1000 mm



 System: KND CNC system



2.If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
