Автоматическая машина для производства ленты BOPP
US $10000-$30000
Полностью автоматическая рулон ПВХ ленты прибор с
- Категории: Coating Machines >>>
- Поставщик: Cissco,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
PVC Insulation Adhesive Tape Coating Machine
Function introduction of PVC insulation adhesive tape production line
This Machine used to produce PVC insulation tape Log rolls.The main structures are unwinder , coater, drying ovens, cooling roller unit, rewinder, frame, duct, electrical system.
2. Coater1: primary coating, Gravure roll coating Glue type: solvent base rubber
Coater2: the second coating, Comma roll coating Glue type: solvent base rubber
3. Drying ovens: Drying the materials, hot air system, the heat source is provided by the user. Steam boiler,
Heat transfer oil boiler one of them. The length of the oven is determined by the maximum capacity required by the user.
4. Cooling roller unit: The raw material after high temperature drying can be cooled rapidly.5. Fully automatic rewinder and storage materials unit : rewinding the material into a roll, to get the PVC Insulation tape
log rolls. It can automatic winding, automatic cutting, automatic paper core taking and automatic unloading log roll
without stopping the machine.
6. Machine Drawing for reference , it can be customized as the requirements.

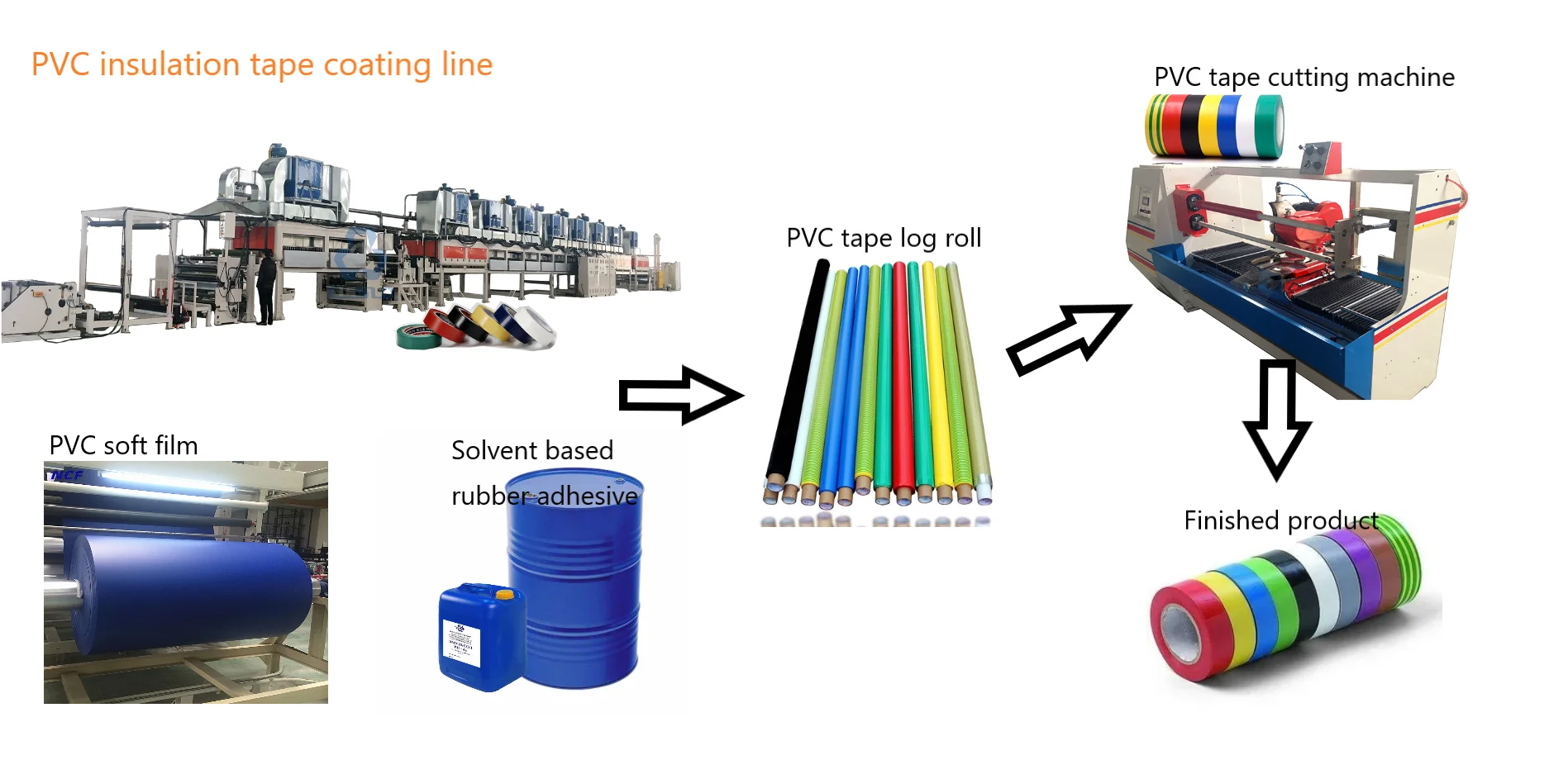

PVC Insulation Tape production process
1.Glue Making
2.Coating adhesive
3.Tape log roll cutting
4.Product packing
4.Product packing
Production Specification
Technical parameter
Model 1300 | |
Working width: | Max.1350mm |
Production speed: (Customized) | 0~24M/min |
Production capacity: 8 hours | 6000~15000 square meters |
Heat consumption per hour: | Max.1200000 kcal |
Heating source for drying: | Steam, conduction oil |
Drying temperature | Max.150 degree |
Worker : | 2~3 workers |
Raw materials for PVC insulation adhesive tape production line

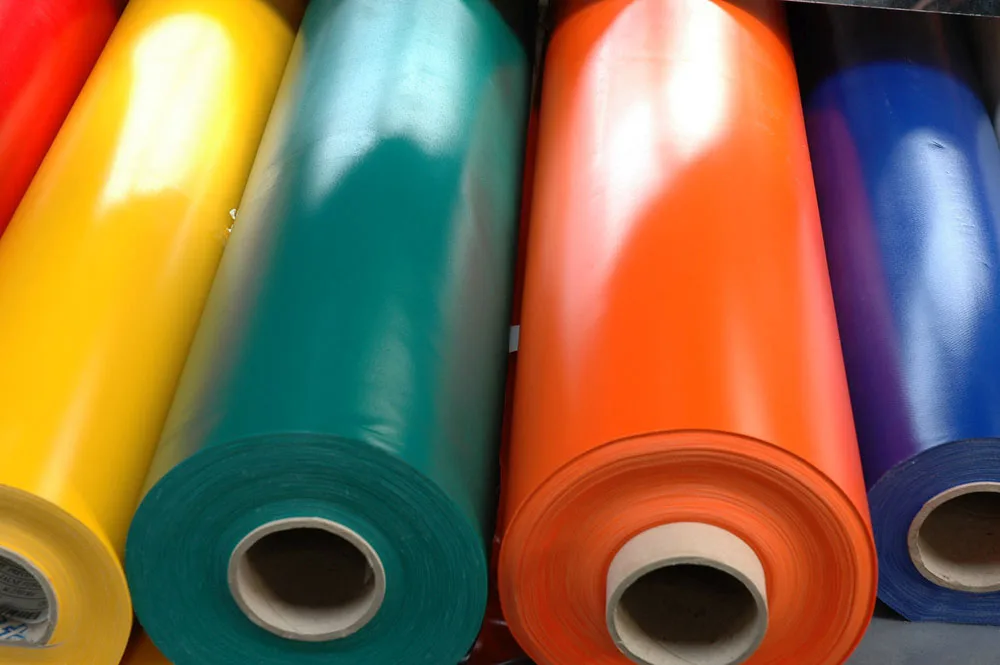

PVC soft film
PVC film sheet roll
width:1100~1350mm
Film thickness:0.1~0.4mm
Film Roll diameter: max.600mm
Core inner diameter:76mm
Film thickness:0.1~0.4mm
Film Roll diameter: max.600mm
Core inner diameter:76mm

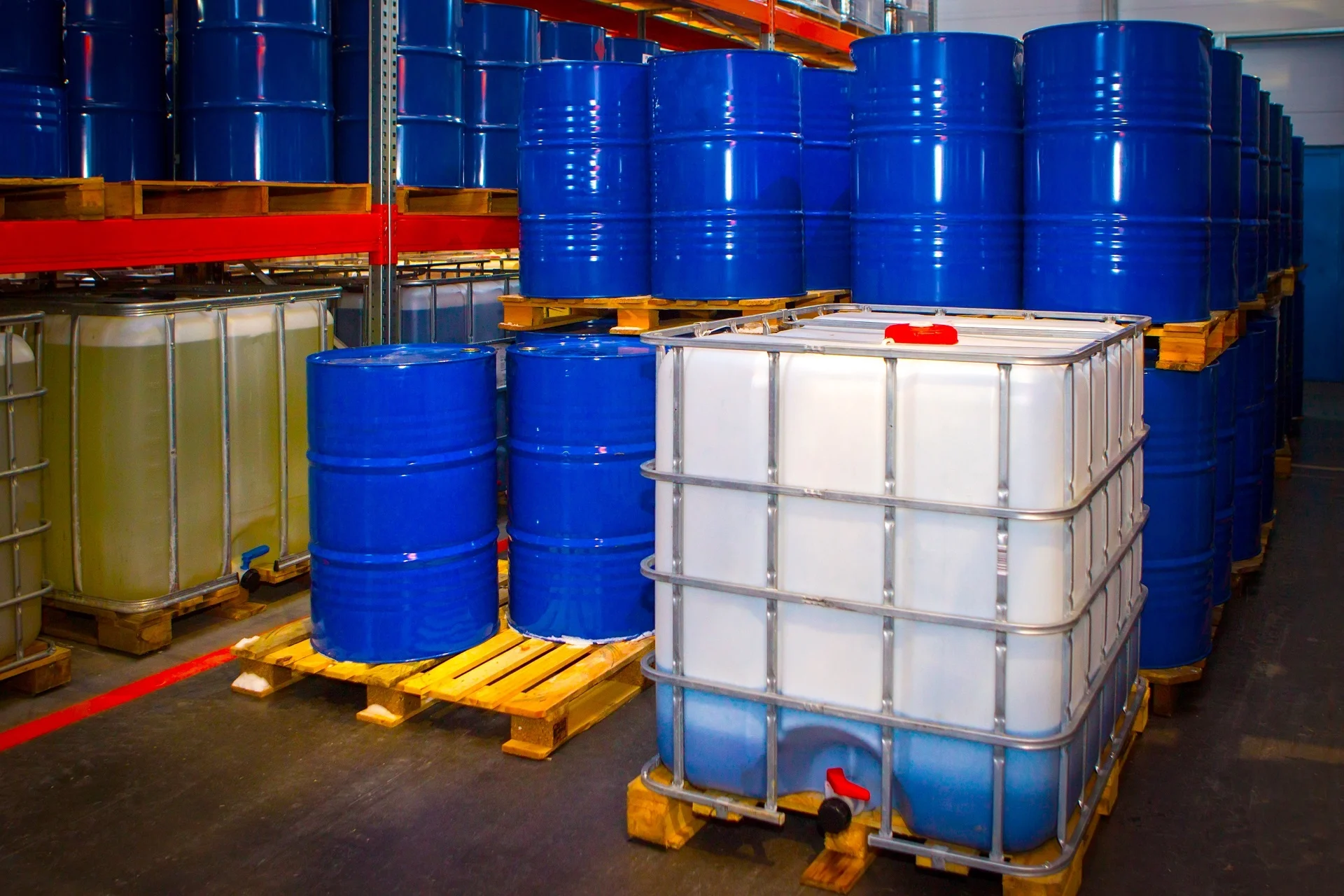

Rubber adhesive
Solvent based Rubber adhesive
Primer adhesive: viscosity 20~100cps, solid content 12%~15%
Surface adhesive: viscosity 10000~60000cps, solid content 15~30%
Primer adhesive: viscosity 20~100cps, solid content 12%~15%
Surface adhesive: viscosity 10000~60000cps, solid content 15~30%

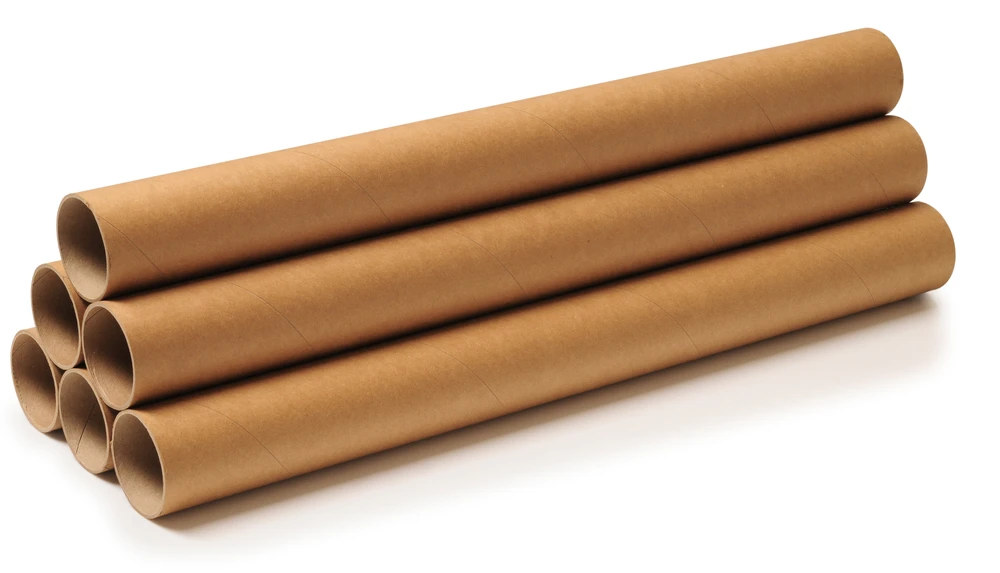

Paper tube core
Paper core internal diameter:32,38,76mm
Length of paper core:1000~1400mm
Thickness of paper core: 3~5mm
Thickness of paper core: 3~5mm
Product Images
Details images
Unwinder & Precoating
Lifting type unwinding, Gravure roller coating
Coating
Comma roller coating
Drying oven for the second coating
Hot air drying
Heating source: steam or conduction oil
Drying oven for the first coating
Hot air drying
Heating source: steam or conduction oil
Main electrical control box
Centralized, floor type, three door
Material storage& Rewinder
Automatic storage, fully automatic rewinding
Machining & Assembling show
Frame
Steel plate processing
Frame, machine skeleton
Oven skeleton and inner
Operation interface
Blower and exhaust fan for drying system
Electrical control system
Drying oven
Assembling Unwider, rewinder
Assembling Coater, cooling system
Packaging and delivery
Standard ocean packages
FAQ
1. What products do you need to produce?
BOPP tape, PVC insulation tape, PE/PET protective film, PET/PI electrical tape, Masking tape, double-side tape, Label self
adhesive , Sublimation paper, non-woven/cloth medical adhesive tape.
2. What is parameter of base materials?
Thickness:
Width of base material roll:
Diameter of base material roll:
Weight of material:
3. What kind of adhesive to apply for the products?
Acrylic, rubber or hot melt
4. What is the type of adhesive?
Water base , solvent base, or solvent-less
5. What is parameter of adhesive?
Solid content:
Viscosity:
6. What is production capacity for the machine that you want? Customizable
Low speed:40~80M/min
Medium speed: 100~150M/min
High speed: 200~300M/min
7. How long is the delivery time?90~120days
8.Installation and debugging services?
We can send engineers abroad for installation guidance and operation training.
9.Warranty period and after sales services.
The equipment is guaranteed for one year, Outside the warranty period, we provide paid maintenance services.
BOPP tape, PVC insulation tape, PE/PET protective film, PET/PI electrical tape, Masking tape, double-side tape, Label self
adhesive , Sublimation paper, non-woven/cloth medical adhesive tape.
2. What is parameter of base materials?
Thickness:
Width of base material roll:
Diameter of base material roll:
Weight of material:
3. What kind of adhesive to apply for the products?
Acrylic, rubber or hot melt
4. What is the type of adhesive?
Water base , solvent base, or solvent-less
5. What is parameter of adhesive?
Solid content:
Viscosity:
6. What is production capacity for the machine that you want? Customizable
Low speed:40~80M/min
Medium speed: 100~150M/min
High speed: 200~300M/min
7. How long is the delivery time?90~120days
8.Installation and debugging services?
We can send engineers abroad for installation guidance and operation training.
9.Warranty period and after sales services.
The equipment is guaranteed for one year, Outside the warranty period, we provide paid maintenance services.
Company Introduction
Introduction
Cissco Machinery Co., has been engineering and manufacturing a series of adhesive tape Production line for more than 20 years and
has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded
by large companies in more than 30 countries.
has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded
by large companies in more than 30 countries.
Main products:
Adhesive tape coating machine series:
1. BOPP, PVC,PET/PI adhesive tape coating machine
2. PE, PET protective film , release film coating machine
3. PET explosion proof film, thermal insulation film, reflective film optical precision coating machine
4. Thermal sublimation transfer paper, photo paper, PP paper, advertising consumables coating machine
5. Label, double side, masking, foam, car sticker, wallpaper, self adhesive tape coating and laminating machine
Adhesive tape or film roll deep processing equipment
1. Slitting and rewinding machine
2. Cutting machine
3. Laminating and Inspection machine
4. Packing machine
Other customized equipment
1. Small type laboratory multi-function coating machine
2. Medical adhesive tape production and R & D coating machine
Advantages :
1. 20 Years Experiences;
2. European Latest Technology;
3. Easy to Operate, Stable Performance, Good Quality Products, Low Production Cost;
4. Quicker Production Speed, Big Output;
5. Good Material and Well-Known Brand Electrical Parts;
6. Beautiful Appearance;
7. Free Training for Technical Process, Formula and Know-How;
8. Full Time and High Level After-Sale Services;
1. BOPP, PVC,PET/PI adhesive tape coating machine
2. PE, PET protective film , release film coating machine
3. PET explosion proof film, thermal insulation film, reflective film optical precision coating machine
4. Thermal sublimation transfer paper, photo paper, PP paper, advertising consumables coating machine
5. Label, double side, masking, foam, car sticker, wallpaper, self adhesive tape coating and laminating machine
Adhesive tape or film roll deep processing equipment
1. Slitting and rewinding machine
2. Cutting machine
3. Laminating and Inspection machine
4. Packing machine
Other customized equipment
1. Small type laboratory multi-function coating machine
2. Medical adhesive tape production and R & D coating machine
Advantages :
1. 20 Years Experiences;
2. European Latest Technology;
3. Easy to Operate, Stable Performance, Good Quality Products, Low Production Cost;
4. Quicker Production Speed, Big Output;
5. Good Material and Well-Known Brand Electrical Parts;
6. Beautiful Appearance;
7. Free Training for Technical Process, Formula and Know-How;
8. Full Time and High Level After-Sale Services;
Contact Me
CISSCO Machinery Co.,ltd
Add:9F, NO.58#, New Jinqiao Road, Shanghai Zip:201206
Contact person: Ms.Shelly He
Tel:+86 2138726828 Fax.+86 2138726369
Cell phone/Whatsapp:+86 13391085881 Wechat:Cissco_machinery
Website:http://www.wecoater.com
