Цена:4 900,00 $ - 5 500,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики





Product Description


Application:
1.This machine is mainly used for board type furniture, floor, flush door,handicraft and other surface primers ,The treated paint film surface of the machine is smooth and full. No piles of paint before and after.
2. Conveyor belt, applicator roll. doctor roller adopt imported motor .frequency conversion speed That paint film thickness can be more precise controlled.
3. Applicator roller,doctor roller and scraper can choose different working methods according to different requirements, making the operation more convenient and flexible.
4.This machine can be used for UV, PU, PE, NC and waterborne coatings. The paint can be recycled.
5. Equipped with 3 sets frequency converter or cheese PLO each group can be used alone,processing more accurately.




Name
UV Paint Roller Coating Machine
Model
HICAS 600-1/2/3
HICAS 1000-1/2/3
HICAS 1300-1/2/3
Working Width
600mm
1000mm
1300mm
Working Thickness
2-90mm
Feeding Speed
Frequency alternator
Feeding Power
0.75kw
2.2kw
2.2kw
Applicator Roller Power
0.75kw
2.2kw
2.2kw
Doctor Roller Power
0.75kw
1.5kw
1.5kw
Heating Power
3kw
3kw
3kw
Total Power
5.25kw
8.9kw
8.9kw
Dimension
1100*1500*1450mm
1540*2140*1580mm
1750*2600*1580mm
Weight
1000kg
1200kg
1500kg

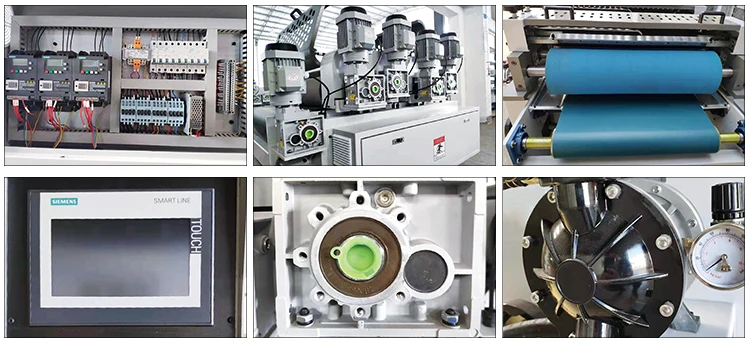

Detailed Images

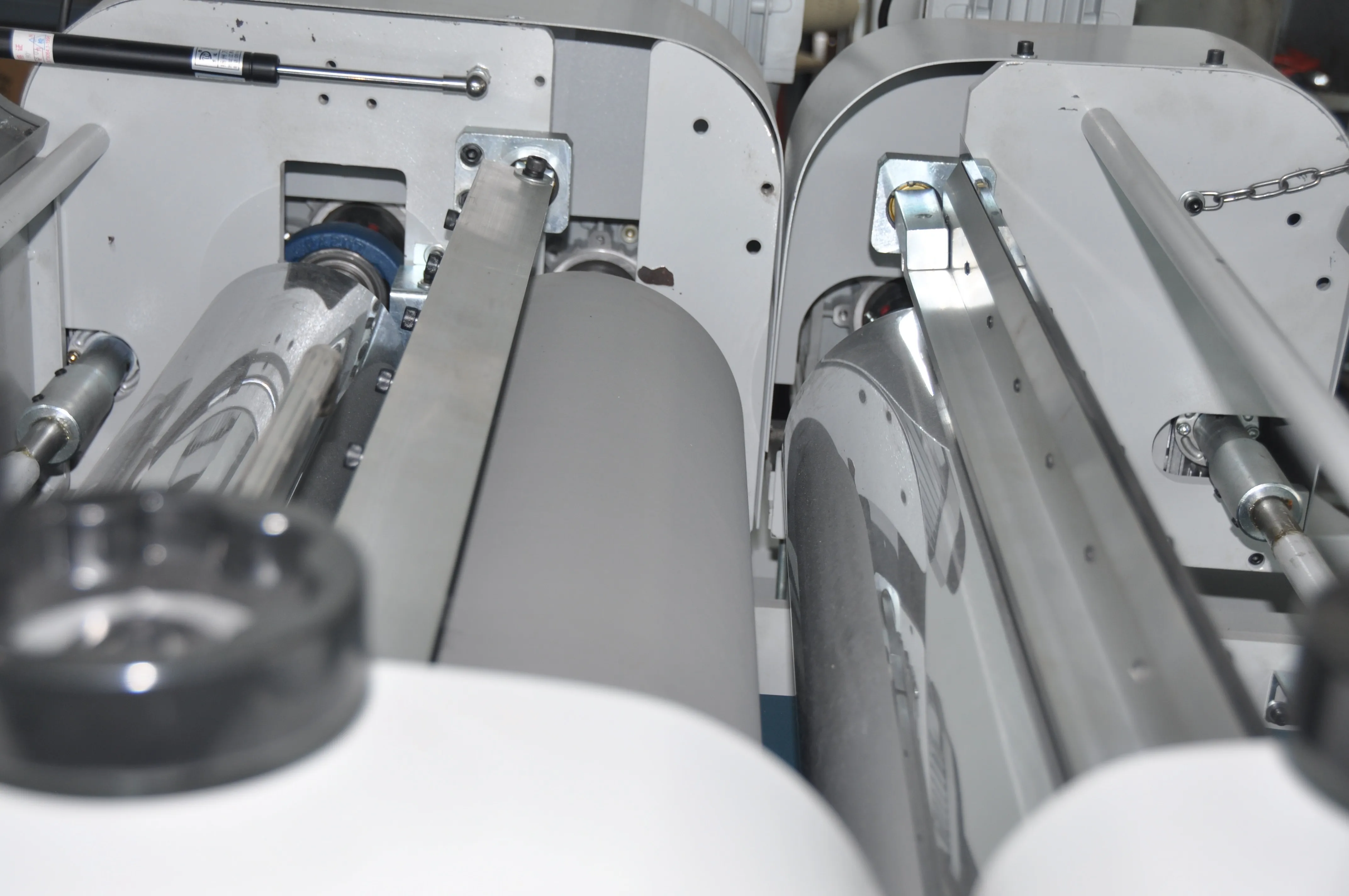

Coating system

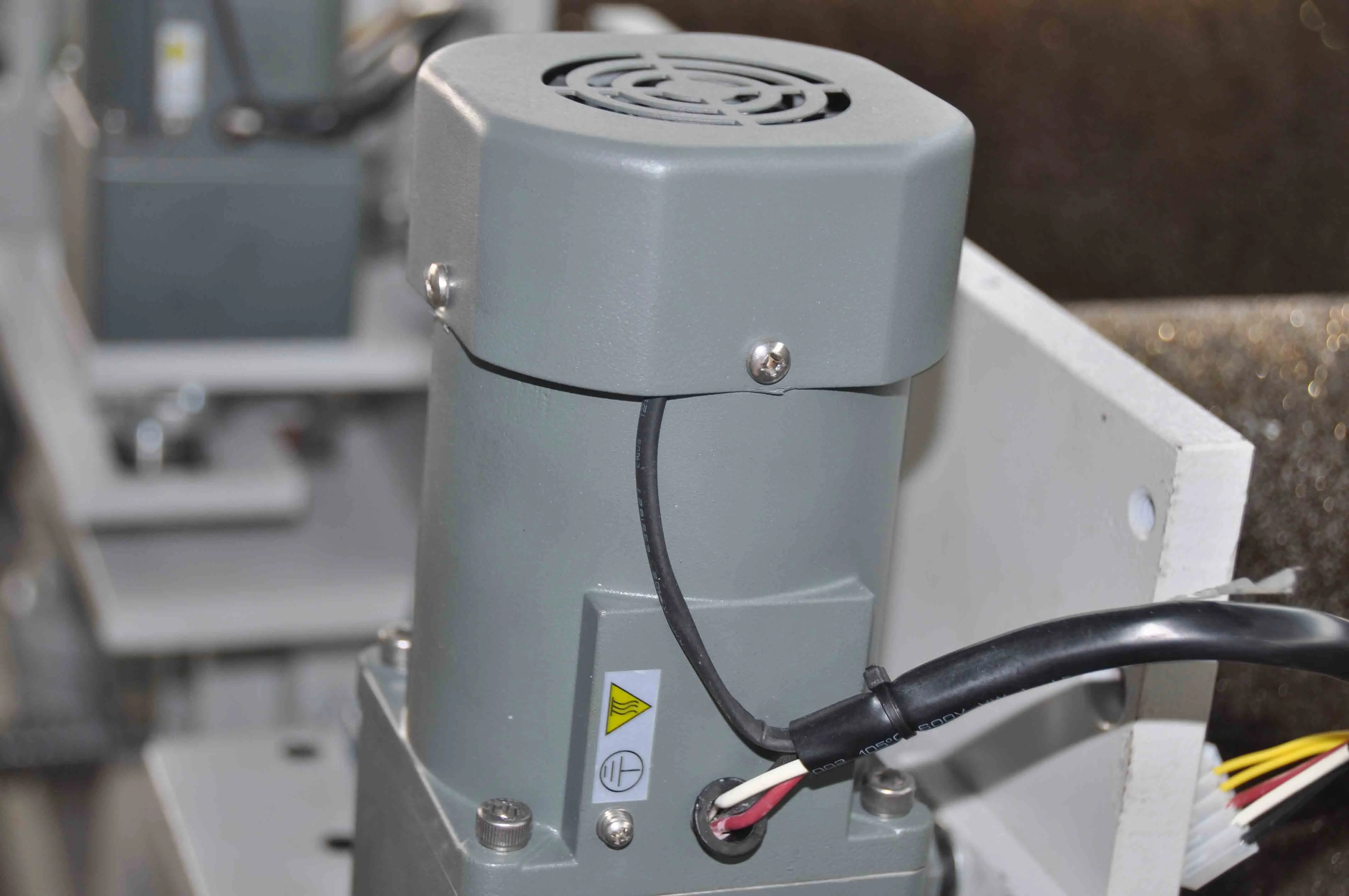

The coating roller and doctor roller are precisely controlled by independent Siemens inverter motor and reducer to make the stable coating processing.
Lifting system
The lifting system is dovetail design, precisely automatic go up and down.
Paint system
All paint recycle channels and paint heating barrels are using qualified stainless steel.
Feeding system
The whole welding design make the strong structure, the transport belt are using 4mm thicker PVC belt.

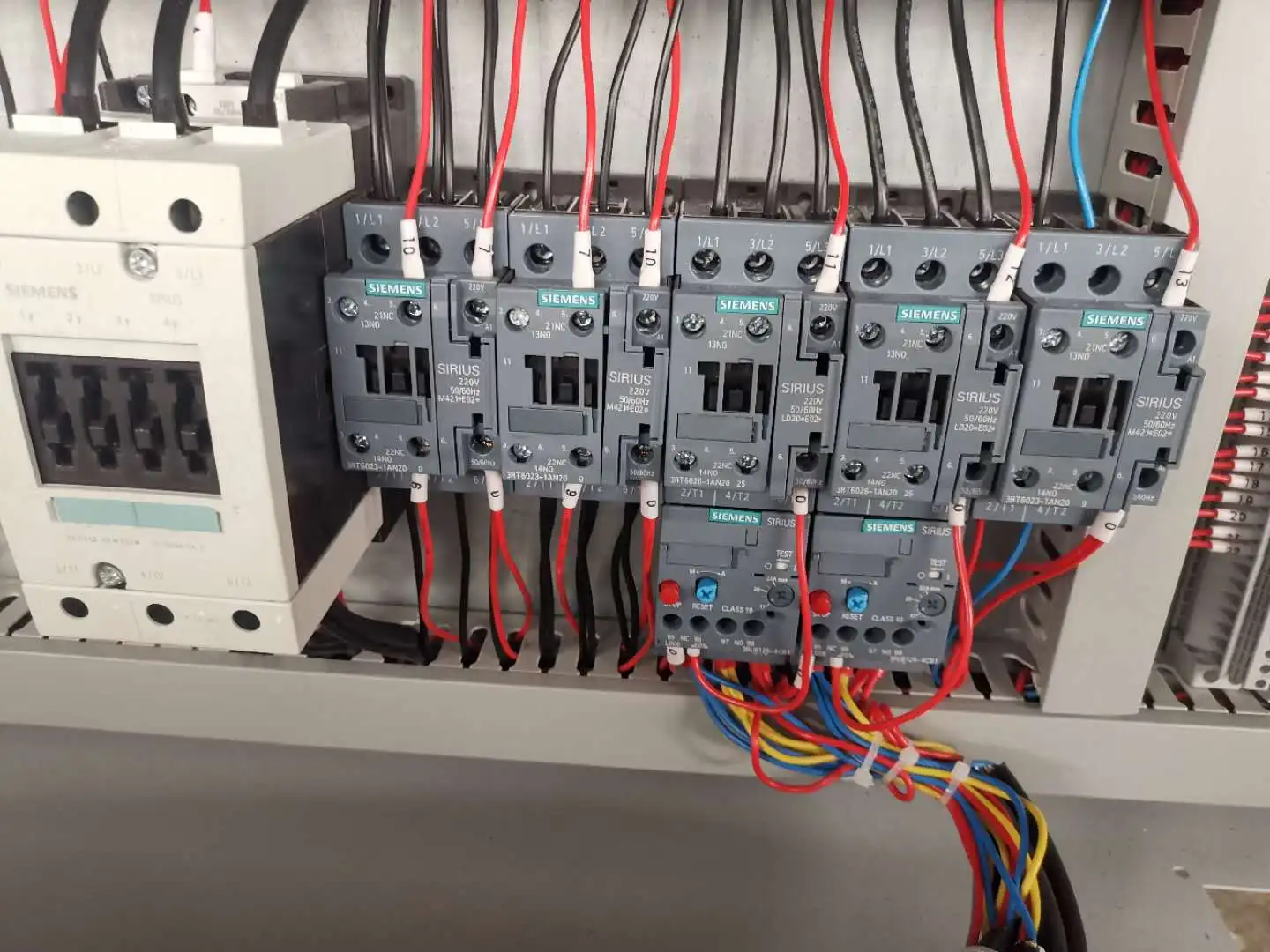

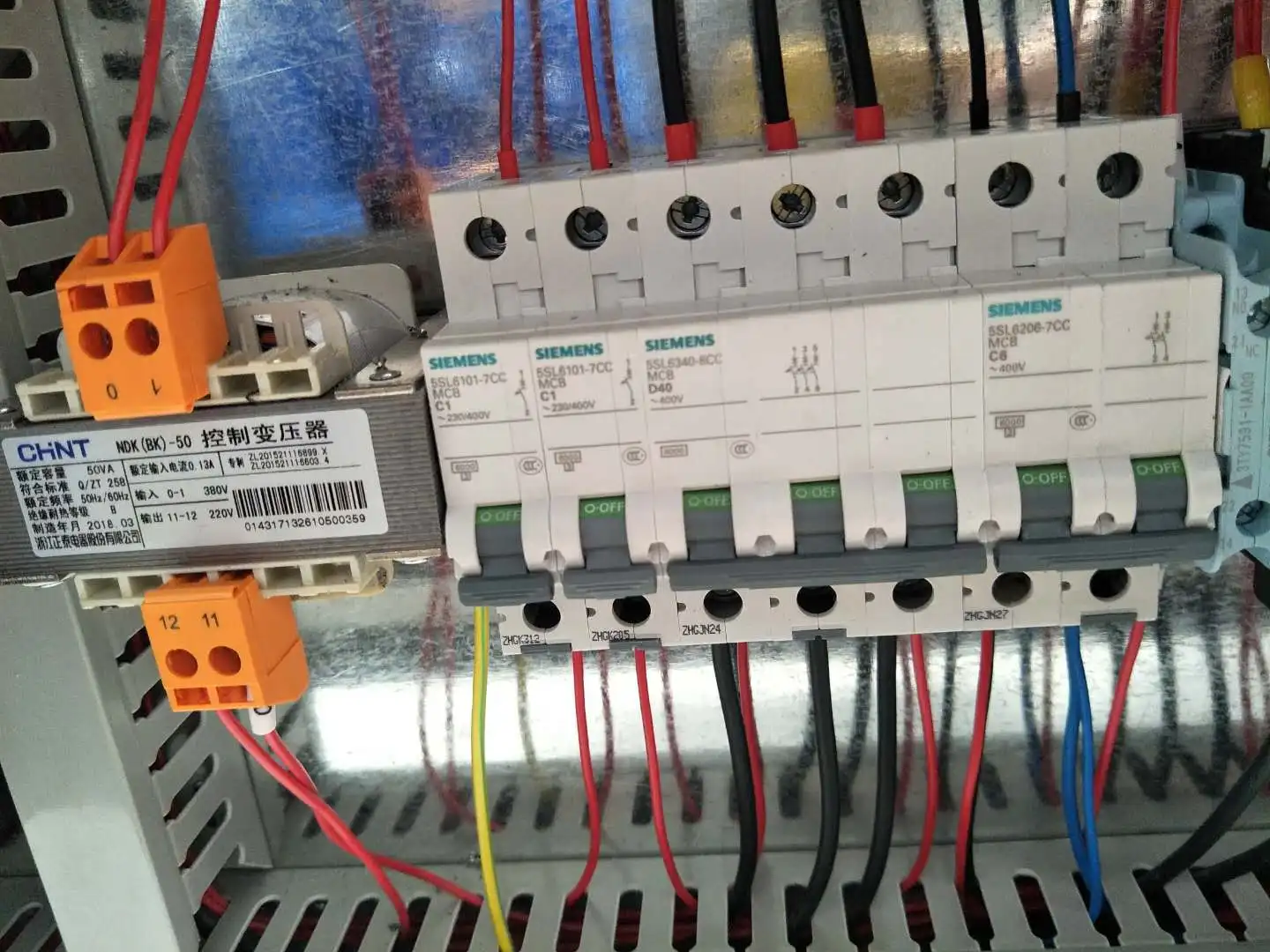

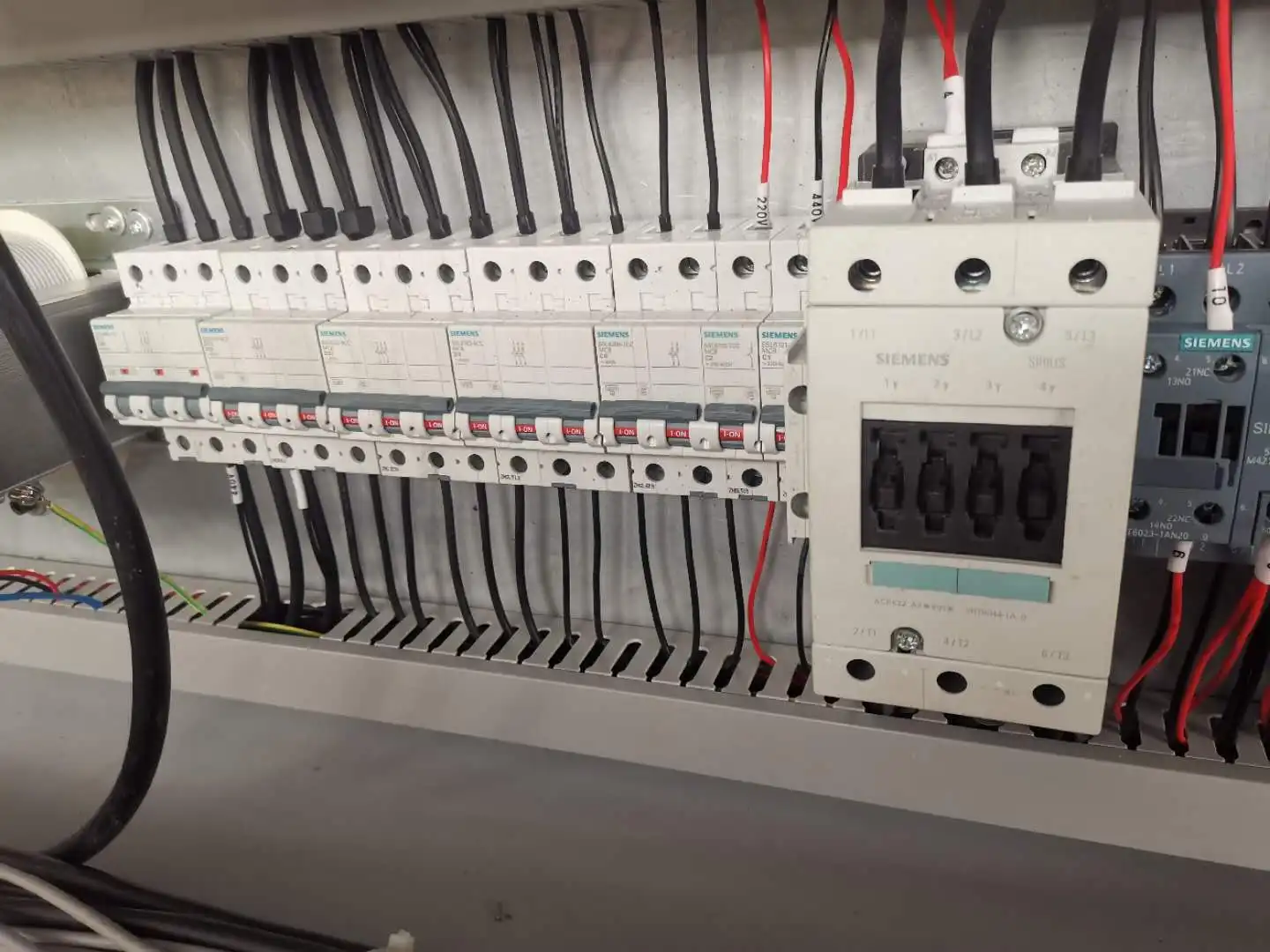

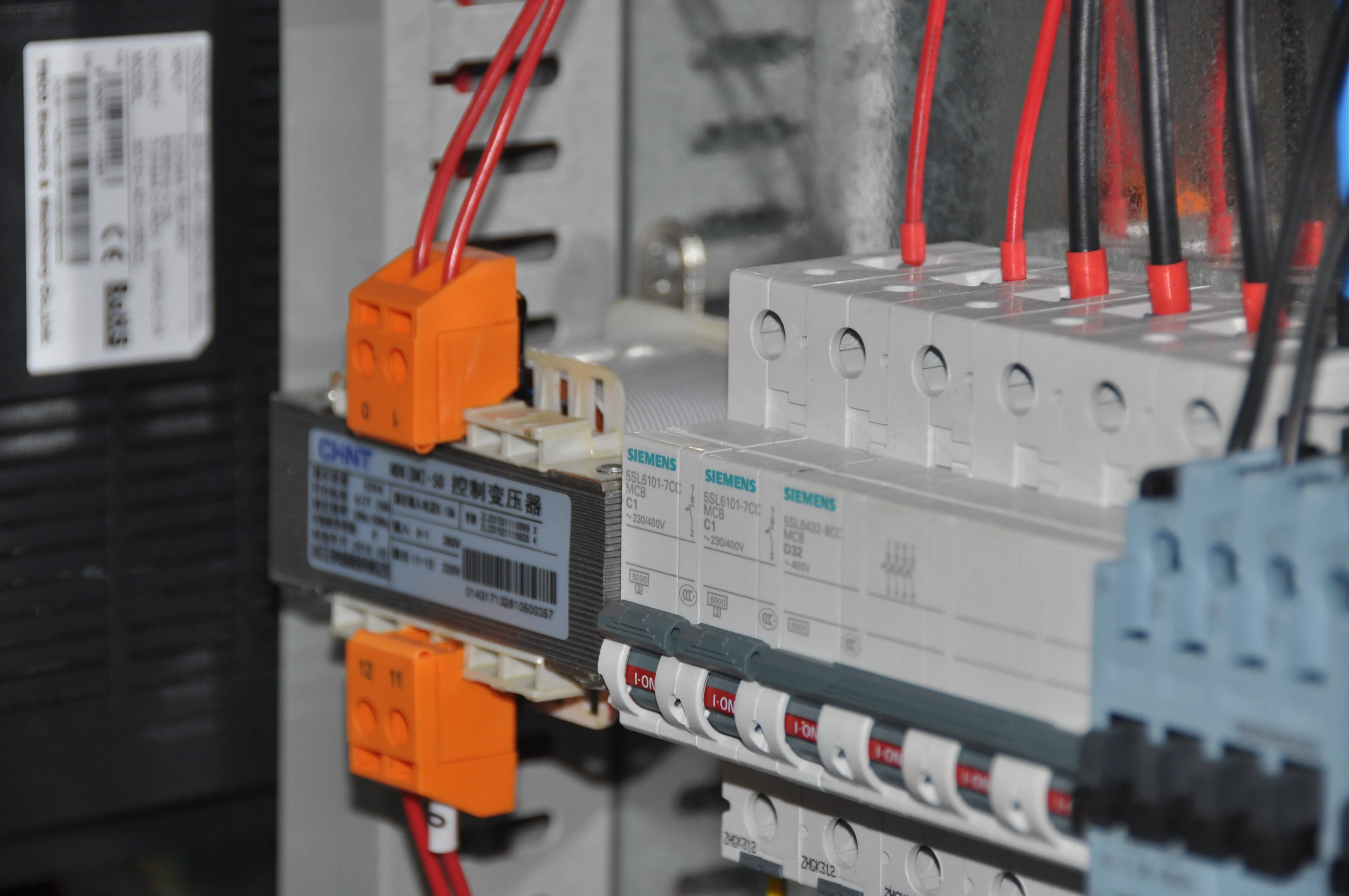

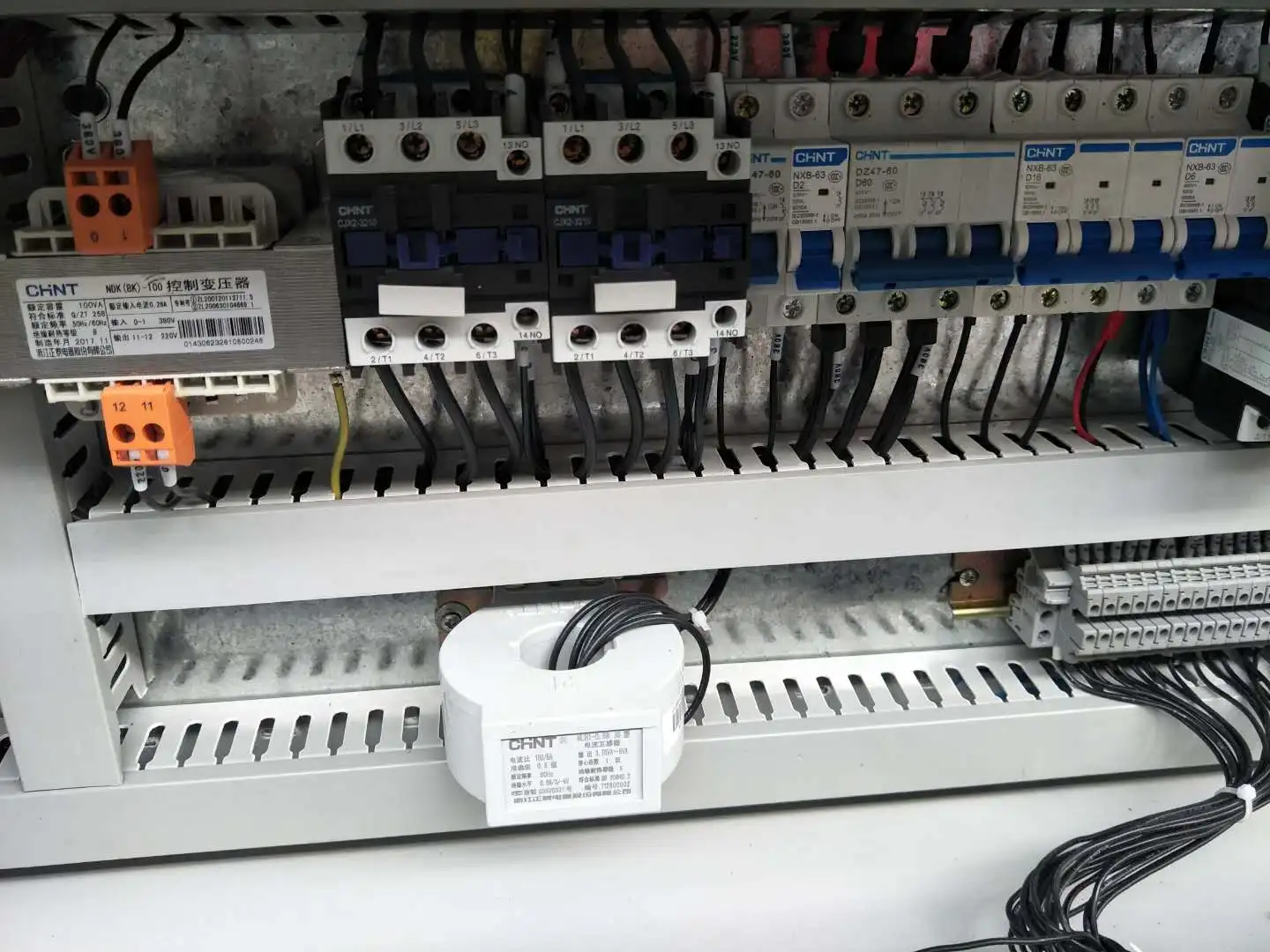

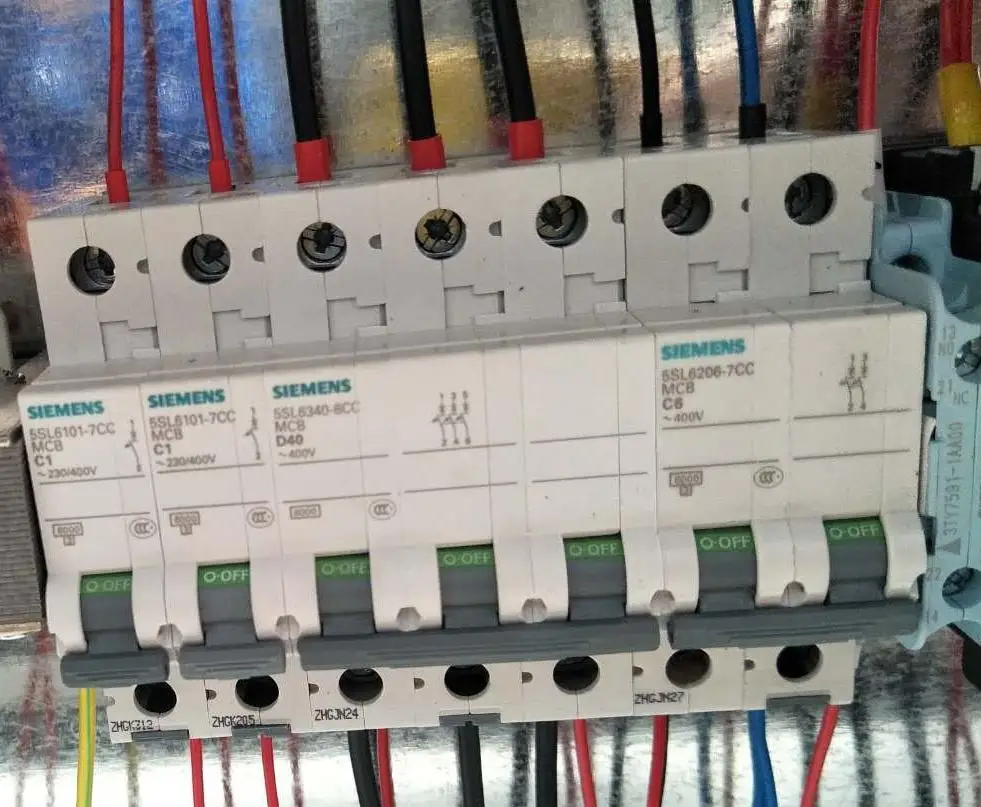

Electrical system
Siemens/Schneider PLC control can set up the roller height and distance by touch panel.
Easy-maintenance
The casting design considered the rollers' exchange, the roller changing is fast and easy.




Can be customized










Company Profile




VR




Our Company：
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback

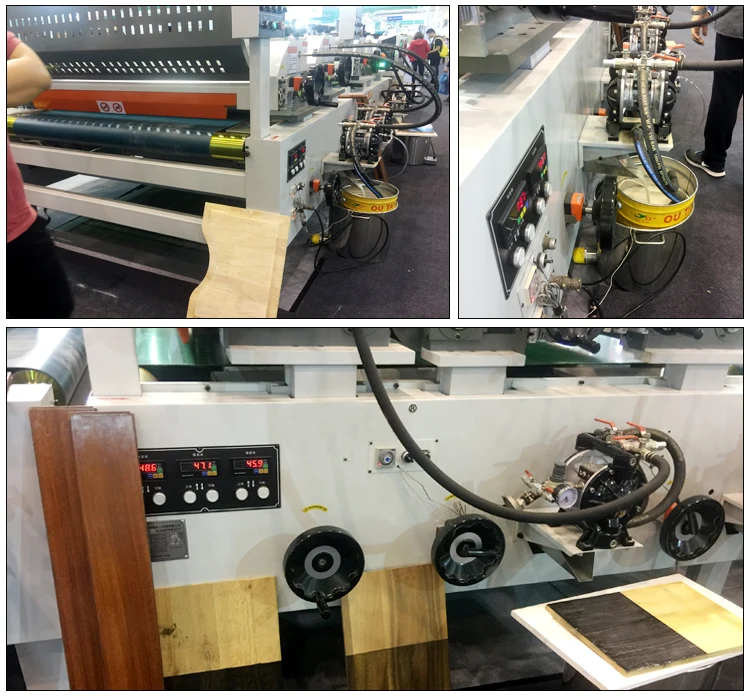

Exhibition


We are the most influential woodworking machinery supplier in China
At the same time, we have our own offline sales and after-sales system in 28 countries and regions around the world.
So please rest assured to buy, we will provide you with the best quality and convenient service.
If you have any need for woodworking machinery or mechanical consumables
You are welcome to contact us in any way
We will try our best to provide you with service and help

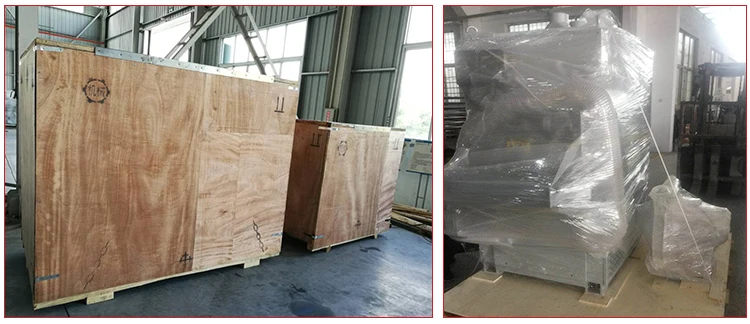

Packing&Shipping




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.




FAQ


1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer’s account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.

2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.

3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.

4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.

5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.

6. Can you customized the machine?
Our machines can be customized made according to buyers’ request.

7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.

8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German
