Thank you for browsing our products. We have professionally produced sensors for more than 20 years. If you have any technical requirements, we can produce them according to your requirements. The details are subject to consultation, we will reply to all your questions within 8 hours. email address :info@odoelec.com


Product Description




M12 Laser diffuse reflectance dc 3 wire IP67 infrared proximity sensor switch laser sensor

1, sensing distance: 10-40cm
2, the way of induction: speed off the alarm [laser point sensor, infrared visible light]
3, the working voltage: DC6V-36V
4, laser wavelength: 650nm
5, protection class: IP67
6, the output mode: NPN / PNP [normally open or normally closed]
7, response time: <2ms
8, the working environment temperature: -25 ℃ -80 ℃
9, shell material: copper
10, Dimensions: ¢ 18 (line length 2 meters)

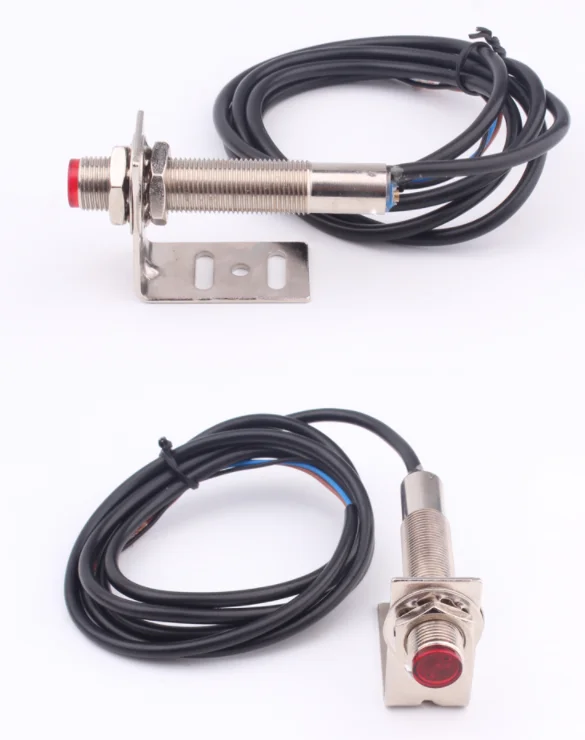

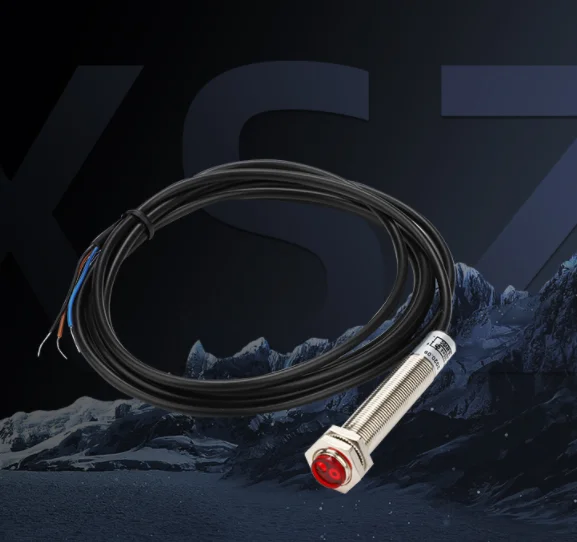

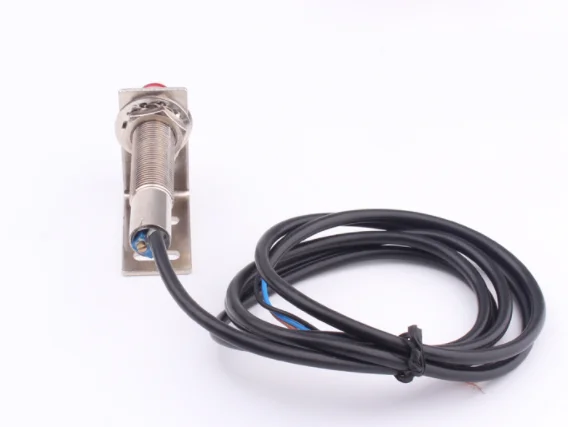

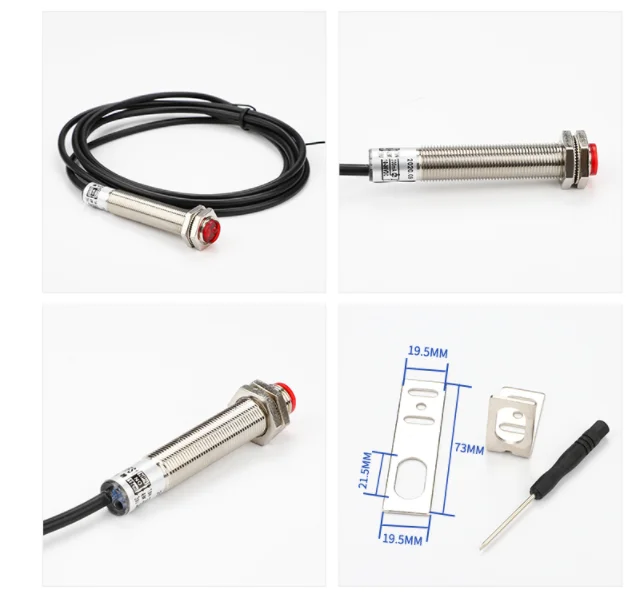

Detailed Images


M12 Laser diffuse reflectance dc 3 wire IP67 infrared proximity sensor switch laser sensor
[Appearance size]: 18mm 12mm (mm)

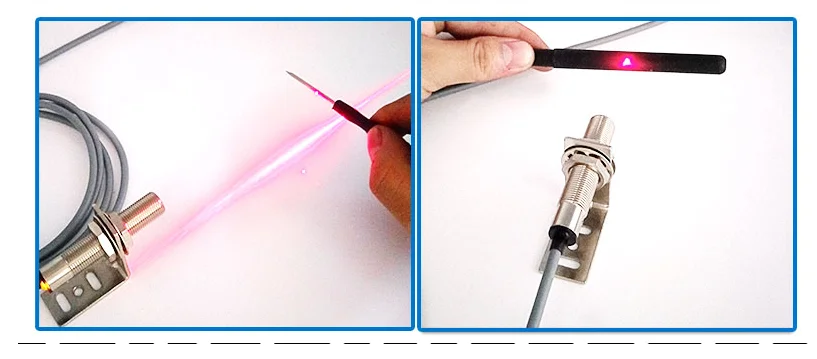

[Detection method]: laser beam visible light red dot
[Detection distance]: within M18 30m (m) and within M12 20m (m)
[Working voltage]: DC 6-36V

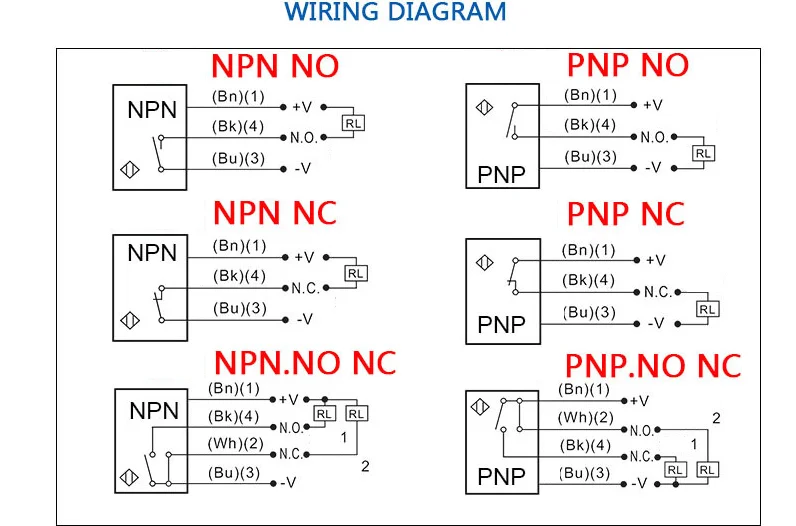

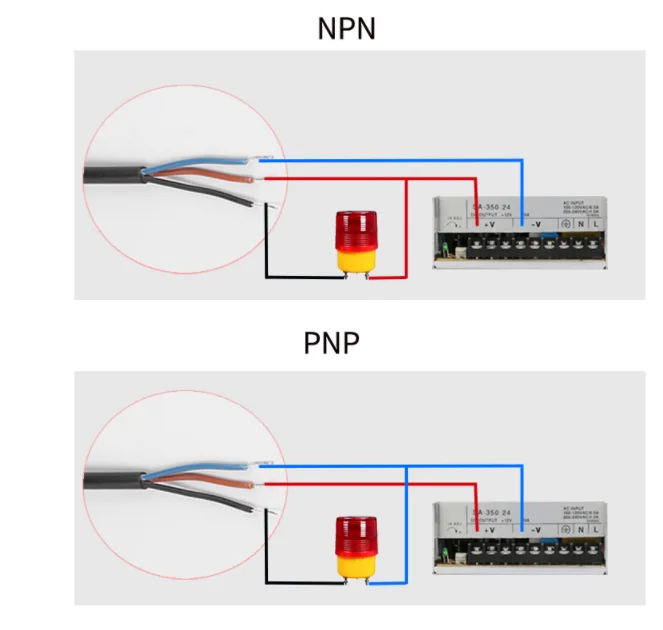

[Output form]: NPN DC three-wire normally open PNP


Product name
Proximity Sensor
Diameter
M12
Type
DC, NPN (3 wires)
Output status
NO
Standard detection object
Transparent or opaque body
Material
Brass nickel +ABS
Supply voltage
DC 6-36V
Is_Customized
Acceptable
What You Get
1 X 12mm Laser Sensor
DC, NPN,NO














Application




Workshop








Packing & Delivery




Our Service
