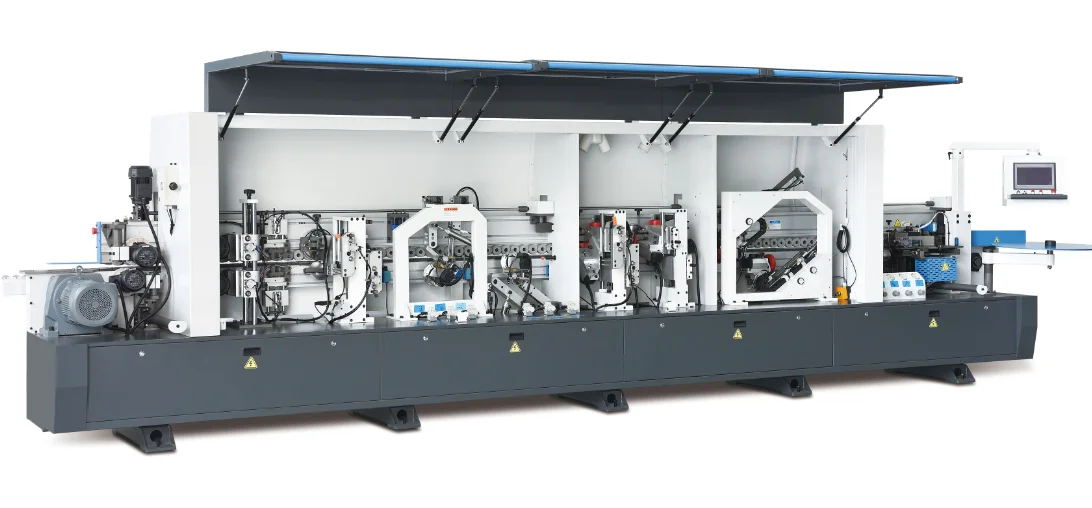

Многофункциональный Кромкооблицовочный станок с предварительной фрезеровкой
- Категории: Техника для производства древесных плит >>>
- Поставщик: Jinan,Quick-Fulltek,CNC,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Configuration Parameters

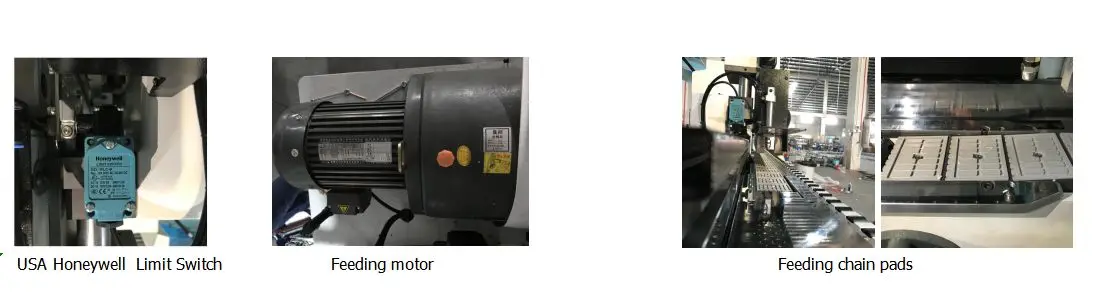

1). Conveying drive: conveying motor (TDD)
2). Linear transmission: chain block, pressing wheel(Hessen)
3). Electrical equipment: Schneider
4). Controller PLC: Delta
6). Frequency inverter: LITEON,Taiwan
7). Temperature control light sense: AUTONICS
8). Magnetic induction: AirTAC
9). High frequency motor: World motor
10). Travel switch: Honevwell
11). Cylinder: AirTAC
12). Solenoid valve: EASUN
13). Linear guide rail: Hiwin, Taiwan
2). Linear transmission: chain block, pressing wheel(Hessen)
3). Electrical equipment: Schneider
4). Controller PLC: Delta
6). Frequency inverter: LITEON,Taiwan
7). Temperature control light sense: AUTONICS
8). Magnetic induction: AirTAC
9). High frequency motor: World motor
10). Travel switch: Honevwell
11). Cylinder: AirTAC
12). Solenoid valve: EASUN
13). Linear guide rail: Hiwin, Taiwan
Specification parameters
Model | FK61 |
Electric Lifting | Yes |
Total power | 11kw |
Machine size | 7000×1100×2100mm |
Feed speed | 26-28-32m/min |
Thickness of edge banding | 0.3-3mm |
Panel thickness | 8-60mm |
Panel length | ≥150mm |
Panel width | ≥50mm |
Work air pressure | 0.7mpa |

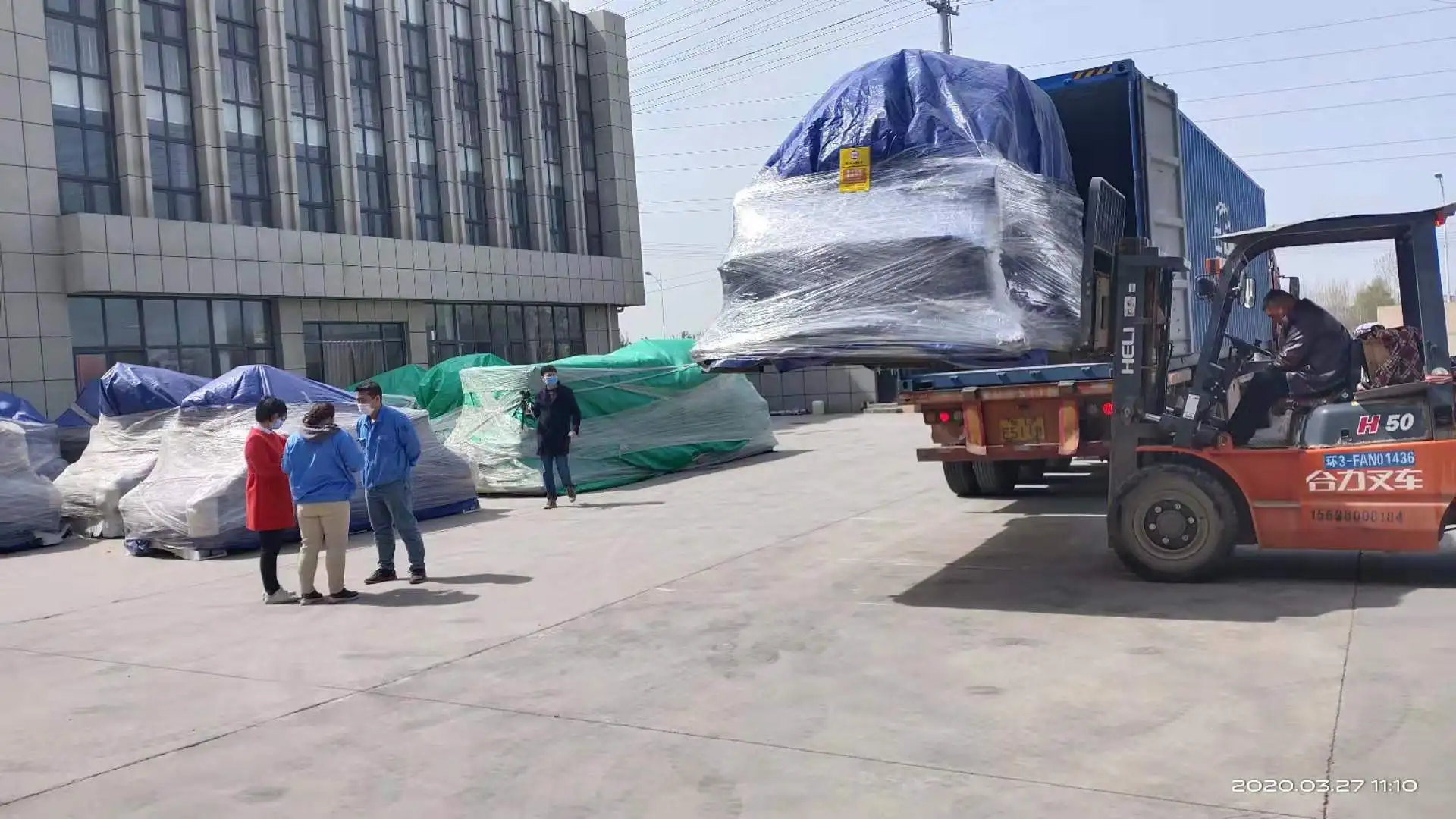

Packing and delivery
Packing and payment
1.Whole film packaging machine
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to customer's requirements for loading the whole container or LCL at Qingdao port.
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to customer's requirements for loading the whole container or LCL at Qingdao port.
