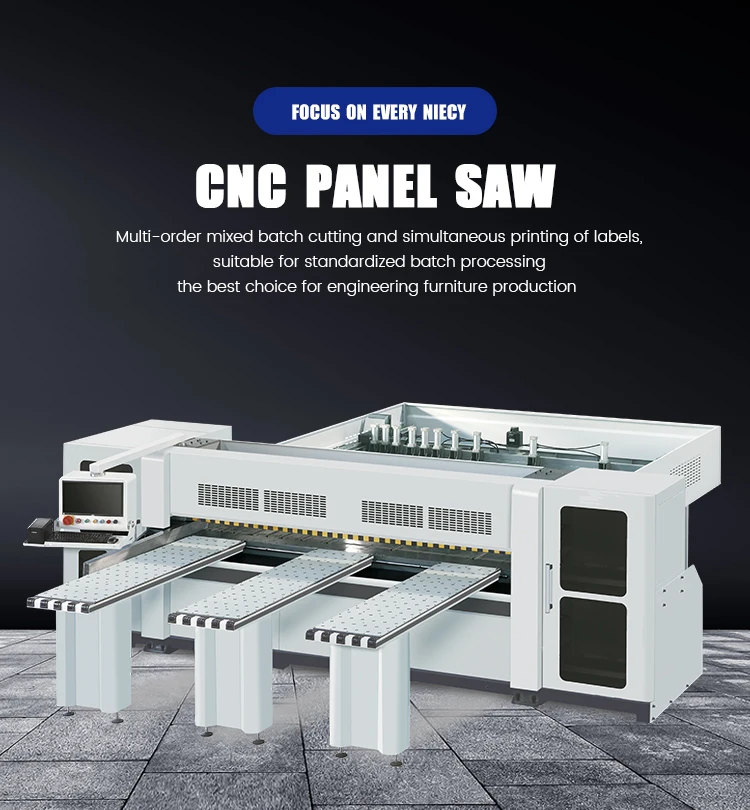

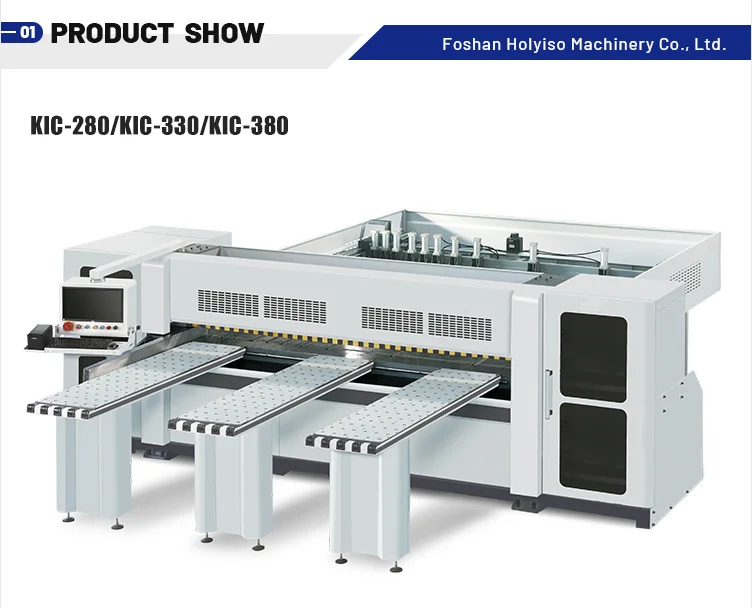

KIC-280 cnc компьютер-раскроечная циркулярная пила с сервоприводом motorand система
- Категории: Wood Based Panels Machinery >>>
- Поставщик: Foshan,Holyiso,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

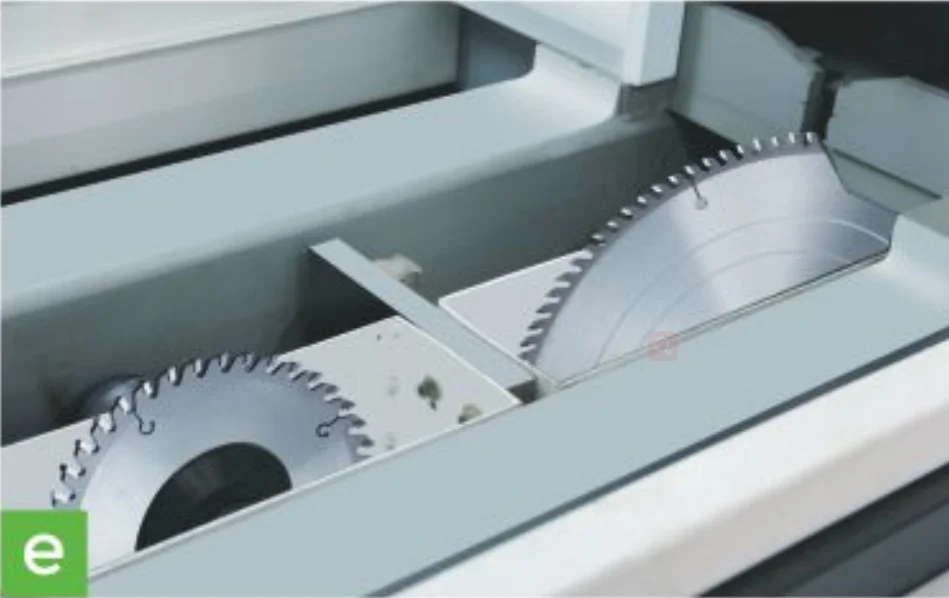

■ Saw blade and pressure beam intelligently control the lifting height according to the sawing thickness.
■ Imported high-strength coordinated servo motor drive saw car.
■ Pneumatic compressed feeding roller is applied, the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.
■ Spare parts are thick and solid to maintain high precision, high stability and reliability.
■ Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiency and protect operators.
■ Mass production is several times more efficient than common machinery and saves time and power.
■ Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiency and protect operators.
■ Mass production is several times more efficient than common machinery and saves time and power.
Application:

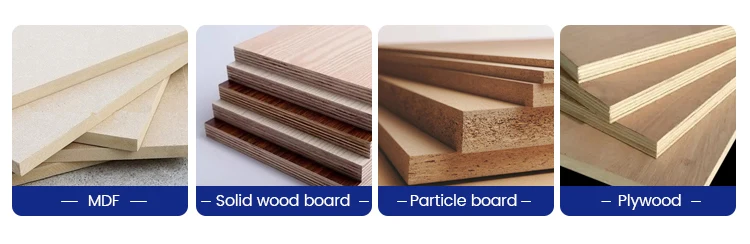

The machine is suitable for the following boards: MDF, block board, solid wood board, particleboard, polymer door plates, plywood, pvc board, etc. Straight line edging and trimming.

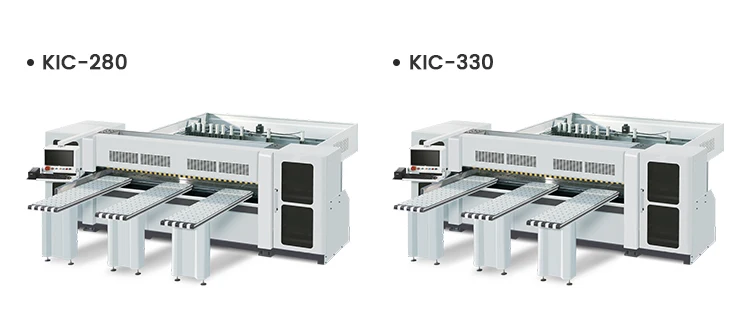

Model | KIC-280 | KIC-330 | KIC-380 |
Max. cutting length | 2800mm | 3300mm | 3800mm |
Max. cutting thickness | 100mm | 100mm | 100mm |
Main saw blade diameter | Φ380/400mm | Φ380/400mm | Φ380/400mm |
Main saw shaft diameter | Φ60mm | Φ60mm | Φ60mm |
Main saw rotating speed | 4560rpm | 4560rpm | 4560rpm |
Scoring saw blade diameter | Φ180mm | Φ180mm | Φ180mm |
Scoring saw blade inner diameter | Φ30mm | Φ30mm | Φ30mm |
Scoring saw rotating speed | 6700rpm | 6700rpm | 6700rpm |
Saw carriage forward speed adjustable | 0-90m/min | 0-90m/min | 0-90m/min |
Saw carriage backward speed | 0-90m/min | 0-90m/min | 0-90m/min |
Main saw motor | 16kw | 16kw | 16kw |
Saw carriage driving motor | 2.2kw | 2.2kw | 2.2kw |
Automatic feeding motor | 1.5kw (AC Servo motor) | 1.5kw (AC Servo motor) | 1.5kw (AC Servo motor) |
Total power | 25kw | 25kw | 25kw |
Automatic feeding speed | 80m/min | 80m/min | 80m/min |
Air pressure | 5-7kg/cm² | 5-7kg/cm² | 5-7kg/cm² |
Working table height from ground level | 960mm | 960mm | 960mm |
Overall dimension | 5200x6300x1900mm | 5700x6800x1900mm | 6200x6800x1900mm |
Details Images
With the industrial computer and optimization software, with automatic feeding and automatic reciprocating cutting functions, the operation is simple.
The air floating bead worktable can prevent the board from scratching, and the operator can easily move the board to reduce labor intensity.
The electrical components of the machine are mainly selected from domestic and foreign advanced products,which are safe and stable.
The pneumatic feeding mechanical clamp, heavyduty design, has enough gripping force and pushing force to ensure the smooth moving of the board.
height according to the cutting thickness.
Straight cutting length 2800mm.
Saw car precision rack drive.
Roller round plate (side leaning) durable.
High precision turbine reducer and gear transmission.
Efficient saw car.
Drive systern adopts servo control.

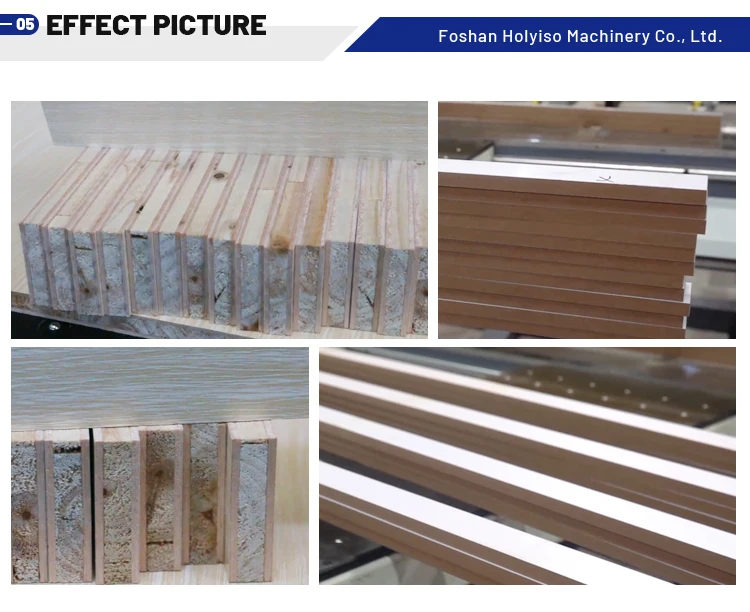

Effect Picture
■ The machine can be used for whole house customization, panel furniture, kitchen dining room, oddice cabinet table,etc.
Product packaging
Packaging and Delivery
We will ensure that your machine is clean before packaging.
We will add elastic film to the whole machine and spare parts to provide exquisite protection.
We will produce export standard sturdy wooden box packaging according to your requirements.
We will add elastic film to the whole machine and spare parts to provide exquisite protection.
We will produce export standard sturdy wooden box packaging according to your requirements.
Customer Feedback
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Recommend Products

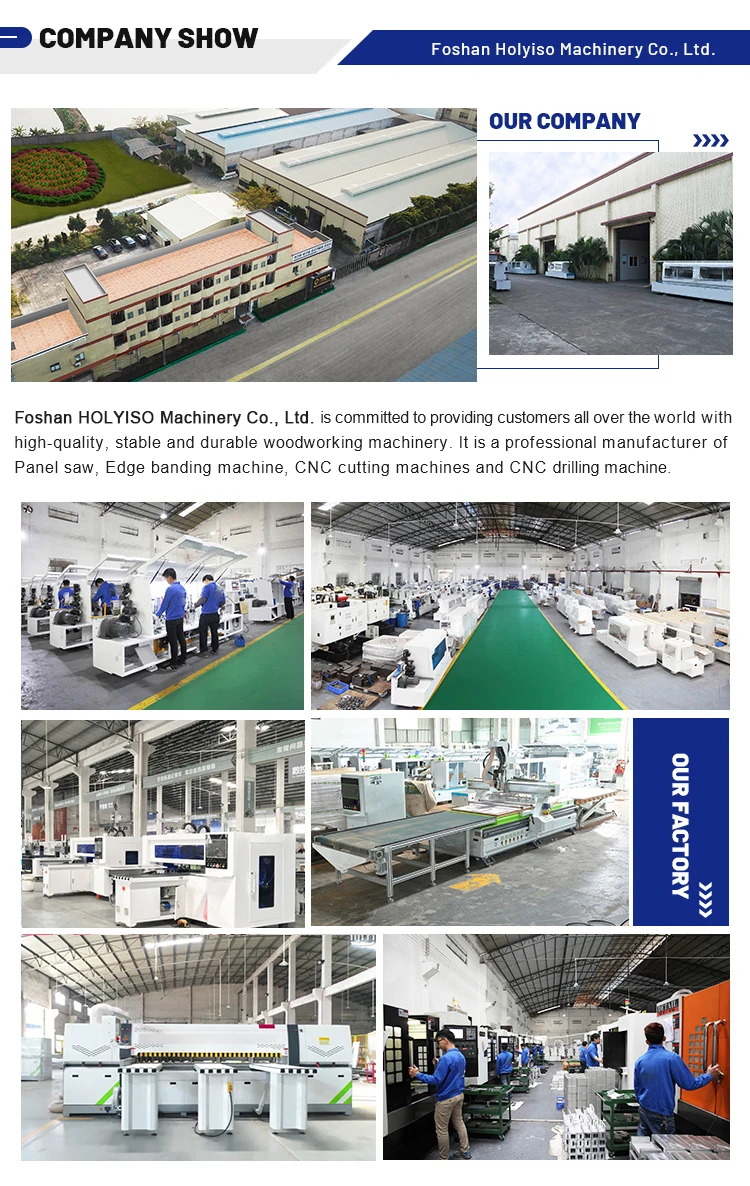

Company Profile

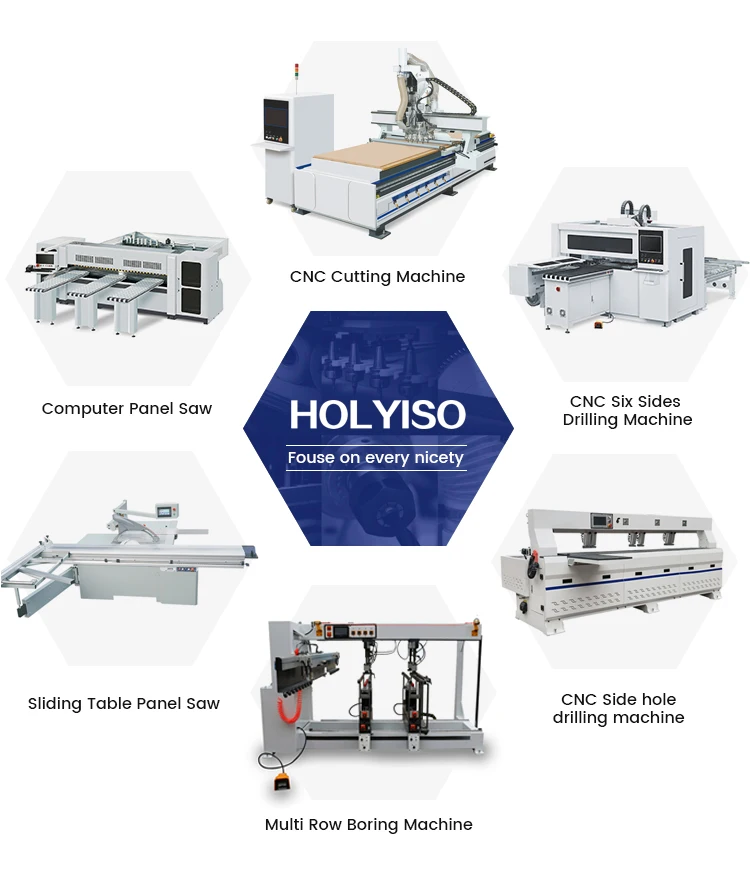

Foshan HOLYISO Machinery CO.,Ltd. is committed to providing customers all over the world with high-quality,stable and durable woodworking machinery. It is a professional manufacturer of Panel saw, Edge banding machine,CNC cutting machines and CNC drilling machine.
We have more than 30 professional R&D personnel, the total production area of the factory is more than 27,000 square meters, and more than 30 various high-precision advanced processing equipment, ensuring the perfect performance of the machine. The company uses advanced technology from Germany and Italy to develop automated woodworking CNC equipment that meets the needs of the furniture and wood products industry.
