Автоматическая гидравлическая машина горячего прессования 800 тонн 30 слоев для фанеры с погрузчиком и
- Категории: Wood Based Panels Machinery >>>
- Поставщик: Weihai,Hanvy,Plywood,Machinery,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Application
CE Automatic 800Ton 30 Layers Hydraulic Hot Press Machine for Plywood with Loader and Unloader
Option:
1.Pressure(tons): 400/500/600 or more
2.Opening/floor number :8/10/12/15 ..etc.
3.42mm & 52mm thick solid steel hot platen.
4.Size of hot platen(feet): 3'x6'/ 5x5'/ 4'x8' or customized
5.Infeed and outfeed devices option
CE Automatic 800Ton 30 Layers Hydraulic Hot Press Machine for Plywood with Loader and Unloader
Technical Specifications | Unit | HY214X8/6A-15 | HY21-5x10/10B-8 |
Nominal pressure | KN | 6000 | 10000 |
Hot plate size | mm | 2700*1370*42 | 1700*3000*52 |
Product dimensions | feet | 4*8 | 5*10 |
Opening | mm | 70 | 70 |
Opening mumber | pcs | 15 | 8 |
Plunger cylinder diameter | mm | Φ380x2 ,Φ180x1 | Φ360x4 ,Φ180x1 |
Working stroke | mm | 1050 | 720 |
Working pressure | Mpa | 25 | 25 |
Motor | kw | 26 | 25.5 |
Closing speed | m/min | 4 | 4 |
Overall sizes | mm | 5000*1446*5395 | 5450x1850x4415 mm |
Weight | kg | 38000 |
Main Features
CE Automatic 800Ton 30 Layers Hydraulic Hot Press Machine for Plywood with Loader and Unloader
1.Heavy,solid and reliable complete structure, which is 3-4 tons heavier than others.
2.Platens has double enters and double exits, which ensure a high efficient, and small temperature difference.
3.Each platen has his own control valve.This ensure a easy maintenance in future.
4.Input and output tubes of steam and heat conduction oil are alternative.
5.Oil cylinder with bigger diameter, heavy duty.And inside pillar is solid while others may be hallow.

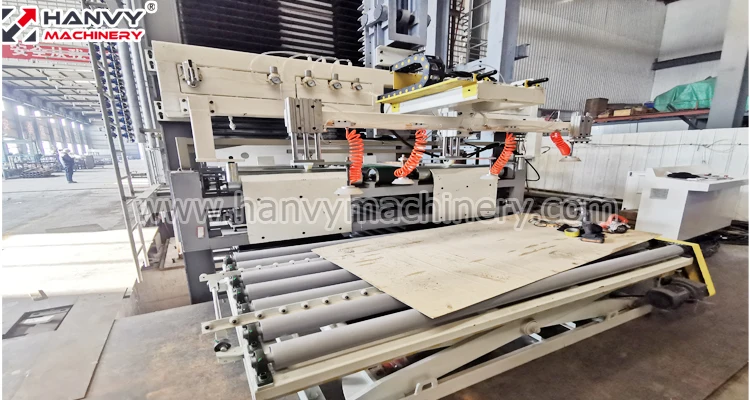

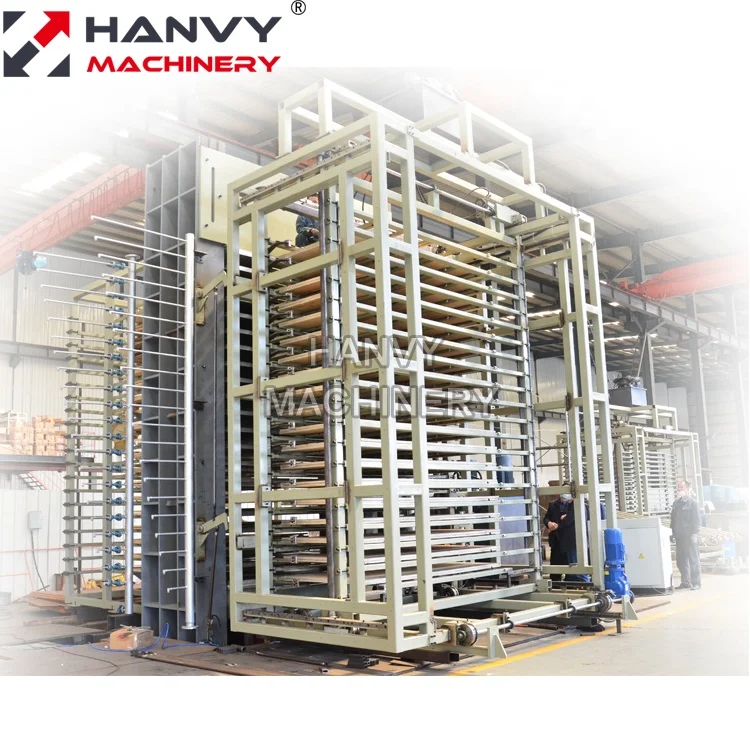

We supply full automatic plywood hot press machine with loader and unloader,
semi-automatic hot press with loader and unloader,
plywood hot press with manual loading and unloading,
depends on customer's choice and capacity required.
semi-automatic hot press with loader and unloader,
plywood hot press with manual loading and unloading,
depends on customer's choice and capacity required.
Detailed Images

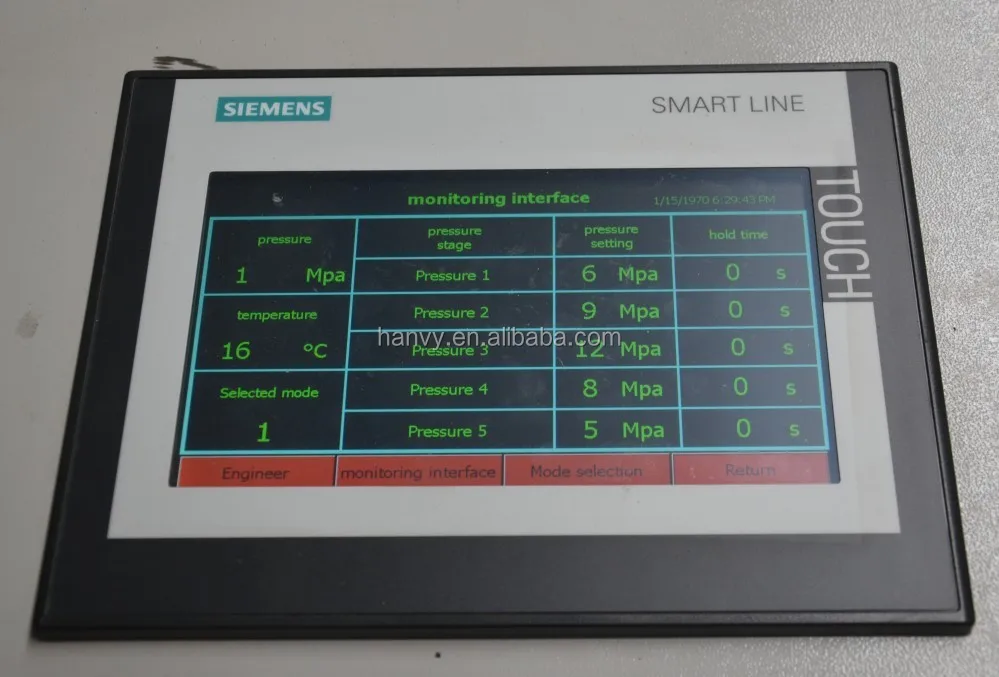

Plywood Hot Press Machine with SIEMENS PLC Control
SIEMENS PLC system,five different pressure control,six modes data for high quality plywood.
Omron PLC control with touch screen and a separately floor-standing cabinet make a easy operation.

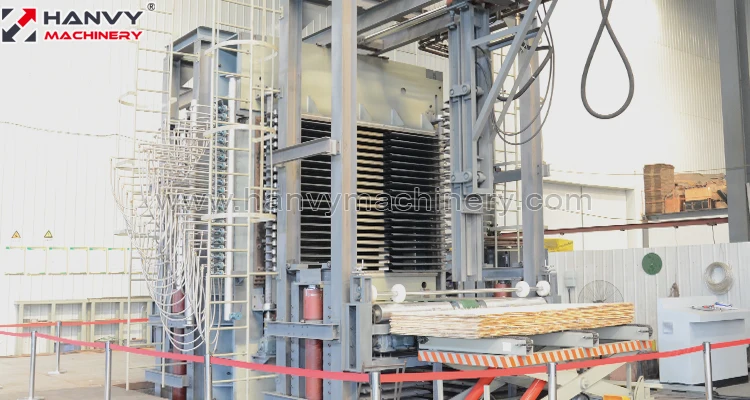

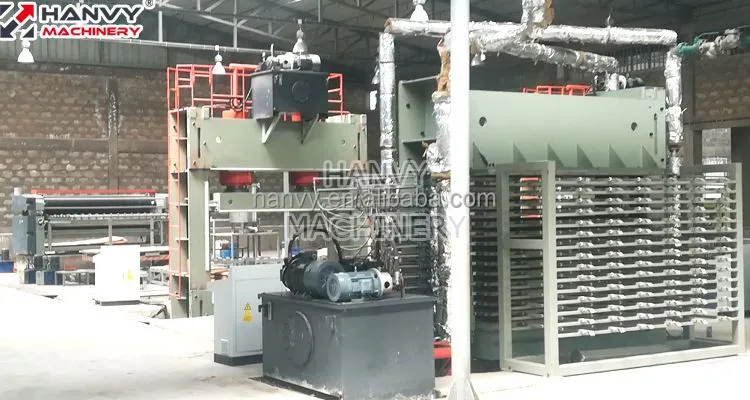

800Ton 20 Layer hot press machine from China Hanvy factory

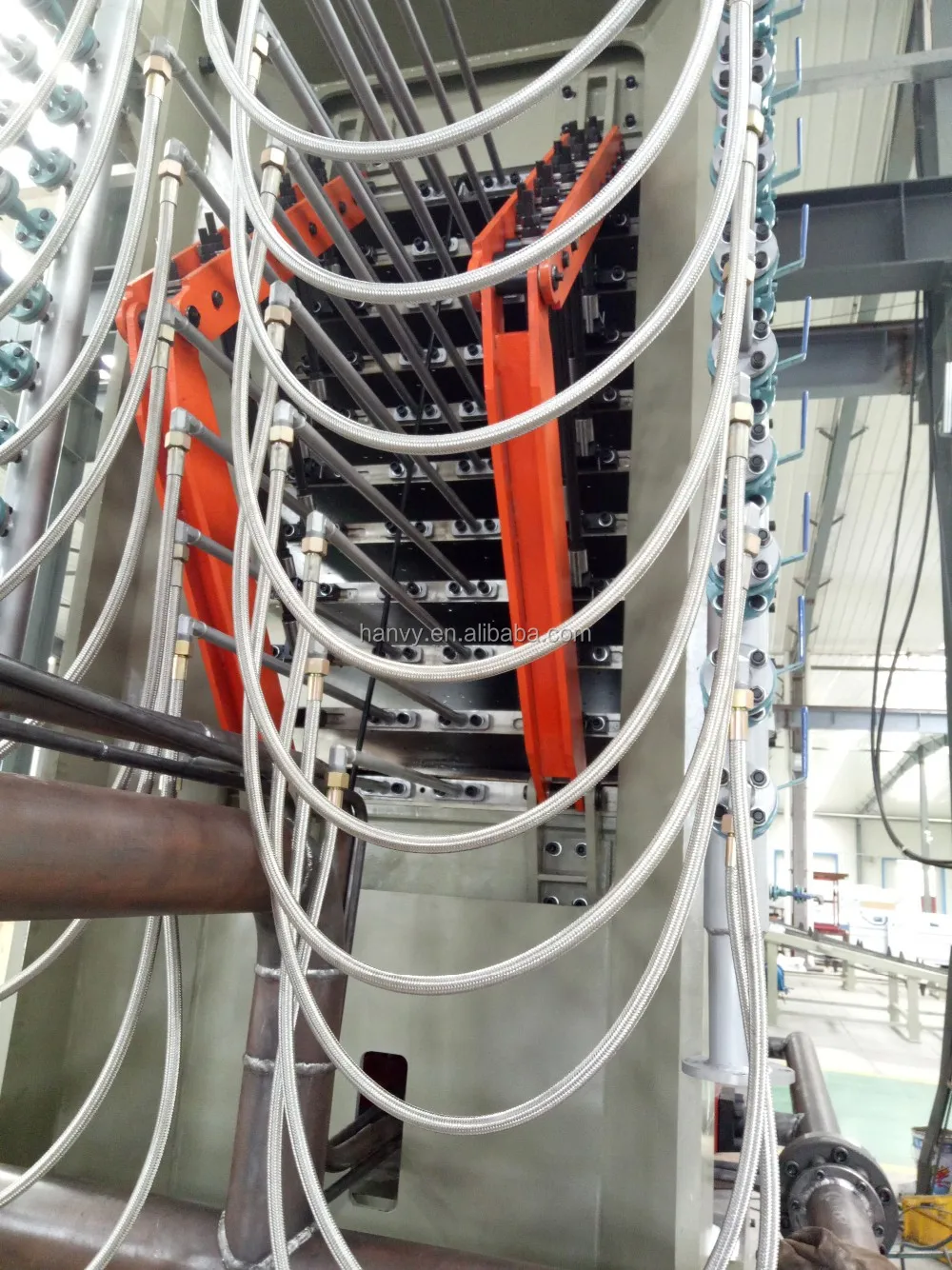

Input and output tubes of steam and heat conduction oil are alternative.
Opening 70mm/100mm
Layer 20,15 or 10,or OEM.
Closing time 12-15seconds.

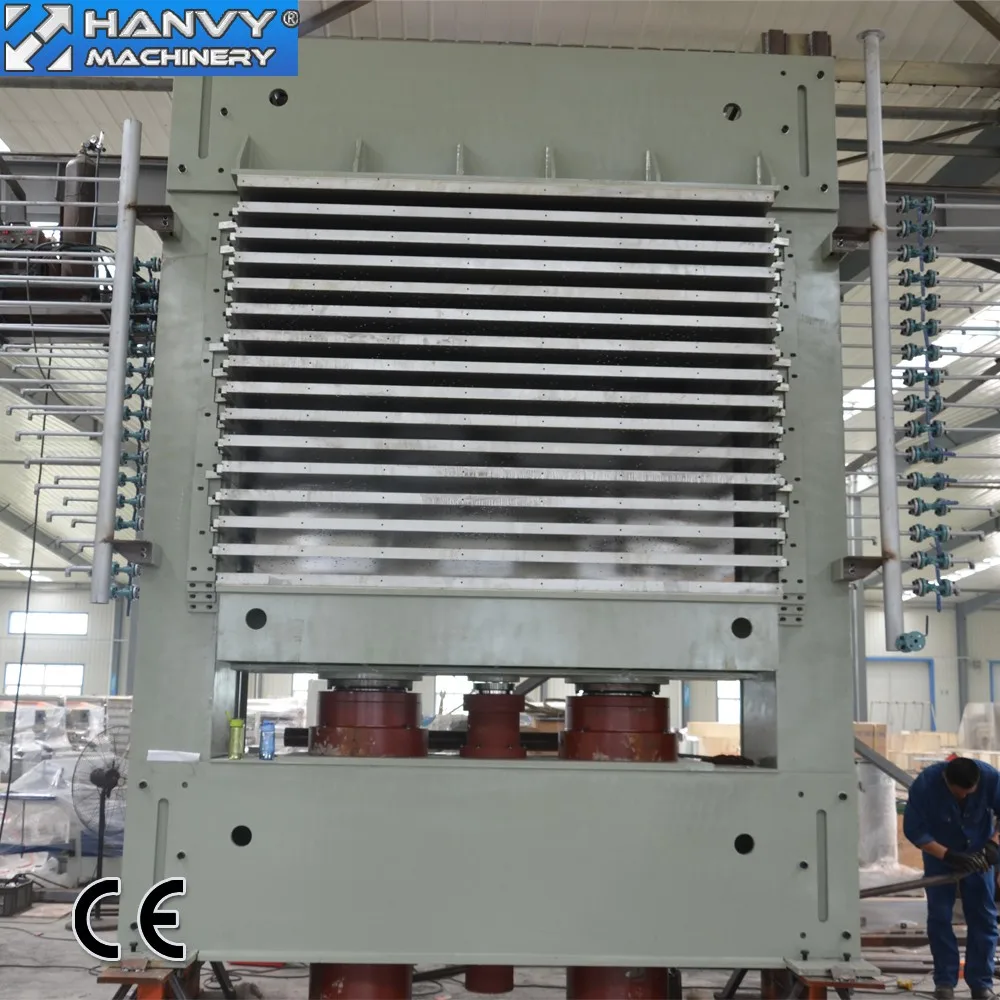

SIEMENS PLC Hot Press Machine for Plywood and MDF Board
Oil cylinder with bigger diameter, heavy duty.And inside pillar is solid while others may be hallow.
Closing time is 12-15 seconds which others may more than 20 seconds.
electronic element: Schneider . and Most import hydraulic pressure station is made in TAIWAN

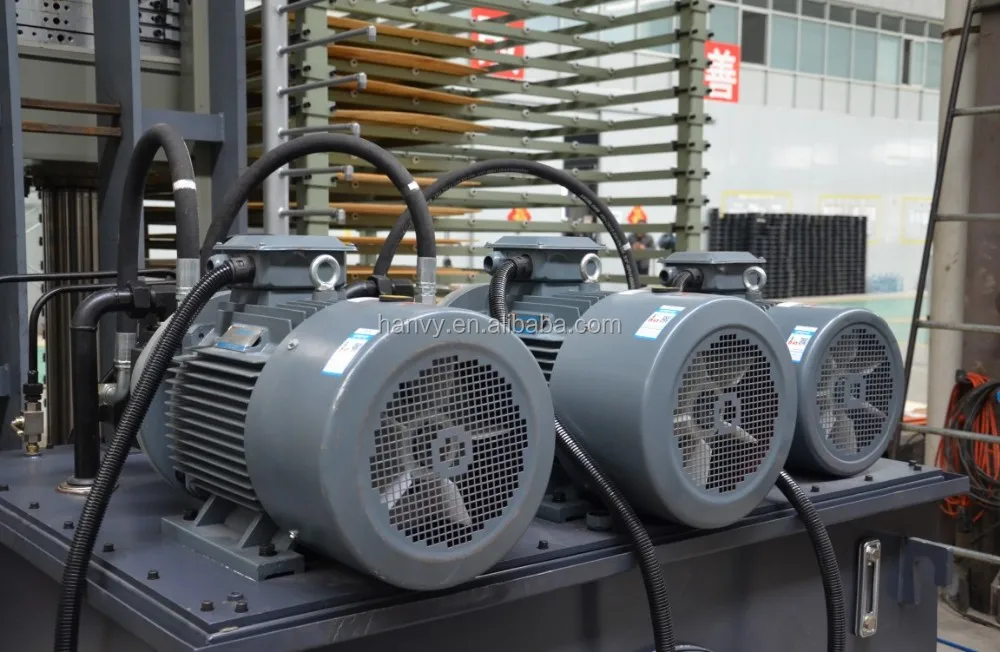

Hydraulic oil station for hot press machine
Hydraulic station,includes motor,oil pump and valve block etc.High quality from famous brands.
The whole machine body is heavy,solid and reliable complete structure, which is 3-4 tons heavier than others.
Long life span.

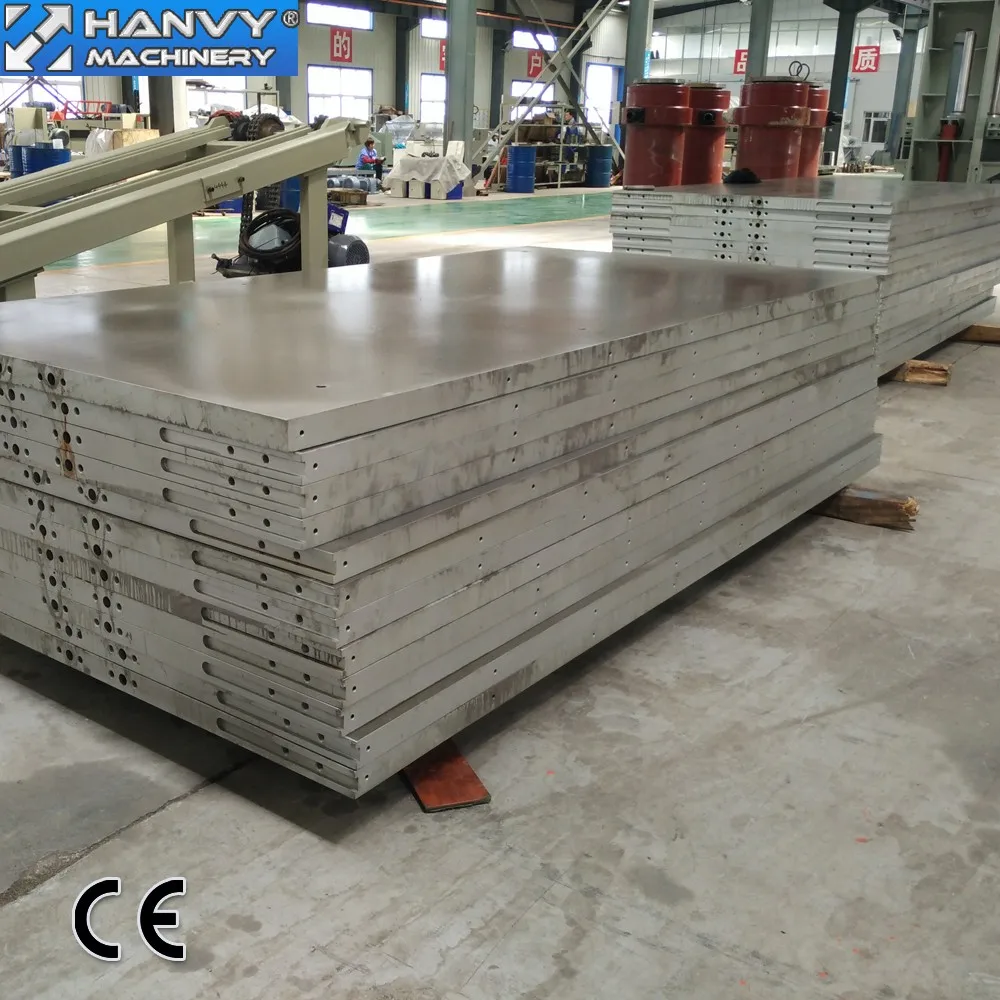

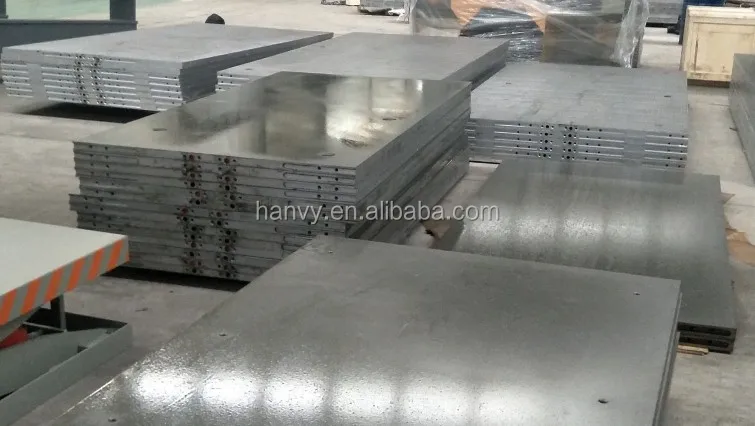

Solid hot platen
Hot plate 4x8ft(Hot platen is optional)
2700x1370x42mm or 2700x1370x52mm
Each platen has its own control valve.This ensure a easy maintenance in future.
Each platen has his own control valve.This ensure a easy maintenance in future.
Production Chart

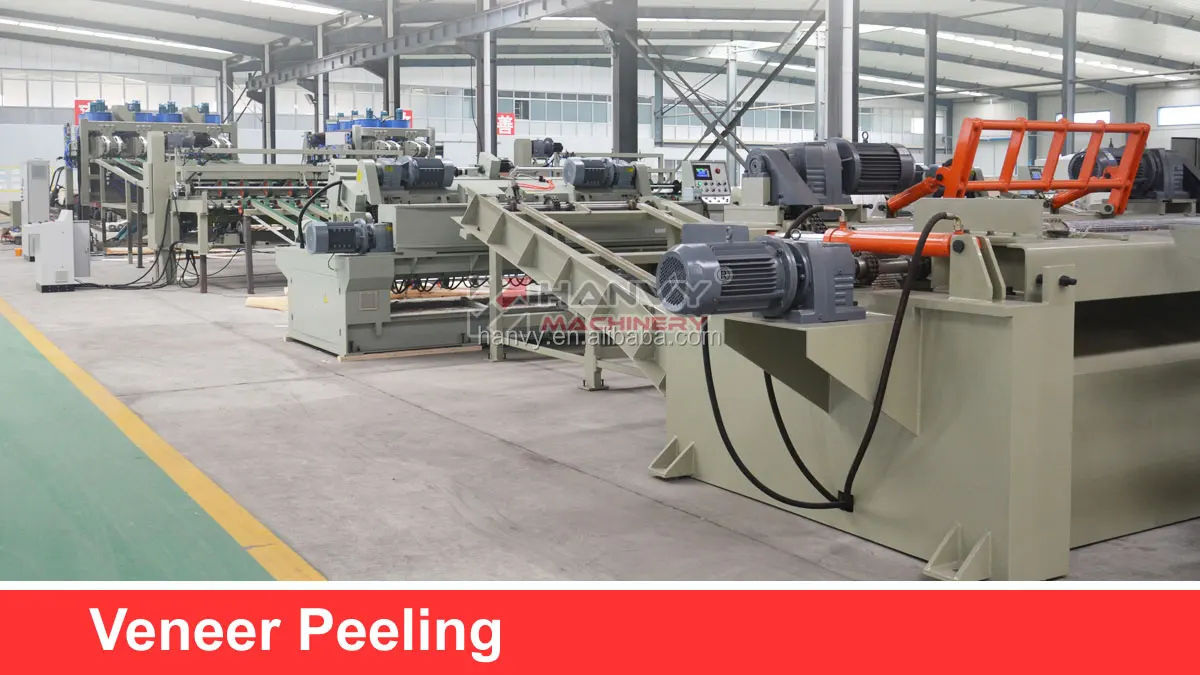

HANVY VENEER PEELING LINE
Hanvy Machinery,is the original and professional manufacturer for plywood production machinery,we can supply you full wood veneer peeling line for plywood production.
This veneer spindleless peeling line is very popular in veneer and plywood industry worldwide.
It occupies space 38x8m.
The full line includes:
1. Log feeder 2. Log debarker 3. Debarked log feeder 4. Veneer peeling machine
5. Veneer conveyor 6. CNC veneer rotary clipper 7. Veneer stacker 8. Waste conveyor
This veneer spindleless peeling line is very popular in veneer and plywood industry worldwide.
It occupies space 38x8m.
The full line includes:
1. Log feeder 2. Log debarker 3. Debarked log feeder 4. Veneer peeling machine
5. Veneer conveyor 6. CNC veneer rotary clipper 7. Veneer stacker 8. Waste conveyor
Certifications
About Us
HANVY PLYWOOD MACHINERY
We have accumulated over 30 years experience, and have successfully made a strong impact in the international markets. Our entire range comprises machines like Log Debarker, Veneer Lathe Peeling Machine, Veneer Dryer, Glue Spreader, Plywood cold press, Hot Press Machine, Plywood D.D Saw , Log Home Machinery, and Log / Timber Saws and Moulders.Our machines are widely sold to over 60
countries,such as Russia,Ukraine,Malaysia,Indonescia,Vietnam, Egypt, Ethiopia, Gahna, USA,Peru, Poland, PNG, Serbia,etc.
1 Year guarantee for all machines,site installtion and commissioning will be provided.
countries,such as Russia,Ukraine,Malaysia,Indonescia,Vietnam, Egypt, Ethiopia, Gahna, USA,Peru, Poland, PNG, Serbia,etc.
1 Year guarantee for all machines,site installtion and commissioning will be provided.
Packing & Delivery
Packaging | ||
Size | 40HQ | |
Weight | 38000kg | |
Packaging Details | Shrinkage film for overall,small sapre parts are packed in plywood box. Underneath with plywood pallet for forklift transportation. | |
