Product Description
Product Application
We design,manufacture and supply batch and continuous mixing machinery and system for the processing of raw materials,compounds,waste and residue in the following fields:
Refractories,Ceramics,Glass,Building Materials,Chemicals,Energy,Carbon Graphite,Welding Flux etc.
SPECIFICATIONS OF MX SERIES LAB MIXERS | ||||||||||||
Model | MX02 | MX03T | MX05T | MX08T | MX09T | |||||||
Mixing Bowl | Mixing Volume | 3-5L | 10L | 40L | 75L | 150L | ||||||
Bowl Dimensions | Φ250×250 | Φ350×275 | Φ500×360 | Φ800×500 | Φ900×700 | |||||||
Inclined Angle | 30° | 30° | 30° | 30° | 30° | |||||||
Rotating Speed | 59rpm | 36rpm | 27rpm | 32rpm | 22rpm | |||||||
Driving Motor Power | 0.75KW | 1.1KW | 1.5KW | 4.5KW | 5.5KW | |||||||
Mixing Rotor | Rotor Diameter | 120mm | 180mm | 280mm | 350mm | 450mm | ||||||
Rotating Speed | 1440rpm | 400rpm | 1200rpm | 700rpm | 750rpm | |||||||
Driving Motor Power | 1.1KW | 4KW | 15KW | 15KW | 22KW | |||||||
Discharging Door | Discharging Way | Manual Discharge | Silo Inclines to Discharge | Silo Inclines to Discharge | Silo Inclines to Discharge | Silo Inclines to Discharge | ||||||
Pressure | / | 70Kg/cm² | 70Kg/cm² | 70Kg/cm² | 70Kg/cm² | |||||||
Driving Motor Power | / | 0.75KW | 0.75KW | 2.2KW | 2.2KW | |||||||

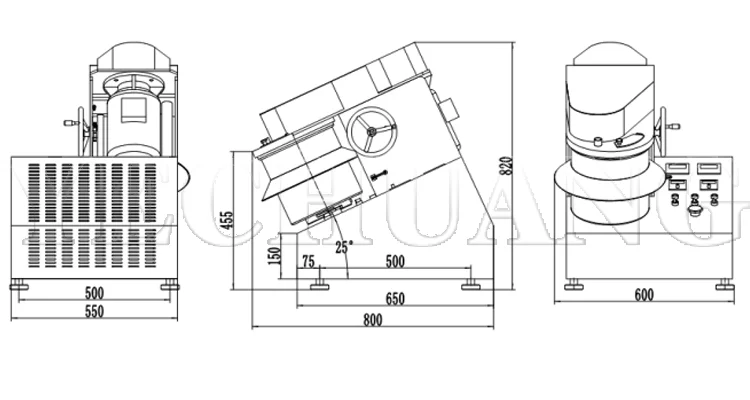

Dimensions(L*W*H) | 800*600*820 | 950*550*1750 | 1088*700*2020 | 1750*1000*2500 | 1800*1100*2800 | |||||||
Weight(KG) | 350 | 900 | 1000 | 2600 | 3000 | |||||||
Main Features
1) A rotating mixing pan that continually transports the material to the rotating mixing tool,including counter-flowing currents of materials with a high velocity differential.
2) An inclined rotating mixing pan,which together with a stationary multi-purpose wall-bottom scraper produces high vertical flow rates.
3) A multi-purpose wall-bottom scraper designed to prevent residue accumulations on the walls and bottom surface of the mixing pan and to accelerate material discharge at the end of the mixing cycle.
4) Rugged and minimum-maintenance design.Easy replacement of mixing blades.The shape and the number of mixing blades are adapted to the process material.
5) Intermittent or continuous mode of operation optional.
Detailed Images

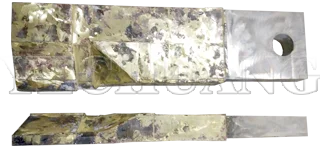

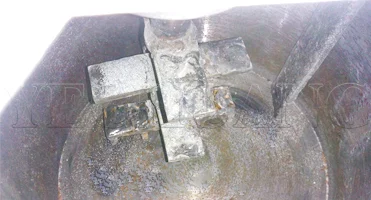

MIXING BOWL& MIXING BLADES
Brand: YECHUANG
Original: China(mainland)

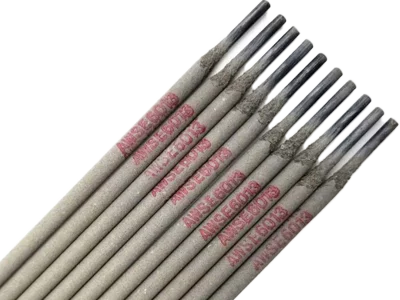

BThe materials of mixing bowl and rotor blades could be customized as SS,carbon steel or high manganese steel.Normally,the rotor blades will be bead welded with WC electrodes for anti-wearance and long life working operation.The shape of rotor blades could also be customized under customers' specific requirements.

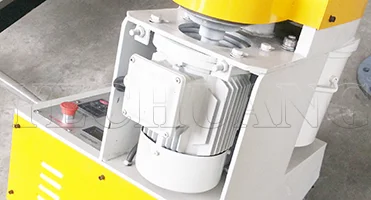

MIXING BOWL DRIVING MOTOR
Brand: Siemens Beide
Original: Sino-Germany Joint Venture
The mixing silo driving motor is at the back of the mixing bowl.Power requirement,speed and the type of power transmission are chosen in accordance with the particular application.

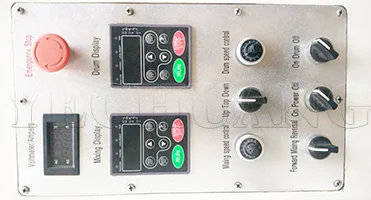

CONTROL PANEL
PLC: Mitsubishi(or Siemens)
Original: Joint venture company(China)
Applying push buttons (CHINT) to control the whole process by Mitsubishi(or Siemens) PLC.Easy to operate, simple and intuitive.

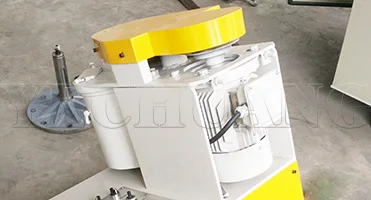

Lifter System
Brand: China Make
Original: China
After the batch of processing is finished,push the lifing button to lift the top cover of the machine.The lifter system on the back will work to the position and the operator could remove the mixing bowl to discharge and clean the inside bowl.

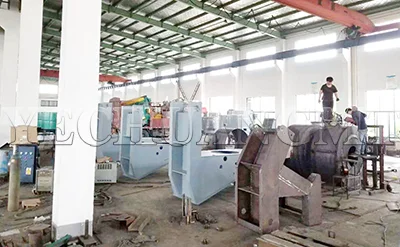

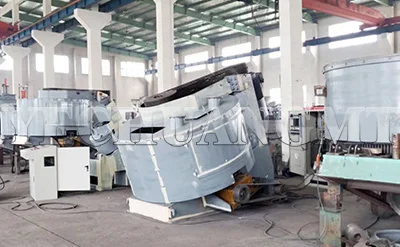

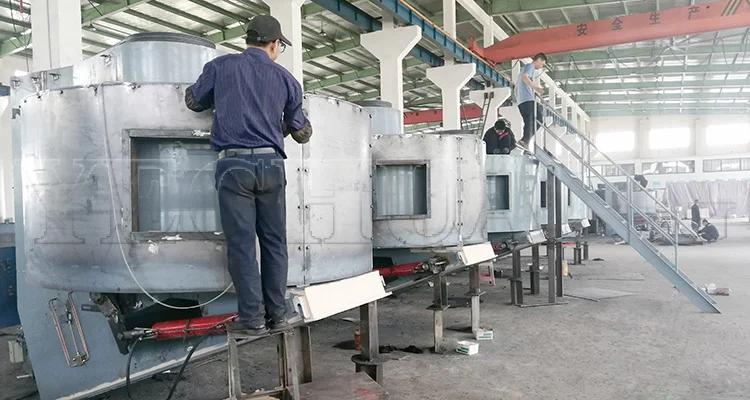

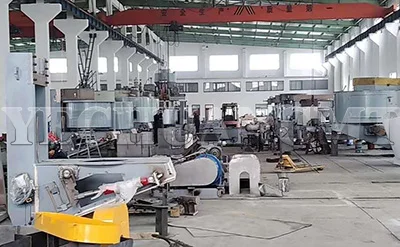

Manufacturing & Installation
At present, Yechuang MT has more than 20 engineers and r&d personnel of various types, and has successively applied for or owned more than 10 patents for invention and utility model.
Honest management is the foundation of a strong enterprise.Over the years, the company adhering to the "highest quality, sincere service" business philosophy, customer satisfaction as the highest requirement, quick and thoughtful zero-defect service, has won a high degree of trust from at home and abroad users.
Customer Visitings & Free Testings
POLISH CUSTOMERS COMING TO VISIT OUR FACTORY FOR CARBON BLACK GRANULE PROCESSING
Date: Sep.21th to Jul.16th.2018.
Testing Machine:MX03T Granulator
Raw Materials:
Carbon Black(5kg)+Water(500ml) Granulating Time:3-4mins
Mesh Screen:20-40mesh
Production Rate(first batch):≥95%
Testing Machine:MX03T Granulator
Raw Materials:
Carbon Black(5kg)+Water(500ml) Granulating Time:3-4mins
Mesh Screen:20-40mesh
Production Rate(first batch):≥95%
INDIAN CUSTOMERS COMING FOR PROPPANT PROCESSING(400-650 MICRONS)
Date: Dec.5th to Dec.8th.2017.
Testing Machine:MX03T Granulator
Raw Materials:Bauxite(5kg)+Water
& Silicate Sodium(750ml)
Granulating Time:4-5mins
Mesh Screen:16-32mesh
Production Rate(first batch):90%-95%
SHANDONG CUSTOMERS COMING FOR WATER COAL PASTE PREPARATION
Date: Aug.30th.2019.
Testing Machine:MX05T Lab Mixer
Raw Materials:Coal Powder(10kg)+
Testing Machine:MX05T Lab Mixer
Raw Materials:Coal Powder(10kg)+
Water & Dispersing Agent(1000ml)
Mixing Time:3-5mins
Fluidity:Smoothy
Processing Efficiency:≥98%
Fluidity:Smoothy
Processing Efficiency:≥98%
Finished Particle Samples
Zirconia Granules
Raw Materials:Zirconia Powder+Water
Mixer Rotor:Granulating Pins
Bauxite Granules
Raw Materials:Bauxite(Aluminous Soil)+Sodium Silicate(Water Glass)
Mixer Rotor:Mixing Blades
Fly Ash Granules
Raw Materials:Fly Ash(Pulverized Fuel Ash or Coal Ash)+Water
Mixer Rotor:Granulating Pins

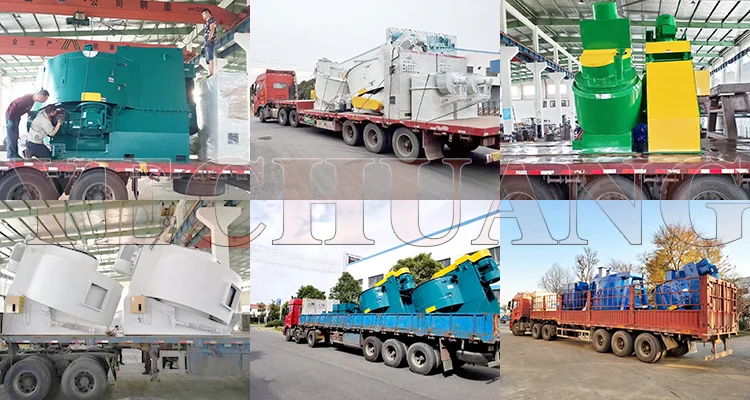

Packing & Delivery
Packaging | ||
Size(mm) | 800 (L) * 600 (W) * 820 (H) | |
Weight(kg) | 350 | |
Packaging Details | The normal package is wooden box(Size: L*W*H) or plywood pallet. If container is too tight,we will use pe film for packing or pack it according to customers special request. | |
Port of Departure | Shanghai,Guangzhou | |

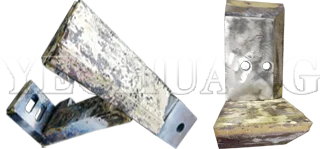

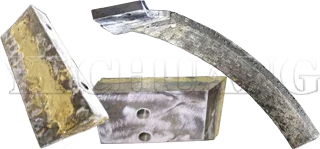

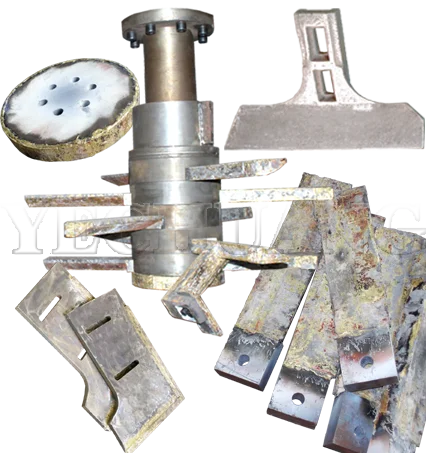

Spare Parts
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Professional technical explanation.
* Help customers design product applications,providing total solutions.
* Detailed quotation with specification.
After-Sales Service
* Quick delivery and shipment.
* Free trainings on installation,operation and maintenance.
* Use-friendly English software ,user manual and detailed videos/CDs
* Provide long-term maintenance and spare parts supply.
* Engineers available to service machinery overseas.
