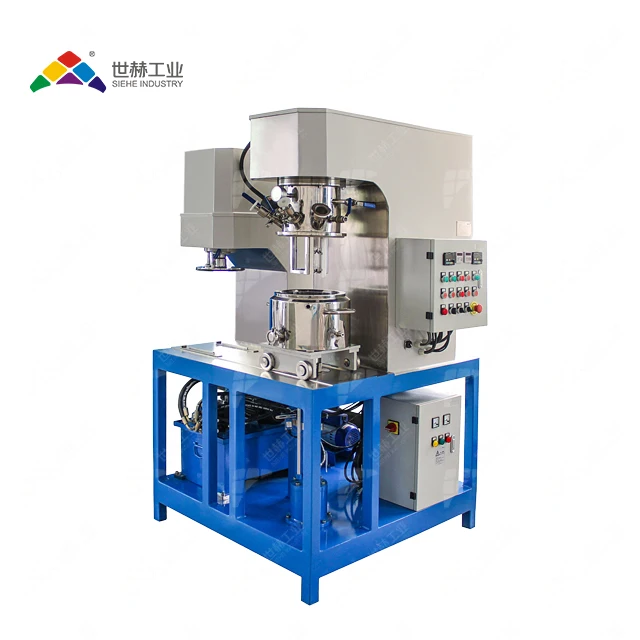

30 л вакуумный Планетарный Миксер с
- Категории: Mixing Equipment >>>
- Поставщик: Shanghai,SIEHE,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Overview
【Materials Viscosity】: ≥200,000 cps
【Production Capacity】: 2-2000L
【Application Industry】: Suitable for dispersing and mixing materials in industries such as coating, putty, adhesive, energy, electronics & electrical appliances, cosmetics, food etc.
【Production Capacity】: 2-2000L
【Application Industry】: Suitable for dispersing and mixing materials in industries such as coating, putty, adhesive, energy, electronics & electrical appliances, cosmetics, food etc.
【Applicable Materials】: Various slurries with viscosity more than 200,000cps, solid content under 90% such as battery paste, solder paste, ceramic paste, silicone inks, sealants, structural adhesives, soft cream, tooth paste, jam etc.
Mid batch type
30L, 50L, 80L
Electrical lifting
Main host lifting
Vacuum
With heating/cooling/insulation
Lab type
2-20L, mixing and discharging togetherATEX ex-proof
vacuum
vacuum
hydraulic lifting
with extruder for discharging
heating/cooling/insulation
heating/cooling/insulation
Production type
Multi-layer inclined paddlesPLC+HMI control
Temperature detecting
Weighing sensor
Hydraulic lifting
Temperature detecting
Weighing sensor
Hydraulic lifting
Different agitators combinations in option:
Frame + disperser + scraper
Multi-layer blade+ disperser + scraper
Screw frame + disperser + scraper
Main Features (6) & Detailed Images:
Liquid inlet
ball valve, fast connection or...
Powder charging port
Round feeding port, quick connected;
Square feeding port, screw type;
Square feeding port, screw type;
Sight glass with lamp for oberseve
Two ports, one with lamp installed, another for obersevation (under with scraper);
Temperature detect
Insider the agitators, to detect the materials temperature more accurate compared temperature in the jacket;
Intelligent PLC + Touch screen control
Siemens brand, easy to set and operate, accurate;
Design on guidways--tank auto moving
----For production models
1 planetary mixer + 1 tank + 1 discharge machine + 1 tank:
after finishing mixing, the movable tank will move to the extruder for discharging, meanwhile, another movable tank can keep
mixing with planetary mixer;
higher production efficiency;
1 planetary mixer + 1 tank + 1 discharge machine + 1 tank:
after finishing mixing, the movable tank will move to the extruder for discharging, meanwhile, another movable tank can keep
mixing with planetary mixer;
higher production efficiency;
More photos
Certifications
Model Select
Model | Working volume (L) | Design volume (L) | Mix power (kw) | Revolution speed (rpm) | Rotation speed (rpm) | Disperser power (kw) | Disperser speed (rpm) | Lifting type | Size (mm) |
SXJB-100 | 100 | 140 | 7.5-15 | 0-40 | 0-72 | 11-18.5 | 0-1450 | Hydraulic | 2600kg 2000*1400*2100 |
SXJB-200 | 200 | 280 | 15-22 | 0-40 | 0-72 | 18.5-22 | 0-1450 | Hydraulic | 4400kg 2200*1500*2300 |
SXJB-300 | 300 | 400 | 22-37 | 0-40 | 0-72 | 30-37 | 0-1450 | Hydraulic | 7000kg 2500*1800*2600 |
SXJB-500 | 500 | 665 | 30-45 | 0-30 | 0-55 | 37-45 | 0-1450 | Hydraulic | 9000kg 2700*2000*2900 |
SXJB-800 | 800 | 1070 | 37-55 | 0-30 | 0-55 | 45-55 | 0-1450 | Hydraulic | 12000kg 2900*2150*3200 |
SXJB-1000 | 1000 | 1320 | 45-90 | 0-30 | 0-55 | 55-75 | 0-1200 | Hydraulic | 15000kg 3100*2300*3400 |
SXJB-1500 | 1500 | 1980 | 55-110 | 0-20 | 0-36 | 75-90 | 0-1200 | Hydraulic | 17000kg 3400*2600*3800 |
SXJB-2000 | 2000 | 2550 | 75-132 | 0-20 | 0-36 | 90-110 | 0-1000 | Hydraulic | 20000kg 3800*2900*4100 |
SXJB-3000 | 3000 | 3820 | 90-160 | 0-15 | 0-28 | 110-132 | 0-1000 | Hydraulic | 25000kg 4300*3200*4600 |
Remarks
1. Not all products included, to learn more just connect us.
2. If any update of the data, without notice and subject to the official quote.
Product Related
