Машина для резки ножей углеродного войлока арамидной ткани листового эва из пенопласта волокна полиэтиленового искусственного
- Категории: >>>
- Поставщик: Jinan,Yizhou,Laser,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Features of cutting machine:
1. Quick, accurate set-up and self-adjusting cutting intelligence allow operators to start cutting faster and with greater
efficiency. Better productivity and workflow increase your output of cut parts and shorten lead times.
2. Workflow issues that were once difficult and time consuming to analyze are now captured with a single click, giving managers
access to critical data that helps them eliminate inefficiency in the cutting process.
Application materials:
It can cut on fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell
foam, rubber foam, foam, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It''s widely used for packaging
protection, advertising display, terminal insulation, model & mock up making, puzzle and pattern cutting, etc.
Details of cutting machine:
1. Quick, accurate set-up and self-adjusting cutting intelligence allow operators to start cutting faster and with greater
efficiency. Better productivity and workflow increase your output of cut parts and shorten lead times.
2. Workflow issues that were once difficult and time consuming to analyze are now captured with a single click, giving managers
access to critical data that helps them eliminate inefficiency in the cutting process.
Application materials:
It can cut on fabric, leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell
foam, rubber foam, foam, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It''s widely used for packaging
protection, advertising display, terminal insulation, model & mock up making, puzzle and pattern cutting, etc.
Details of cutting machine:
Specification
modle | Y1625 |
working size | 1600*2500mm |
max.cutting thickness | 0-50mm |
Cutting material | PVC , mats, foam compound, XPE, EVA, fabric carpet, imitation leather, leather, cloth etc. |
cutting type | electrical oscillating cutting tooldrive rotary cutting tool pneumatic oscillating cutting tool |
working table | section vacuum-cast aluminum vacuum flatbed table |
max.cutting speed | 0-1500mm/s |
motion system | digital servo motor & driver |
repeat location accuracy | 0.01mm |
voltage | ac220v/50hz ac380v/50hz 60hz |
media fixture method | section vacuum system |
pupm power | 5.5kw/7.5kw/9kw/11kw |
operating environment | temperature 0-40 humidity 20%-80%RH |
software | yizhou CAD |
format support | AI/DXF/DWG/JPG/BMP/PLT/DST |
interface | USB/LAN/Serial Port |
Cutting Samples
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

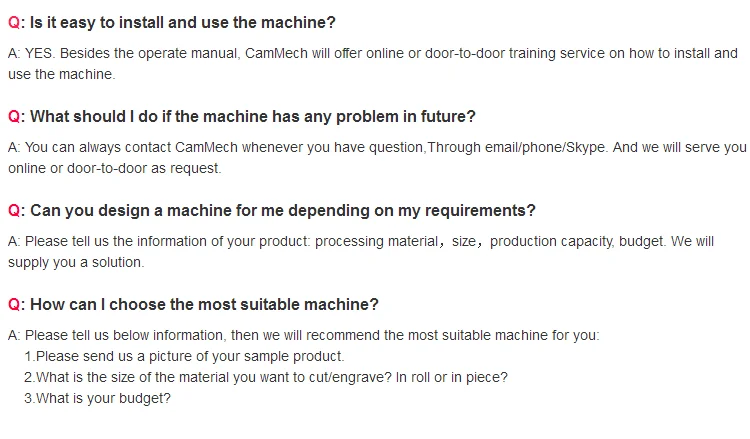

FAQ
