(Factory Direct Sale) Beach Sand Beneficiation Plant Fiberglass Spiral Concentrator Silica Sand Processing Machine Spiral Chute
Spiral chute separator can be used for many minerals separating, such as gold, copper, tungsten, tin,tantalum, coltan, chrome, zinc ore and some other minerals. When you find us, you find one best mining machinery manufacturer.
Spiral Chute Introduction:
Spiral chute is also called spiral chute or spiral chute separator, is the best equipment in mining and ore dressing industries,which is often applied to sort materials with size 0.3 - 0.02 mm, such as ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphate, tungsten ore, tin, tantalum, niobium ore and other non-ferrous metals, precious metals and non-metallic minerals.
It can easily adopt to different raw material size, density, ore grade and feed volume. Spiral chute is suitable for treatment of 0.6-0.03mm lode and placer, but high mud content is bad for separation. At present, spiral chute has been widely used in the treatment of iron ore, tungsten, tin ore, niobium tantalum ore, coastal and riverside placer and gold ore.
Spiral chute is also called spiral chute or spiral chute separator, is the best equipment in mining and ore dressing industries,which is often applied to sort materials with size 0.3 - 0.02 mm, such as ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphate, tungsten ore, tin, tantalum, niobium ore and other non-ferrous metals, precious metals and non-metallic minerals.
It can easily adopt to different raw material size, density, ore grade and feed volume. Spiral chute is suitable for treatment of 0.6-0.03mm lode and placer, but high mud content is bad for separation. At present, spiral chute has been widely used in the treatment of iron ore, tungsten, tin ore, niobium tantalum ore, coastal and riverside placer and gold ore.
The spiral chute is a gravity equipment. With the water, action of gravity friction force, minerals would be separated by its
gravity difference. Then we could get heavy, middling and light products.It is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; the advantages are light, moisture proof, anti-rust, wear proof,anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new high effective equipment.
Spiral Separator Working Principle:

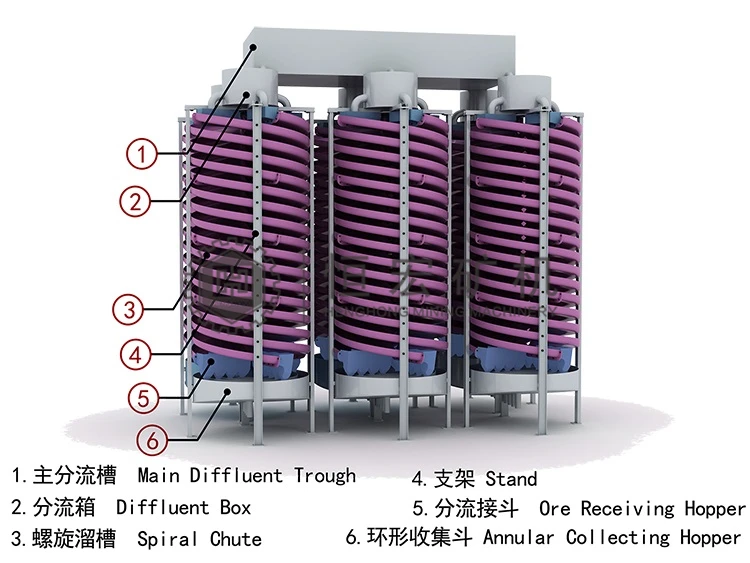

Spiral chute is working under the the force of water flow, gravity, inertial centrifuge and friction. Slurry is pumped to the top
of the spiral , and it enters a feed distributor that evenly distributes the feed to each spiral concentrator. The design and
shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles are carried with the bulk of the water towards the outside of the spiral , while particles with the greatest density migrate towards the inside of the spiral.
gravity difference. Then we could get heavy, middling and light products.It is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; the advantages are light, moisture proof, anti-rust, wear proof,anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new high effective equipment.
Spiral Separator Working Principle:
Spiral chute is working under the the force of water flow, gravity, inertial centrifuge and friction. Slurry is pumped to the top
of the spiral , and it enters a feed distributor that evenly distributes the feed to each spiral concentrator. The design and
shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles are carried with the bulk of the water towards the outside of the spiral , while particles with the greatest density migrate towards the inside of the spiral.

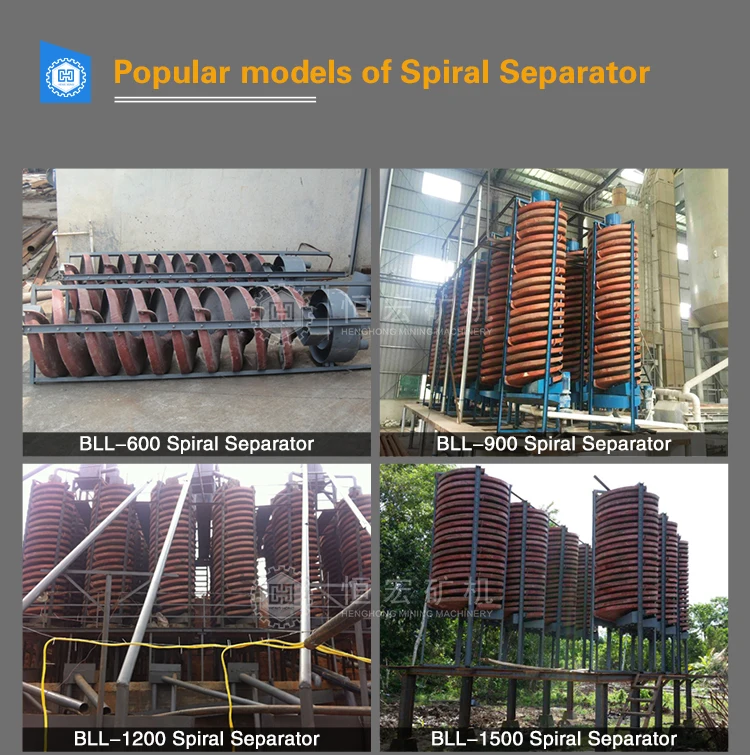

Model | BLL-1500 | BLL-1200 | BLL-900 | BLL-600 |
Outside Diameter (mm) | 1500 | 1200 | 900 | 600 |
Screw Pitch (mm) | 900, 675 | 900, 720, 540 | 675, 540, 405 | 450, 360, 270 |
Pitch Diameter Ratio | 0.48, 0.36 | 0.75, 0.6, 0.45 | 0.75, 0.6, 0.45 | 0.75, 0.6, 0.45 |
Lateral slope (degree) | 9° | 9° | 9° | 9° |
Max. Screw Numbers | 4 | 4 | 4 | 2 |
Feed Size (mm) | 0.8 ~0.037 | 0.3~0.03 | 0.3 ~0.03 | 0.2~0.02 |
Feed Density (%) | 30 ~55 | 25 ~55 | 25 ~55 | 25 ~55 |
Capacity (t/h) | 6~8 | 4~6 | 2~3 | 0.8~1.2 |
Length (mm) | 1600 | 1360 | 1060 | 700 |
Width (mm) | 1600 | 1360 | 1060 | 700 |
Height (mm) | 5300 | 5230 | 4000 | 2600 |
Weight (kg) | 850/800 | 700/650/600 | 450/400/350 | 150/120/100 |
We produce all kinds of machine for optional purchase,such as Material Hopper,Conveyor Belt,Vibrating Feeder,Chute Feeder,Disc Feeder,Jaw Crusher,Hammer Mill,Hammer Crusher,Cone Crusher,Impact Crusher,Double Roller Crusher,Trommel Screen,Trommel Scrubber,Vibrating Screen,Ball Mill,Wet Pan Mill,Spiral Classifier,FX Hydrocyclone, Agitation Tank,Flotation Separator,Shaking Table,Centrifugal Concentrator,Spiral Chute,Jig Machine,Roller Magnetic Separator, 3 Disc Magnetic Separator,Thickener,Filtering Equipment,Drying Equipment,High Frequency Gold Melting Furnace, Medium Frequency Gold Melting Furnace etc
Q:1.What is your machine used for ?
A: Our Spiral Chute is used for separation the materials such as Gold, ilmenite, chromite, pyrite, zircon, rutile, monazite, tungsten ore, tin, tantalum, niobium ore etc.
Q: 2.Are you factory or trade company?
A: Yes dear,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
We're also warmly welcome your Visiting our factory if you are coming to China.Please Call at +86-18870736160
Q: 3.Can I operate it well, if I have no experience?
A: Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
Q:4.Can you send me the video to show how the machine works?
A: Surely.we have made video of every machine,so if you need we can send for you to checking in clearly.
Q:5. What should I take care when using the machine?
A: Please using the machine in regular and Keeping the machine away from thinner and other chemical liquid.
Q:6.How about the service of your company?
A:24Hours Online service.all machines have one year warranty and Wholelife Technology support to make sure your machine work well.
Q:7.How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:8 What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
A: Our Spiral Chute is used for separation the materials such as Gold, ilmenite, chromite, pyrite, zircon, rutile, monazite, tungsten ore, tin, tantalum, niobium ore etc.
Q: 2.Are you factory or trade company?
A: Yes dear,we are the Professional manufacturer from 1985.So we could give you original factory price than those trade companies.
We're also warmly welcome your Visiting our factory if you are coming to China.Please Call at +86-18870736160
Q: 3.Can I operate it well, if I have no experience?
A: Do not worry! Our machines is designed to use easily.You are welcome to visit our company to be trained here,And we could arrange the engineer to go to your country/company to train your workers directly as your requested and the relative travel cost will be on your account.
Q:4.Can you send me the video to show how the machine works?
A: Surely.we have made video of every machine,so if you need we can send for you to checking in clearly.
Q:5. What should I take care when using the machine?
A: Please using the machine in regular and Keeping the machine away from thinner and other chemical liquid.
Q:6.How about the service of your company?
A:24Hours Online service.all machines have one year warranty and Wholelife Technology support to make sure your machine work well.
Q:7.How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:8 What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:9 What's Information we need from your side ?
A: What kind of ore do you want to process ? The Capacity per hour do you need ? and the Max feeding size of your material ?
A: What kind of ore do you want to process ? The Capacity per hour do you need ? and the Max feeding size of your material ?
Warmly Welcome to Sending Inquiry,We will give 100% positive responses.
