Products Description

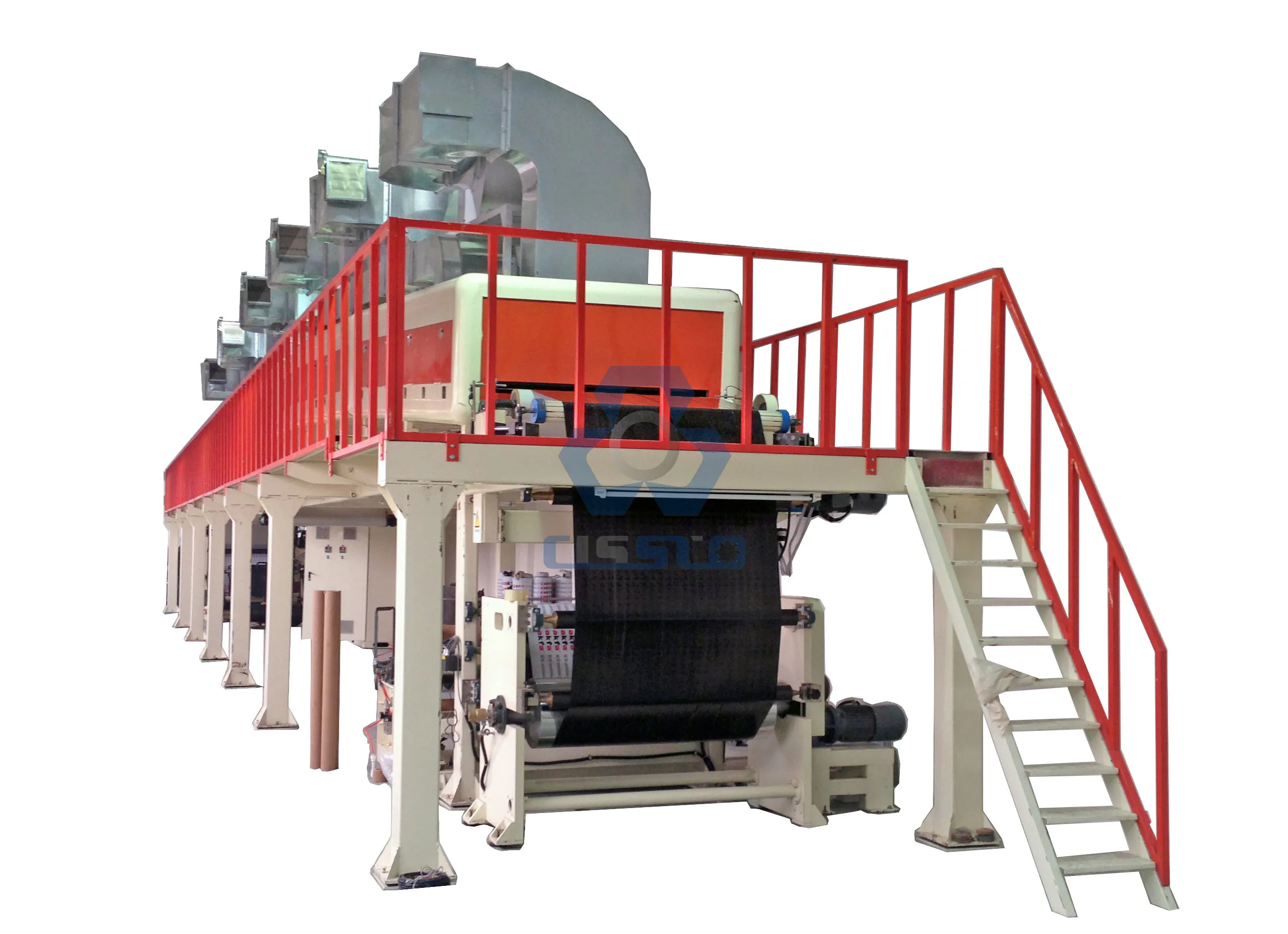

PE Protective Adhesive Tape Coating Machine
PE Protective Adhesive Tape Coating Machine
This Machine used to produce PE protective film jumbo rolls.The main structures are unwinder , coater, drying ovens, cooling roller unit, rewinder, frame, duct, electrical system.
Function introduction
1. Unwinder: Release the PE blank film, manual/automatic pick up new roll of blank film.
2. Coater: coat glue on the blank film, coating method use gravure roller coater.
3. Drying ovens: Drying the materials, hot air system, the heat source is provided by the user. Steam boiler, Hot blast stove,
Heat transfer oil boiler, electric one of them. The length of the oven is determined by the maximum capacity required by the user.
4. Cooling roller unit: The raw material after high temperature drying can be cooled rapidly.
5. Rewinder: rewinding the material into a roll, got the PE protective film jumbo roll.

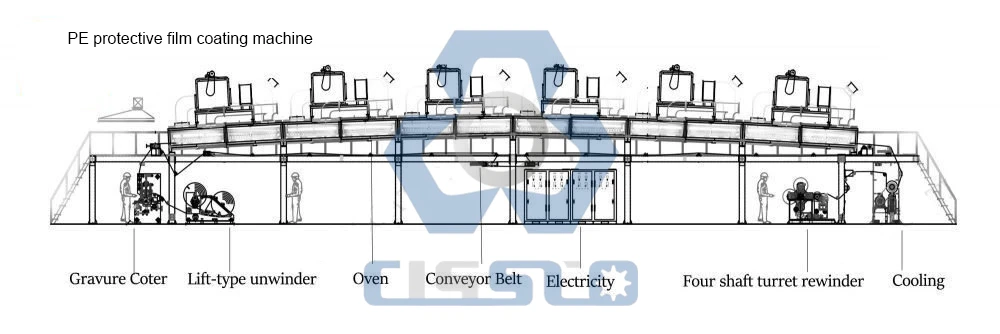

6. Machine Drawing for reference , it can be customized as the requirements.
2. Coater: coat glue on the blank film, coating method use gravure roller coater.
3. Drying ovens: Drying the materials, hot air system, the heat source is provided by the user. Steam boiler, Hot blast stove,
Heat transfer oil boiler, electric one of them. The length of the oven is determined by the maximum capacity required by the user.
4. Cooling roller unit: The raw material after high temperature drying can be cooled rapidly.
5. Rewinder: rewinding the material into a roll, got the PE protective film jumbo roll.
6. Machine Drawing for reference , it can be customized as the requirements.
PE Protective film production process
1.Coating adhesive
2.Cutting
Raw materials for PE protective film adhesive tape production line

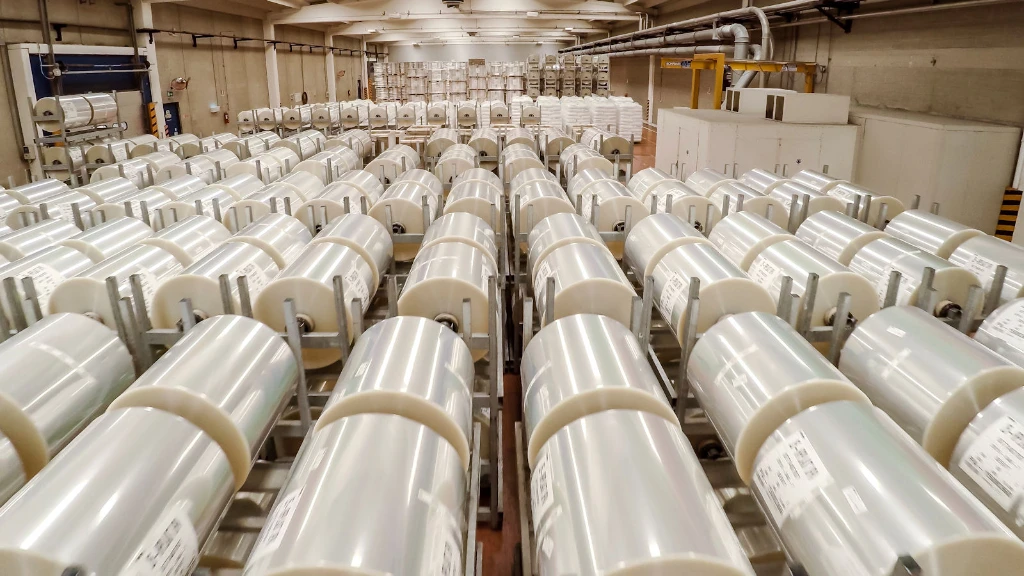

PE film
Film roll width:1000~1600mm
Film thickness:23~37mic
Film Roll diameter: max.700mm
Film Length per roll:2000~3000Meters
Film thickness:23~37mic
Film Roll diameter: max.700mm
Film Length per roll:2000~3000Meters
Acrylic adhesive
Water baseSolid content:50~55%
Viscosity:100~300cps
Viscosity:100~300cps

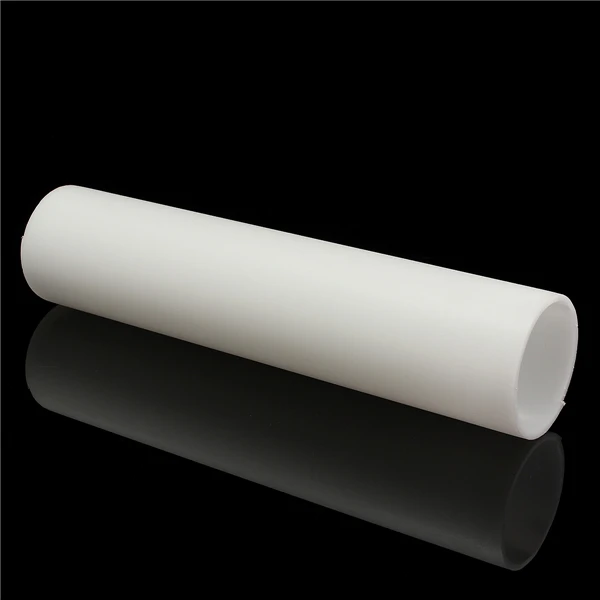

PE plastic tube core
Paper core internal diameter:76mm
Length of paper core:500~1600mm
Thickness of paper core: 5~10mm
Thickness of paper core: 5~10mm
Production Specification
Technical parameter
Model 800 | Model 1000 | Model 1300 | Model 1600 | |
Working width: | Max.800mm | Max.1000mm | Max.1300mm | Max.1600mm |
Production speed: (Customized) | 60~100M/min | 60~100M/min | 60~100M/min | 60~100M/min |
Production capacity: 8 hours | 25000~35000 square meters | 28000~38000 square meters | 37000~49000 square meters | 43000~57000 square meters |
Heat consumption per hour: | Max.400000 kcal | Max.400000 kcal | Max.600000 kcal | Max.600000 kcal |
Worker : | 2~3 workers | 2~3 workers | 2~3 workers | 2~3 workers |
Product Images
Details images
Unwinder
2-shafts automatic exchange
Auto joint non-stop
Coater
Gravure roller coating
Drying oven
Hot air drying
Heating source:electric, steam boiler, conduction oil boiler, hot blast stove
Electric control
Operation PLC+HMI, Inverter,
Cooling roller
Cold water circulation
Rewinder
4-shafts automatic rewinding， Auto joint non-stop and manual cutting
Machining & Assembling show
Frame
Steel plate processing
Frame, machine skeleton
Oven skeleton and inner
Operation interface
Blower and exhaust fan for drying system
Electrical control system
Drying oven
Assembling Unwider, rewinder
Assembling Coater, cooling system

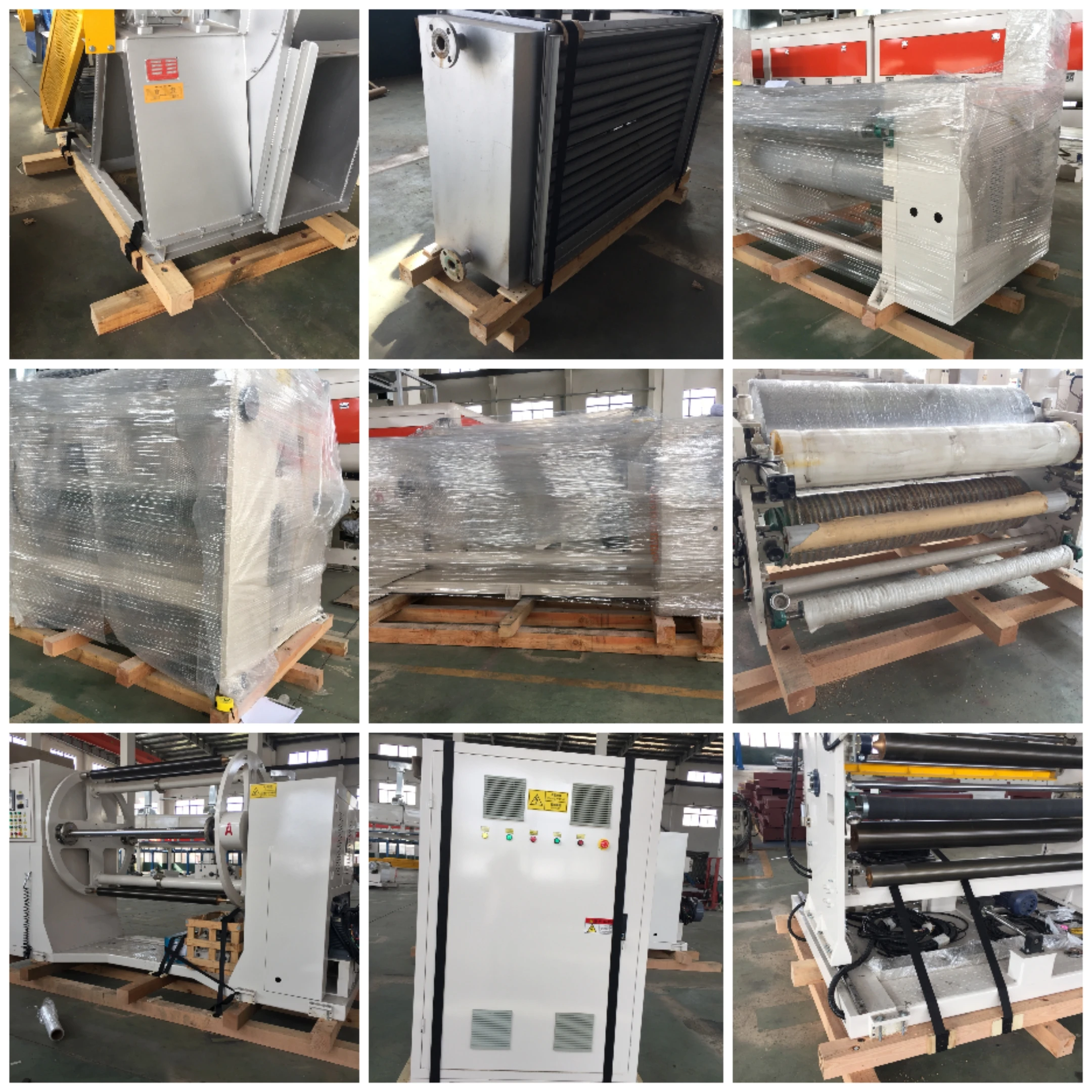

Packaging and delivery
Standard ocean packages
FAQ
1. What products do you need to produce?
BOPP tape, PVC insulation tape, PE/PET protective film, PET/PI electrical tape, Masking tape, double-side tape, Label self
adhesive , Sublimation paper, non-woven/cloth medical adhesive tape.
2. What is parameter of base materials?
Thickness:
Width of base material roll:
Diameter of base material roll:
Weight of material:
3. What kind of adhesive to apply for the products?
Acrylic, rubber or hot melt
4. What is the type of adhesive?
Water base , solvent base, or solvent-less
5. What is parameter of adhesive?
Solid content:
Viscosity:
6. What is production capacity for the machine that you want? Customizable
Low speed:40~80M/min
Medium speed: 100~150M/min
High speed: 200~300M/min
7. How long is the delivery time?90~120days
8.Installation and debugging services?
We can send engineers abroad for installation guidance and operation training.
9.Warranty period and after sales services.
The equipment is guaranteed for one year, Outside the warranty period, we provide paid maintenance services.
BOPP tape, PVC insulation tape, PE/PET protective film, PET/PI electrical tape, Masking tape, double-side tape, Label self
adhesive , Sublimation paper, non-woven/cloth medical adhesive tape.
2. What is parameter of base materials?
Thickness:
Width of base material roll:
Diameter of base material roll:
Weight of material:
3. What kind of adhesive to apply for the products?
Acrylic, rubber or hot melt
4. What is the type of adhesive?
Water base , solvent base, or solvent-less
5. What is parameter of adhesive?
Solid content:
Viscosity:
6. What is production capacity for the machine that you want? Customizable
Low speed:40~80M/min
Medium speed: 100~150M/min
High speed: 200~300M/min
7. How long is the delivery time?90~120days
8.Installation and debugging services?
We can send engineers abroad for installation guidance and operation training.
9.Warranty period and after sales services.
The equipment is guaranteed for one year, Outside the warranty period, we provide paid maintenance services.

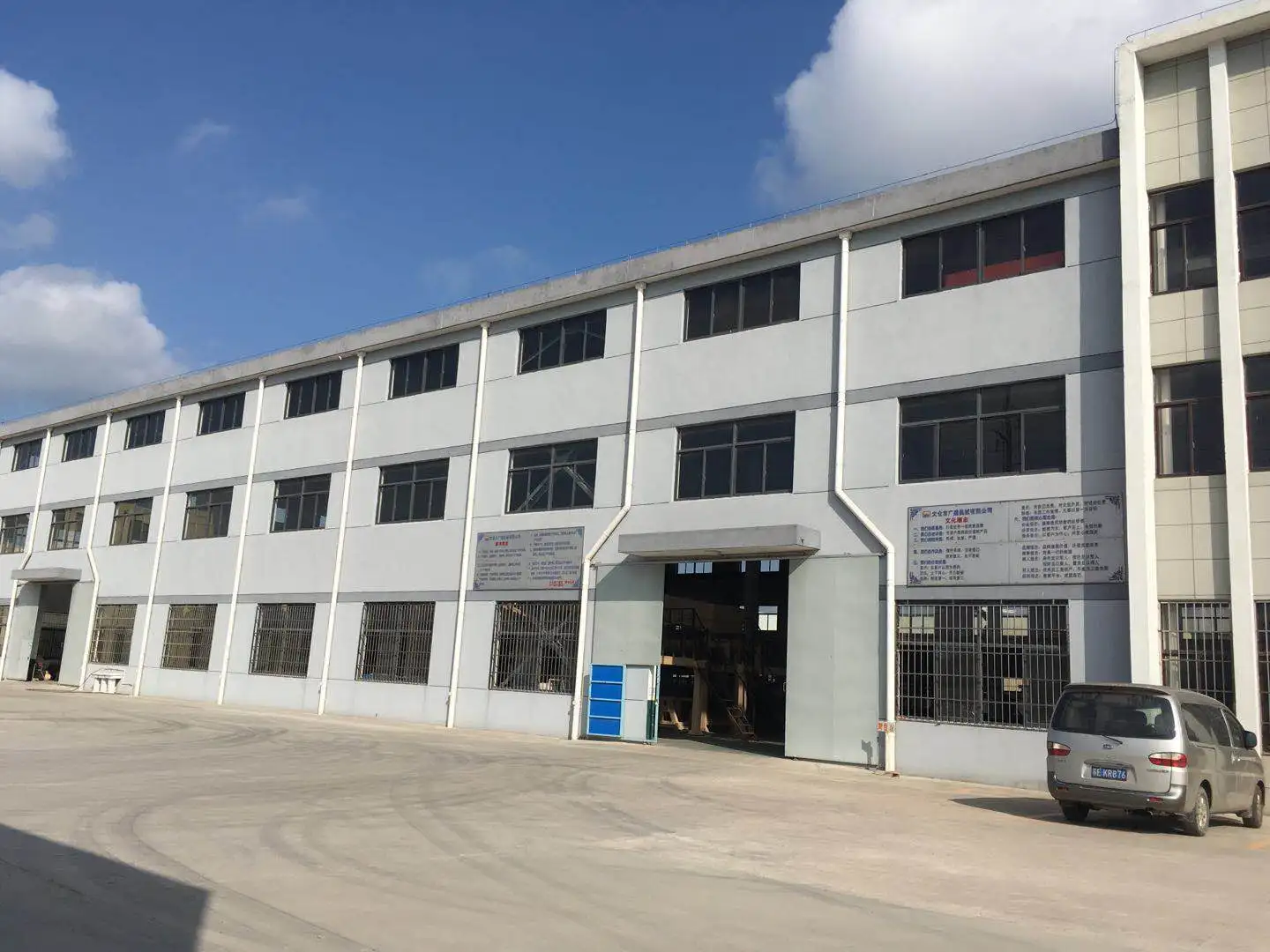

Company Introduction
Introduction
CissCo Machinery Co., has been engineering and manufacturing a series of adhesive tape Production line for more than 20 years and
has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
Main products:
Adhesive tape coating machine series:
1. BOPP, PVC,PET/PI adhesive tape coating machine
2. PE, PET protective film , release film coating machine
3. PET explosion proof film, thermal insulation film, reflective film optical precision coating machine
4. Thermal sublimation transfer paper, photo paper, PP paper, advertising consumables coating machine
5. Label, double side, masking, foam, car sticker, wallpaper, self adhesive tape coating and laminating machine
Adhesive tape or film roll deep processing equipment
1. Slitting and rewinding machine
2. Cutting machine
3. Laminating and Inspection machine
4. Packing machine
Other customized equipment
1. Small type laboratory multi-function coating machine
2. Medical adhesive tape production and R & D coating machine
Advantages :
1. 20 Years Experiences;
2. European Latest Technology;
3. Easy to Operate, Stable Performance, Good Quality Products, Low Production Cost;
4. Quicker Production Speed, Big Output;
5. Good Material and Well-Known Brand Electrical Parts;
6. Beautiful Appearance;
7. Free Training for Technical Process, Formula and Know-How;
8. Full Time and High Level After-Sale Services;
1. BOPP, PVC,PET/PI adhesive tape coating machine
2. PE, PET protective film , release film coating machine
3. PET explosion proof film, thermal insulation film, reflective film optical precision coating machine
4. Thermal sublimation transfer paper, photo paper, PP paper, advertising consumables coating machine
5. Label, double side, masking, foam, car sticker, wallpaper, self adhesive tape coating and laminating machine
Adhesive tape or film roll deep processing equipment
1. Slitting and rewinding machine
2. Cutting machine
3. Laminating and Inspection machine
4. Packing machine
Other customized equipment
1. Small type laboratory multi-function coating machine
2. Medical adhesive tape production and R & D coating machine
Advantages :
1. 20 Years Experiences;
2. European Latest Technology;
3. Easy to Operate, Stable Performance, Good Quality Products, Low Production Cost;
4. Quicker Production Speed, Big Output;
5. Good Material and Well-Known Brand Electrical Parts;
6. Beautiful Appearance;
7. Free Training for Technical Process, Formula and Know-How;
8. Full Time and High Level After-Sale Services;
