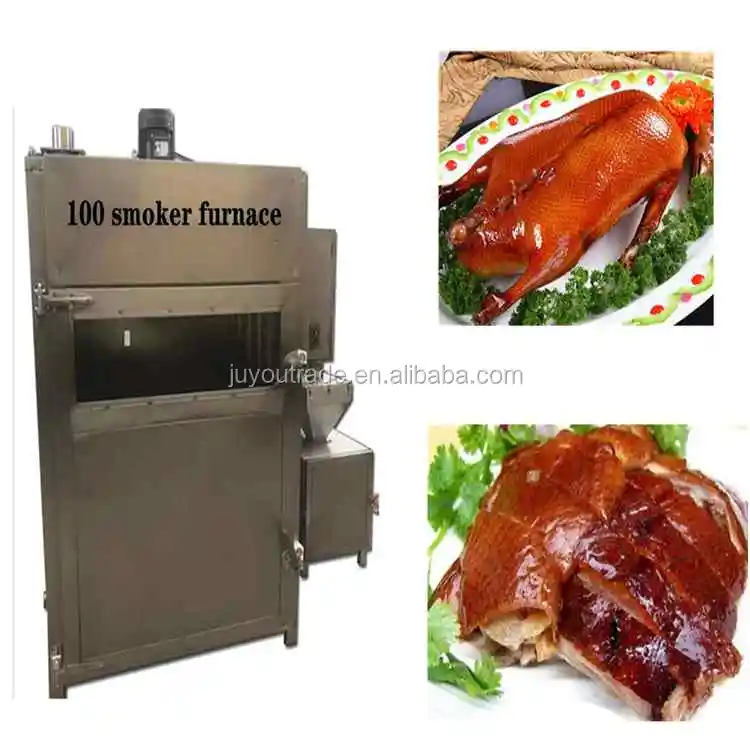

Roast Duck toast oven machine with Uniform golden yellow color

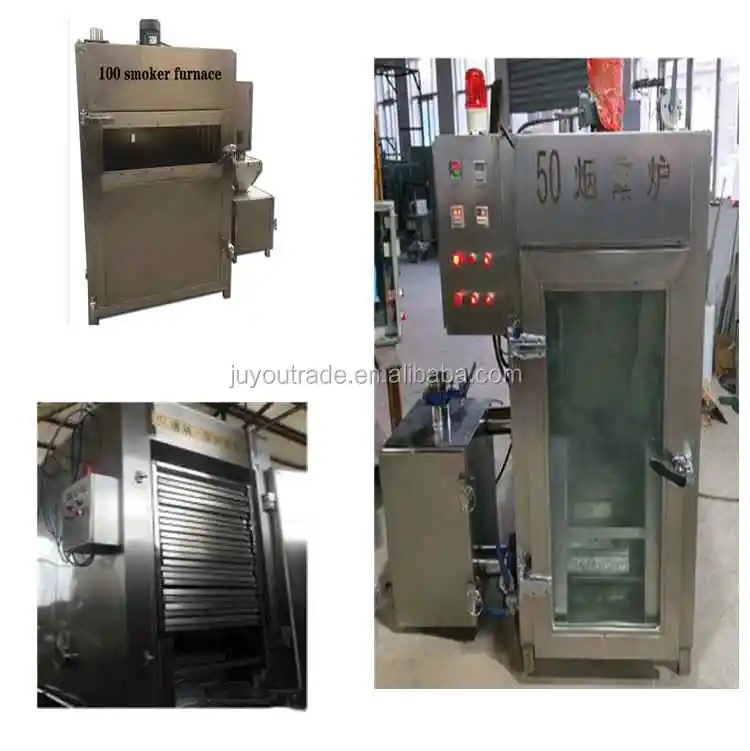

The introduction of Smoker furnace



The smoker has three heating methods: steam heating, electric heating, and gas and oil heating. The unit combined structure, modular production, is convenient for installation and production. The fumigation furnace has an automatic temperature control system and a special design to ensure uniform temperature and humidity and uniform smoke in the furnace. All-stainless steel polyurethane sandwich structure thermal insulation, high rigidity, good thermal insulation performance, low heat loss, is the equipment of choice for food processing. Scope of application: bakery equipment, casual fast food equipment, cake room equipment, western restaurant equipment, Chinese restaurant equipment, beverage shop equipment, coffee shop equipment, tea restaurant equipment. It can process various sausages, ham sausages, dried sausages, sausages, barbecues and various fish products.



Equipment structure:

   The smoker is mainly composed of cabinet, air circulation, smoking, cleaning, electric control and other parts.

Working  principle:

   The unique airflow technology is adopted to achieve the consistency of the airflow conditions at all points inside the box to a large extent, to ensure that the products in the entire furnace are processed in a controllable and uniform process, and to achieve low consumption, high efficiency and satisfactory output.

Advantages:

  1. The smoker has the functions of cooking, drying, smoking, cleaning and protection;

  2. Computer automation control: large-screen human-machine interface, displaying various parameters on one screen at the same time to monitor the operating status; remote control can be realized; printing formula, temperature and humidity curve; 100 process formulas can be stored;

  3. Unique air circulation system: effectively ensure the consistency of temperature and humidity during the baking, cooking, drying, smoking and other processes of the product, thereby ensuring uniform coloring and beautiful color;

  4. Smoking system: The external wood pellet and sawdust smoking system not only makes the product produce fruity aroma, but also can make the product smoke into a golden yellow color from light to dark. The split sugar stove smoking system can smoke traditional Chinese products, produce a unique sugar smoked taste, and the color can be controlled, the darkest can become maroon red. The simultaneous use of two smoking systems can produce unique smoke aroma and color. The wood pellet smoke generation system on the door adopts the world's internal circulation smoke generation process to generate smoke in a low-oxygen state, shorten the flue length, reduce energy consumption, and reduce equipment footprint;

  5. Material and heat preservation: The box structure is based on bicycles and can be assembled into different combinations. The material adopts imported SUS304 stainless steel wire drawing board. The insulation layer is made of imported polyurethane insulation material, which can be formed at one time with high temperature resistance and good insulation performance;

  6. Control components: PLC, man-machine interface, solenoid valve and other key components are imported products;

  7. Heating method: use external steam heating or electric heating;

  8. Equipped with an efficient online cleaning system: door locks, door hinges and sealing strips are unique in design, tightly sealed and easy to operate. The doors of the raw and cooked areas are interlocked and the areas are isolated, which meets the requirements of HACCP.



Technical  parameter:

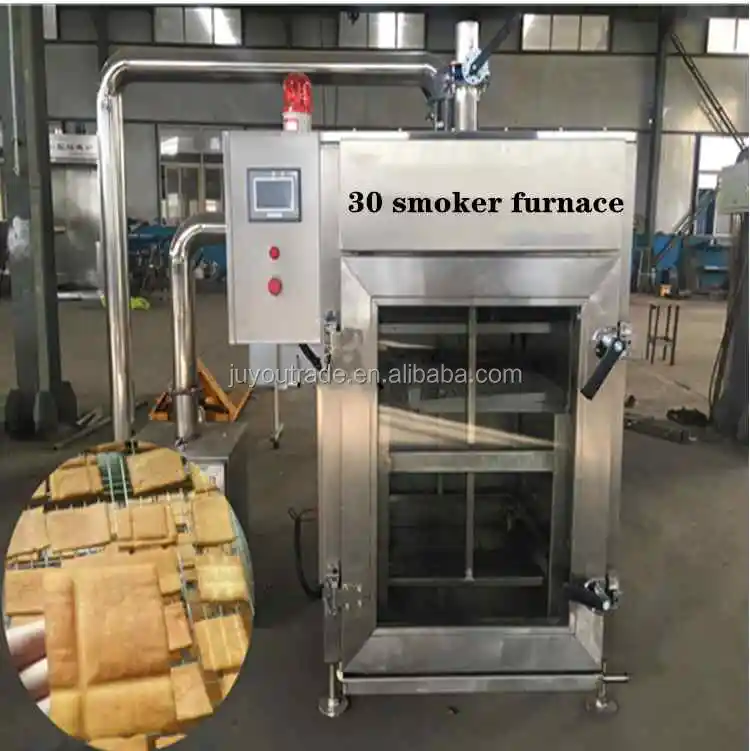

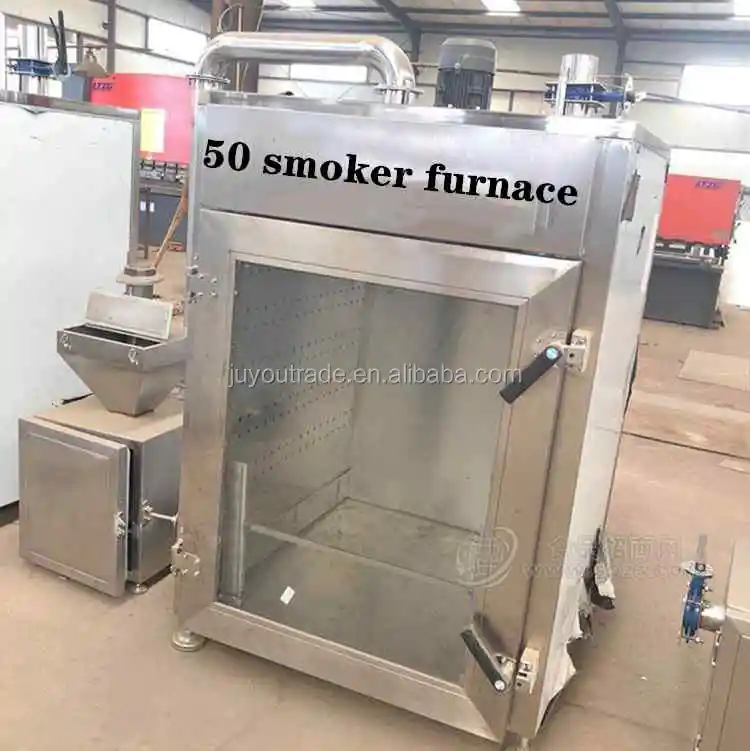

Model	FS-30	FS-50	FS-100	FS-150	FS-200	FS-500	FS-1000
weight	160Kg	400kg	750kg	900kg	1200kg	1700kg	2300kg
voltage power	380v15kw	380v20kw	380v24kw	380v24kw	380v30kw	380v48kw	380v48kw
Dimension	1100*900*1500mm	1850*1000*1500mm	2010*1200*2200mm	2010*1250*2300mm	2150*1250*2340mm	2200*2250*3000mm	2200*4400*3000mm
Rated temperature (maximum )	<100 ℃
High pressure steam (pressure)	0.4-0.8 Mpa
Air consumption	140 kg/h
Water pressure	0.05~0.1 Mpa
Compressed air (pressure)	0.3-0.7 Mpa
Capacity	500kg (2 cars)



FAQ:

Q1: What is your machine guarantee?

A1: Normally the guarantee period is 1 year, and we will keep contact with our customers for after-sales service. We're aim to produce better machines and let our customers be satisfied.

Q2: How can I get quotation?

A2: Send your requirements and leave your email, we will send you quotation soon.

Q3: If we have problems when using your machine, what should we do?

A3: If you have any problem, just contact us, we will help you to solve it, and if necessary, we will arrange our engineers to help you in your country.

Q4: What about the shipping methods?

A4: For urgent order and light weight, you can choose express: FedEx, TNT, DHL or EMS; for heavy weight, you can choose by air or by sea to save cost.

Q5: What's your delivery time?

A5: Usually we produce within 7-15days after the payment confirmed. It is also depend on the machines, if need to customize the machine as your requirement, the producing time is longer.

Q6: Which kind of payment method you can accept?

A6: T/T. Western Union, L/C.
