TIANJIN BRIDGE brand TIG welding rod AWS ER70S-6 for mild steel

Описание и отзывы

Характеристики

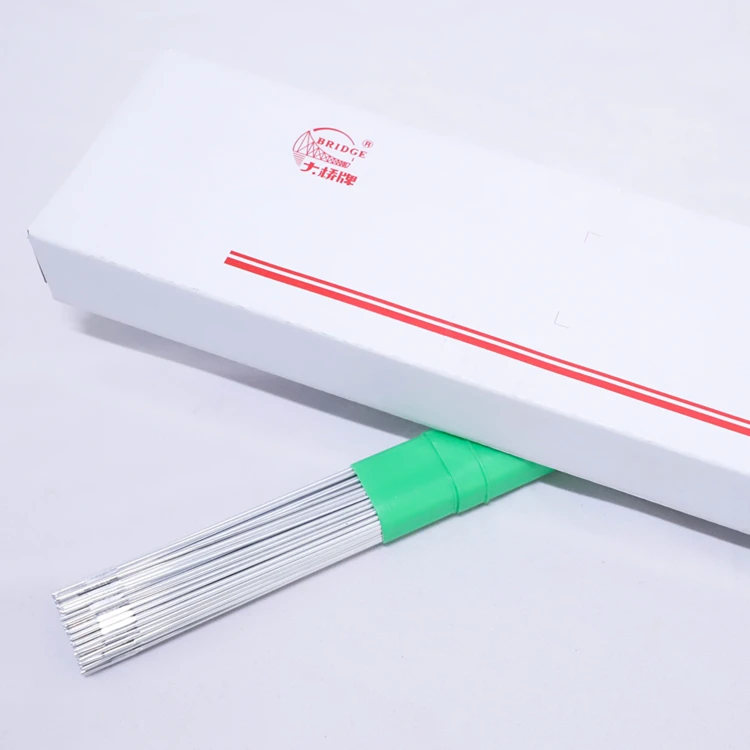

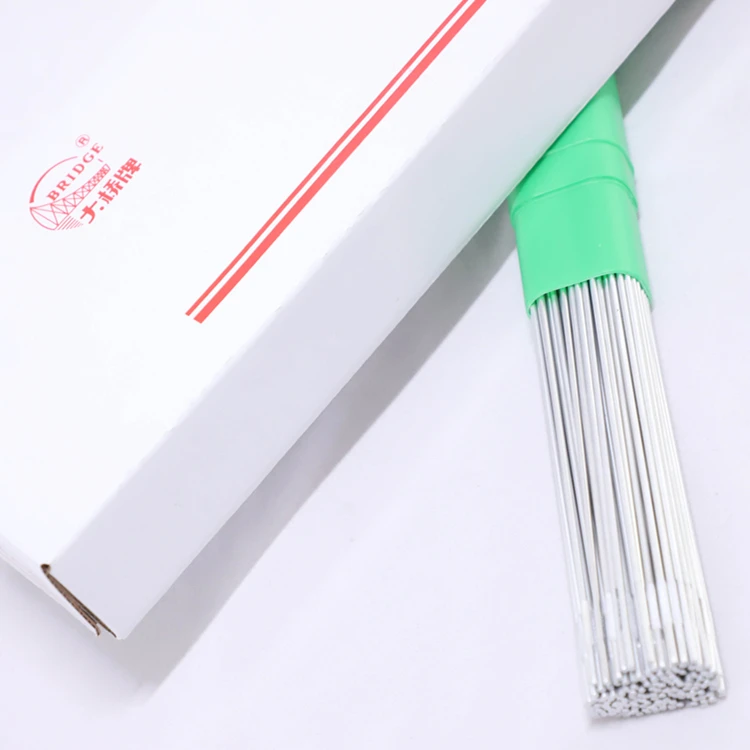

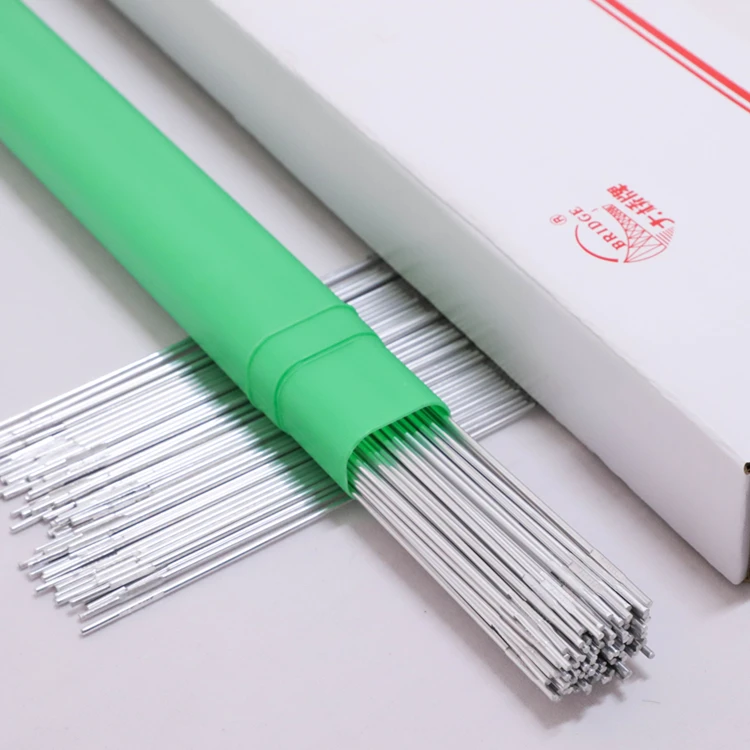

PRODUCT DISPLAY





THT50-6

Solid welding wire for gas shielded welding GB/T8110  ER50-6 ISO 14341-A-G42 3C1 Z3Si1 AWS A5.18 ER70S-6



APPLICATIONS:

It can be used in tee welding of carbon steel and low alloy steel in the corresponding strength grade, which can be used in engineering machinery, ship, vehicle manufacturing, petrochemical and other industries.

CHARACTERISTICS:

wire THQ-50C is 500MPa level carbon steel wire. It take CO2 or 80%Ar+20%CO₂gas shielded arc welding. The welding spatter is small, and it has beautiful appearance, high cladding efficiency and small weld metal porosity sensibility. The welding technology of all positions is good.

PRECAUTIONS:

1.Clear rust, oil, water and other impurities on the weldments before welding.

2.The size of the welding line energy will directly affect the mechanical properties of the weld. The size of the line energy depends on the important level of the structure. The more important the structure is, the smaller the line energy should be taken.

3.Welding parameters are only provided for reference. The user should develop an appropriate production welding specifications acccording to the circumstances.

Chemical composition of the welding wire (mass fraction):                   %

Items	C	Mn	Si	S	P	Ni	Cr	Mo	V	Cu
Standard value	0.06-0.15	1.40-1.85	0.80-1.15	≤0.025	≤0.025	≤0.15	≤0.15	≤0.15	≤0.03	≤0.50
Case of value	0.08	1.50	0.89	0.012	0.013	0.03	0.02	0.002	0.003	0.11

X - Ray Detection: Grade II

Mechanical properties of deposited metal: (CO2)

Items	Tensile strengthRm/MPa	Yield strength Rel/Rp0.2   MPa	Elongation A/%	Charpy V-notch impact energy KV2(J)-30℃
Standard value	≥500	≥420	≥22	≥27
Case of value	560	450	26	108

Welding reference current : (DC +)

Welding wire diameter(mm)	0.8	1.0	1.2	1.6
Welding current(A)	50-180	70-230	80-350	120-500

Classification Society Certification:

Ship inspection agency	ABS	BV	CCS	DNV	GL	LR	NK	KR	CWB
level of  recognition	3YSAH10	SA3YMHH	3YSH10	ⅢYMS(H10)	3YS	3YSH15	KSW53G(C)H10	3YSG(C)H10	B-G49A3CG6

EU certification:

Certification body	CPD-CE steel structure certification
Model	G42 3 C1 Z3Si1



PRODUCT APPLICATION



Some of our products have been applied to overseas key projects.

Electrode, SAW wire and flux of 600MPa Grade & 800MPa Grade

applied to hydro steel at Laos pumped storage power station

E6010 cellulose electrode Applied to the Ghana TEMA pipeline project in Africa successfully. It breaks the monopoly of Bohler cellulose electrode and won the bidding of oil pipeline Ghana tank project
