Само-экранированный флюсовая сварочная проволока солнечного коллектора GB/T10045 E501T-GS THY-J5011-GS AWS A5.20

Описание и отзывы

Характеристики

PRODUCT DISPLAY

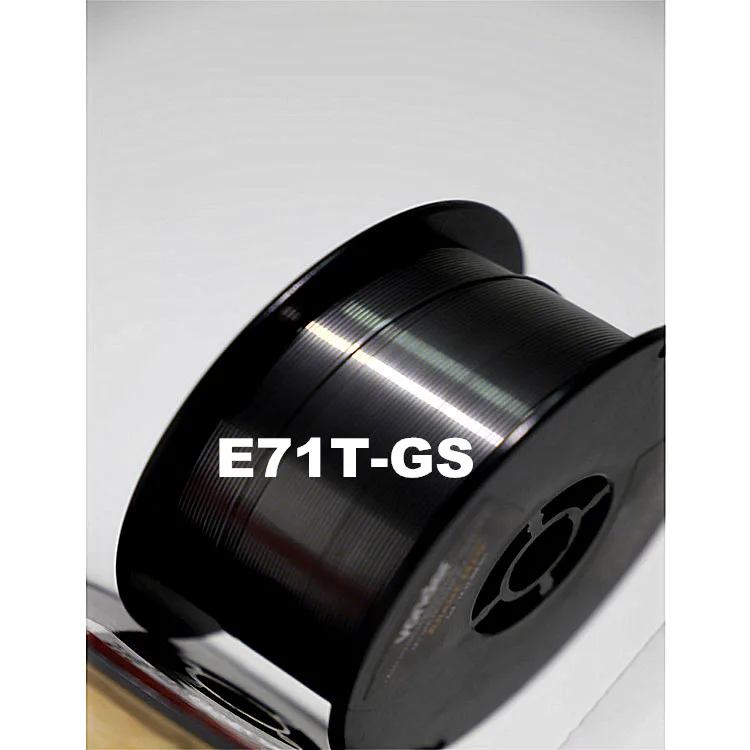

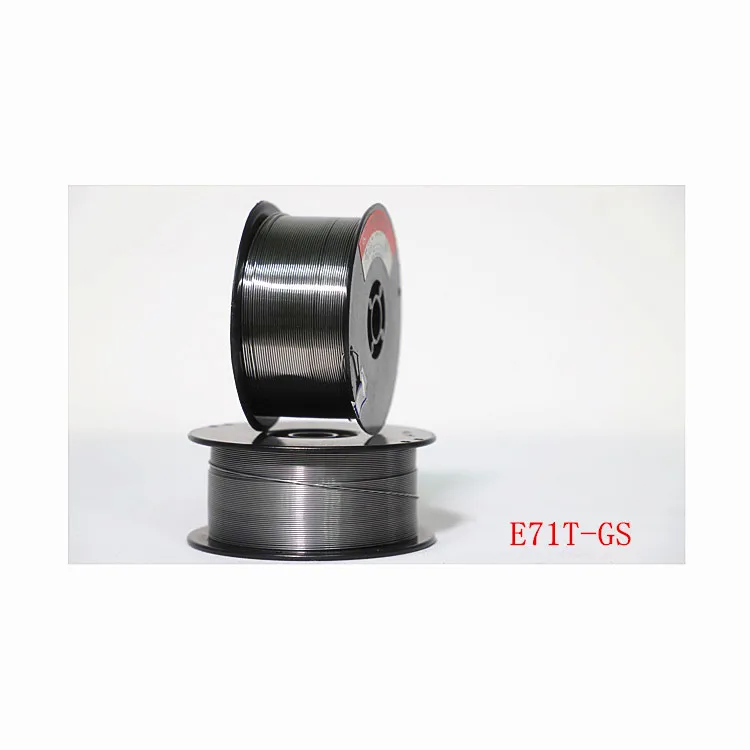

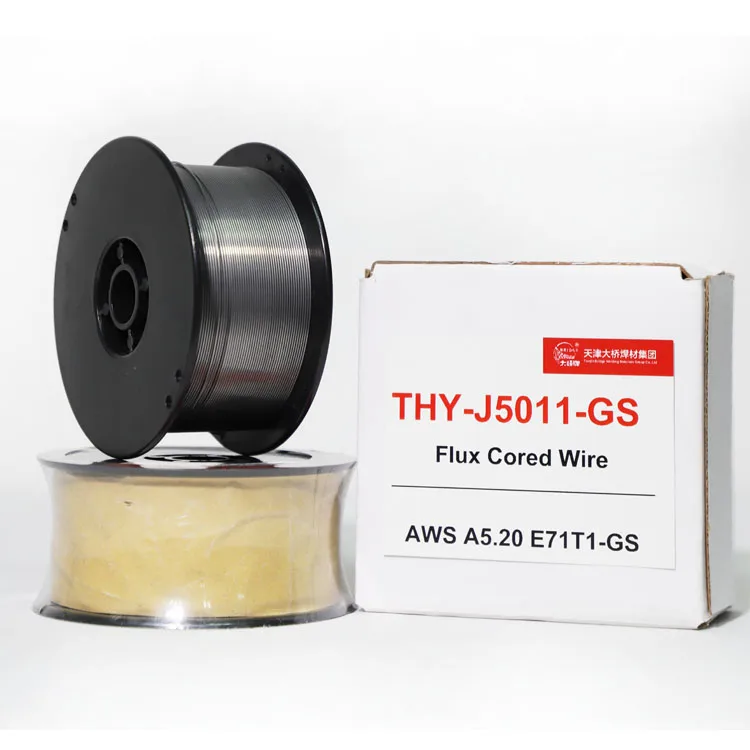

E71T-GS (THY-J5011-GS)

50 kg grade self protective flux cored wire GB 10045 E501T-GS   AWS A5.20 E71T-GS

APPLICATIONS:

Applying for the welding of outdoor light structure and the sheet over 0.9mm, such as: small size welding weld,galvanized plate etc..

CHARACTERISTICS:

This kind of wire is 50 kg self protective flux cored wire. Suitable for all position welding. When welding ,the spatter is smaller, the arc is stable and soft,slag removal is easy, and the forming is beautiful.

ATTENTION:

1 Direct Current Straight Polarity (DCEN) welding. (Welding wire connecting power source cathode)

2 Multi pass welding, the layer temperature is maintained at 135-165℃.

WELDING POSITIONS:

PA, PB, PC, PD, PE, PF

PRODUCT APPLICATION



Some of our products have been applied to overseas key projects.

Electrode, SAW wire and flux of 600MPa Grade & 800MPa Grade

applied to hydro steel at Laos pumped storage power station

E6010 cellulose electrode Applied to the Ghana TEMA pipeline project in Africa successfully. It breaks the monopoly of Bohler cellulose electrode and won the bidding of oil pipeline Ghana tank project

RELATED PRODUCTS

Welding Wire	Flux Cored Welding Wire
MORE >>	MORE >>

ABOUT US



Tianjin Bridge Welding Materials Group Co., Ltd., founded in 1957, is one of the largest welding consumables manufacturing enterprises in China. In the past half century, "BRIDGE " welding consumables sell well in more than 60 countries and regions. "BRIDGE”welding consumables has 4 categories, 500 types more,including covered electrodes (SMAW), solid wire/Rod (GMAW & GTAW), flux-cored wire/Rod (FCAW) and sub arc wire/strip & flux (SAW/ESW). They are for welding steel of non-alloy & fine grain steel, creep resistant & weatherproof steel, stainless steel, surfacing welding, cast iron, Ni & Ni-alloy steel, AI & Al-alloy steel, Cu & Cu-alloy steel and other special welding & cutting. Our products are widely used in construction, shipbuilding and offshore, land traffic and aerospace, boiler and pressure vessel, energy, household appliance, machinery manufacturing,military industries and many other fields.

Keeping improvement and development for product technology and quality continually, which always make us the leader in welding consumables industry. Tianjin Bridge Welding Materials Group Co., Ltd. Passed ISO9001, ISO14001, OHSAS18001 and ISO5001 approvals. Our products of shipbuilding & offshore are approved by ABS, BV, CCS, DNV.GL, LR, NK, KR, RINA, RS, BKI and CWB. Main products are approved by CPD-CE, DB-AG and VD-TUV.

Our: Guiding Ideology- "People-oriented, pursuing sustainable development" Quality policy- "pursuing perfect quality, establishing a good corporation reputation, with excellent quality and service" Principle- "Customers' satisfaction is the first"



We are the professional and perfect partner

of yoursin welding consumables.

F A Q



Q: what is delivery time / lead time ?

A: 30 days

Q: what is your minimum order ?

A: 5000kgs

Q: what is your payment term ?

A: 1- 30% down payment for order confirmation, 70% before shipment.

    2- 100% at sight LC

Q: can we visit your factory ?

A: yes you can at your free time.
