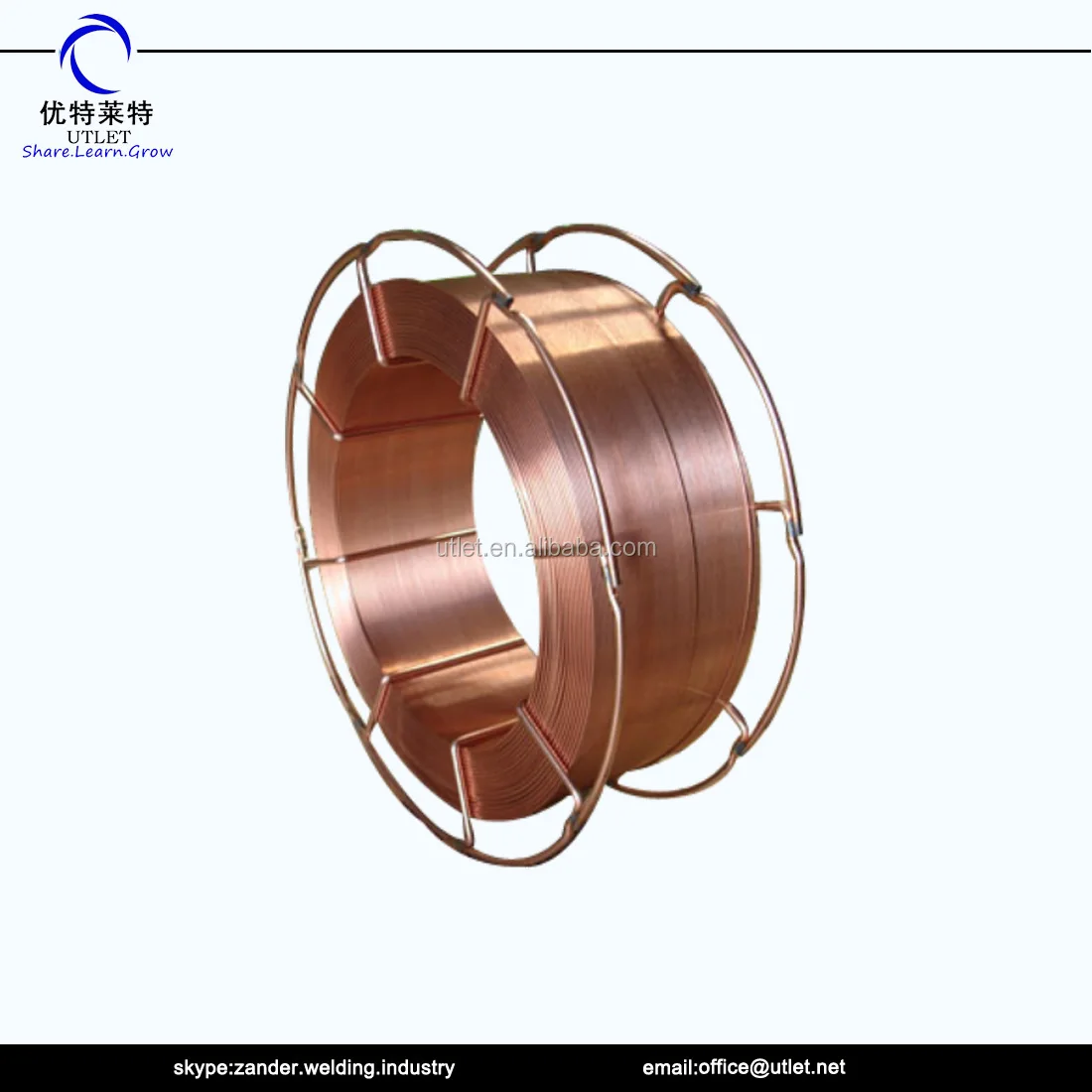

KC-28 ER70S-6 сварочная проволока 1 2 мм x 15

Описание и отзывы

Характеристики





Description: KC-28 ,ER70S-6 welding wire 1.2mmx15kg



KC-28 ,ER70S-6 welding wire 1.2mmx15kg

Applications

For welding of steel structure in mineral machines,ships,brides,pressure vessels,building



constructions,welding of other 500MPa level carbon steel and low alloy steel and high-speed



welding of light gauge plate and pipe line

 KC-28 ,ER70S-6 welding wire 1.2mmx15kg

Features &Application



1. It has excellent mechanical performance such as fast melting rate, high depositing efficiency, stable arc,

little spatter, beautiful seam.

2. The slag is fluid and when hardened it is compact and easy to remove .

3. Welding of carbon steel, low alloy steel&500Mpa grade low alloy high intensity steel structures etc.

Such as vehicle, building, bridge, ship building, pressure vessel industry and pipeline etc.

4. It is suitable for all position welding of steel sheets and irregular joints even under unfavorable conditions.

5. High-speed welding of light gauge plate and pipe line steel.





	C	Mn	Si	S	P	Cu	Others
Standard(GB)	0.06-0.15	1.40-1.85	0.80-1.15	≤0.035	≤0.025	≤0.50	≤0.50
Standard	0.06- 0.14	1.30-1.60	0.70-1.0	≤0.035	≤0.025	≤0.35	≤0.50
Type	0.08	1.51	0.80	0.015	0.016	0.20	0.02

Tensile strength(MPa)	Yield Point(MPa)	Elongationδ5(%)	Impact V-Notch (J)(-20oC)	Shielding Gas
≥500	≥420	≥22	≥27	100%CO2
560	500	27	102	100%CO2

Diameter(mm)	dia0.8	dia1.0	dia1.2	dia1.6
F Current(A)	40~180	50~220	80~350	170~550
V Current(A)	40~140	50~160	50~180	50~180
OH Current(A)	40~120	50~160	45~180	40~180

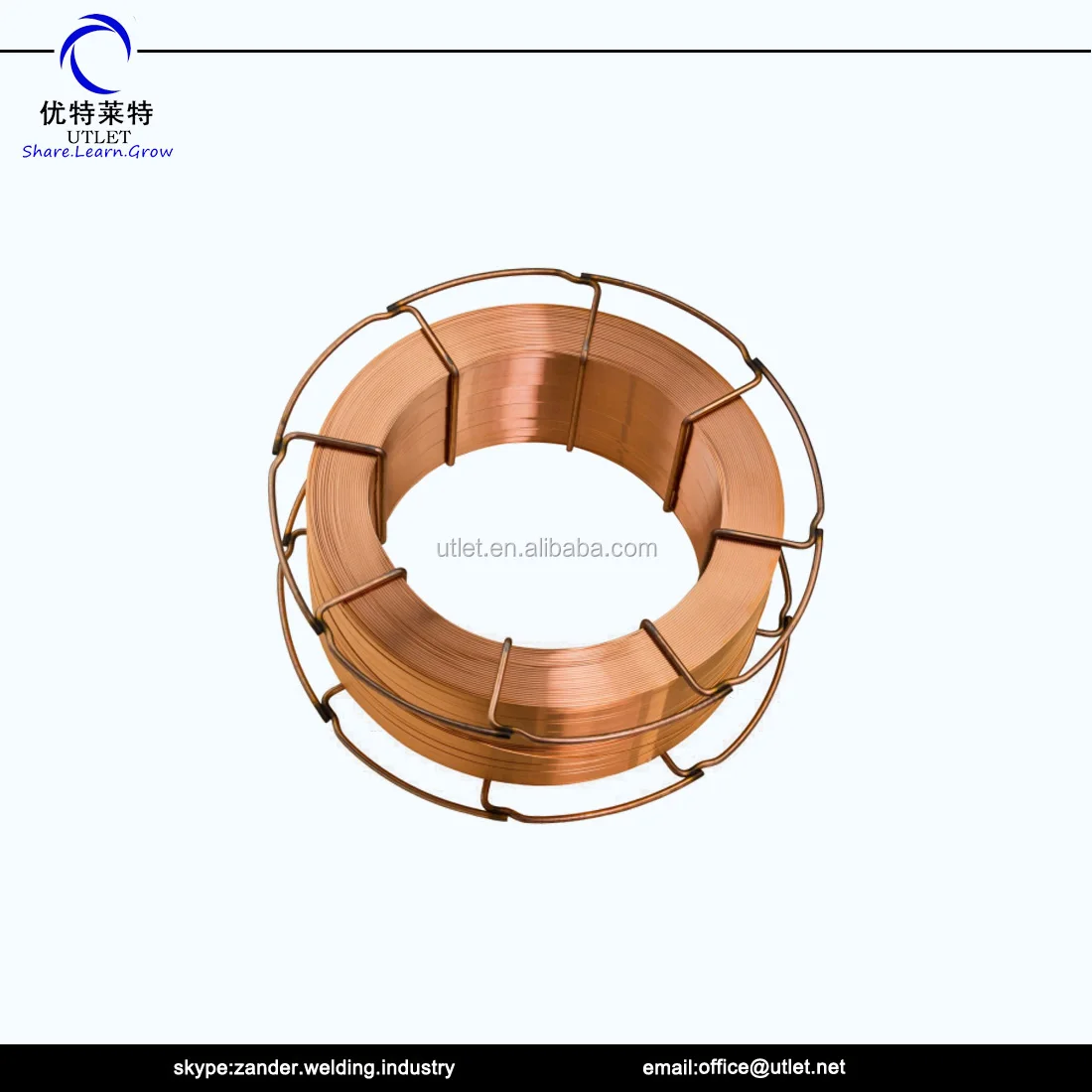

 kiswell KC-28 ,ER70S-6 welding wire 1.2mmx15kg

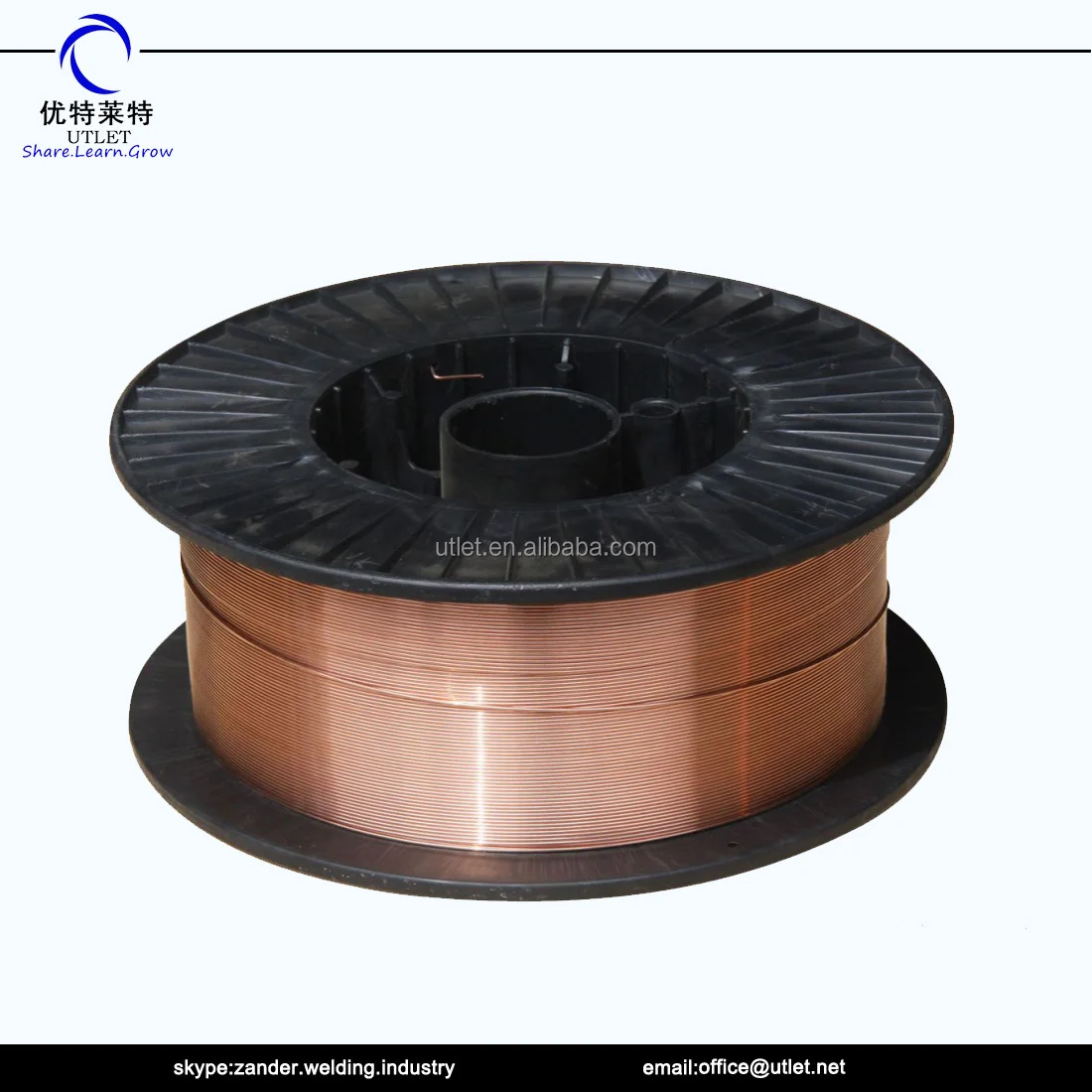

 KC-28 ,ER70S-6 welding wire 1.2mmx15kg

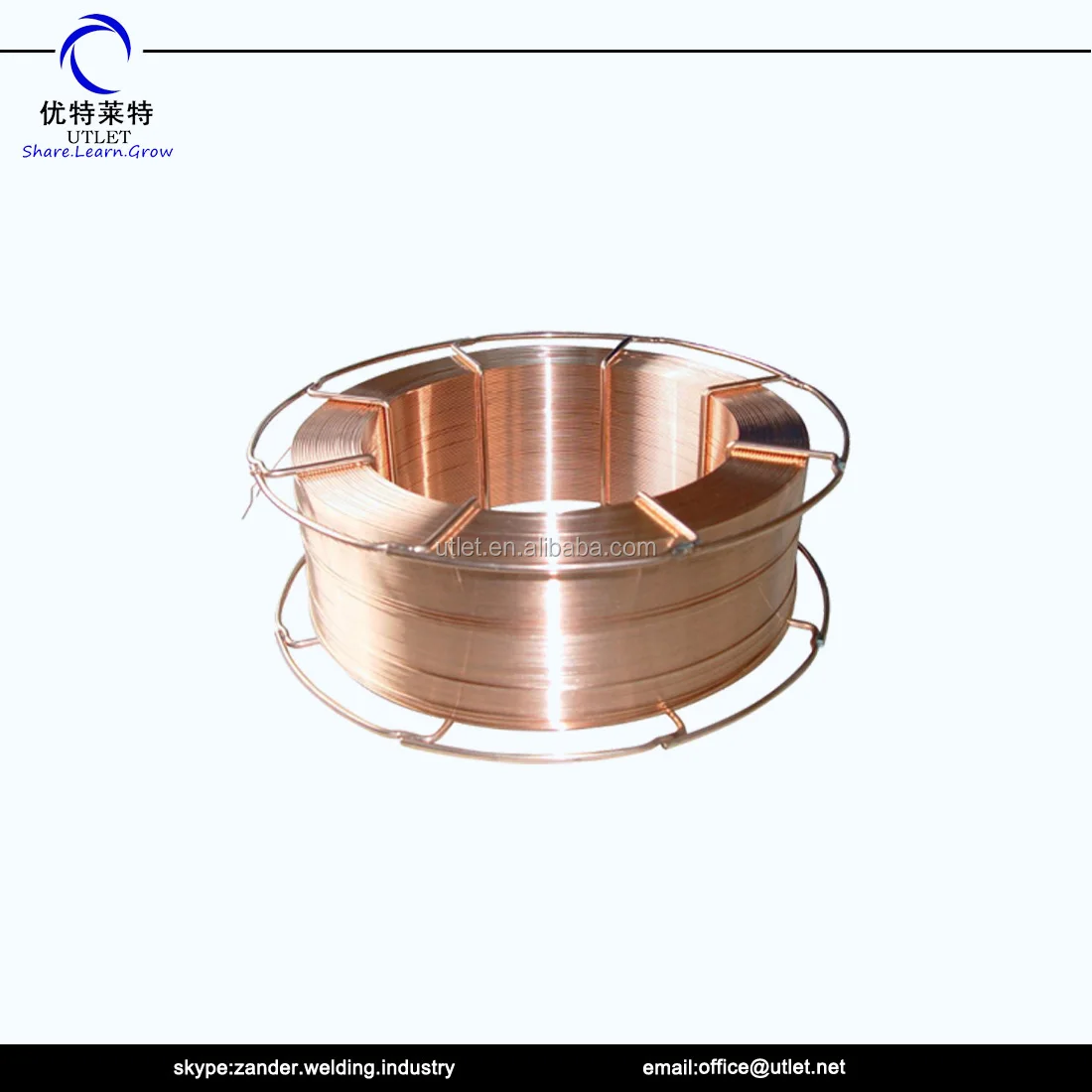

 KC-28 ,ER70S-6 welding wire 1.2mmx15kg

 KC-28 ,ER70S-6 welding wire 1.2mmx15kg



 KC-28 ,ER70S-6 welding wire 1.2mmx15kg Packing:

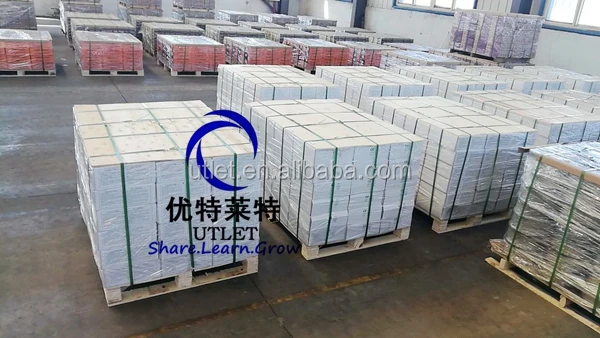

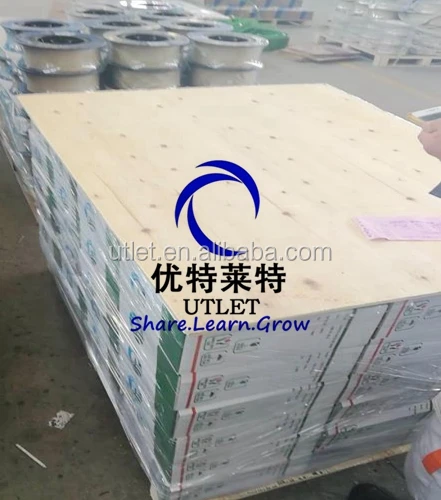

KC-28 ,ER70S-6 welding wire 1.2mmx15kg Pallet

 KC-28 ,ER70S-6 welding wire 1.2mmx15kg





FAQ



Q1:Can I have a sample for testing?

A: Yes, we can support free sample,the TNT or DHL charges on your account.



Q2:Can I add my logo on the boxes/cartons?

A:Yes,OEM and ODM are available from us.



Q3:Do you have inspection procedures for welding wires?

A:100% self-inspection before packing. We provide Quality Certification for every order .



Q4:Can we mix different welding wire in one 20ft container?

A: Yes,sure. It depends on your requirement. We try our best to satisfy you.



Q5: Whats you advantage?

A: 1. Advanced Production Facility 2.Good Raw Material 3.Product Certificate 4.Cultural Ideas



Q6: Where have you been export to before?

A: *Asia: Korea,India,UAE,Turkey,HK,Taiwan, Singapore,Thailand,Vietnam,PK

*Europe: Gernamy,Spain,Russia,Italy

* Americas :Brizal, Canada,Mexico

*Australia

*Africa: Egypt,South Afriac

*Middle East:Israel,Yemen and so on.



We are keeping on exploring markets with harmony and innovation and creating future with unity and struggle.
