Product Description


Introduce：

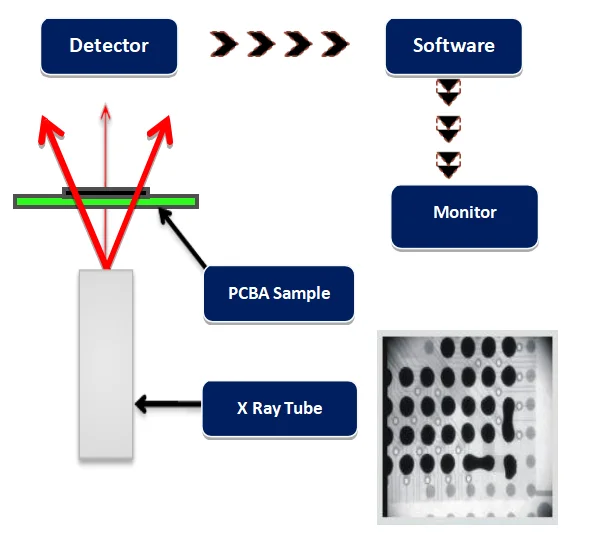

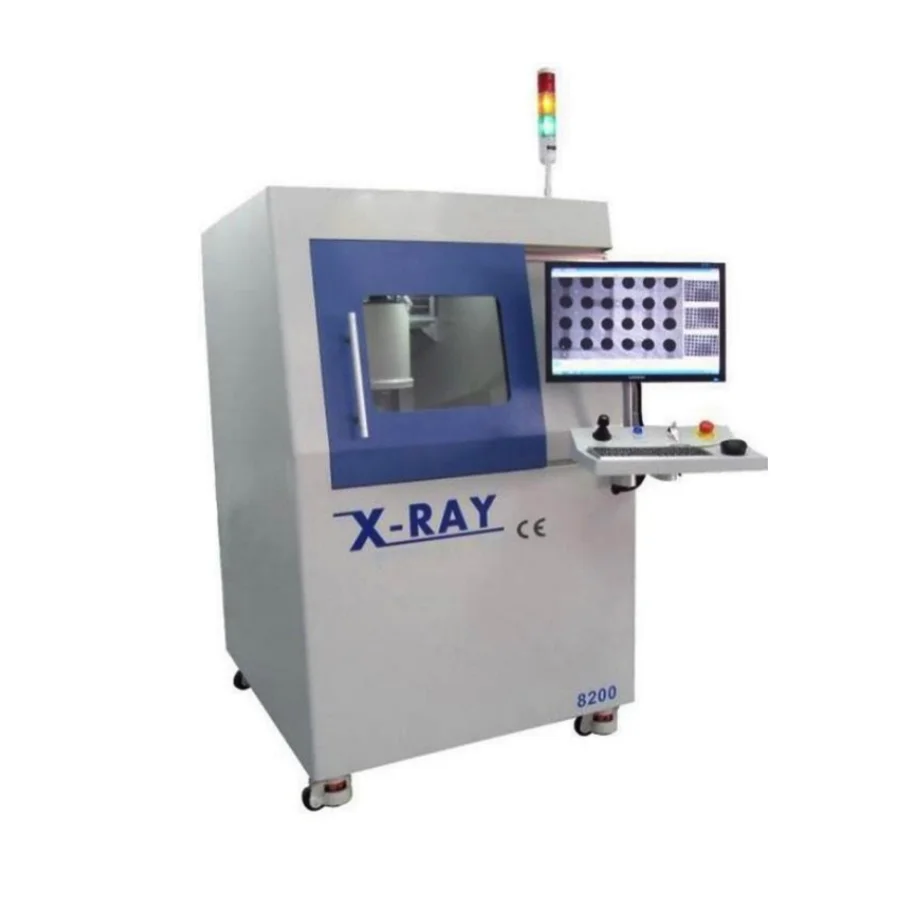

The ETA-8200 machine is designed to provide high resolution x-ray imaging primarily for the electronics industry. This versatile system is effective for many applications within the PCB manufacturing process. This includes BGA, CSP, QFN, Flip Chip, COB and the wide range of SMT components. The ETA-8200 is a powerful support tool for process development, process monitoring and refinement of the rework operation. Supported by a powerful and easy to use software interface, ETA-8200 is capable of addressing small and large volume factory requirements.




Features：
1.90kV 5µm closed X-ray tube, 4/2”image intensifier with
2 mega pixels CCD camera 2.Multi-function workstation with ±60° tilt and X-Y multi-axis movement
3.X-ray tube & detector automatic lifting and descending, with convenient target point positioning system
4.Multi-function DXI image processing system, CNC programmable detection
5.Max. loading area 510mm*420mm, max. inspection area 435mm*385mm, with 600X Magnification


Application:
SMT, BGA, CSP, Flip Chip, LED Detection,Semiconductor, Packaging components, Battery Industry,Electronic components, Automotive parts, Photo-voltaic,Aluminium Die-casting, Moulding Plastic.Ceramics, other special industries.

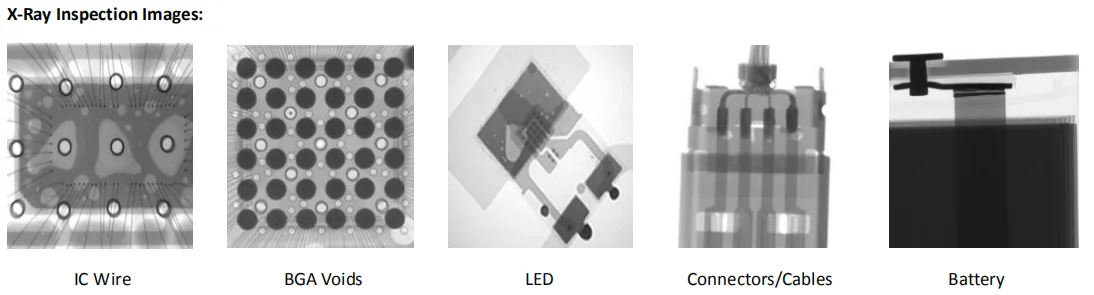

X-Ray Inspection Images: IC Wire
X-Ray Inspection Images: BGA Voids




Application:
SMT, BGA, CSP, Flip Chip, LED Detection,Semiconductor, Packaging components, Battery Industry,Electronic components, Automotive parts, Photo-voltaic,Aluminium Die-casting, Moulding Plastic.Ceramics, other special industries.






Specifications






X-Ray Tube
Max. Voltages, Type
90kV, Closed
Power Consumption
8W
Focal Spot Size
5 μm
Motion range (Up and Down)
140mm
Magnification
360X



Detector
Detector Type
FPD
Resolution
101 LP/cm
Effective Area
58mm×54mm
Motion range (Up and Down)
300mm

System Computer
Operating System
Industrial PC, Win 7, i7 Processor
Monitor
22” LCD
Software
User Interface
ETA Multi-function DXI image processing system
Working Platform
Max. Inspection Area
420mm×380mm
Navigation
Camera
HD Camera, Laser point

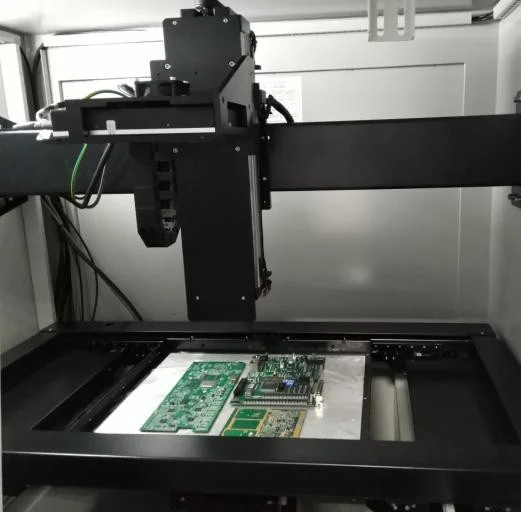

Axis
Manipulator
4-axis with X / Y / Z1 / Z2
Equipment Features
Power Supply
AC 110~220V (±10%) 50Hz, 1kW


Certification






Company Information


ETA is the leading manufacturer for smt machines and solution with 24 years' experience in China. And we are aslo the only Chinese
SMT supplier for Huawei factory in China.

Successful Experience:
Eta's customer in 40 countries around the world
※ We have been helping customers to build a lot of new factories around the world.
※ Training more than 500 experts and technician for customers.
※ Became the most reliable Chinese partner for you.

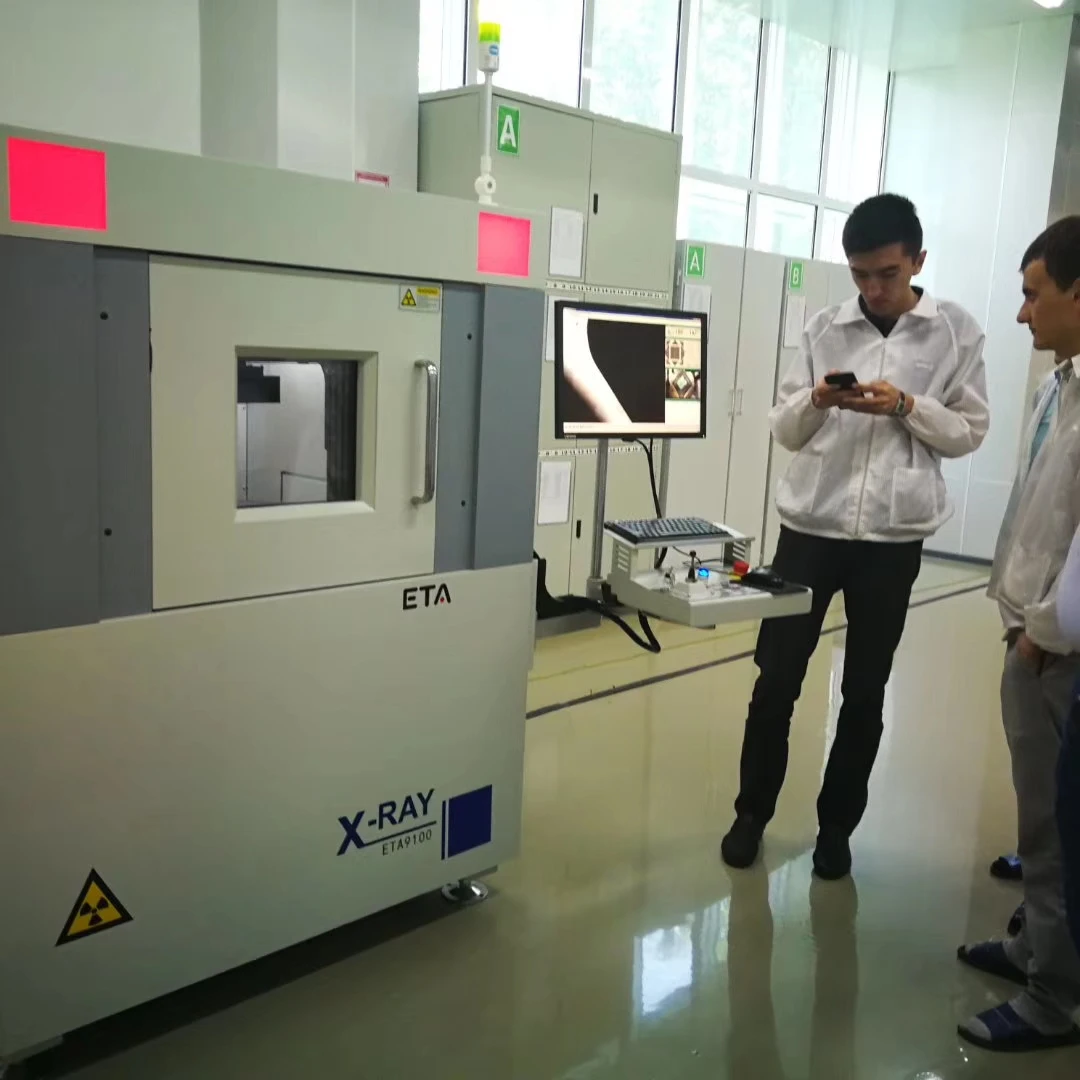

Customers' Feedback








Exhibition

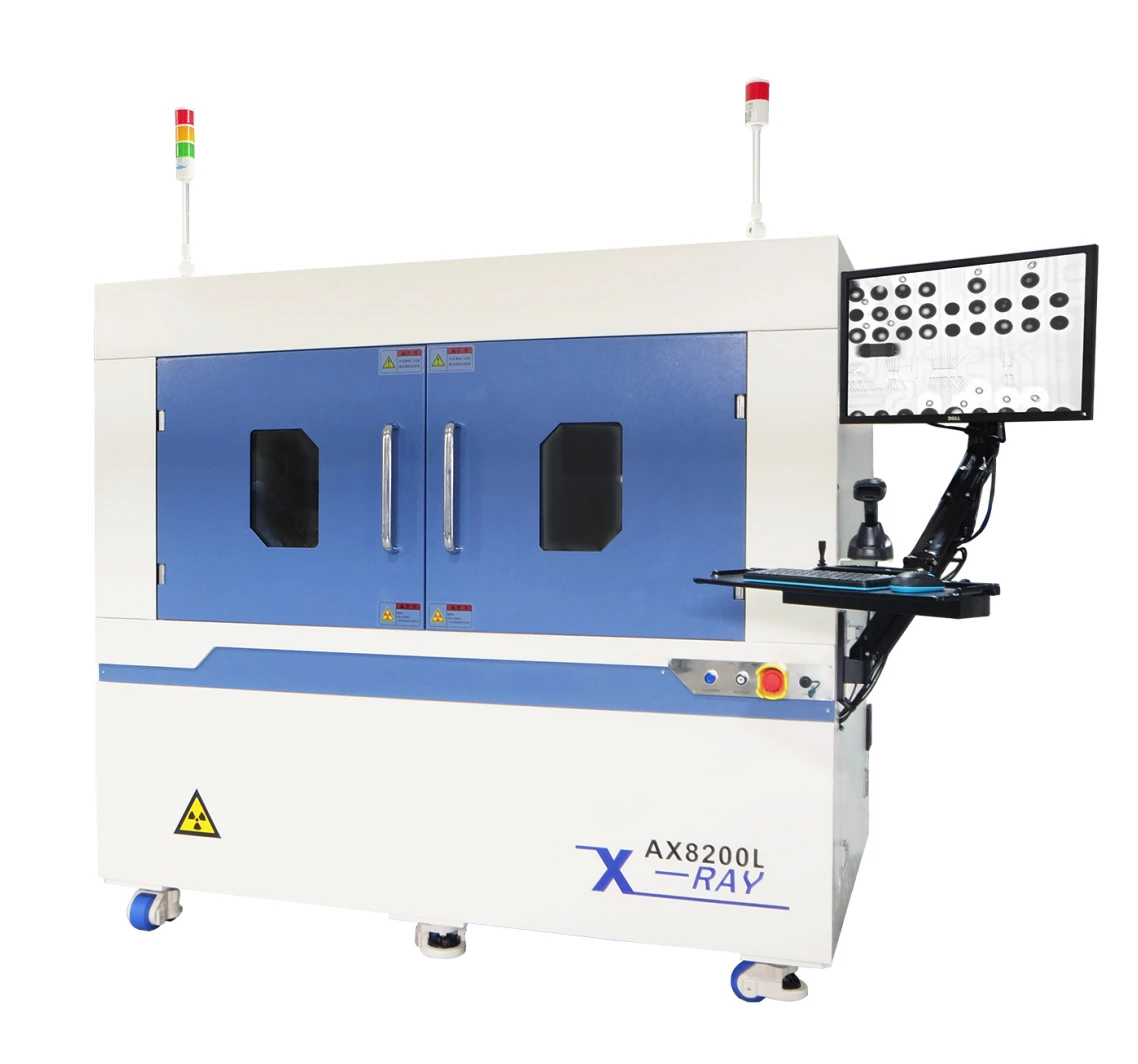

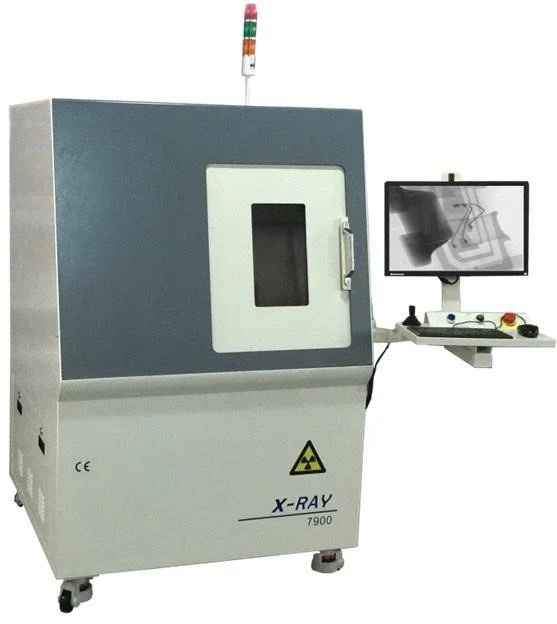

Related Products




Packing & Delivery



※ Standard Wooden Package with Vacuum
Shipping Way:
※ By air, for sample and small package,international express like DHL, UPS, EMS...
※ By sea, for large package and quantity;
※ Other ways as customer requested.

Delivery Time:

※ 35 Days.



FAQ


1.Are you a trade company or a manufacturer?
=》OEM & ODM service are available.

2.What is your delivery date?
=》The delivery date is about 35 days after receipt of payment.

3.What is your payment terms?
=》30% deposit in advance and 70% balance before shipment.

4.What your main customers?
=》Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.
