20kN ISO Tensile Strength Machine Universal Testing Machine Tensile Torsion Testing Machine
PRODUCT SPECIFICATIONS
20kN WDW 20E ISO tensile strength universal testing machine
The functions and characteristics: microcomputer closed-loop control, whole digit amplification and collection, stable display, high accuracy and convenient usage. The principle machine adopts imported Servo Motor and servo speed control system as well as ball screw and is characterized in stable transmission, low noise, high speed and accuracy, wide speed regulation range and long service life; microcomputer is used to automatically control the testing process, the test results are automatically analyzed and processed, flexible and variable control modes are provided. The test software is upgraded and renewed free of charge. The test forces, peak value, displacement, speed, test condition and test curve are simultaneously displayed; the functions, such as position limiting, overload auto-protection and auto-stop upon specimen fracture are provided.
Standard Compliance: ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
Standard Compliance: ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
Standard model | WDW-5/10/20D | WDW-50D | WDW-100D | ||
High accuracy model | WDW-5/10/20E | WDW-50E | WDW-100E | ||
Max testing force | 5/10/20/kN | 50kN | 100kN | ||
Test grade | 1 class WDW-E: 0.5 class | ||||
Testing force accuracy | ±1% WDW-E:±0.5% | ||||
Testing force range | 1%-100%Fs WDW-E 0.4-100%Fs | ||||
Force resolution | 1/300000Fs | ||||
Deformation accuracy | ±1% WDW-E:±0.5% | ||||
Deformation resolution | 0.001mm | ||||
Displacement accuracy | ±0.5% | ||||
Displacement resolution | 0.001mm | 0.002mm | 0.002mm | ||
Speed range (mm/min) | 0.001～500 | ||||
Control accuracy | ±1% WDW-E: ±0.5% | ||||
Crosshead move range | 1100 | 1100 | 1100 | ||
Pull space | 800mm | 700 | 700 | ||
Push space | 800mm | 700 | 700 | ||
Test wide | 400 | 500 | 550 | ||
Grip body | one suit | ||||
Flat jaw(mm) | 0-7 7-14 (O) 14-20(O) | ||||
Round jaw(mm) | Ф4~Ф9 Ф9~Ф14(optional) Ф14~Ф20(optional) | ||||
Pressure plate(mm) | Ф100 x1 | ||||
Bending clamp | (optional) | ||||
Extensometer | 10/50mm(optional) | ||||
Large deformation | Large deformation extensometer 0-800mm(optional) | ||||
Motor | servo motor | ||||
Power supply | 220V | ||||
Machine dimension(mm) | 740*420*1720 | 850*480*1865 | 1000*550*2076 | ||
Weight | 400Kg | 650Kg | 800Kg | ||
PRODUCT DETAILS
AC SERVO MOTOR
Driven by AC servo motor and diver. It has stable and durable performance, high precision and low noise.
COMPRESSION ACCESSORIES
SUNPOC High strength compression accessories
FULL DIGITAL SPEED REGULATION SYSTEM
Excellent deceleration system and driving screw pair are tested to achieve a wide rang of adjustment of test speed. with now noise and sable operation in the test process.
STRETCHING FIXTURE
Standard wedge type, tensile clamp. Tensile testing for various materials.

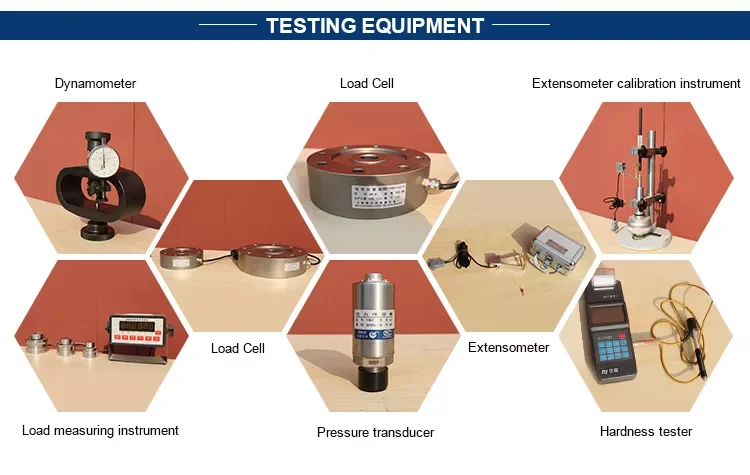

TESTING INSTRUMENTS
APPLICATION INDUSTRIAL:
20kN WDW 20E ISO tensile strength machine universal testing machine Tensile Testing Machine
WDW-D Series Electronic Universal Testing Machine is widely used for the mechanical testing of stretching, compressing, bending,shearing, peeling and tearing of non-metal materials, such as rubber, plastics, fabrics, electric wires and cables,composite materials, leather, waterproof roll, non-woven fabrics, earthwork cloth and paper sheets, etc. as well as the metal materials, such as metal wire, metal foil, metal sheets and metal bars, etc. The universal testing machine is suitable to be used in the fields, such as quality inspection, education and scientific research, aerospace, ferrous metallurgy, automobile industry and construction and building materials, etc.

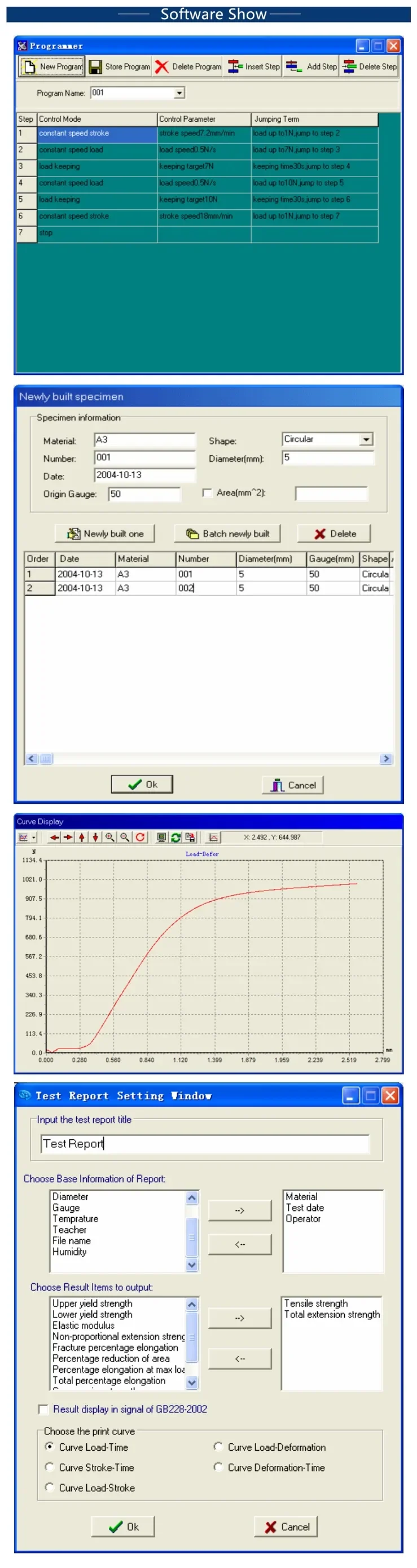

SOFTWARE
Six test functions: tension, compression, bending, peeling, tearing, shearing (can also be customized according to customer requirements).
Computer-controlled equipment, automatically collects data, saves data, and can query historical records. Display the curve, print the report, and choose a variety of test units to switch. One-click switching language interface (languages can be added according to customer requirements)
Computer-controlled equipment, automatically collects data, saves data, and can query historical records. Display the curve, print the report, and choose a variety of test units to switch. One-click switching language interface (languages can be added according to customer requirements)

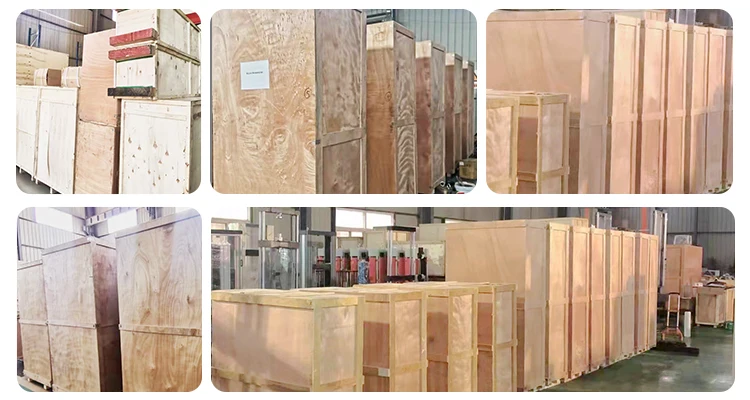

PACKING DETAILS
SUNPOC UNIVERSAL TESTING MACHINE:
20kN WDW 20E ISO tensile strength machine universal testing machine Tensile Testing Machine
# Standard plywood case, its compressive strength and bearing quality is better.
# The board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
# When importing, the plywood case is with fumigation-free, the procedure is simple.
# The board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
# When importing, the plywood case is with fumigation-free, the procedure is simple.
FAQ
Sunpoc Tech Industry Co.,Ltd
20kN WDW 20E ISO tensile strength universal testing machine Tensile Testing Machine
1.Are you a trading company or a factory?
we are a manufacturer, and have our own factory
2.What is the payment method?
We can accept all kinds of payment terms, as our customers like
3.What products do you make?
Our mainly products includes:ultrasonic flaw detector, ultrasonic thickness gauge, universal testing machine,video measuring machine, profile projector, impact tester, microscope,hardness tester,ect.
4. How about your delivery time?
Generally speaking, it takes about 7-10 working days after we receive your confirmed order and payment. Specific delivery time depends on the number of your orders, please contact with us.
5.Are you checking all your goods before delivery?
Yes, every component of the instruments must be checked strictly before they leave the factory.
# 24 months guarantee of the whole machine,We will provide the consumable parts at an agency price when you need replacement.
# Our engineer could support you technology to your country if necessary.
# Our engineer could train you on at our factory or video call for free.
# Our engineer could service you 24 hours online by skype, whatsapp,yahoo, msn, QQ, or by cellphone.
# Our engineer could support you technology to your country if necessary.
# Our engineer could train you on at our factory or video call for free.
# Our engineer could service you 24 hours online by skype, whatsapp,yahoo, msn, QQ, or by cellphone.
