SUNPOC 505R toolmaker microscope for measuring tools
Product Description
Tool Maker's Microscope
SPTM-505 SPTM-505R
Application:
This instrument can accurately measure sizes, angles, forms and positions of various workpieces and different arameters of the screw-thread manufactured pieces. It is widely used in the measurement and checking services in the sectors of machinery, instrumentation, die equipment manufacturing, instrument and metering, military industry, aviation and aerospace industry and automobile manufacturing, electronics, plastics and rubber, etc. and incolleges and universities,
research institutes, etc. This instrument, with multiple accessories of optical locator, tailstock rack, double-image eyepieces, template eyepieces,etc., can be used for the quality detection and control formachinery parts, measuring tool, pattern die, electronic elements, circuit board, presswork, plasticand rubber products, etc.
Application:
This instrument can accurately measure sizes, angles, forms and positions of various workpieces and different arameters of the screw-thread manufactured pieces. It is widely used in the measurement and checking services in the sectors of machinery, instrumentation, die equipment manufacturing, instrument and metering, military industry, aviation and aerospace industry and automobile manufacturing, electronics, plastics and rubber, etc. and incolleges and universities,
research institutes, etc. This instrument, with multiple accessories of optical locator, tailstock rack, double-image eyepieces, template eyepieces,etc., can be used for the quality detection and control formachinery parts, measuring tool, pattern die, electronic elements, circuit board, presswork, plasticand rubber products, etc.
Product Description:
SPTM-505 and SPTM-505R tool-maker’s microscope are excellent measuring instruments for non-contact inspection and 2D precision measurement. It is suitable to measure the small parts in the metrology department and production line,and it can be installed with digital measure heads, CCD adaptor, CCD camera, digital cross line generator, monitor tobe a 2D vision system.
SPTM-505 and SPTM-505R tool-maker’s microscope are excellent measuring instruments for non-contact inspection and 2D precision measurement. It is suitable to measure the small parts in the metrology department and production line,and it can be installed with digital measure heads, CCD adaptor, CCD camera, digital cross line generator, monitor tobe a 2D vision system.

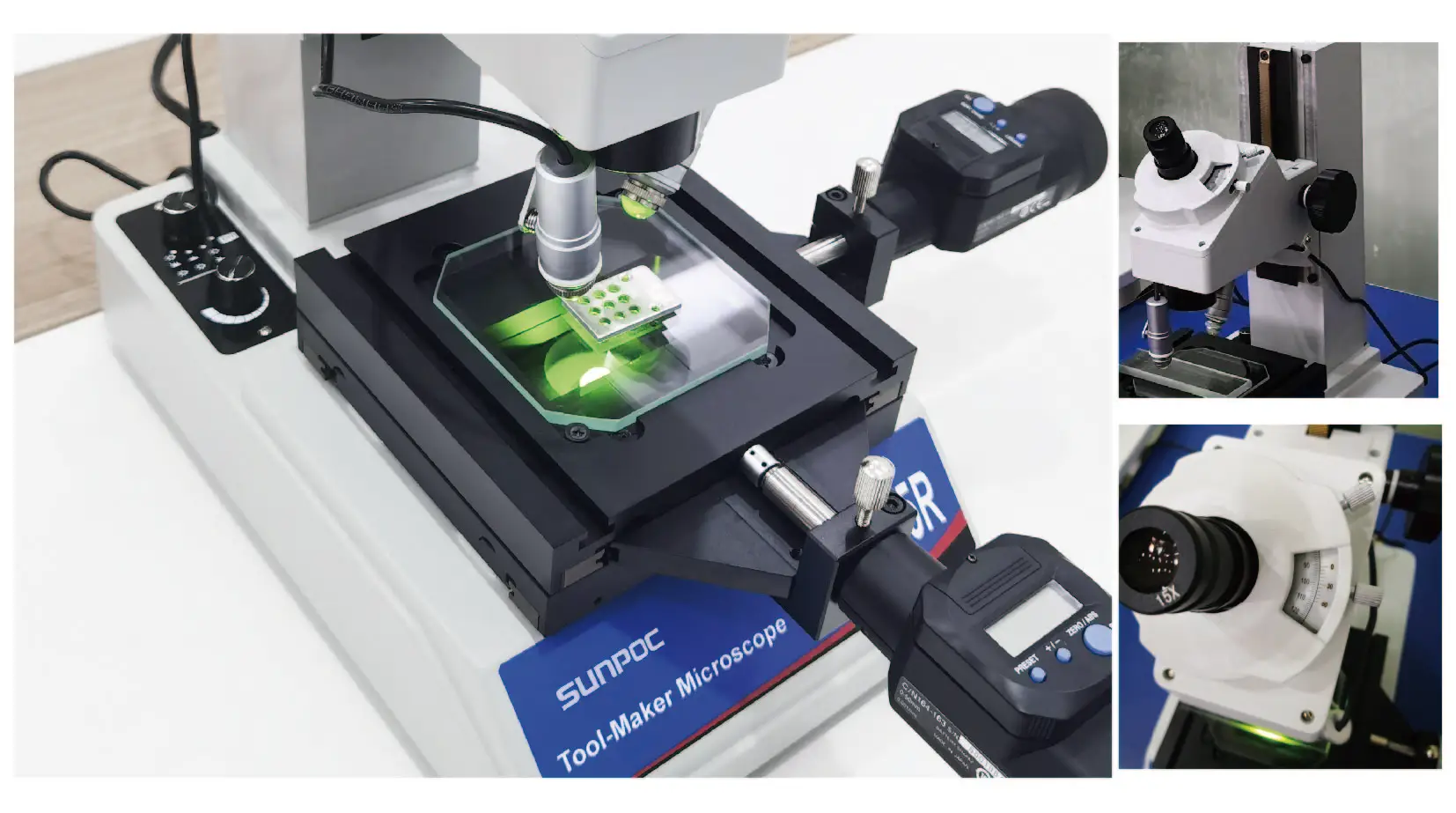

Detailed Images
Usage:
It is widely used the measurement and checking services in the sectors of machinery,instrumentation, dieequipment manufacturing, instrument and metering, military industry, aviation and aerospaceindustry and automobile manufacturing, electronics, plastics and rubber, etc. and incolleges and universities, research institutes, etc. This instrument, with multiple accessories of optical locator, tailstock rack, double-image eyepieces, template eyepieces, etc., can be used for the quality detection and control for machinery parts, measuring tool, pattern die, electronic elements, circuit board, presswork, plastic and rubber products,etc.
Model | SPTM-505R | ||
Working Table | X-axis travel (mm) | 50 | |
Y-axis travel (mm) | 50 | ||
Max. Working Height | 115mm | ||
Max. Loading Weight | 5 KGS | ||
Measuring Head | Measuring Head | Origin Mitutoyo Electronic Measuring Head | |
Resolution | 0.001mm | ||
Accuracy | (3+L/50) um | ||
Machine Head | Monocular (Aimer is adjustable) | ||
Angle Dial | Rotary angle: 360°; Minimum angle reading: 6′ | ||
Lens | Eyepiece (176-116) | 15X ; View diameter: 13mm | |
Objectives (176-138) | 2X ; Working diameter: 67mm | ||
Total Magnification | 30X | ||
Optional Objectives | 5X,10X | ||
Illumination | Contour Illumination | 24V/3V tungsten bulb with green filter, the brightness is adjustable. | |
Surface Illumination | 24V/3V tungsten bulb, the brightness is adjustable. | ||
Power | 110V / 220V (AC) 50 / 60 Hz | ||
Dimension | Length x Width x Height (mm) = 210 x 333 x 391 | ||
Weight | 13.5 KGS | ||
Auxiliary Parts | A group of partition board One piece of blue filter | ||
Recommend Products
Our Factory
Guizhou Sunpoc Tech Industry Co., LTD is committed to supply the customers with the highest quality products and solutions in materials testing and science research. Our quality products are used in a wide range of industries like civil and military. Being a professional manufacturer and exporter in the field of quality test instruments, Sunpoc dedicated to materials and specimen testing industries for 15 years and gained high reputation from our customers all over the world. Sunpoc continuously reviews and updates our product and service to macth the need of our clients with the advanced technologies.
Packing&Shipping
FAQ
1. How to choose the most suitable toolmaker Microscope ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
2. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
3. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
4. Do you have customers of our country before?
Now our hardness tester have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India,Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
5. How about your tool maker Microscope warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
6. How to install and use toolmaker Microscope?
The product is shipped with an operating instructions and video of English version.
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
2. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
3. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
4. Do you have customers of our country before?
Now our hardness tester have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India,Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
5. How about your tool maker Microscope warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
6. How to install and use toolmaker Microscope?
The product is shipped with an operating instructions and video of English version.
