Китайская фабрика низкая цена непосредственно Changan dongfeng 2 оси куб. М мини-грузовик для сбора мусора и
- Категории: Other Trucks >>>
- Поставщик: Hubei,Xindongri,Special,Vehicle,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
YZR5030ZXXSC3 3 cbm Waste Collection and Transport Vehicle | value | |
Product Type | YZR5030ZXXSC3 | |
Drive Type | 4X2,LHD&RHD | |
G.V.W/Kerb Weight | 2150 /1400 KG | |
Fuel Type | gasoline | |
Dimensions (L x W x H) (mm) | 4320*1580*1945 mm | |
Max.Speed | 100 km/h | |
Chassis | ||
Brand | Changan,Optional Dongfeng | |
Wheelbase | 2700 mm | |
Fuel Type | gasoline | |
Engine Brand | 80KW,1490 ml | |
Emission Standard | Euro III, optional IV, V | |
Transmission | 5 gears | |
Front/rear suspension | 720/900 mm | |
Approach/Departure Angel | 40/24° | |
Front/rear track | 1373/1300 mm | |
Brake System | ABS | |
Tyre Number | 4 tires | |
Tyre Specification | 175R14LT 8PR | |
Superstructure | ||
Waste box capacity | 2-3 cbm | |
Loading type | Hook Arm garbage truck | |
Warranty | 12 Months | |
Discharge Type | Automatic loading and dump | |
Max lift weight | 2000 KG | |
Control Way | Integrated console in drive cabin | |
On-board accessories: 1 set of on-board tools, several kinds of sealing rings and gaskets, vehicle instructions, maintenance. | ||
*Remark:This is the standard parameter by us, We also can offer the OEM&Customization service for your requirements.* | ||

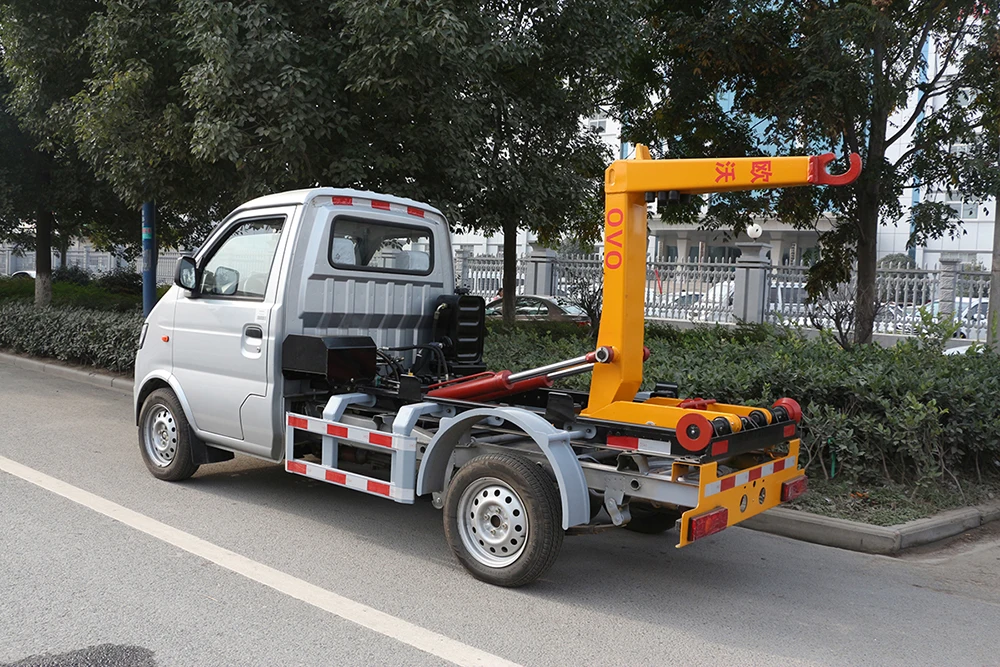

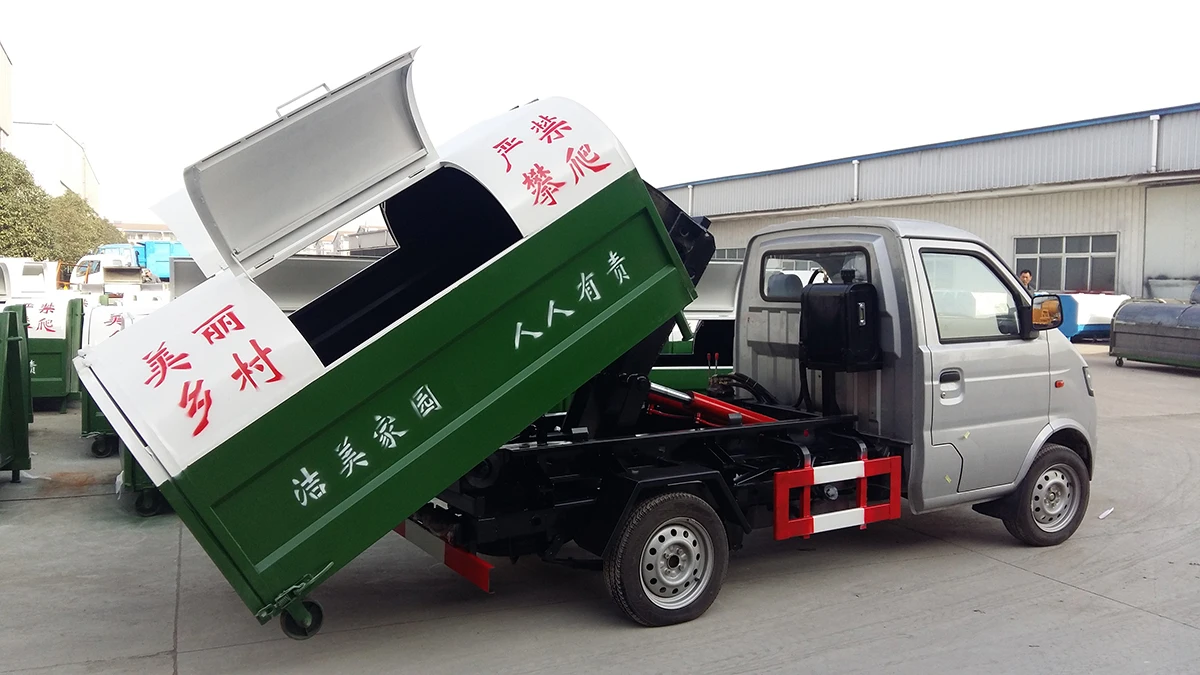

The working principle and structure of the hook loader garbage truck (dump garbage truck) is below,
The hook loader garbage truck is equipped with an Subframe on the chassis, a garbage bin on the Subframe and a hoisting device. The main hydraulic cylinder of the pull arm is the main transmission device for lifting and unloading waste. Controlling its expansion and contraction can complete the working process of lifting garbage bin, unloading garbage and unloading the empty garbage bin. One end of the main hydraulic cylinder of the pull arm is connected to the rear end of the Subframe near the cabin rear end, and the other end is connected to the pull arm.
Feature:
1.It integrates loading, transportation and self-unloading. no need auxiliary equipment and is easy to operate.
2.One truck with many boxes, cyclic transportation, improve the efficiency of vehicle use, reduce costs;
3.The hook arm system with a complete sets of equipment, which is safe and reliable, light weight and high loading quality.
4.The hook arm system adopts the sliding arm articulated structure, which has the advantages of convenient hooking, simple maintenance, small lifting and unloading box body height, and saving length and space.
5.The alarm device connecting chassis and mobile garbage compression box body is set up to ensure that the hook arm system can not unload the box body before the hydraulic quick joint and the box body are detached. Even if the operator misoperate, the safety of the hydraulic pipeline can be ensured.
1.It integrates loading, transportation and self-unloading. no need auxiliary equipment and is easy to operate.
2.One truck with many boxes, cyclic transportation, improve the efficiency of vehicle use, reduce costs;
3.The hook arm system with a complete sets of equipment, which is safe and reliable, light weight and high loading quality.
4.The hook arm system adopts the sliding arm articulated structure, which has the advantages of convenient hooking, simple maintenance, small lifting and unloading box body height, and saving length and space.
5.The alarm device connecting chassis and mobile garbage compression box body is set up to ensure that the hook arm system can not unload the box body before the hydraulic quick joint and the box body are detached. Even if the operator misoperate, the safety of the hydraulic pipeline can be ensured.
Company Profile
Hubei Xindongri Special Purpose Vehicle Co., Ltd. is located in Suizhou, Hubei Province. Our company is specialized in special automobiles, like Fire Trucks, Wrecker Trucks, Sewage Suction Trucks, Fecal Suction Trucks, Road Sweepers, Garbage Trucks, Dump Trucks, Sprinkling Trucks, High Pressure Cleaning Trucks, Water Tank Trucks,, Fuel Tank Trucks, Aerial Platform Working Trucks, Truck Cranes, Cargo Trucks, Refrigerator Trucks, Bulk Cement Trucks, Concrete Mixer Trucks, Chemical Liquid Tank Trucks, Drawing Heads, Instructional Trucks, Semi Trailers, and more than 100 kinds of other automobiles.
We have 1500 working staff members, and 20% of them are engineer persons. The asset property of our company comes up to RMB400, 000,000. Our covering area is about 90000 square meters. Our factory is equipped with more than 800 sets of high-tech production and testing equipment, and operates under strict QC guidelines to guarantee high-quality products at competitive prices.
With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially the Mid-East, Southeast Asia, Africa, etc. Meanwhile, OEM orders are welcome. Our products enjoy great popularity among our customers.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us.
We have 1500 working staff members, and 20% of them are engineer persons. The asset property of our company comes up to RMB400, 000,000. Our covering area is about 90000 square meters. Our factory is equipped with more than 800 sets of high-tech production and testing equipment, and operates under strict QC guidelines to guarantee high-quality products at competitive prices.
With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially the Mid-East, Southeast Asia, Africa, etc. Meanwhile, OEM orders are welcome. Our products enjoy great popularity among our customers.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us.
Certifications
Our Advantages
Packing and Shipping
FAQ
1. who are we?
We are based in Hubei, China, start from 2009,sell to Domestic Market(50.00%),Africa(12.00%),Mid East(12.00%),Southeast Asia(10.00%),Eastern Asia(9.00%),South Asia(4.00%),South America(3.00%). There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fire Truck,Wrecker Truck,Aerial Platform Working Truck,Water Truck,garbage truck
4. why should you buy from us not from other suppliers?
Our advantages:
1. manufacturer & factory of special trucks in China
2. years' experience in this fields
3. owns workshop, profesional works & experienced engineers
4. complete procedure for order, production, sales,
5. national & international maket
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DAF,DES；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram;
Language Spoken:English,Chinese
We are based in Hubei, China, start from 2009,sell to Domestic Market(50.00%),Africa(12.00%),Mid East(12.00%),Southeast Asia(10.00%),Eastern Asia(9.00%),South Asia(4.00%),South America(3.00%). There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fire Truck,Wrecker Truck,Aerial Platform Working Truck,Water Truck,garbage truck
4. why should you buy from us not from other suppliers?
Our advantages:
1. manufacturer & factory of special trucks in China
2. years' experience in this fields
3. owns workshop, profesional works & experienced engineers
4. complete procedure for order, production, sales,
5. national & international maket
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DAF,DES；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram;
Language Spoken:English,Chinese
