Products Description

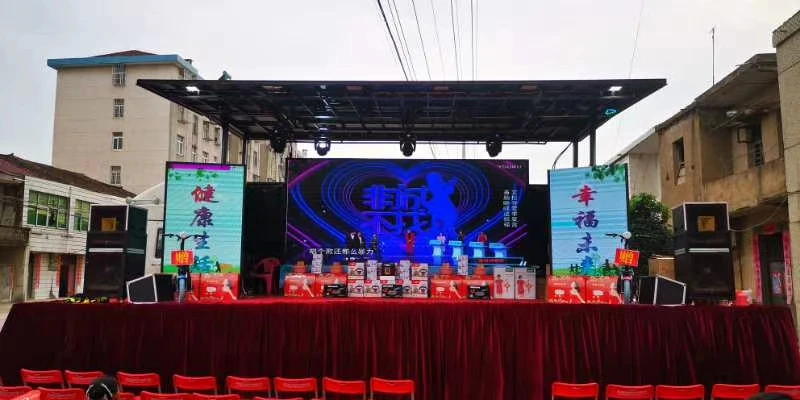

The JAC Stage Truck is a special type of Vehicle that is easy to perform and can be turned into a stage. The utility model mainly comprises two parts: a chassis part and a top loading part, wherein the upper part is composed of a top plate side plate bottom plate, and the side plate and the top plate are respectively controlled by four hydraulic oil cylinders to form a stage top of the stage, and the bottom plate is expanded into four hydraulic cylinders to be controlled into a stage. It saves the traditional set-up procedure, saves time and effort, is easy to operate, safe and reliable, has complete functions and beautiful appearance.
Specification
Xingdongri YZR5160XWTH5 mobile stage truck | ||
Whole Truck | New | |
Type | Mobile stage truck | |
Code | YZR5160XWTH5 | |
Fuel Type | Diesel | |
Dimensions (L x W x H) (mm) | 9070*2550*3700 mm | |
Gross Vehicle Weight | 16000 | |
Loading Weight | 5355 KG | |
Curb Weight | 10450 KG | |
Max Speed | 100 km/h | |
Chassis data | DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman | |
Brand | JAC,optional | |
Wheelbase | 4700 mm | |
Engine | Yuchai 4088ml/115KW | |
Emission | Euro 5, Optional Euro2,3,4 | |
Approach/Departure angel | 27/16° | |
Front/Rear Suspension | 1400/2650 mm | |
Front/Rear axle loading | 5600/10400 KG | |
Tire | 9.00R20 16PR | |
UPPERS | ||
Electric Generator | 6-15KW, Optional | |
Box size | 7600*2495*3950 mm | |
Lateral expansion | Optional Two sides or one side expansion | |
Usable area of stage | ≥60 ㎡ | |
Electrical equipment | Affect device live, broadcast device,optional other | |
*Remark:This is the standard parameter by us, We also can offer the OEM&Customization service for your requirements.* | ||
Company Profile
Hubei Xindongri Special Purpose Vehicle Co., Ltd. is located in Suizhou, Hubei Province. Our company is specialized in special automobiles, like Fire Trucks, Wrecker Trucks, Sewage Suction Trucks, Fecal Suction Trucks, Road Sweepers, Garbage Trucks, Dump Trucks, Sprinkling Trucks, High Pressure Cleaning Trucks, Water Tank Trucks,, Fuel Tank Trucks, Aerial Platform Working Trucks, Truck Cranes, Cargo Trucks, Refrigerator Trucks, Bulk Cement Trucks, Concrete Mixer Trucks, Chemical Liquid Tank Trucks, Drawing Heads, Instructional Trucks, Semi Trailers, and more than 100 kinds of other automobiles.

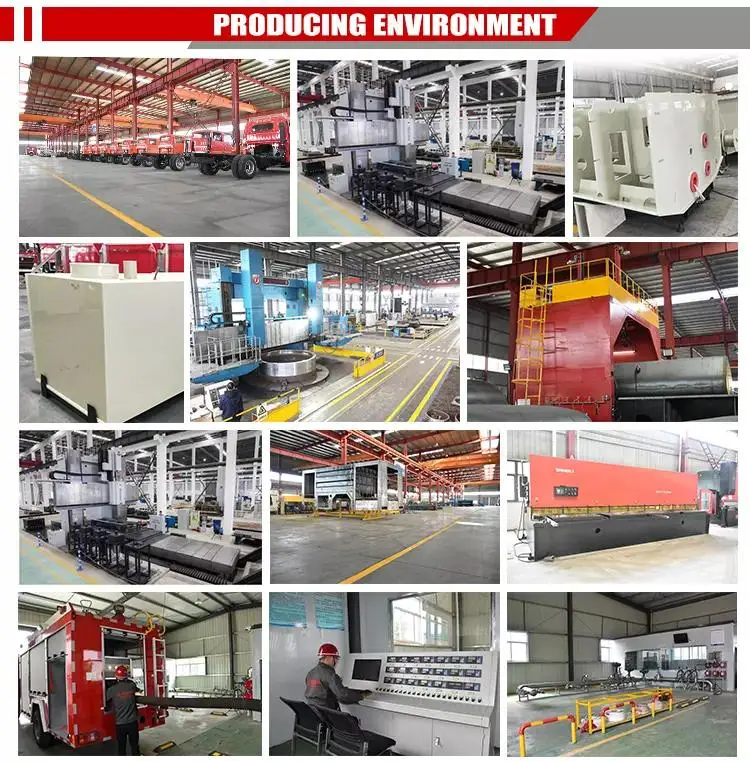

We have 1500 working staff members, and 20% of them are engineer persons. The asset property of our company comes up to RMB300, 000,000. Our covering area is about 90000 square meters. Our factory is equipped with more than 300 sets of high-tech production and testing equipment, and operates under strict QC guidelines to guarantee high-quality products at competitive prices.
With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially the Mid-East, Southeast Asia, Africa, etc. Meanwhile, OEM orders are welcome. Our products enjoy great popularity among our customers.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us.
We have 1500 working staff members, and 20% of them are engineer persons. The asset property of our company comes up to RMB300, 000,000. Our covering area is about 90000 square meters. Our factory is equipped with more than 300 sets of high-tech production and testing equipment, and operates under strict QC guidelines to guarantee high-quality products at competitive prices.
With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially the Mid-East, Southeast Asia, Africa, etc. Meanwhile, OEM orders are welcome. Our products enjoy great popularity among our customers.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us.
Packing & Delivery
FAQ
1. who are we?
We are based in Hubei, China, start from 2009,sell to Domestic Market(50.00%),Africa(12.00%),Mid East(12.00%),Southeast Asia(10.00%),Eastern Asia(9.00%),South Asia(4.00%),South America(3.00%). There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fire Truck,Wrecker Truck,Aerial Platform Working Truck,Water Truck,garbage truck
4. why should you buy from us not from other suppliers?
Our advantages:
1. manufacturer & factory of special trucks in China
2. years' experience in this fields
3. owns workshop, profesional works & experienced engineers
4. complete procedure for order, production, sales,
5. national & international maket
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DAF,DES；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram;
Language Spoken:English,Chinese
We are based in Hubei, China, start from 2009,sell to Domestic Market(50.00%),Africa(12.00%),Mid East(12.00%),Southeast Asia(10.00%),Eastern Asia(9.00%),South Asia(4.00%),South America(3.00%). There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fire Truck,Wrecker Truck,Aerial Platform Working Truck,Water Truck,garbage truck
4. why should you buy from us not from other suppliers?
Our advantages:
1. manufacturer & factory of special trucks in China
2. years' experience in this fields
3. owns workshop, profesional works & experienced engineers
4. complete procedure for order, production, sales,
5. national & international maket
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DAF,DES；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram;
Language Spoken:English,Chinese
