Пластиковая дробилка из полипропилена, 800 кг/ч
US $10000-$28000
Новая измельчитель пластиковых бутылок для домашних животных на
- Категории: Plastic Crushing Machines >>>
- Поставщик: Laizhou,Xushi,Plastic,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Image

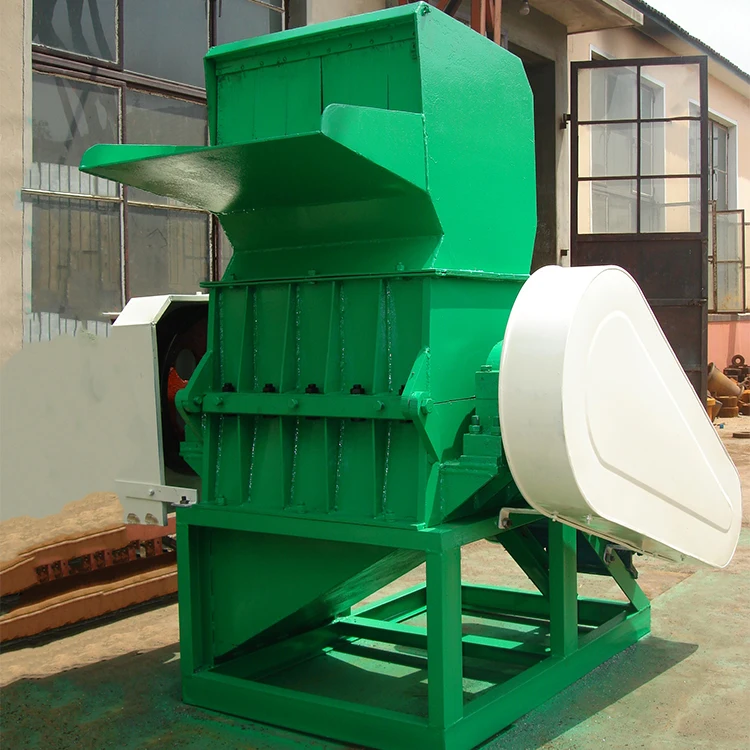

Plastic Crusher
This machine is mainly suitable for crushing film-shaped and filamentous-shaped waste
materials like PE, PVC, PP textile bags and polyester.
After using the optional fastening screw bottom, it can also be used for crushing PE/PET and other hard waste pipes, boards,
plastic and rubber products.
materials like PE, PVC, PP textile bags and polyester.
After using the optional fastening screw bottom, it can also be used for crushing PE/PET and other hard waste pipes, boards,
plastic and rubber products.

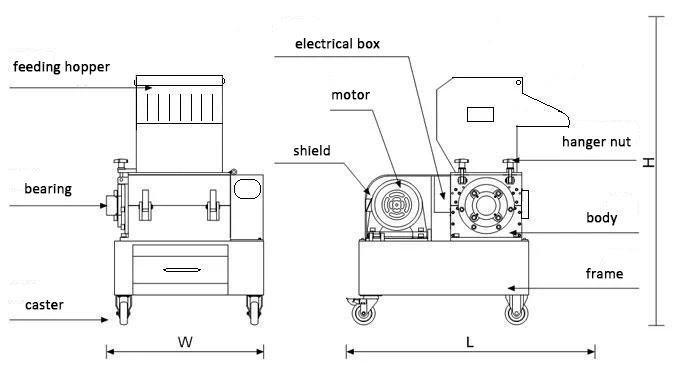

Product Drawing
Product Features
The main box body is welded with the exclusive design of double-layer steel plate (Japanese design scheme).
The interlayer is welded to strengthen the vertical plate, which improves the fatigue resistance and impact resistance, and effectively isolates noise.
Adjustable nine-knife spindle can reduce the bearing capacity of the bearing seat while ensuring concentricity.
The bottom grid can be changed easily according to different material specifications.
Automatic box opening is equipped with so tool change or bolts fastening doesn’t need manual operation.
Adjustable nine-knife spindle can reduce the bearing capacity of the bearing seat while ensuring concentricity.
The bottom grid can be changed easily according to different material specifications.
Automatic box opening is equipped with so tool change or bolts fastening doesn’t need manual operation.
Plastic Crusher Design
①Way In
Flat opening
Slanted opening
②Way Out
Directly to the ground
Double outlets
With upward screw feeder
③Matched Equipment
With washer
With dust remover
With water cooling device
All our products are customized. You can design your plastic crusher into any color.
Specification
Model | SWP500 | SWP600 | SWP800 | SWP1000 | SWP1200 | SWP1500 |
Main Drive Power | Y180M-4 18.5kw 380V50Hz | Y200L-4 30kw 380V50Hz | Y225M-4 45kw 380V50Hz | Y250M-4 55kw 380V50Hz | Y280S-4 75kw 380V50Hz | Y280M-4 90kw 380V50Hz |
Spindle Speed | 720rpm | 680rpm | 680rpm | 680rpm | 600rpm | 600rpm |
Swing Diameter | 400mm | 450mm | 600mm | 700mm | 850mm | 1100mm |
Blade Length | 500mm | 600mm | 800mm | 1000mm | 1200mm | 1500mm |
Dimensions (approx.) | 1210X1370X1450mm | 1370X1590X1660mm | 1620X1840X1890mm | 1880X1990X2100mm | 2370X2300X2460mm | 2790X2590X2650mm |
Weight (approx.) | 1200kg | 2100kg | 2800kg | 3700kg | 4900kg | 6000kg |
This specification is for reference. Contact us to get the best recommendation.
Packing & Delivery

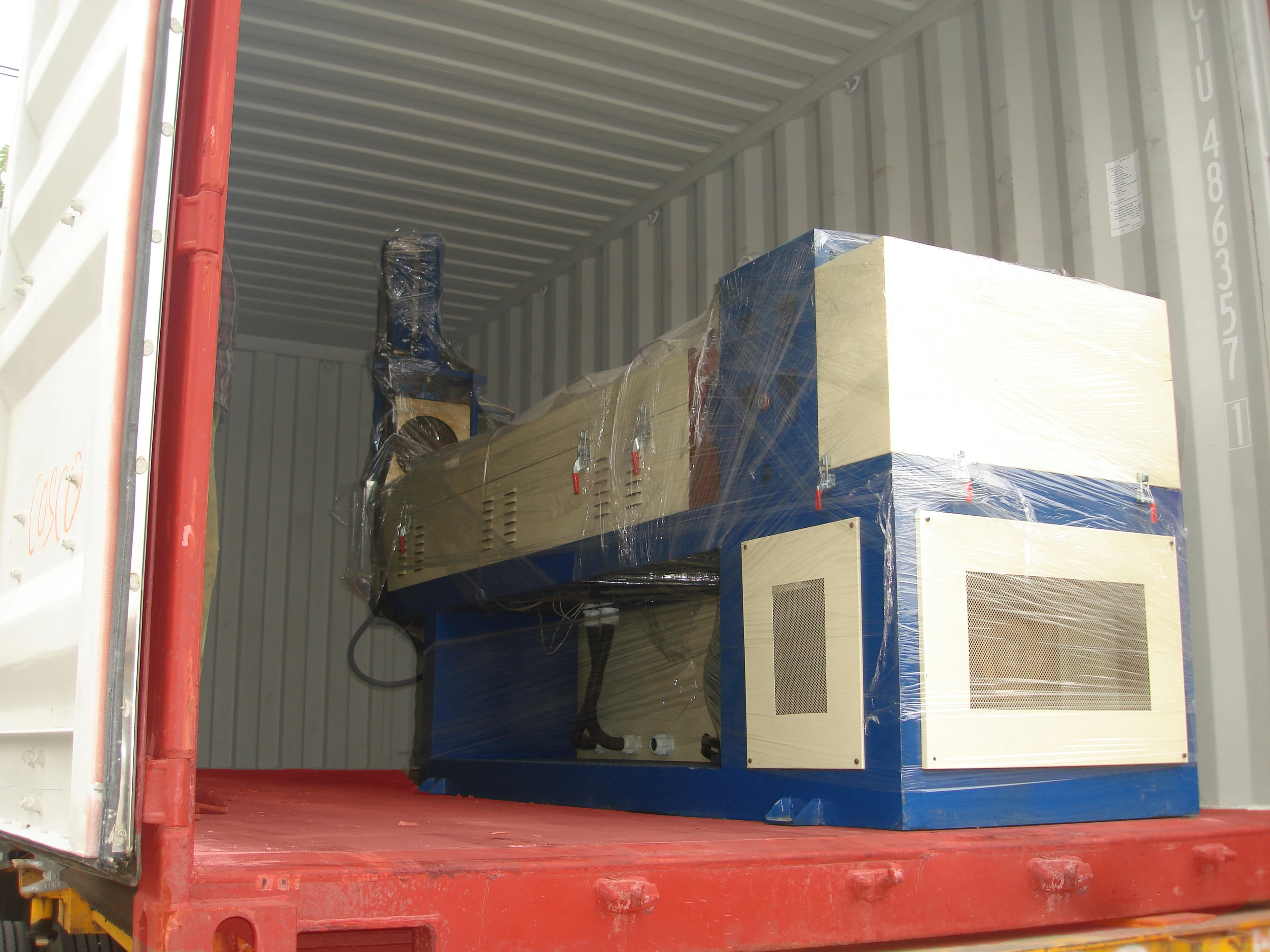

To better ensure the safety of your goods, we pack them with plastic film and fix them with iron wires.
Company Profile
Our Company

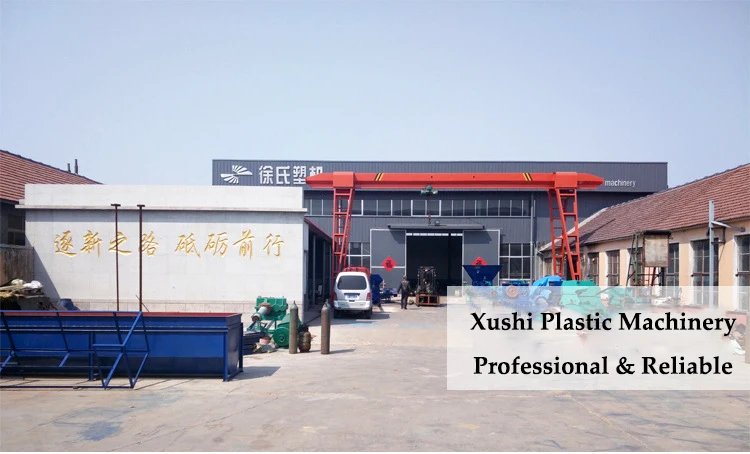

Laizhou Xushi Plastic Machinery Co., Ltd
Xushi is located in Luwang Town, Laizhou City, which is known as the "Northern Plastic Base" in Jiaodong Peninsula. Founded in 1988, Xushi is a private enterprise integrating R&D, producing and processing as well as sales. There are 40 workers in our company.
We respect contracts and keep promises, and we are willing to work with you to seek win-win cooperation!
Our Advantage
R&D and Design
We have professional R&D and management group, paying attention to quality.
Our special design makes beautiful and elegant appearance.
Our special design makes beautiful and elegant appearance.
Service
We provide customization according to your demand in specification and function.
24-hour online service ensures instruction about installation and operation.

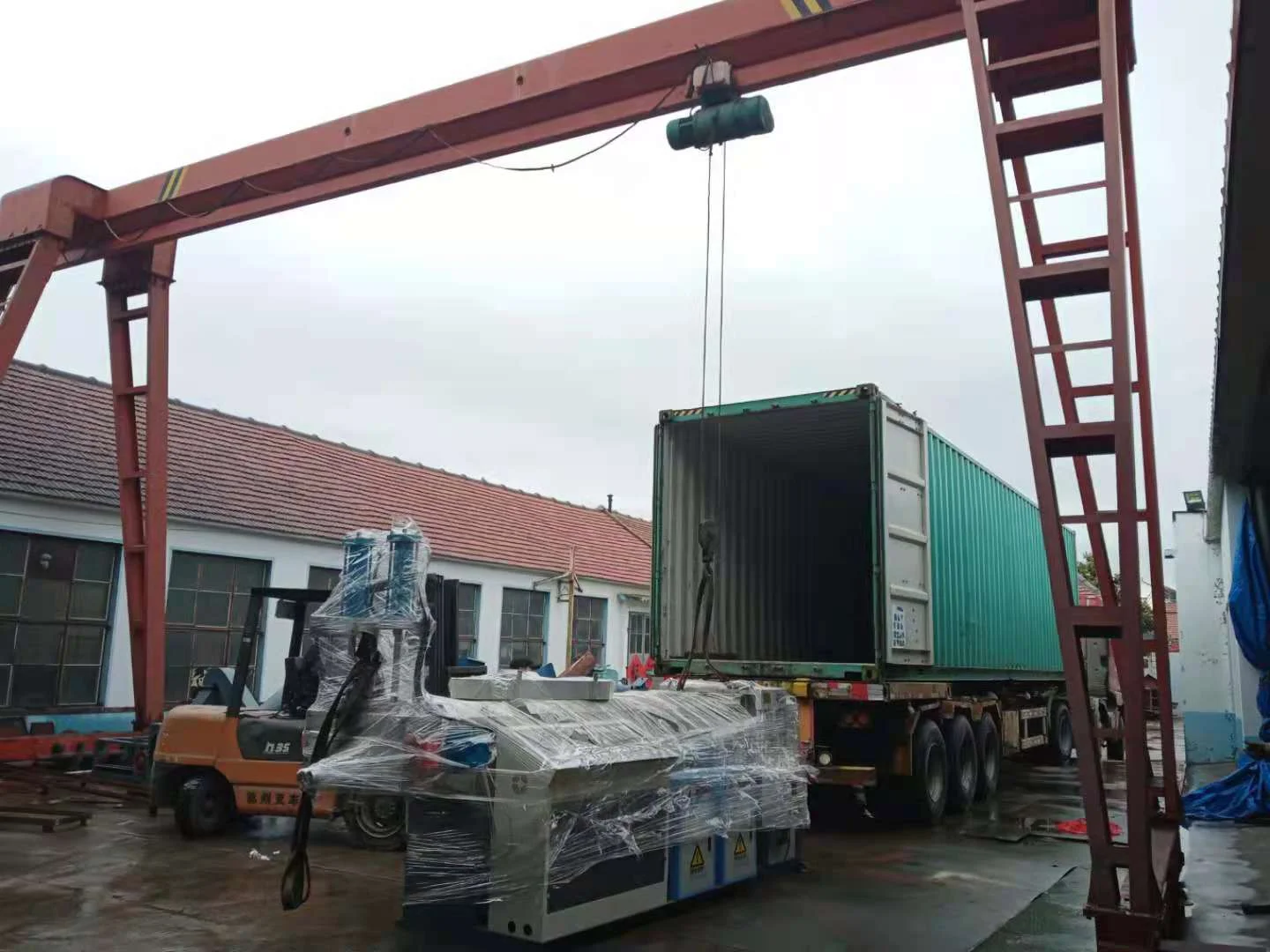

Delivery
We have short production cycle which makes fast delivery.
We protect your products with plastic film and fix them with iron wires.
We protect your products with plastic film and fix them with iron wires.
Our Certification
Our Customers
Indian customers
Pakistan customers
American customers
FAQ
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% T/T before delivery. We'll show you the photos of the products and packages before you pay the balance. Other payment terms can also be negotiated.
Q. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q. Can you produce according to the samples?
A: Yes, we can produce mold by your samples or technical drawings.
Q. Do you test all your machines before delivery?
A: Yes, we have 100% tested before delivery.
Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q. Can you produce according to the samples?
A: Yes, we can produce mold by your samples or technical drawings.
Q. Do you test all your machines before delivery?
A: Yes, we have 100% tested before delivery.
Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
