Пластиковая дробилка из полипропилена, 800 кг/ч
US $10000-$28000
Автоматическая машина для измельчения пластиковых отходов
- Категории: Plastic Crushing Machines >>>
- Поставщик: Qingdao,Kaichenda,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
PRODUCT SPECIFICATIONS
Model | KD-500 | KD-600 | KD-800 | KD-1000 | KD-1200 | KD-1500 |
Main Drive Power | Y180M-4 18.5kw 380V50Hz | Y200L-4 30kw 380V50Hz | Y225M-4 45kw 380V50Hz | Y250M-4 55kw 380V50Hz | Y280S-4 75kw 380V50Hz | Y280M-4 90kw 380V50Hz |
Spindle Speed | 720rpm | 680rpm | 680rpm | 680rpm | 600rpm | 600rpm |
Swing Diameter | 400mm | 450mm | 600mm | 700mm | 850mm | 1100mm |
Blade Length | 500mm | 600mm | 800mm | 1000mm | 1200mm | 1500mm |
Dimensions (approx.) | 1210X1370X1450mm | 1370X1590X1660mm | 1620X1840X1890mm | 1880X1990X2100mm | 2370X2300X2460mm | 2790X2590X2650mm |
Weight (approx.) | 1200kg | 2100kg | 2800kg | 3700kg | 4900kg | 6000kg |
Product Overview
plastic crushing machines

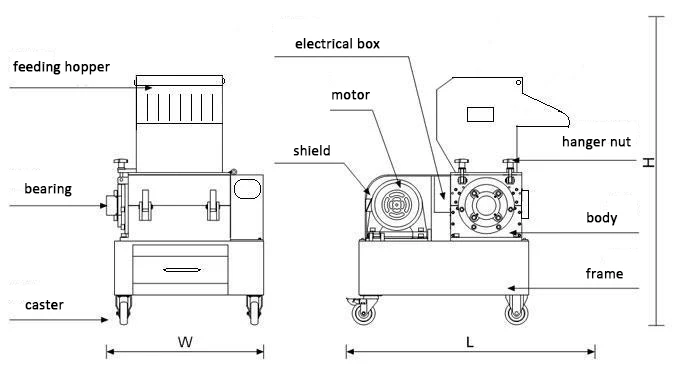

It consists of a knife holder, a knife, a pulley, a brushing net, a feed bin, a base, and a discharge port. The belt wheel driven
by the motor drives the knife holder to rotate at a high speed. The material is broken by the moving knife and the fixed knife,and then the screen is evenly sent out of the outlet.
by the motor drives the knife holder to rotate at a high speed. The material is broken by the moving knife and the fixed knife,and then the screen is evenly sent out of the outlet.
1: The design of the mineral water bottle crusher is reasonable, and the body is welded with high-quality steel with superior quality.
2: Adopt high-strength screws to fix, the structure is firm and durable.
3: The design of the main engine is delicate and ingenious, and the scrap material adopts a separate design to make the
output higher, and the more reasonable design increases the output and efficiency.
output higher, and the more reasonable design increases the output and efficiency.
4: The processed and broken products are uniform and low loss. Multiple screens can be replaced at the same time to meet different needs, humanized selection, suitable for multiple crushing needs.
5: Equipped with different materials at the same time, so that it can be adjusted for different materials, can be adjusted, repaired, and has a long life. All parts can be easily disassembled and cleaned.
6: Advanced structure, beautiful appearance, simple operation, stable operation, low investment and high efficiency.
7: Equipped with an enlarged pulley to increase the inertia of the crusher, which can save energy and powerfully crush.
Features:
1: There is no need for complicated operations, and the shredder can be safely disassembled and assembled, and the various parts can also be easily disassembled.
2: Only need to install on a flat and solid concrete floor:
3: The cutting tool is made of imported high-quality steel, which can be more sharpened and used repeatedly:
4: Large crushing capacity, high output and
stable work.
stable work.
5: The size and shape of the feeding box can be customized according to user requirements.

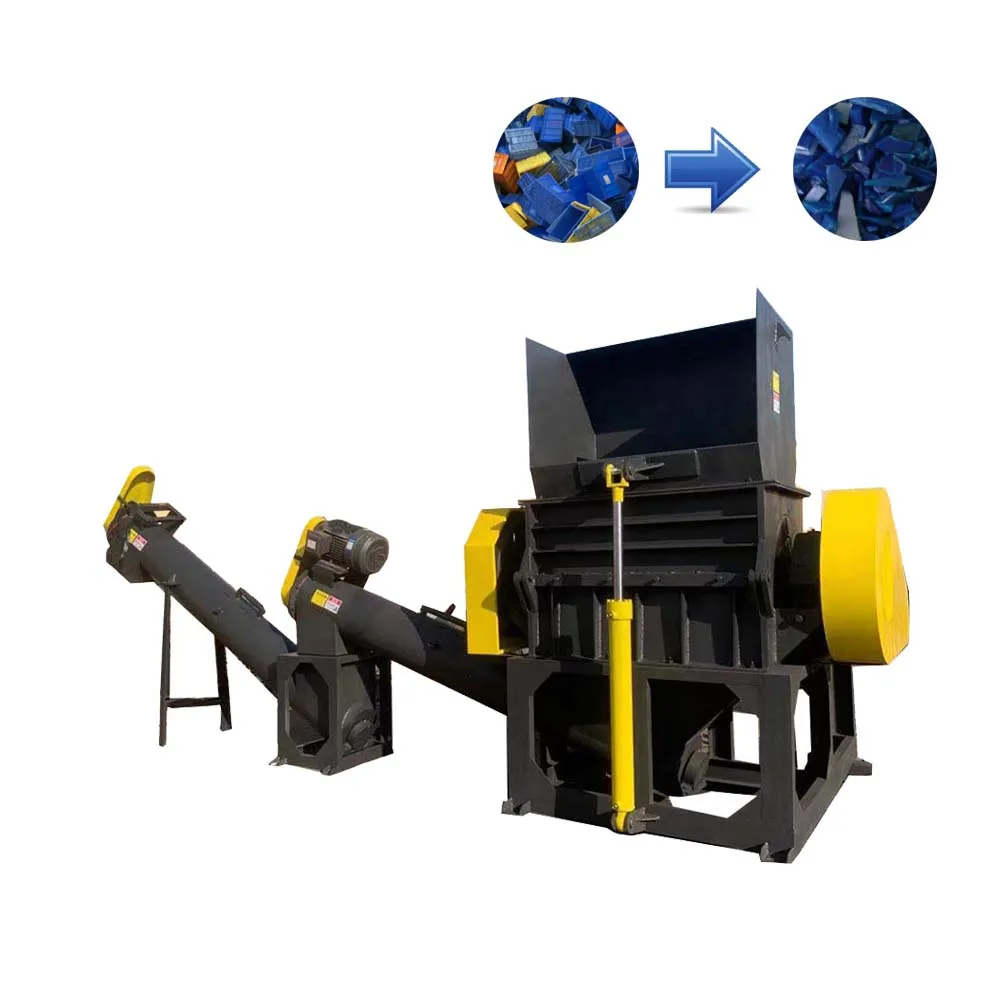

Plastic Crushing Washing Machine
Plastic crushing machine
Plastic Crushing Washing Machine
FEATURES AT A GLANCE
Flake cutter blades are suitable for recycling and restoring of conventional sheets, tube plastics, profiles, packing plastics,extrusion mold products and runners, etc.
PRODUCT CONFIGURATION

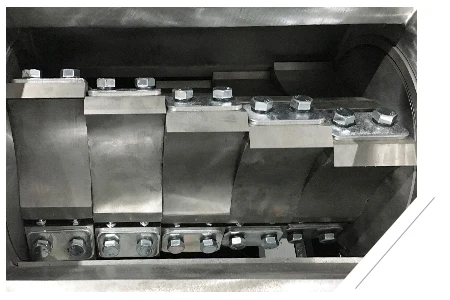

Durable Cutter
▪Flake type blade design, blades are made of high-strength alloy tool steel, with high hardness, good abrasion resistance, and long durability.
▪Material: CR12MOV, hardness in 57-59°
▪Material: CR12MOV, hardness in 57-59°

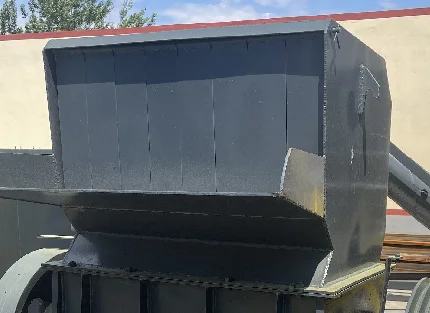

Feeder hopper design
Feeding hopper with back and front double layered insulation for effective noise handling.

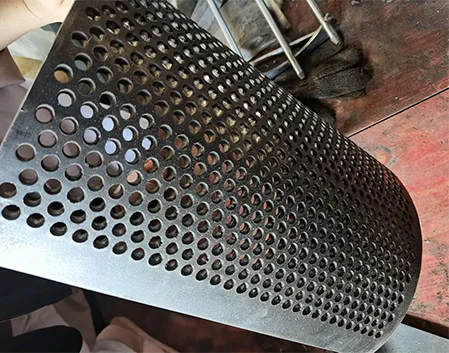

Screen unit
a wide range of screens with a variety of configurations and mesh sizes are replaceable based on customer’s production requirements. The paper shredder will automatically stop while opening the screen unit to ensure operator safety. The screen is produced and mounted in sections, allow for easy maintenance

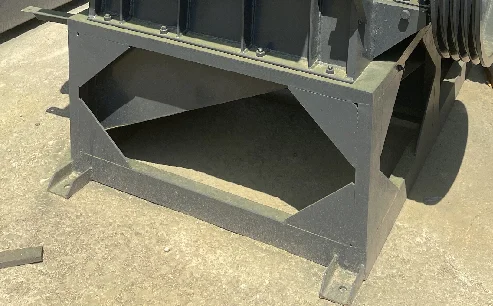

Chamber Wall Thickness
Chamber wall thickness 20~50mm, more stable in crushing process due to better load-bearing, hence with higher durability.

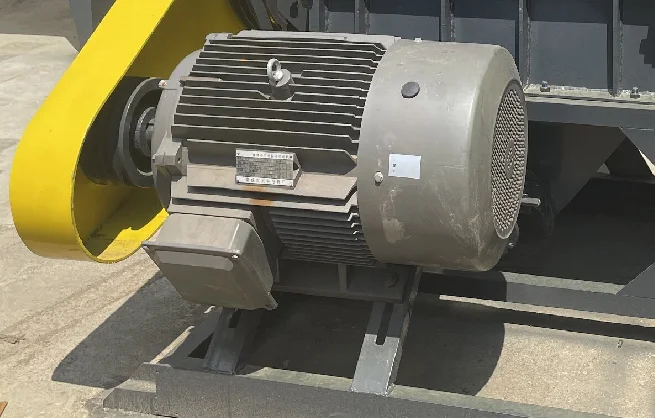

Motor
The motor adopts all copper wire motor，long life and durable.
Company Profile
Shandong Laizhou Kaida Plastic Machinery Co., Ltd
The company mainly produces various types of plastic machinery, including plastic granulators, plastic cleaning machines, plastic packaging machines, plastic cutting machines, PVC hard pipe machines, pet bottle and chip cleaning lines, plastic mixing machines,plastic dewatering machines, plastic film blowing machines, drip irrigation belt units, pouring pipe units, automatic hydraulic grinding heads, plastic grinding machines, and other products. The product design is simple and easy to operate, and has high work efficiency. All production processes of our factory's products must undergo quality inspection to ensure product quality.
Packing & Delivery
Packing procedure:
(1) Wipe the machine with anti-rust oil.
(2) Pack the machine with wrapping film or bubble film.
(3) Put the machine in the container or wooden box.
(4) Fix the machine with wire or nail.
Delievery time：
(1)Machine: about 40-45 days.If you are urgent, we can help you with free expedited processing. 7 working days is possible because of the machine in the stock specially for urgent customers.
(2)Spare parts: 1-7 days according to different models.
(3)Auxiliary machine: 3-25 days according to different machine.
(2) Pack the machine with wrapping film or bubble film.
(3) Put the machine in the container or wooden box.
(4) Fix the machine with wire or nail.
Delievery time：
(1)Machine: about 40-45 days.If you are urgent, we can help you with free expedited processing. 7 working days is possible because of the machine in the stock specially for urgent customers.
(2)Spare parts: 1-7 days according to different models.
(3)Auxiliary machine: 3-25 days according to different machine.
Successful Project
We Provide Excellent After-sales Service
● When all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory.
● After the commissioning, we will package the equipment by the standard export package for shipment.
● After appointment with the customer, our engineers will go to the customers' factory for installation and training.
● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
● After appointment with the customer, our engineers will go to the customers' factory for installation and training.
● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
Project in America
Project in India
Project in Spain
SIMILAR PRODUCTS
FAQ
Q:All of your products are made by your self or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
A:The price depends on quality and performance but the clients should be satisfied first.
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clientsalso we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
Q: Are you trading company or manufacturer?
A:We are factoryWe have the technical production teamand the workers are all very experienced.
